Negative oxygen ion tester

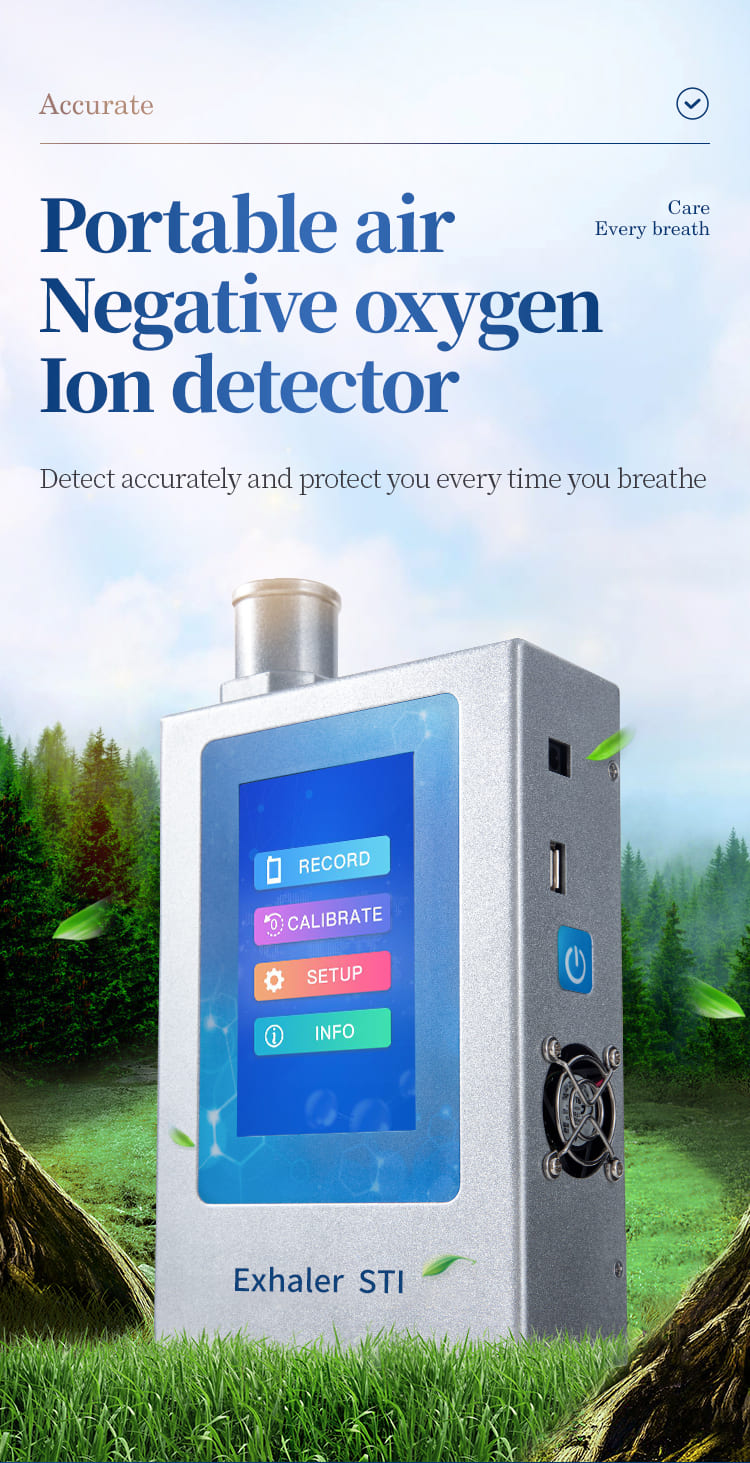

HM-FY4 Negative Oxygen Ion Tester

Features: mobile measurement | instant on/off measurement | intuitive reading | simple operation | ultra long standby time

Product Introduction:

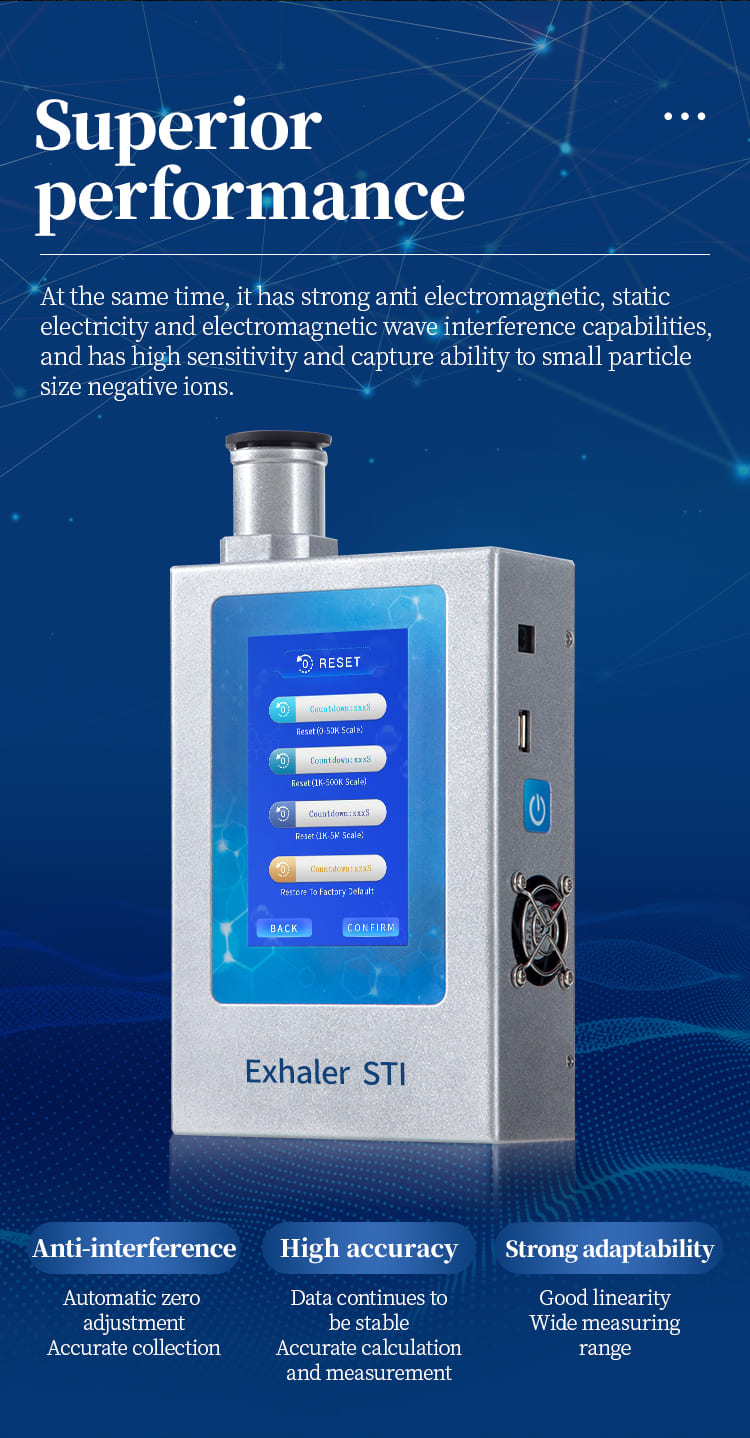

HM-FY4 negative oxygen ion tester is a high-precision and professional instrument for detecting and analyzing air negative ions, formaldehyde, PM2.5, PM10, and air temperature and humidity. Adopting an advanced cylindrical capacitor structure with a negative (oxygen) ion capture mechanism, the negative (oxygen) ions contained in the atmosphere are captured and then statistically calculated using a unique algorithm. It has the advantages of stable measurement process, rapid response, and accurate measurement results. At the same time, it has strong resistance to electromagnetic, static electricity, and electromagnetic wave interference, excellent sensitivity and capture ability to small particle size negative ions, and overall superior performance.

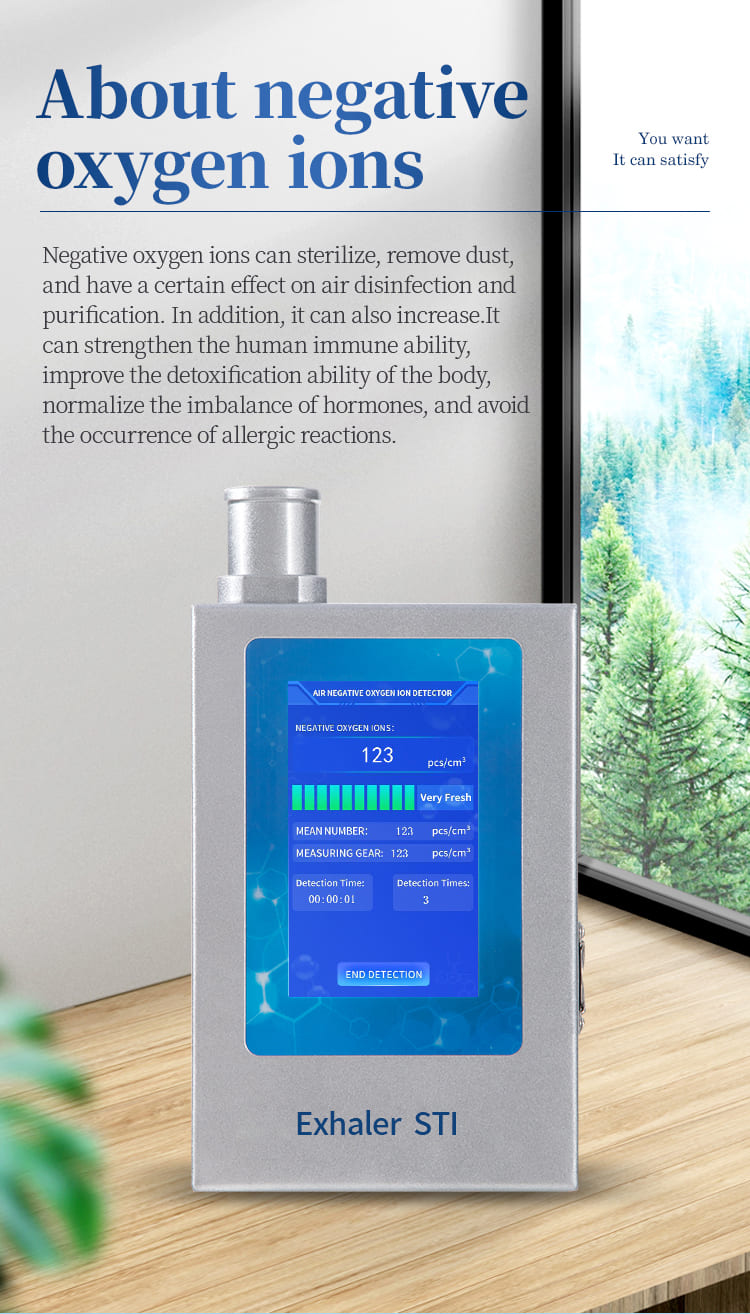

The HM-FY4 negative oxygen ion tester is easy to operate, with a 5.0-inch full-color large screen displaying real-time measurement data, instrument working status, and automatic calculation of average values. Operators with zero foundation can quickly measure without professional training.

Product application:

Real time measurement of atmospheric negative oxygen ion concentration, formaldehyde concentration, PM2.5, PM10, temperature and humidity in the air is a preferred tool for environmental detection, nano coatings, negative ion health products, negative ion home decoration materials, indoor testing, air governance, air purifiers and their products to measure and demonstrate negative ion concentration.

Working principle:

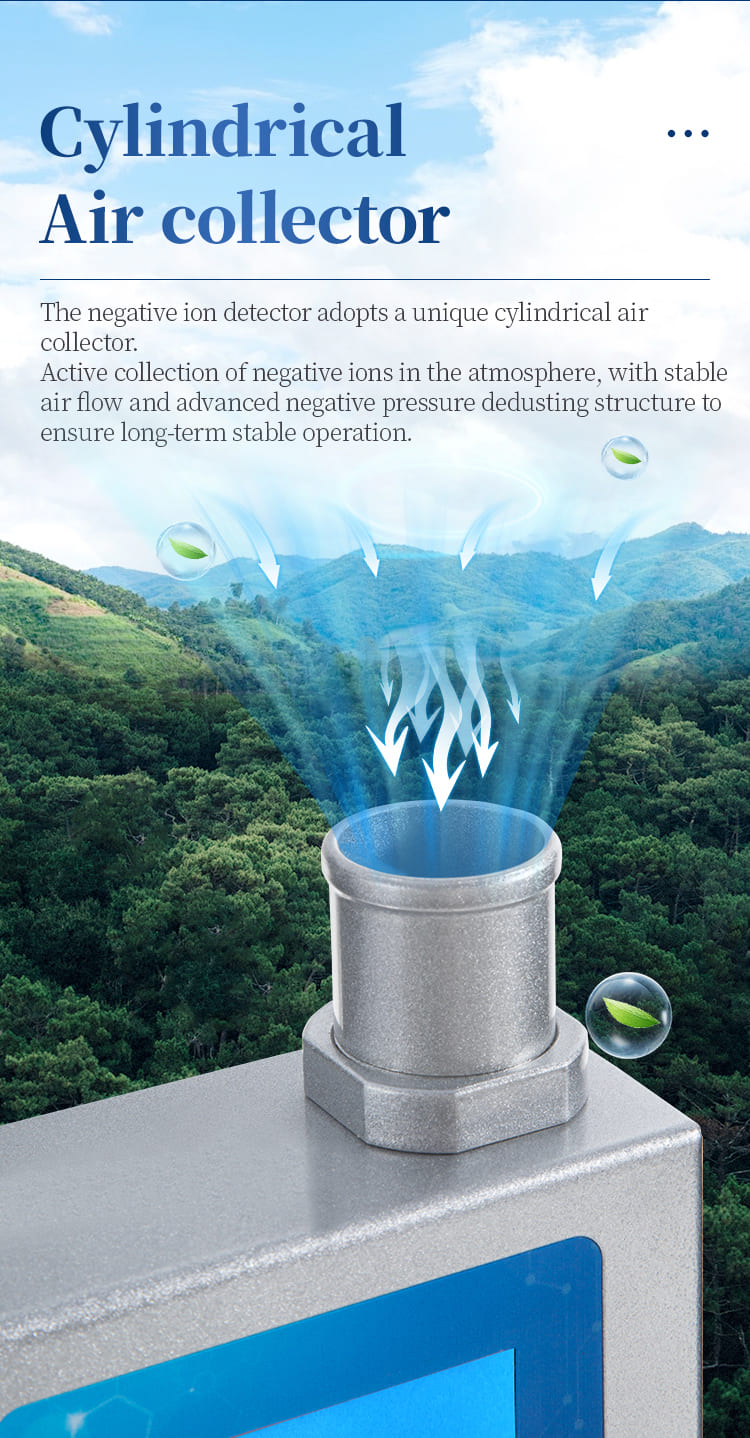

Using the principle of "capacitive suction method" for negative ion detection, measure the concentration of negative ions in the air. Load a quantitative polarization voltage onto the polarization plate (or bias plate) of the ion sensor (or collection bucket, collection cylinder), and then let the measured air pass through the sensor at a constant speed according to the set speed. Specific small particle size negative ions in the air deflect under the action of an electric field and are captured by the collection plate. The collected amount of negative ions and negative charges can be processed by the collector to calculate the charge concentration value of negative ions.

Advantages and characteristics:

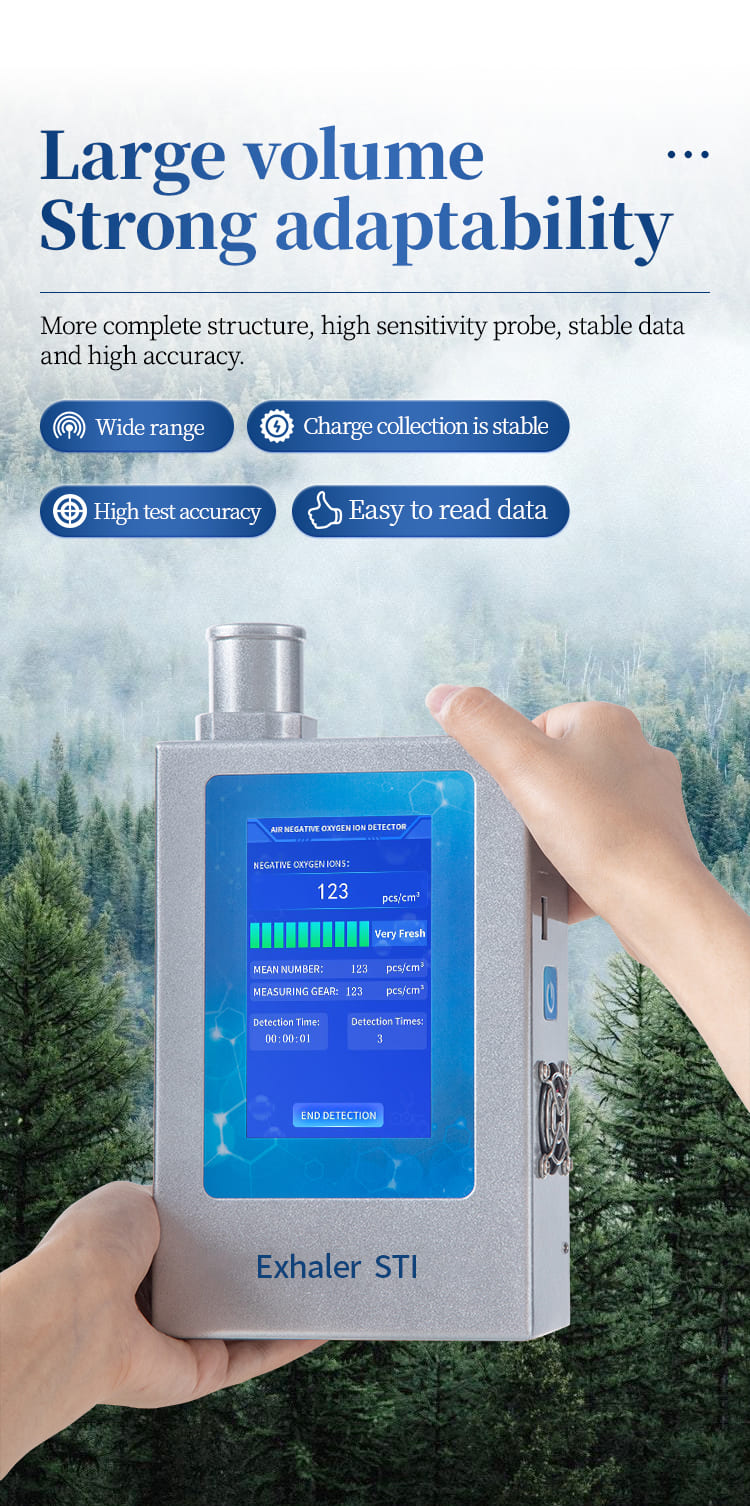

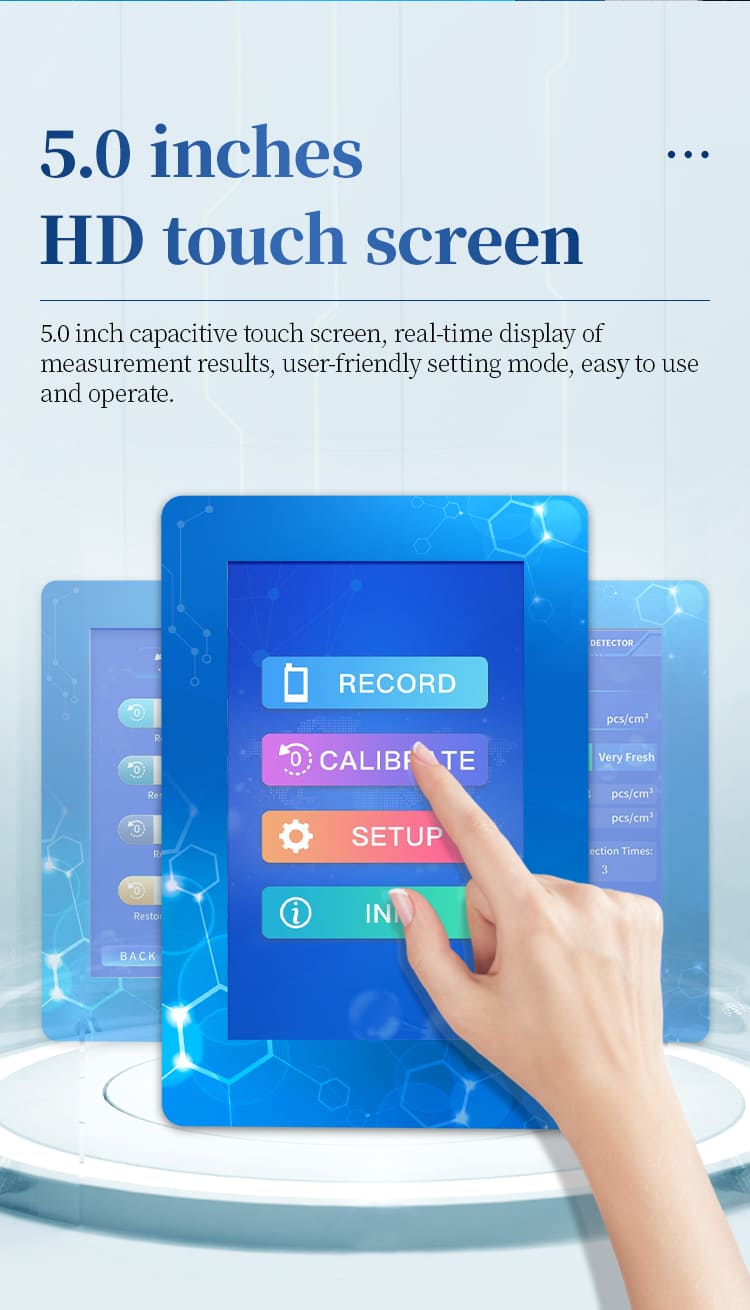

1. Screen display: 5.0-inch capacitive touch screen, 800 * 480 high resolution, real-time display of multi parameter measurement results;

2. Accurate measurement: Adopting the internationally advanced cylindrical capacitive suction method as the measurement method;

3. Compact size: compact internal structure and exquisite appearance, suitable for various environmental inspections, convenient for mobile use;

4. Ultra long standby: Equipped with a large capacity lithium battery (12V 3000mAh), it is not limited by power and site, and can be tested immediately upon opening;

5. Sensitive response: The data refresh rate reaches 1 second/time;

6. Easy to operate: The instrument is easy and direct to operate, with clear and clear full-color font display;

Technical parameters:

Negative ion concentration:

Measurement function: manual measurement, automatic measurement;

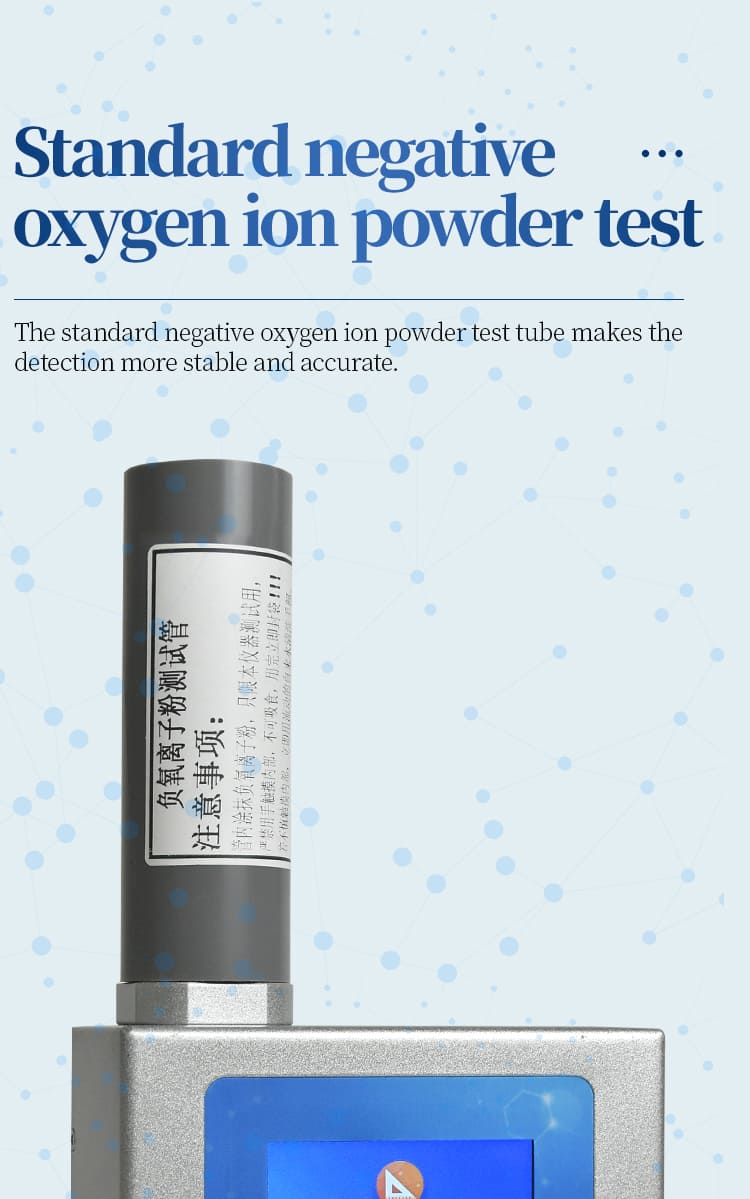

Measurement method: Negative (oxygen) ion capture mechanism of cylindrical capacitor structure;

Range: 0-100000 gears, 10-1 million gears, 10-10 million gears;

Measurement accuracy: ± 5%

Resolution: 1 unit/cm3

Migration rate: 0.4-1.0 (cm2/V * sec)

Measurement interval: 1 second/time

Measurement mode: continuous

Communication interface: USB

Working environment: Temperature: 0-60 ℃; Humidity: 0-85% RH

Power supply: DC12V 1A adapter

Built in battery: battery power supply time ≥ 8 hours

Average power consumption: ≤ 2W

External dimensions: 200mm * 132mm * 58mm

Body weight: 1kg

Shell material: Metal

Formaldehyde parameters:

Display data units: ppm and mg/m ³；

Range: 0-5ppm;

Resolution: 0.01ppm;

Preheating time: less than 3 minutes;

Response time: less than 60 seconds;

Recovery time: less than 60 seconds;

Working temperature: -20 ℃~50 ℃;

Working humidity: 15% RH~90% RH (without condensation);

Storage temperature: 0 ℃~25 ℃;

Service life: 5 years (18 ℃ -25 ℃ in air)

PM2.5/pm10 parameters:

Display data: PM2.5 and PM10;

Measurement range: 0.3~10 μ M;

Effective range of particulate matter mass concentration: 700 μ G/m ³；

Particle concentration * large range: greater than 1000 μ G/m ³；

Particle mass concentration resolution: 1 μ G/m ³；

Response time: 1-10 seconds;

Working temperature: -10 ℃~60 ℃;

Storage temperature: -30 ℃~80 ℃;

Working humidity (non aqueous): 5% RH~80% RH;

Storage humidity (non aqueous): 0% RH~95% RH;

Consistency of particle mass concentration (0-100) μ G/m ³）：  ± 10 μ G/m ³；

Consistency of particle mass concentration (≥ 100 μ G/m ³）： ± 10% μ G/m ³；

Temperature and humidity parameters:

Temperature range: -40 ℃~+125 ℃; Accuracy: ± 0.3 ℃

Humidity range: 0% HR - * * * HR; Accuracy: ± 3% HR

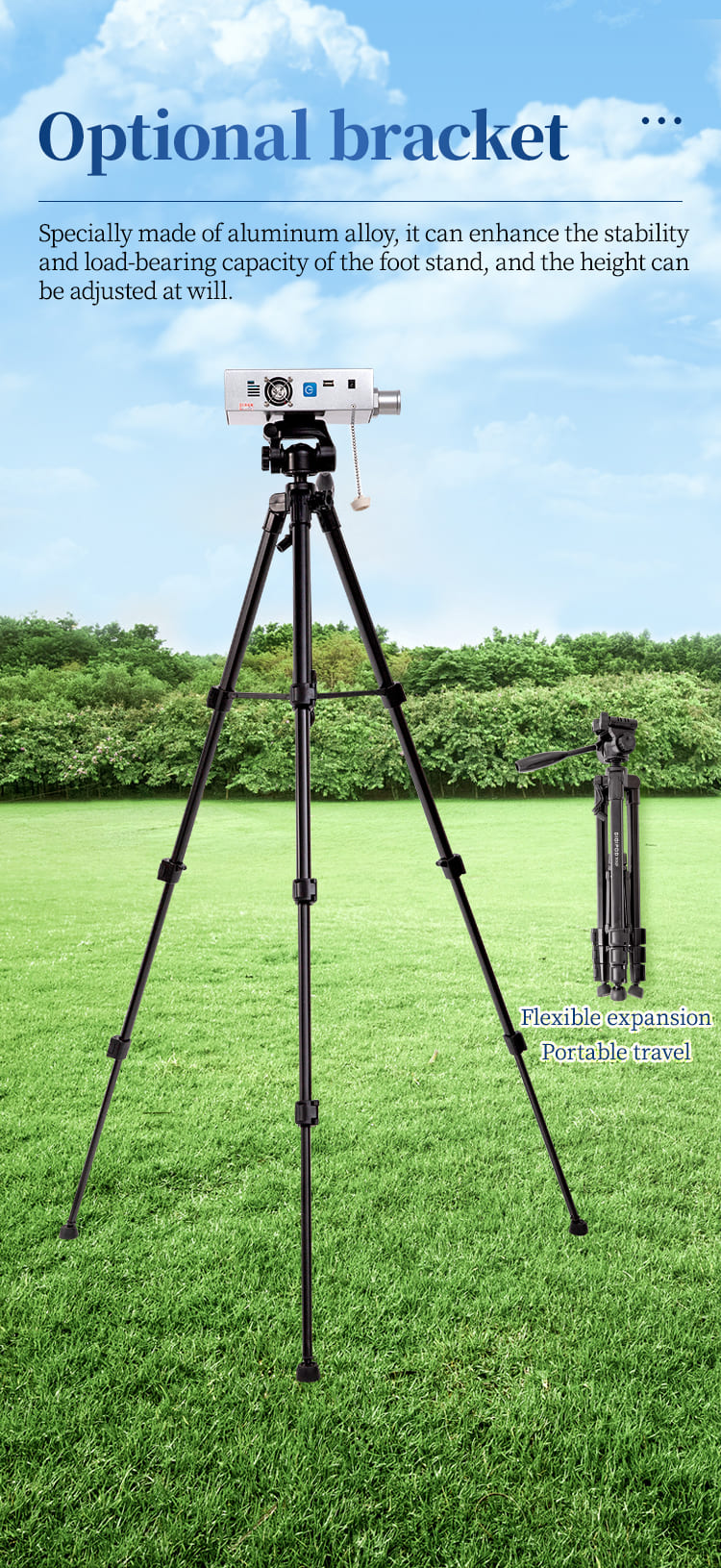

Installation bracket: tripod (optional)

Supporting accessories: adapter, cleaning brush, USB data cable, dedicated protective suitcase
