Negative ion detector

Product Number：

HM-FY1

Product Difference：

Real time measurement of atmospheric negative oxygen ion concentration in the air.

17853698681 Consultation icon

Product Details

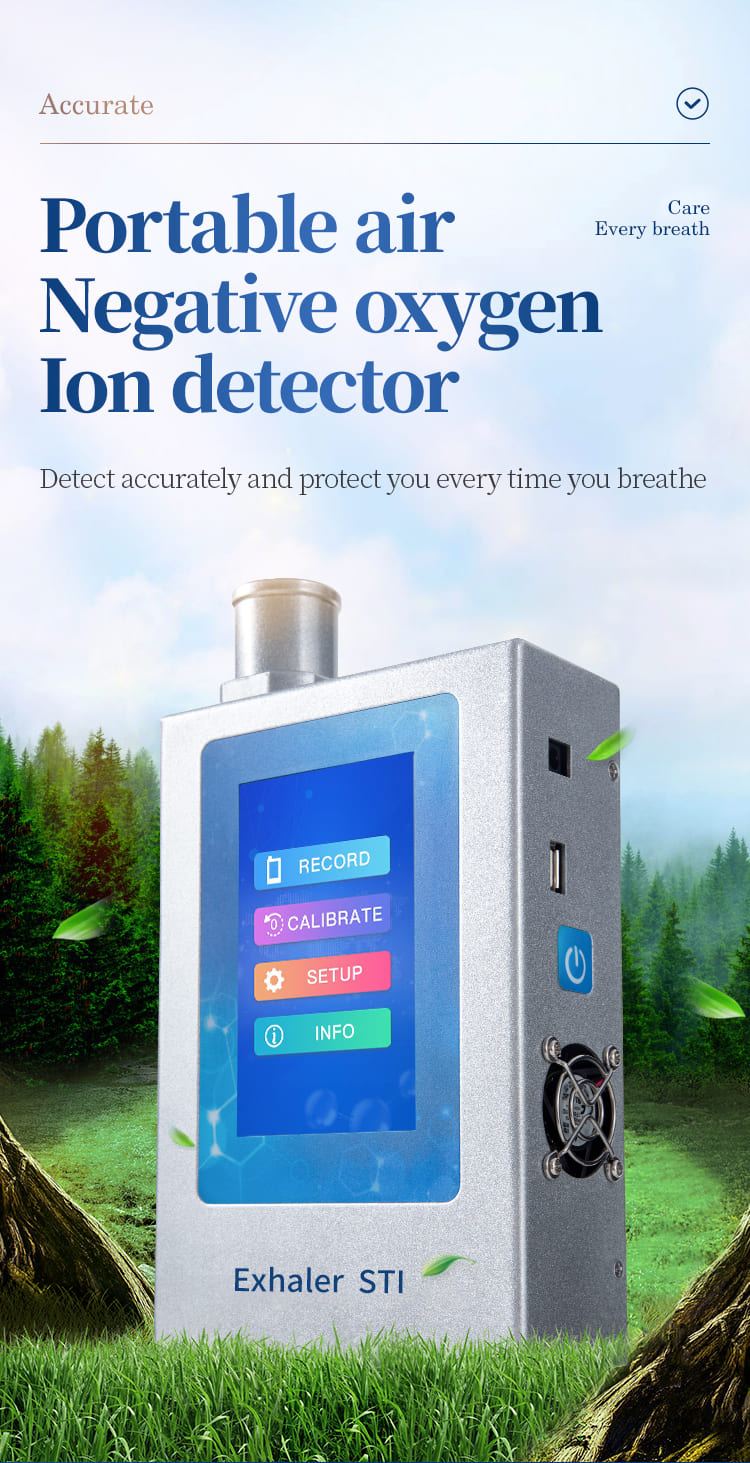

HM-FY1 portable negative (oxygen) ion detector

Features: mobile measurement | instant on/off measurement | intuitive reading | simple operation | ultra long standby time

Instrument Introduction:

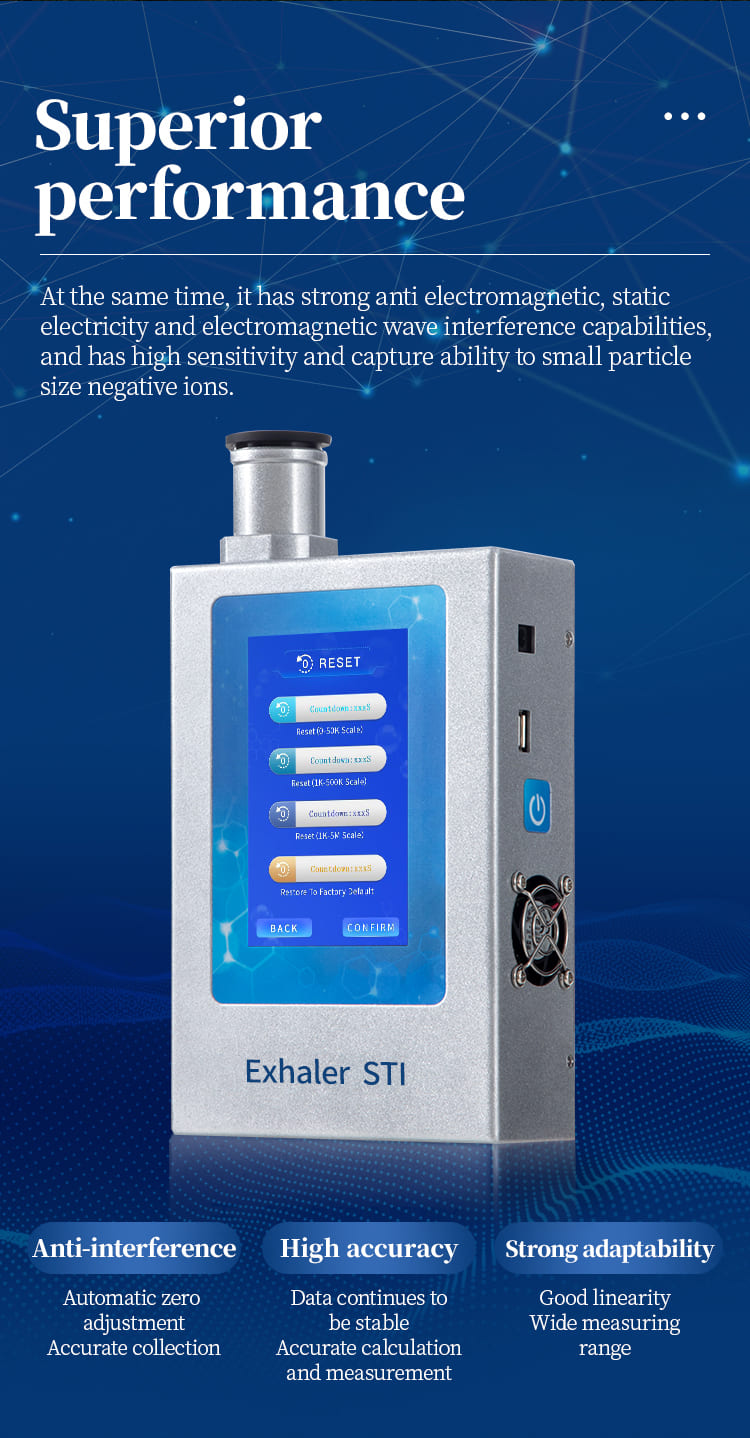

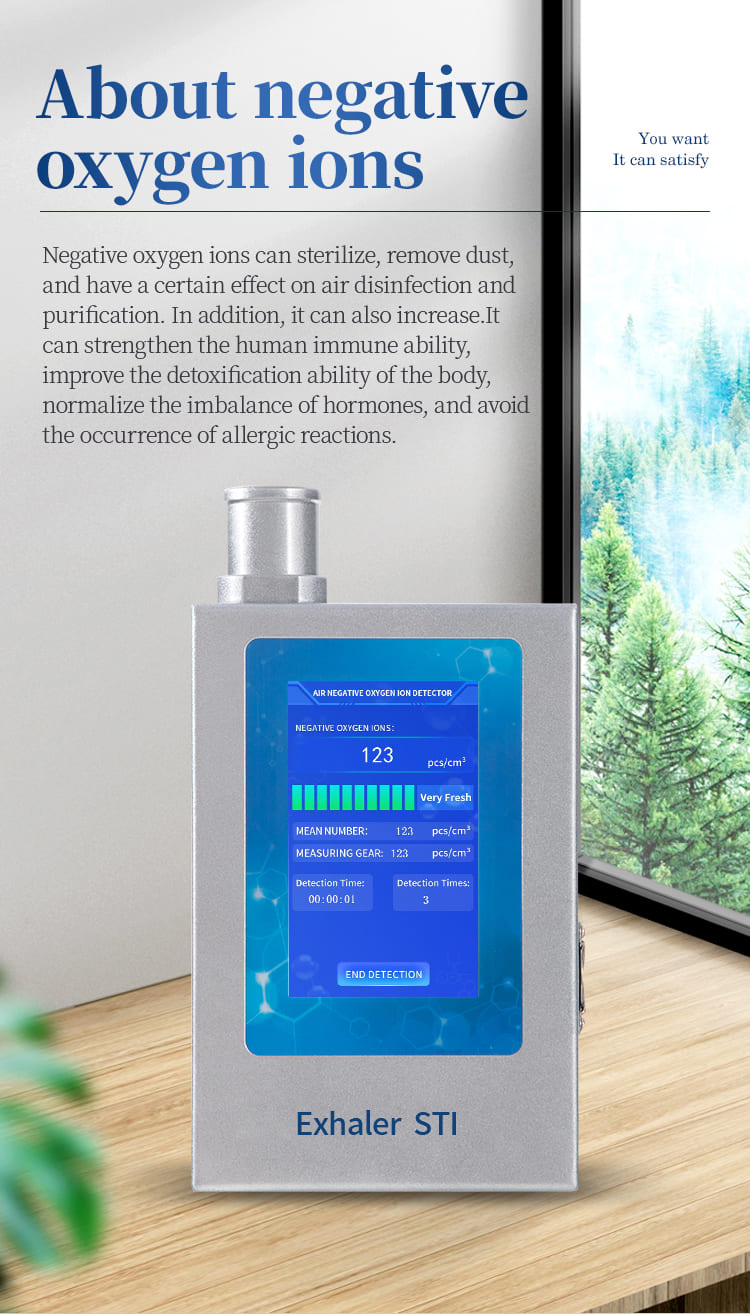

HM-FY1 portable negative (oxygen) ion detector is a high-precision and professional air negative ion detection and analysis instrument. Adopting an advanced cylindrical capacitor structure with a negative (oxygen) ion capture mechanism, the negative (oxygen) ions contained in the atmosphere are captured and then statistically calculated using a unique algorithm. It has the advantages of stable measurement process, rapid response, and accurate measurement results. At the same time, it has strong resistance to electromagnetic, static electricity, and electromagnetic wave interference, excellent sensitivity and capture ability to small particle size negative ions, and overall superior performance.

The HM-FY1 portable negative (oxygen) ion detector is easy to operate, with a 5.0-inch full-color large screen displaying real-time measurement data, instrument working status, and automatic calculation of average values. Operators with zero foundation can quickly measure without professional training.

Application field:

Real time measurement of atmospheric negative ion concentration in the air is a preferred tool for environmental monitoring, nano coatings, negative ion health products, negative ion home decoration materials, indoor testing, air governance, air purifiers and their products to measure and demonstrate negative ion concentration.

Working principle:

Using the principle of "capacitive suction method" for negative ion detection, measure the concentration of negative ions in the air. Load a quantitative polarization voltage onto the polarization plate (or bias plate) of the ion sensor (or collection bucket, collection cylinder), and then let the measured air pass through the sensor at a constant speed according to the set speed. Specific small particle size negative ions in the air deflect under the action of an electric field and are captured by the collection plate. The collected amount of negative ions and negative charges can be processed by the collector to calculate the charge concentration value of negative ions.

Advantages and characteristics:

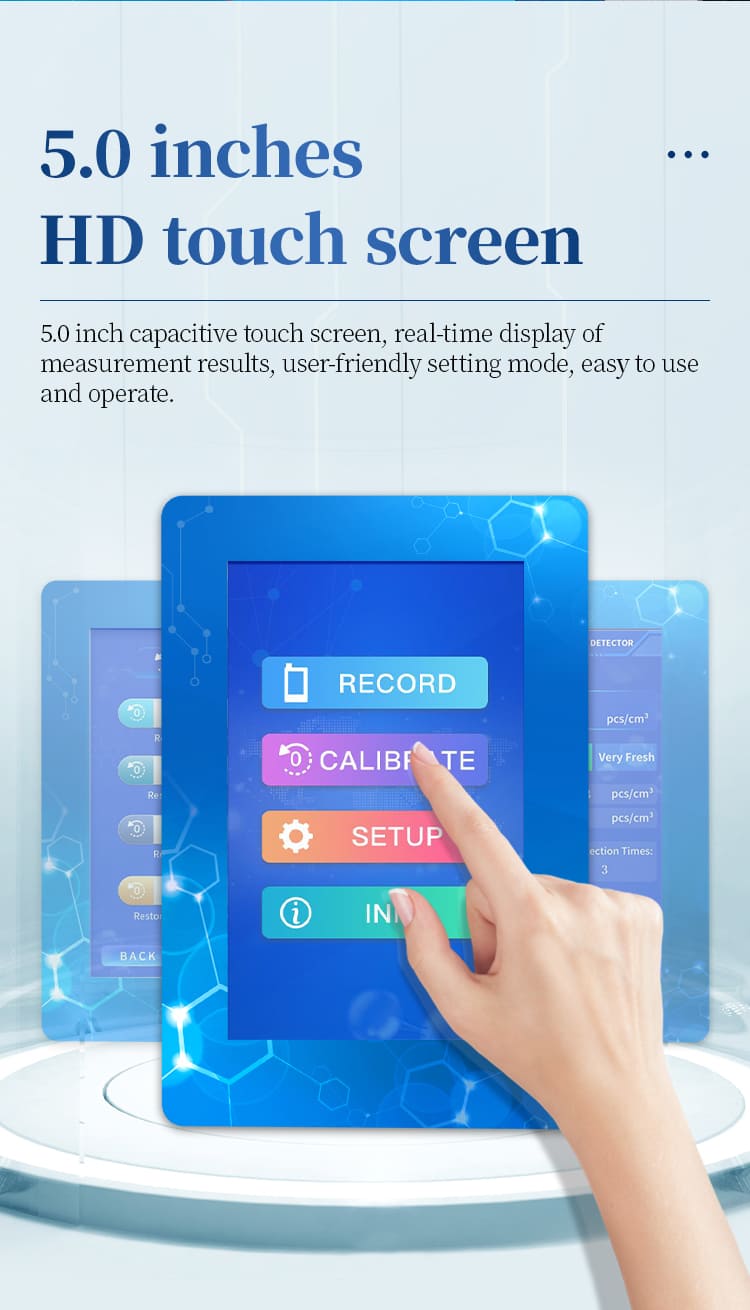

1. Screen display: 5.0-inch capacitive touch screen, 800 * 480 high resolution, real-time display of negative (oxygen) ion measurement results;

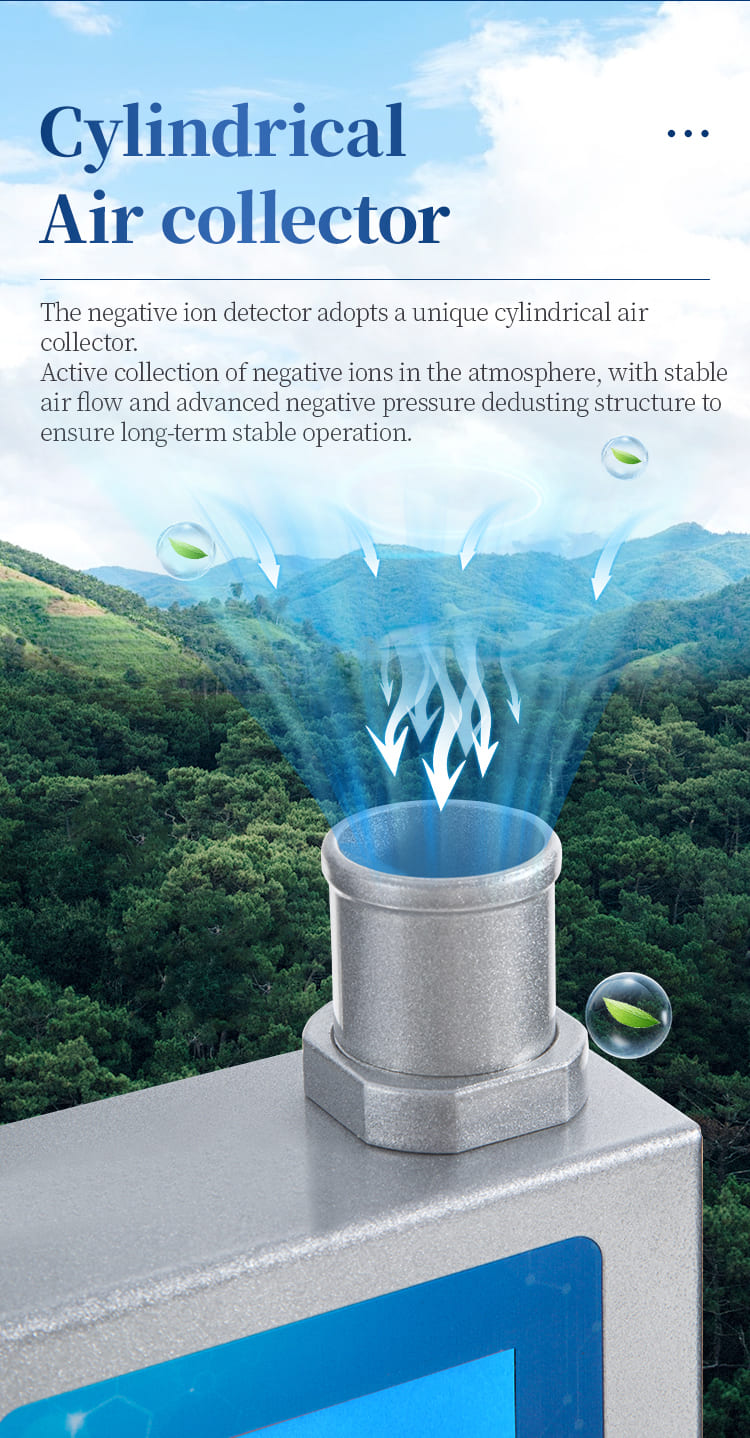

2. Accurate measurement: Adopting the internationally advanced cylindrical capacitive suction method as the measurement method;

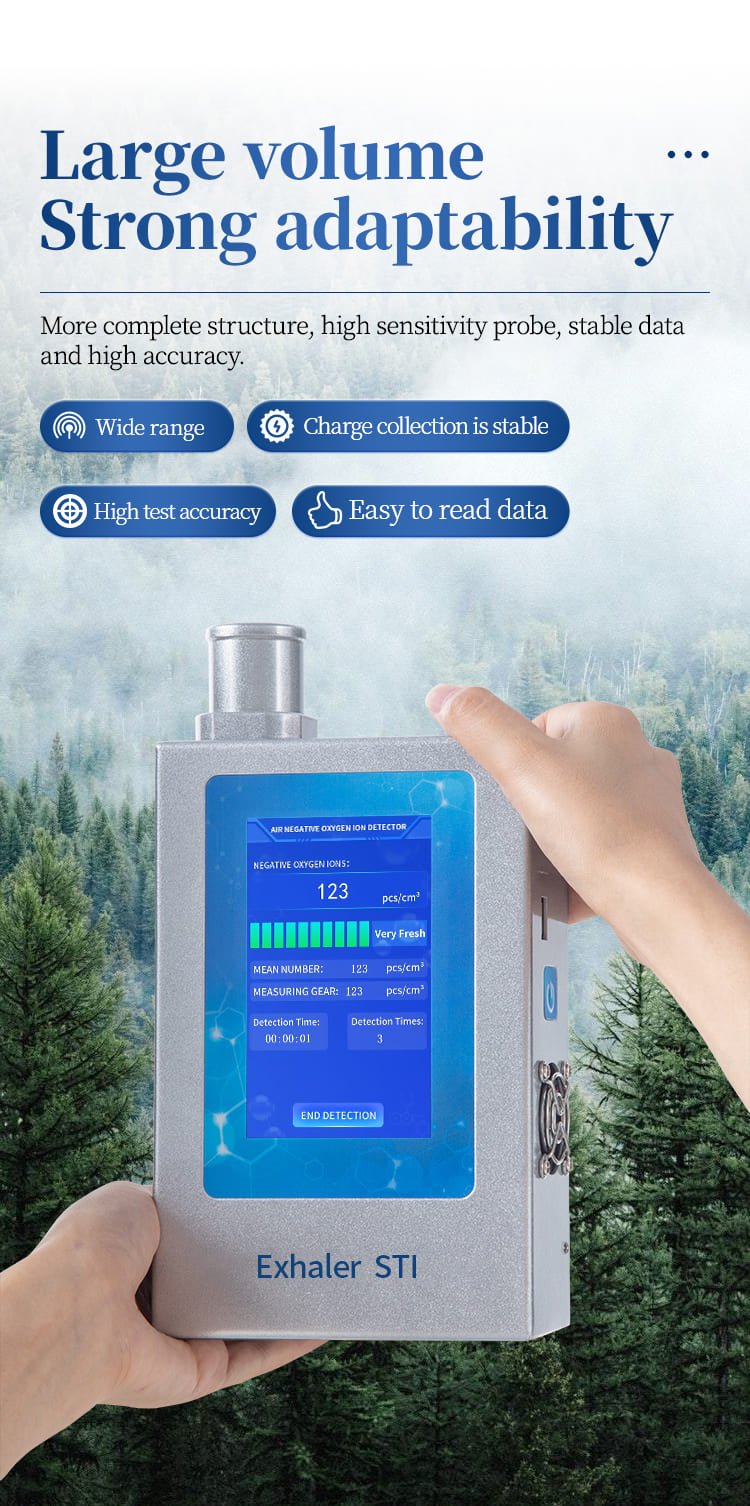

3. Compact size: compact internal structure and exquisite appearance, suitable for various environmental inspections, convenient for mobile use;

4. Ultra long standby: Equipped with a large capacity lithium battery (12V 3000mAh), it is not limited by power and site, and can be tested immediately upon opening;

5. Sensitive response: The data refresh rate reaches 1 second/time;

6. Easy to operate: The instrument is easy and direct to operate, with clear and clear full-color font display;
