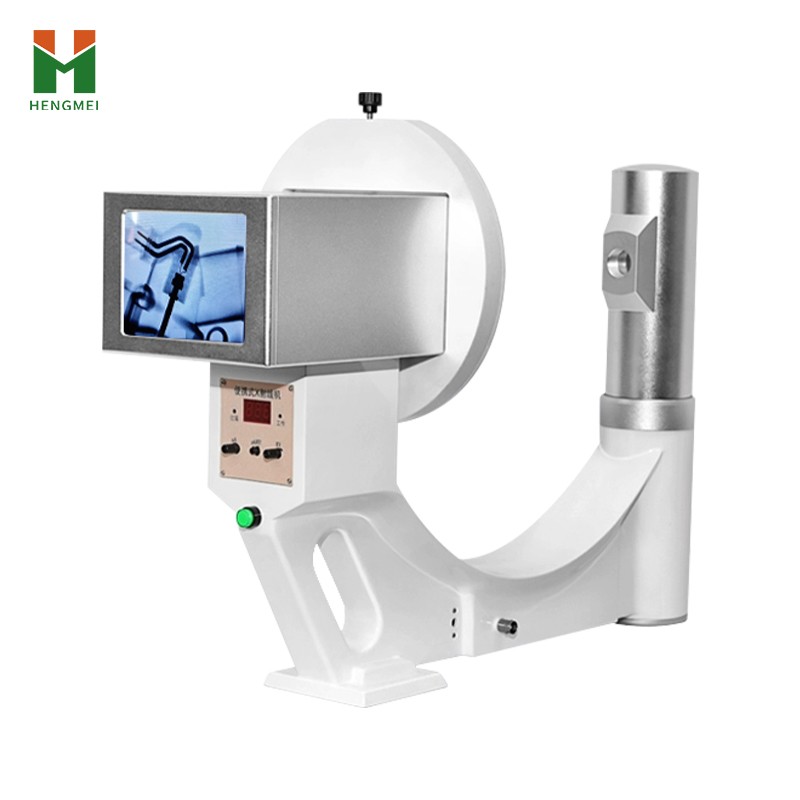

HM-75Y Portable X-ray Machine with 5-Inch Display

Product Introduction

HM-75Y is a portable CCD X-ray machine for organizations that need a broader inspection window while retaining mobile operation. The product material lists industrial products, electronic components, experiments, research, teaching, engineering, archaeology, identification, veterinary environments, field operations, emergency rescue, foreign-object inspection, and security inspection as application directions. A CCD high-gain working principle is used, and the manual describes a 0.5 mA low-dose operation. Real-time imaging lets the operator see the internal condition of a workpiece as the inspection is carried out. The machine can operate in a bright room without a darkroom, and a computer can be connected for printing perspective images. Current and voltage can be adjusted to match the perspective situation and the desired clarity. HM-75Y is distinguished in this family by its 5-inch LCD screen with fixing function, 45–90 kV tube high pressure, and observation thickness up to 300 mm. It is a practical fit for recurring inspection routes that need a clearer, more stable viewing setup than a basic compact unit. The HM-50Y provides a smaller display option.

Applications / Testing Items

• Workshop inspection of industrial products and assemblies
• Internal checks on electronic components and circuit assemblies
• Laboratory experiments, scientific research, and classroom demonstration
• Engineering, archaeology, and identification tasks away from fixed inspection rooms
• Veterinary and animal-care environments where portability is useful
• Emergency response, field operations, and earthquake rescue
• Foreign-object inspection in valuable Chinese herbal medicine
• Security inspection in public-security and counter-terrorism work

Functional Performance / Features

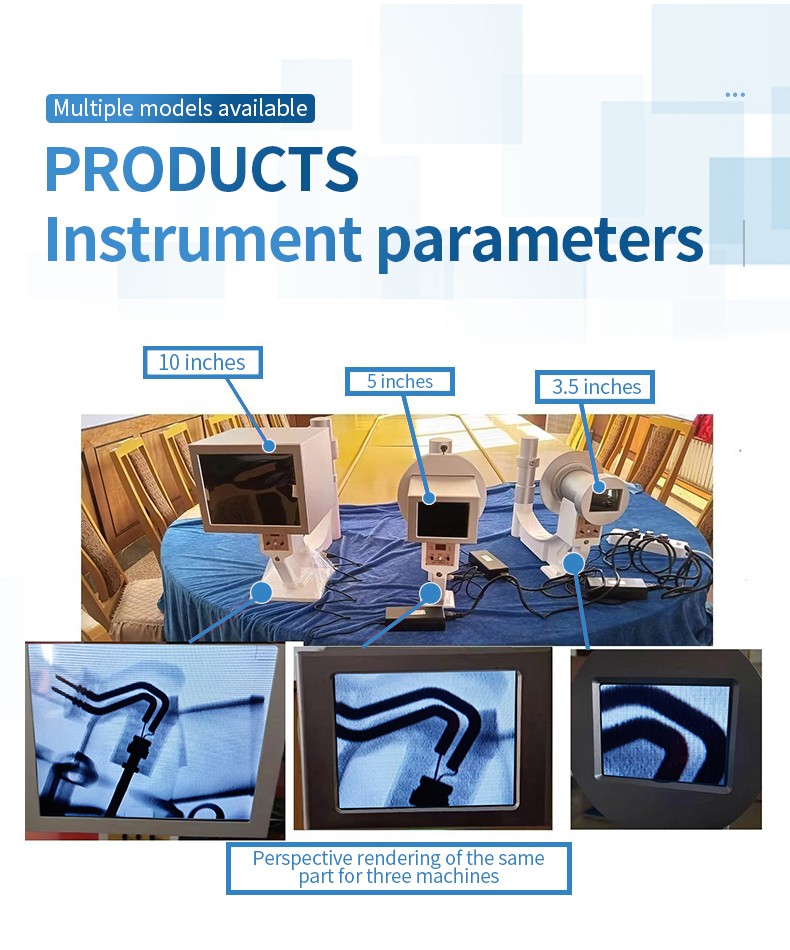

1. 5-inch LCD screen provides a larger viewing area than the 3.5-inch model.
2. Screen fixing function supports a stable operating arrangement.
3. 45–90 kV tube high pressure is specified for HM-75Y.
4. Observation thickness is specified up to 300 mm.

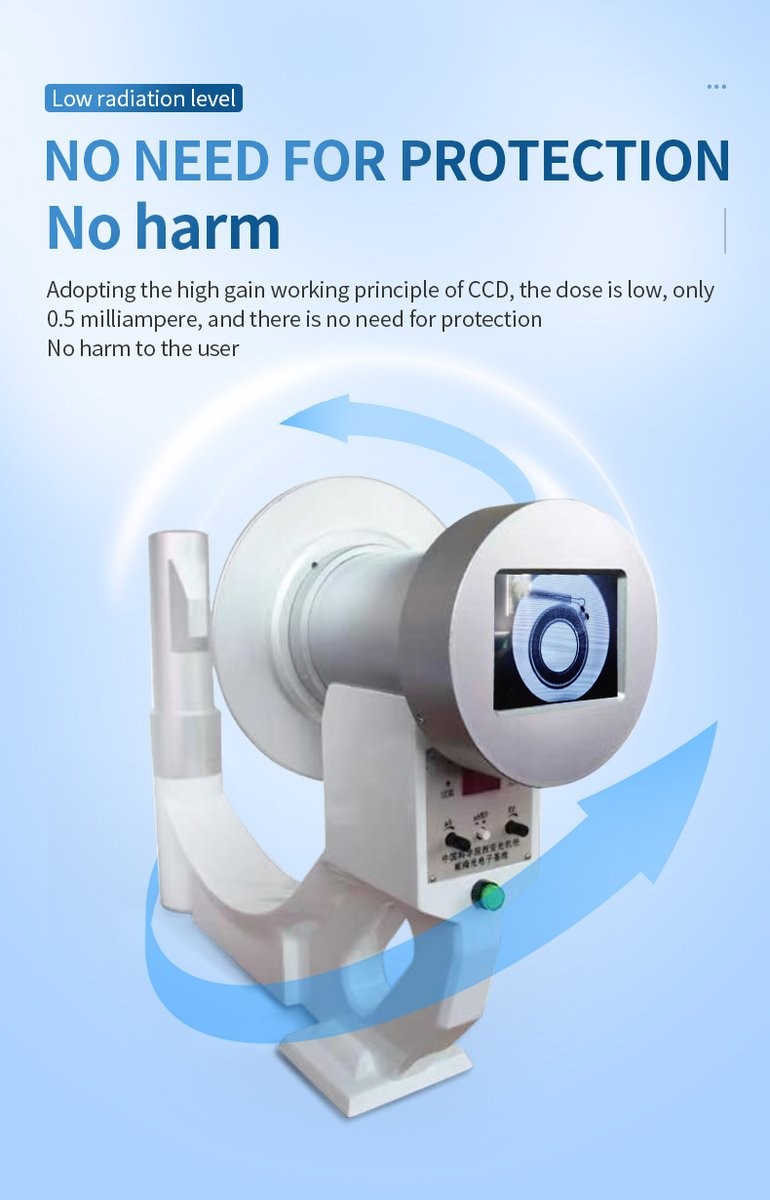

5. CCD high-gain operation supports the stated low-dose approach.

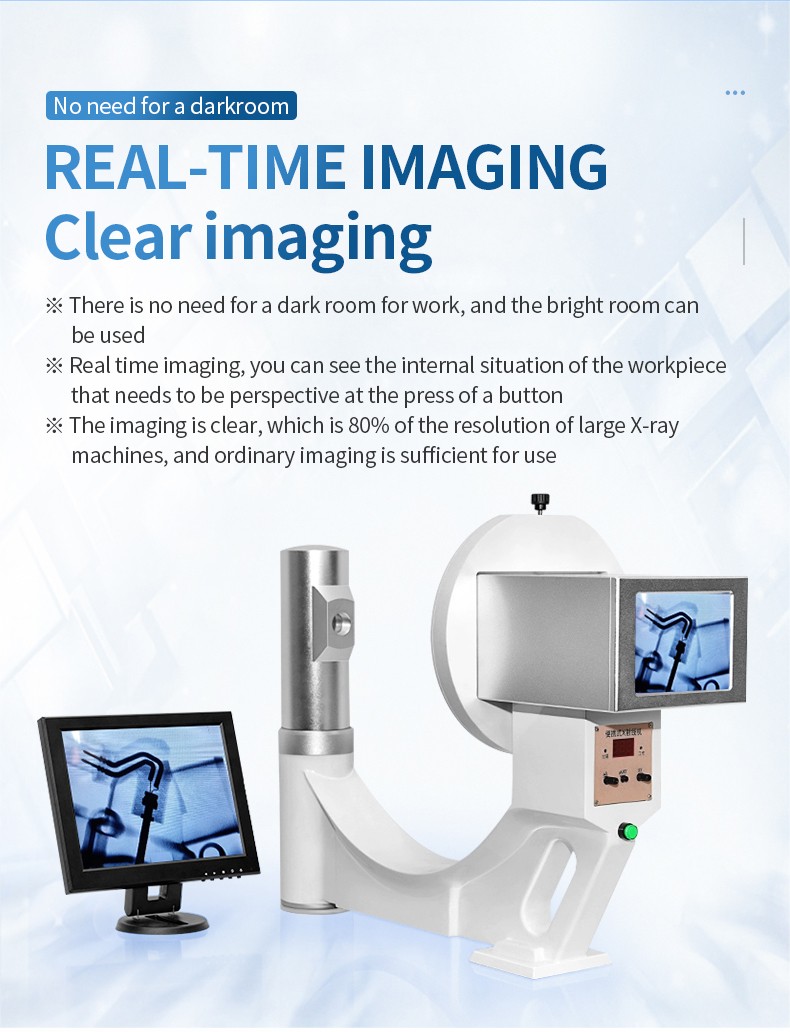

6. Real-time imaging shows the internal condition at the press of a button.
7. Bright-room operation removes the need to prepare a darkroom.

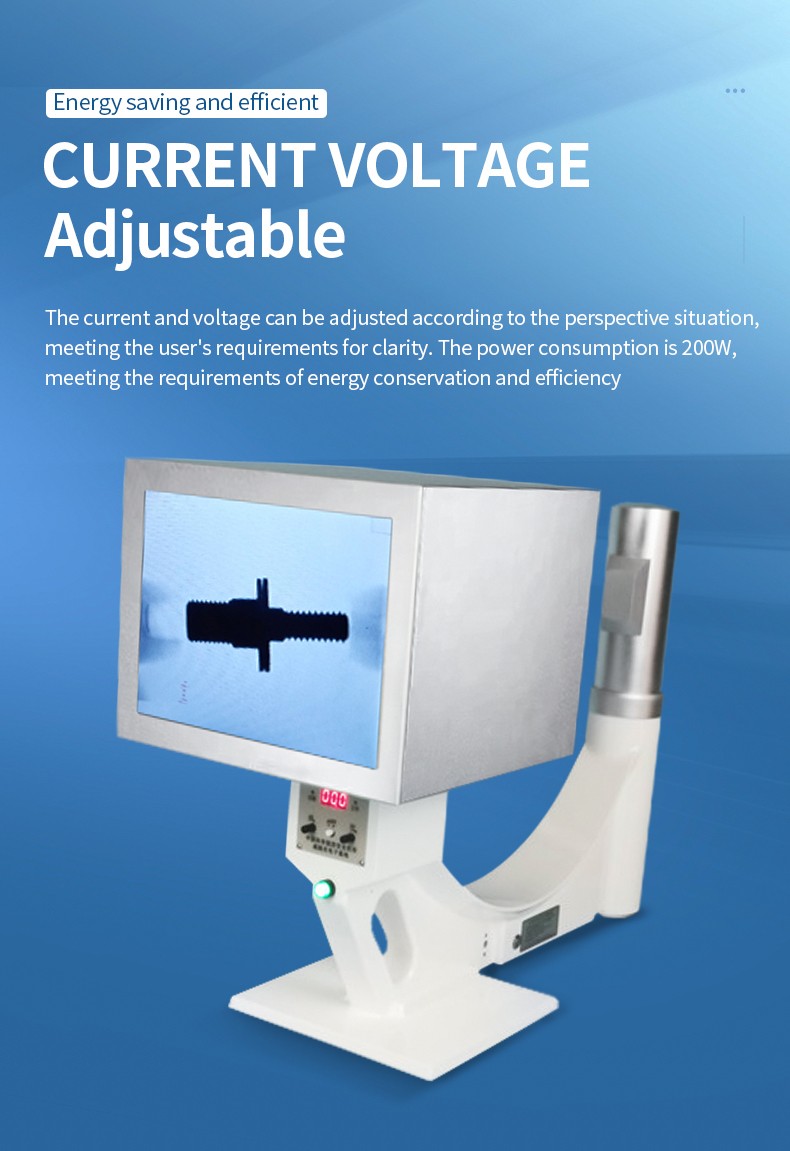

8. Adjustable tube current and voltage help tune image clarity.

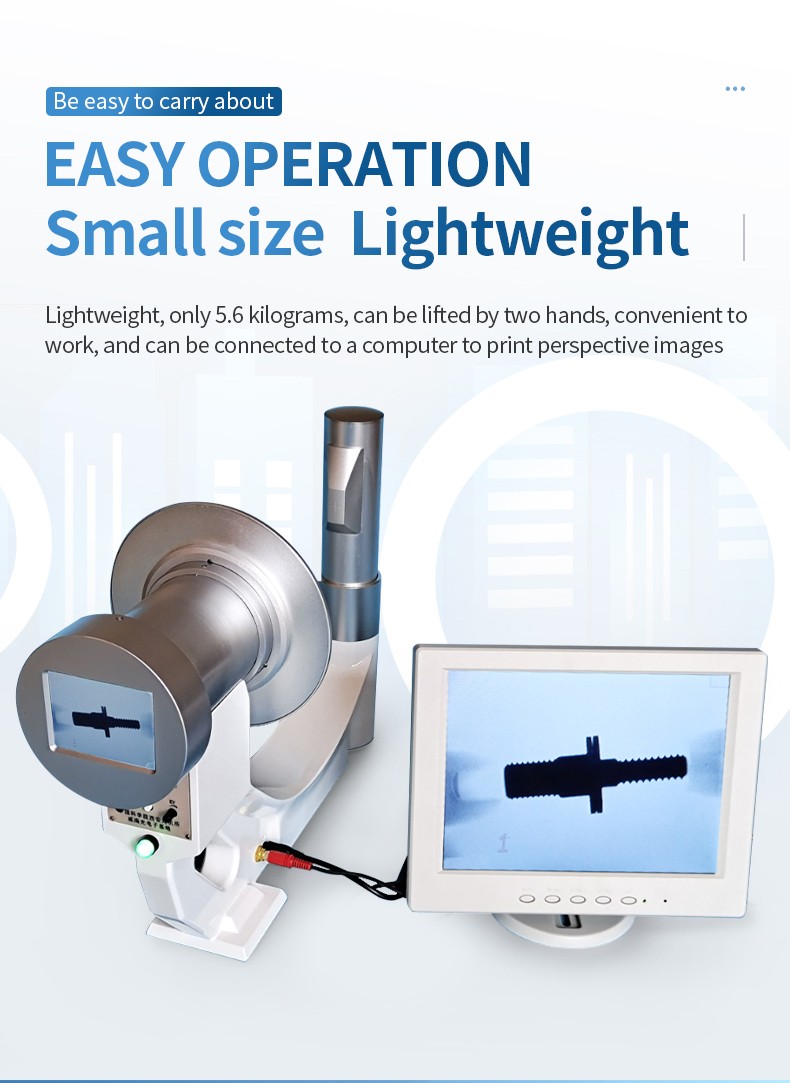

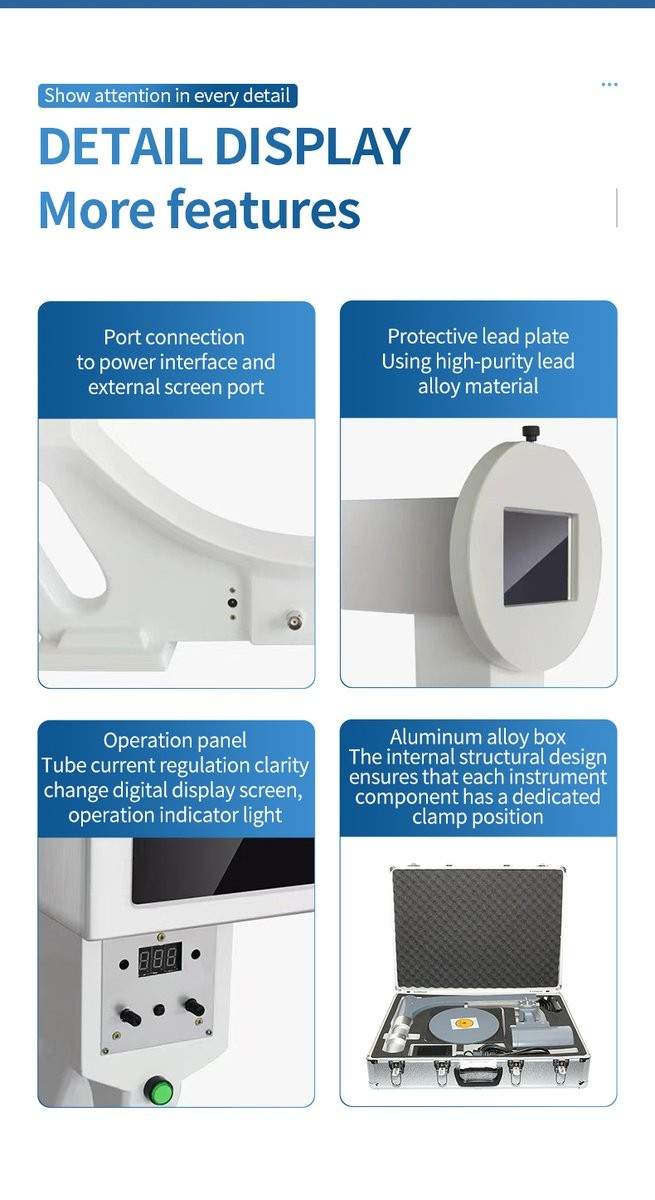

9. Computer connection allows perspective images to be printed.
10. 200 W power dissipation supports energy-conscious routine work.

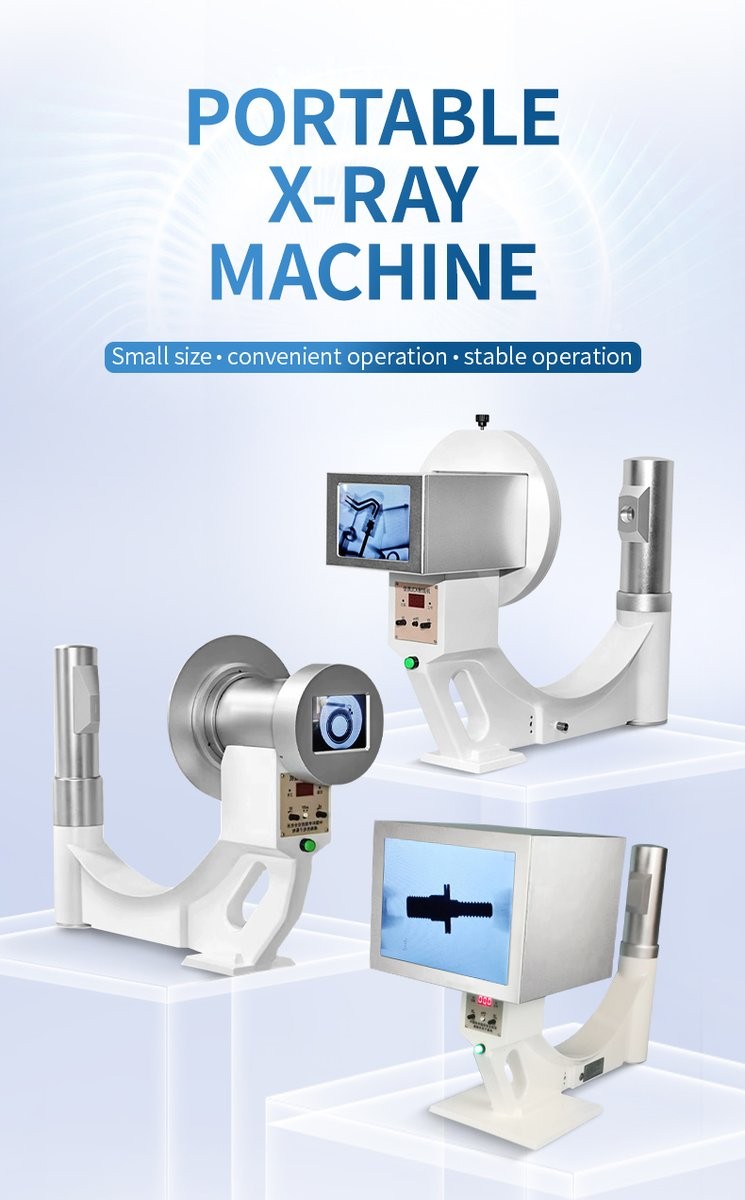

11. Portable construction supports work across fixed and temporary locations.
12. Simple operation helps users become familiar with the controls quickly.

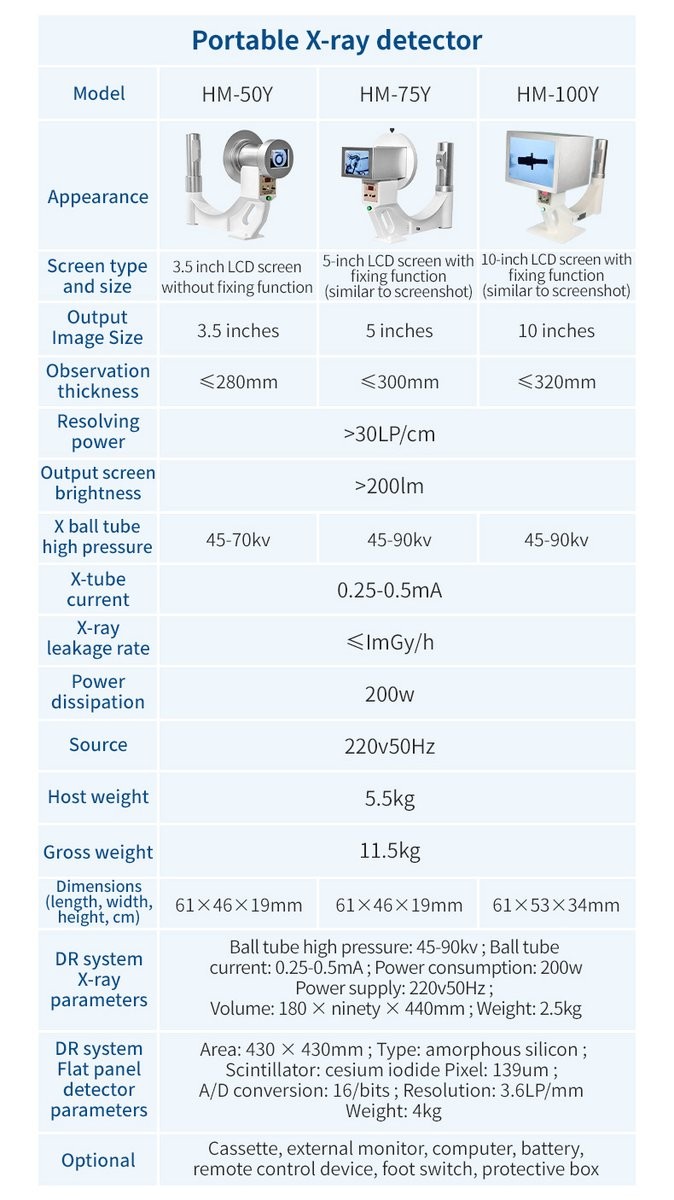

Main Parameters

Technical Parameters

Follow local radiation-safety requirements and the operating precautions in the product manual. Do not open or dismantle the high-voltage instrument yourself.
