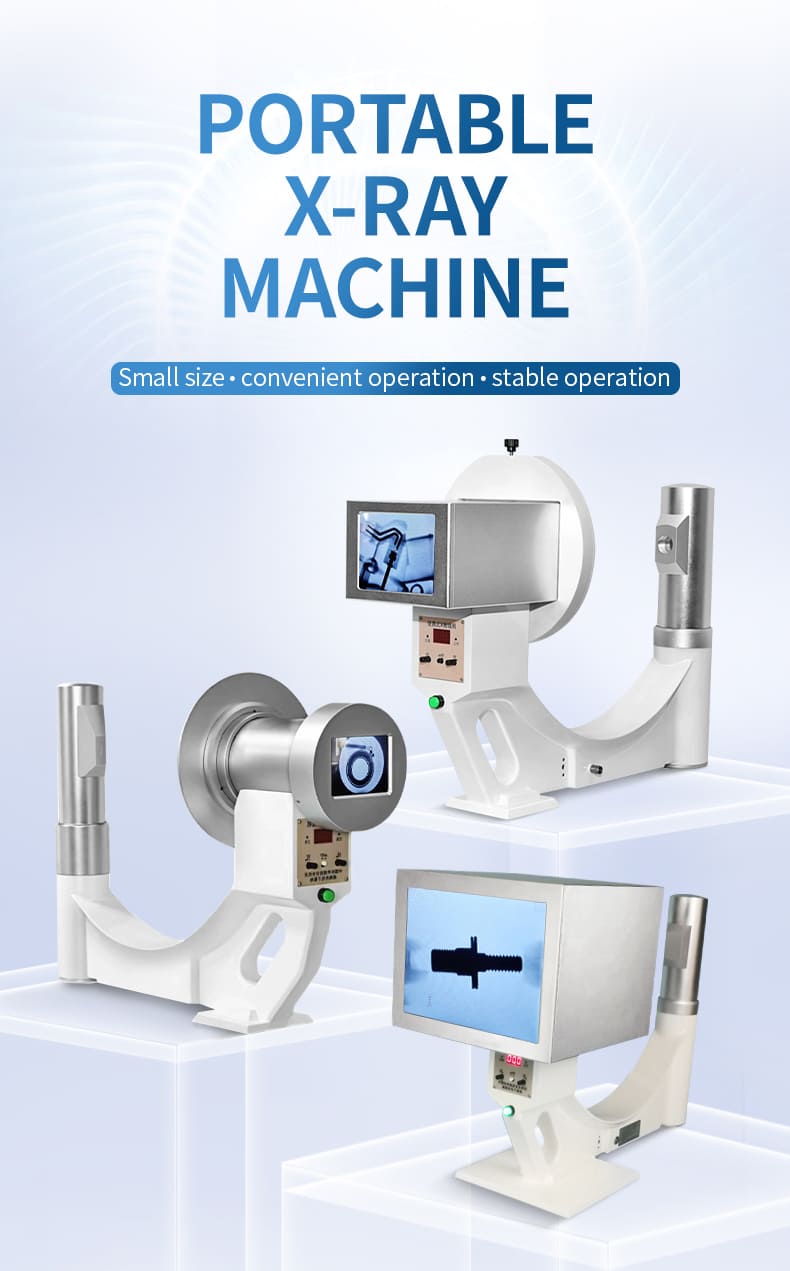

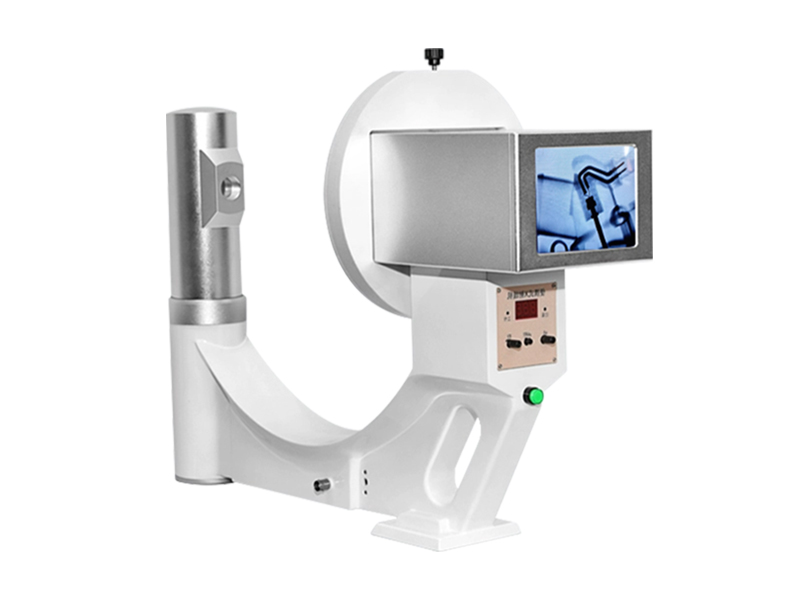

Portable X-ray machine

Portable X-ray machines are widely used in internal testing of industrial products and electronic components, as well as in experiments, scientific research, teaching, engineering, archaeology, identification and other activities. They are also ideal equipment for non-destructive testing, such as pet hospitals, veterinary hospitals, breeding farms, zoos, field operations, emergency rescue, earthquake rescue and other on-site locations. They are also used for detecting precious Chinese herbal foreign objects, security checks in the fields of public security and counter-terrorism. It has the characteristics of small size, light weight, easy operation, and stable operation, especially suitable for various outdoor operations and cooperating with generator sets.

Main advantages:

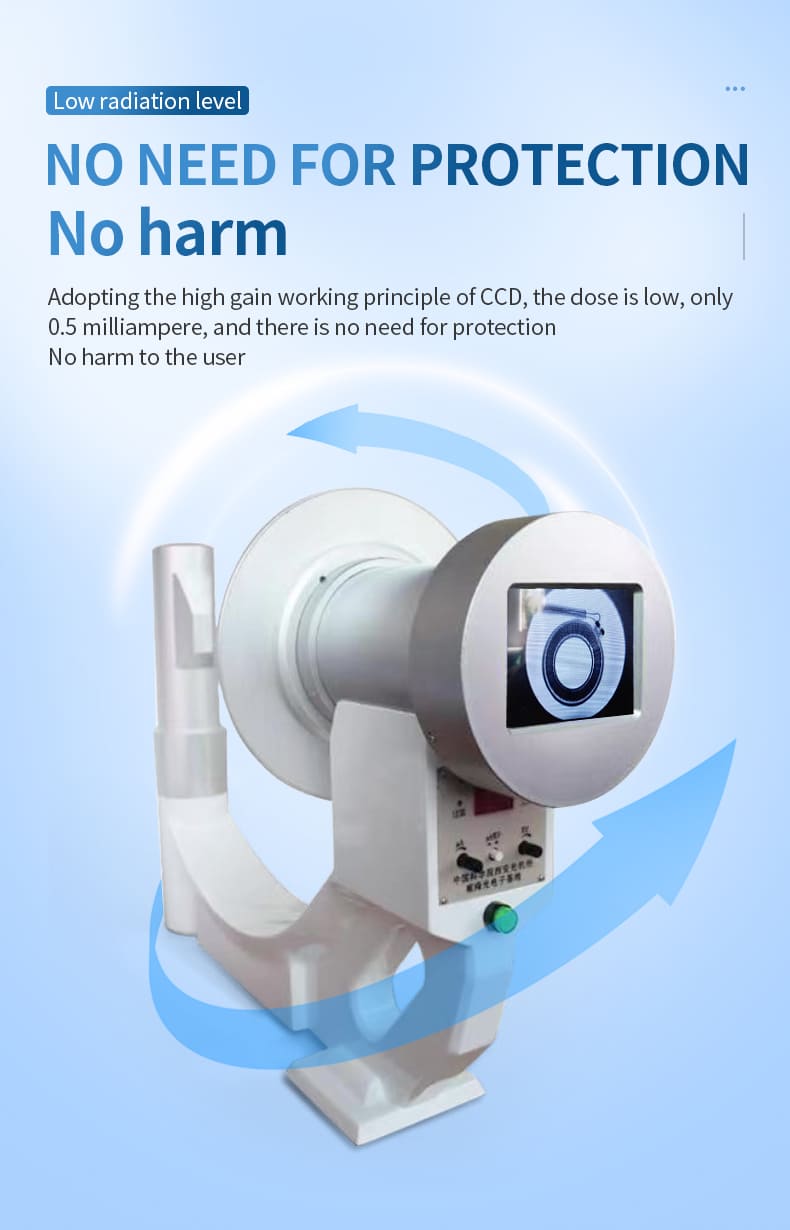

The machine adopts the high gain working principle of CCD, with a low dose of only 0.5 milliampere, no need for protection, and no harm to the user.

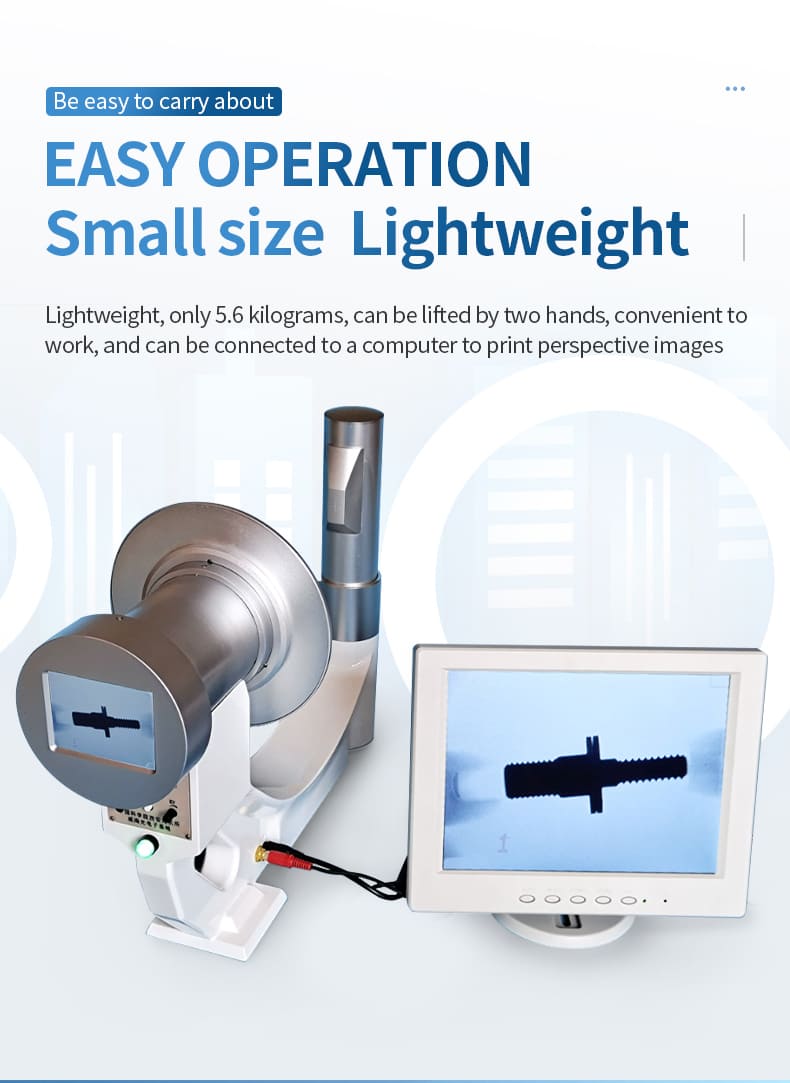

The machine is lightweight, only 5.6 kilograms, and can be lifted by two hands, making it easy to work. Can connect to a computer to print perspective images.

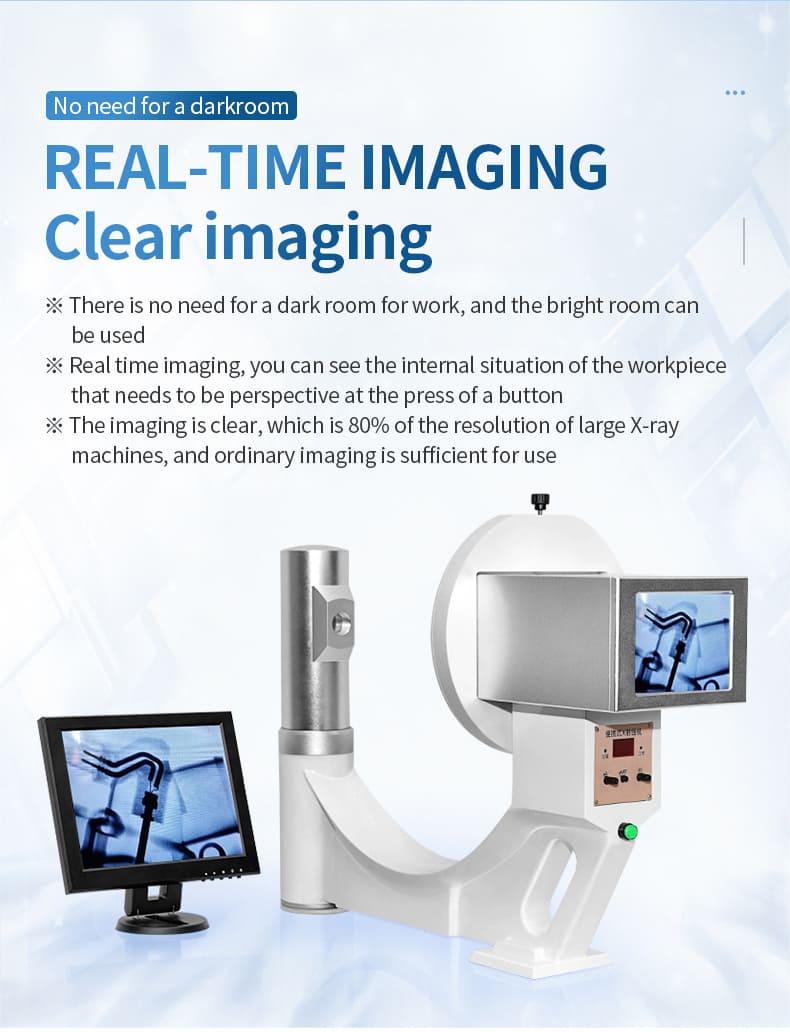

This machine does not require a dark room for operation, it can be used in a bright room.

The machine provides real-time imaging, and with just a press of a button, you can see the internal situation of the workpiece that requires perspective.

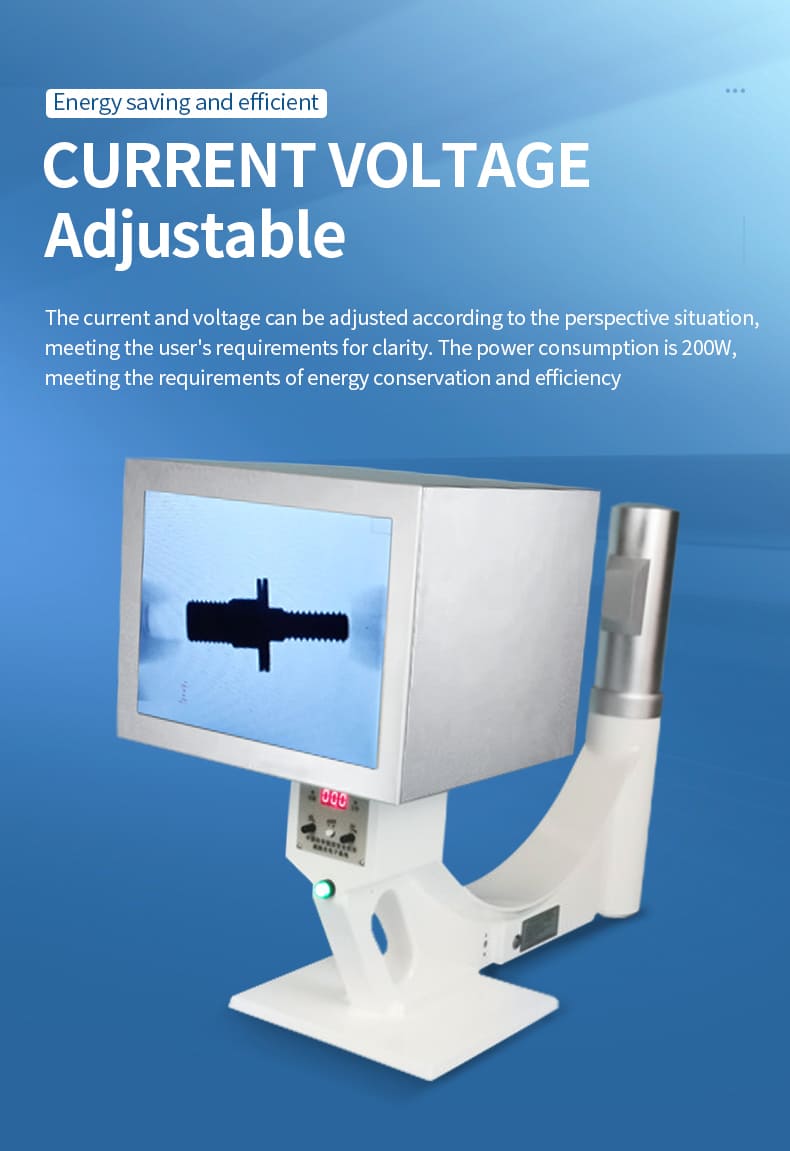

The current and voltage of the machine can be adjusted according to the perspective situation, meeting the user's requirements for clarity.

This machine can be disinfected with liquid medicine and used in sterile environments..

This machine is powered by national standard mains electricity and can be used in any situation.

The power of this machine is 200W, which meets the requirements of energy conservation and efficiency.

This machine has clear imaging, which is 80% of that of a large X-ray machine, and is sufficient for ordinary imaging.

This machine is easy to operate, and users can use it after looking at it once.

The quality of this machine is reliable, with guaranteed maintenance and after-sales service, which solves the user's worries.

Precautions during use:

Before starting to use the equipment, it is necessary to first plug in the plug between the power supply and the host, and then plug in the network power supply plug. At the end, it should be reversed. First, unplug the network power supply plug, and then unplug the plug between the power supply and the host: special attention should be paid to not press the button switch on the host when connecting the network power supply in the power box, otherwise it may cause serious damage to the instrument.

When the equipment is not in use, it must be placed in an aluminum box. If not in use temporarily, it must be placed horizontally on the table to avoid damage. As long as it is not exposed to sunlight, the light shield must be covered. When storing the aluminum box, it should be avoided from falling to avoid damaging the instrument.

The machine should be regularly cleaned and maintained. If it comes into contact with animal blood, it should be immediately wiped. Alcohol can be used to wring it dry before wiping. When wiping, water should not form droplets to prevent water from seeping into the machine.

Be careful not to let foreign objects such as water, plaster, alcohol, blood, etc. enter the power switch, button, or power plug in order to prevent circuit failure and affect use.

If oil stains are found in the aluminum box during use, it may indicate that the ball tube has leaked oil and should be stopped immediately. Please contact the manufacturer immediately.

When using this machine, a three core socket with good grounding must be used as the power socket. Otherwise, high voltage static electricity may occur and may cause damage to components. To extend the service life of the machine, please avoid continuous startup for too long. The interval between them must be at least 5 seconds to prevent the previous high voltage from not fully retracting after shutdown and the subsequent high voltage from accumulating, resulting in instantaneous high voltage that can break through the X-ray tube and cause artificial machine failure.

The machine structure is relatively tight and involves high voltage, so users are not allowed to disassemble it on their own. If users find situations such as the monitor not turning on, indicator lights not turning on, or the monitor dimming, please stop using it immediately and contact the manufacturer in a timely manner. To avoid causing malfunctions.

If a lunar defect is found in the image during use, it generally indicates that the radiation part has shifted its position, which may lead to excessive leakage of radiation. Stop using immediately and contact the manufacturer immediately
