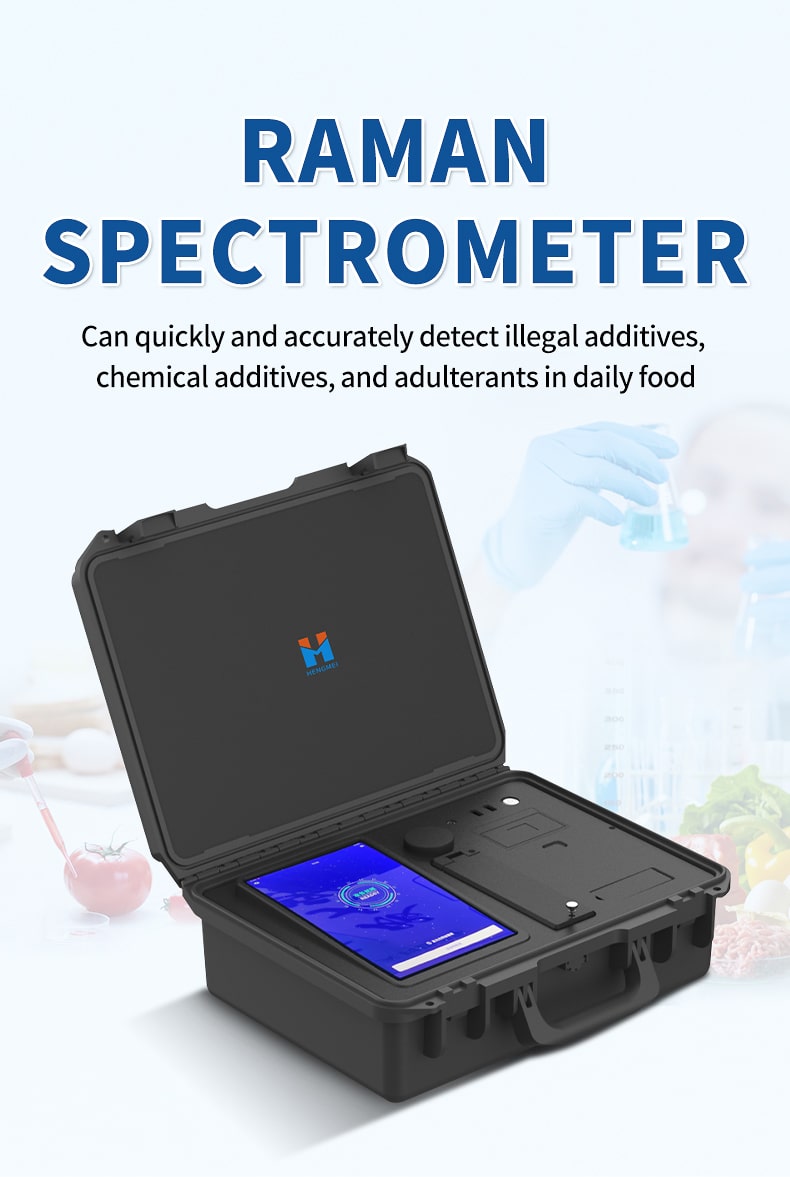

Raman spectrometer

The handheld Raman spectrometer adopts a high-performance research level Raman system, which simplifies and professionalizes the functions of the spectrometer. Based on mobile phones, it can achieve cloud network end-to-end Raman monitoring and information retrieval of the Internet of Things. The new generation of handheld Raman spectrometers have the characteristics of ultra-high sensitivity and high optical resolution, and are widely used in multiple fields and industries such as medicine, medical care, public safety, chemical testing, food safety, and jewelry testing.

Product Introduction:

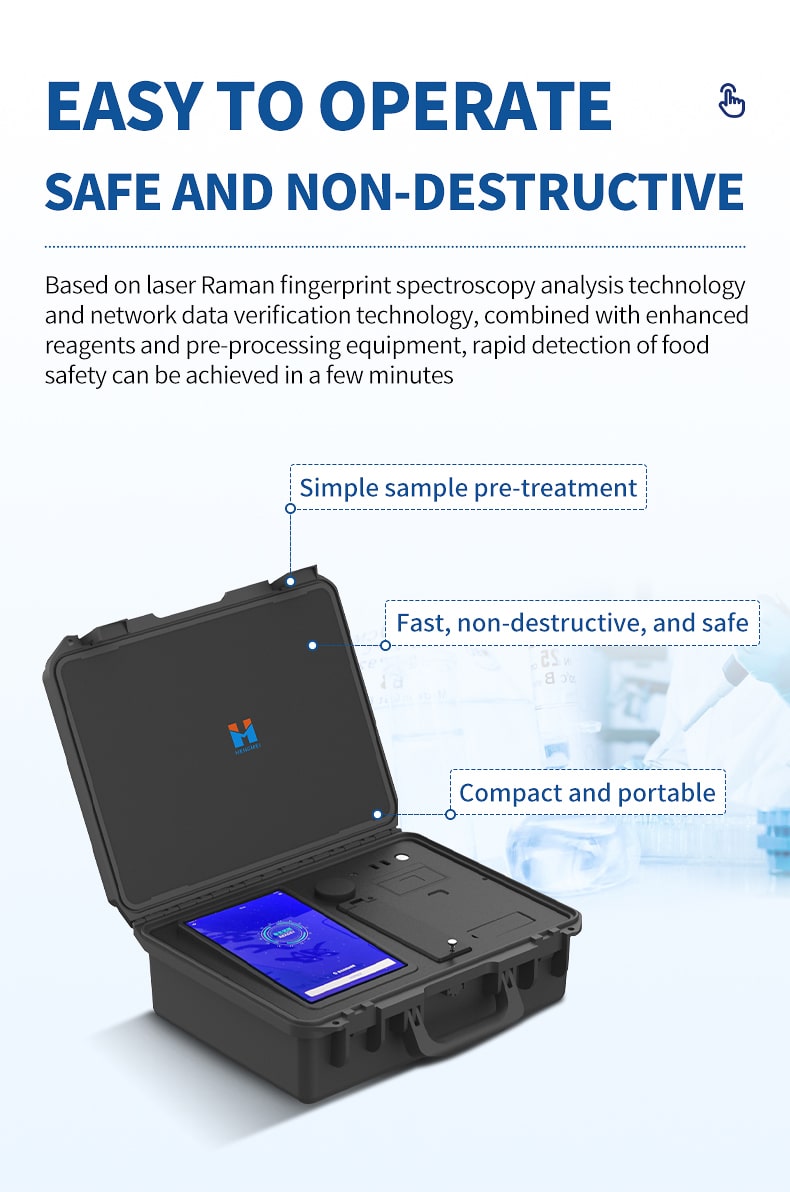

It can quickly and accurately detect illegal additives, chemical additives and adulterated substances in daily food. The instrument is based on laser Raman fingerprint spectroscopy analysis technology and network data verification technology, combined with enhanced reagents and pre-treatment equipment, and can quickly detect food safety in a few minutes. It is specially designed for on-site law enforcement and rapid screening detection, easy to use and simple to operate. Combined with enhanced reagents and pre-treatment equipment, it can quickly detect food safety in a few minutes.

Food safety is regarded as a global problem that concerns the national economy and people's livelihood. In recent years, food safety problems such as melamine, Sudan red, clenbuterol and gutter oil have occurred frequently, seriously affecting the development of my country's food industry. Conventional laboratory food safety testing methods cannot meet the needs of on-site rapid testing due to their small number, high cost and long testing cycle. The development of fast and accurate illegal additive detection technology has become a current hot research direction. As a fast, non-destructive and safe detection technology, Raman spectroscopy has the characteristics of fast and correct, good reproducibility, simple sample pretreatment, compact and portable, and wide application. Combined with special surface Raman enhancement reagents and simple sample pretreatment equipment, it can simply, accurately and efficiently detect illegal/abused additives, pesticide/veterinary drug residues, adulterated harmful substances, toxic chemicals and other items in food.

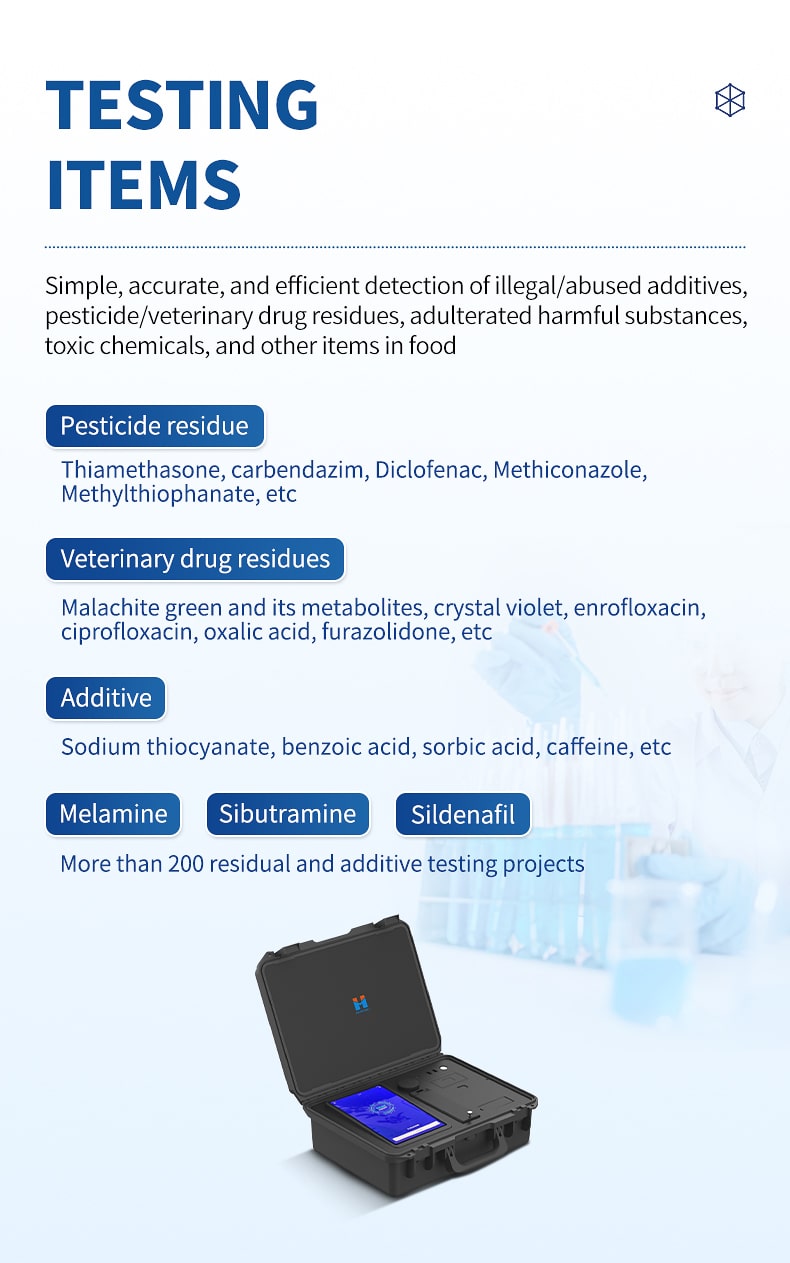

Testing items:

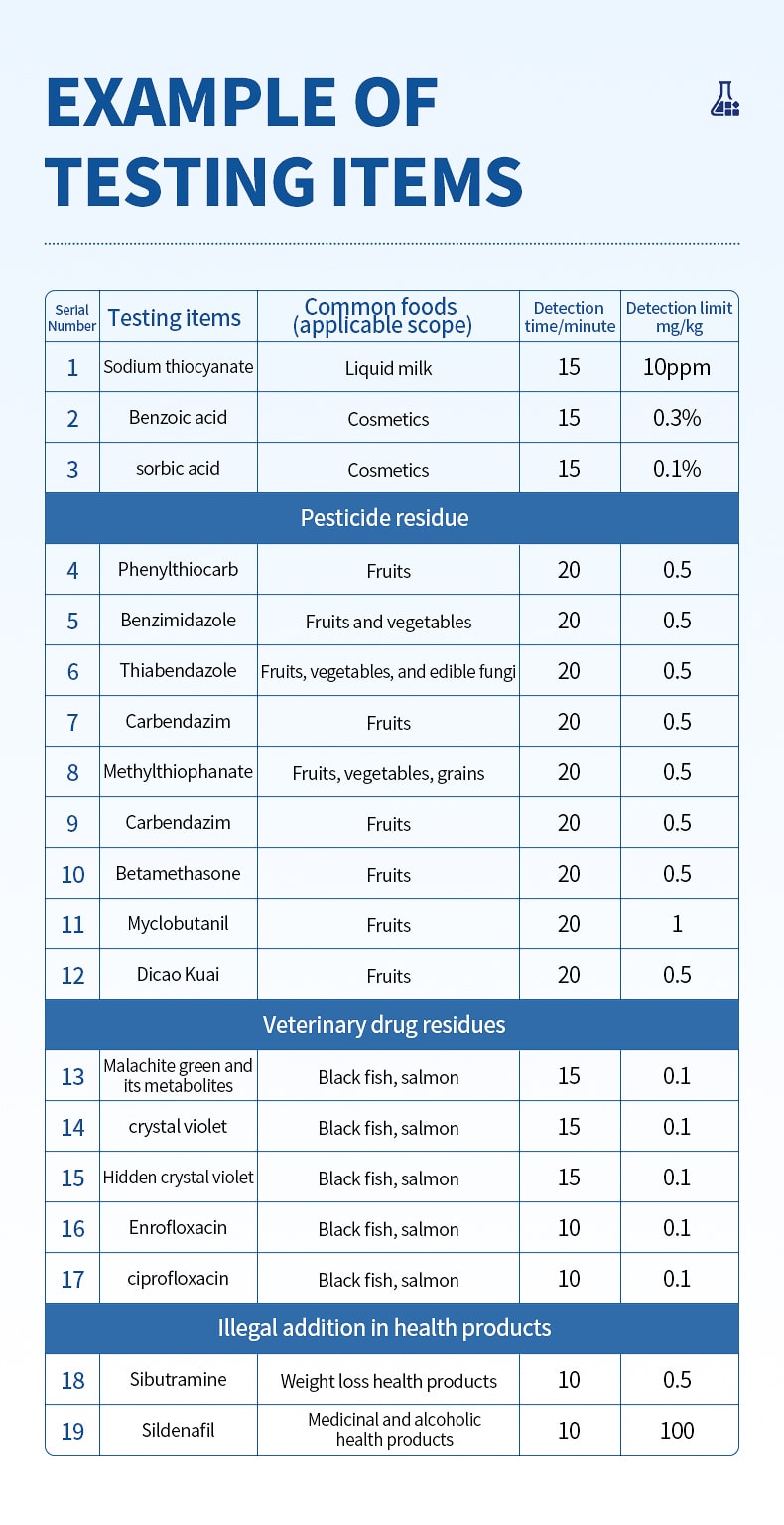

Pesticide residues (thiabendazole, carbendazim, diquat, difenoconazole, methyl thiophanate, etc.), veterinary drug residues (malachite green and its metabolites, crystal violet, enrofloxacin, ciprofloxacin, oxolinic acid, furazolidone, etc.), additives (sodium thiocyanate, benzoic acid, sorbic acid, caffeine, etc.), melamine, sibutramine, sildenafil and more than 200 kinds of residue and additive detection items, and customized projects can be customized according to customer needs.

Features list:

◆ High stability, spectral response stability <2%@2hrs;

◆ High resolution, the best resolution can reach 4cm-1;

◆ Equipped with powerful Uspectral Plus and FOODSAFE spectrometer analysis software, with rich data processing capabilities;

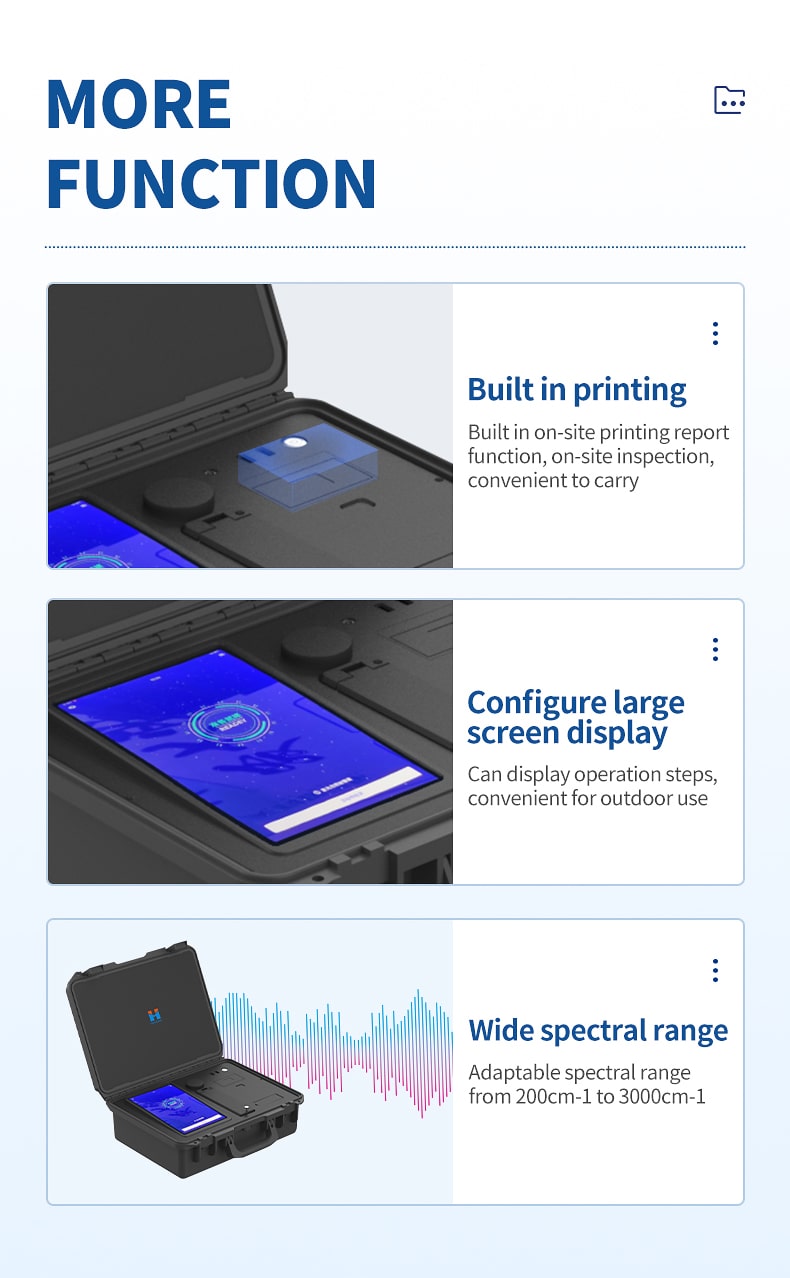

◆ Built-in on-site printing report function, on-site inspection, easy to carry;

◆ Equipped with a large screen display, which can display the operation steps and is convenient for outdoor use;

◆ The spectral range can be adapted to 200cm-1~3000cm-1.

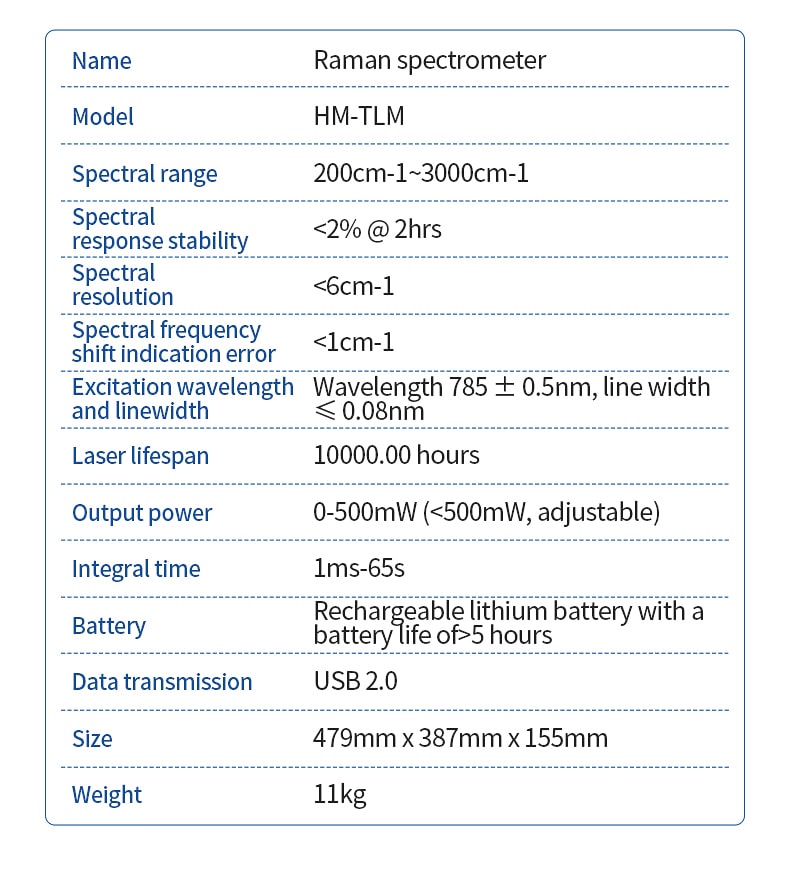

Technical parameters:

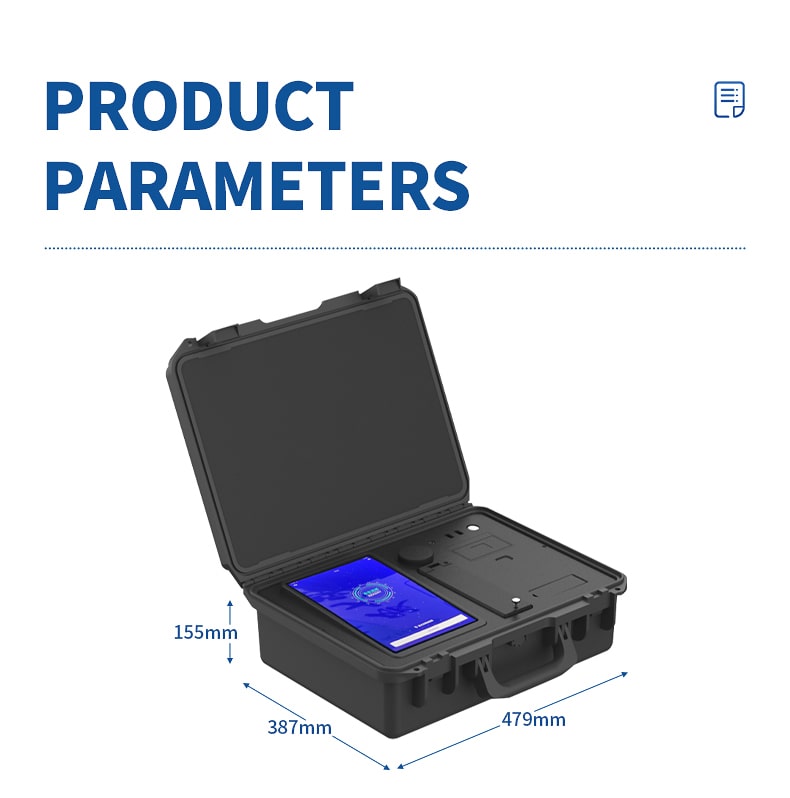

Size: 479×387×155mm

Weight: 11kg

Spectral range: 200-3000cm-1

Spectral resolution: <6cm-1

Spectral frequency shift indication error: <1cm-1

Excitation wavelength and line width: 785±0.5nm, line width ≤0.08nm

Laser life: 10,000.00hrs

Output power: 0-500mW (<500mw, adjustable)

Integration time: 1ms-65s

Battery: Rechargeable lithium battery, battery life>5 Hours

Data transmission: USB2.0

Software functions:

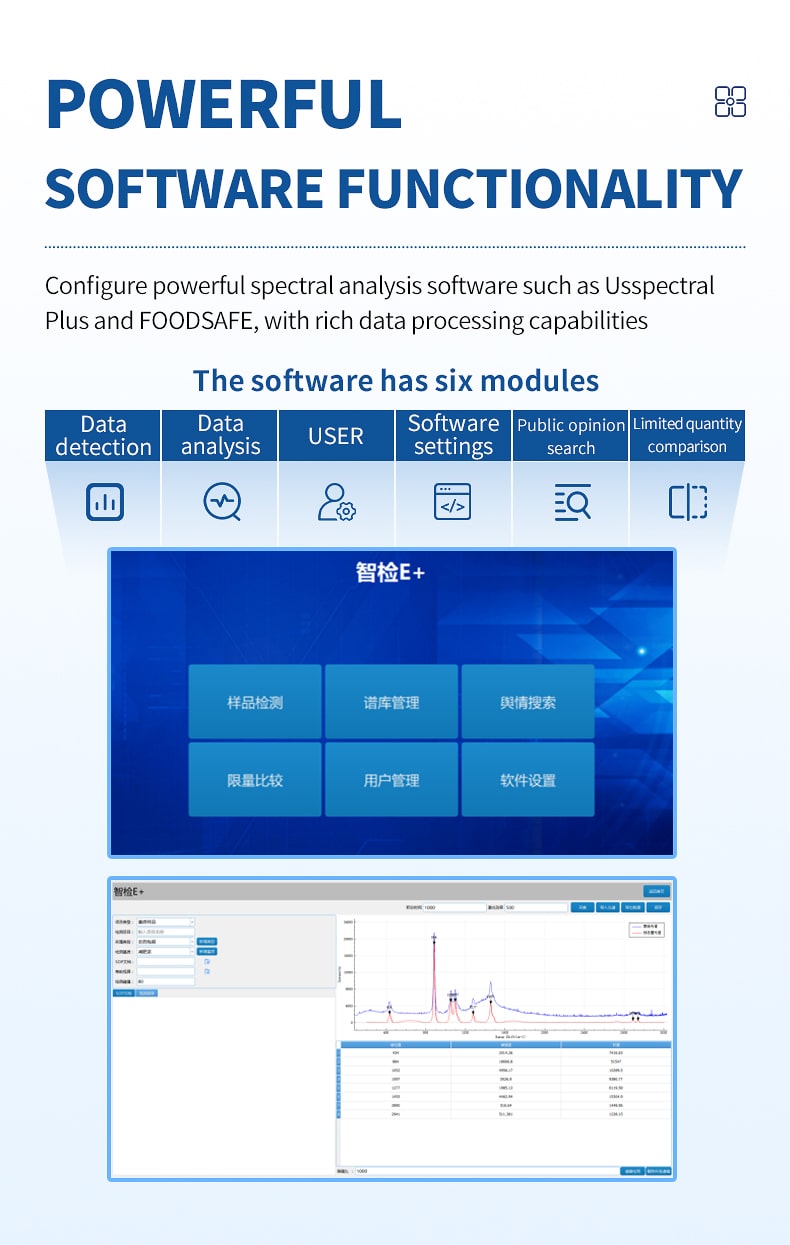

The software has six modules, data detection, data analysis, user management, software settings, public opinion search and limit comparison. The data detection module includes sample detection and query of detection records; the data analysis module includes administrator's library building and spectral library query and modification; the user management module includes the addition of local users and modification of user account information; the software settings include parameter settings such as spectrometers and lasers; the public opinion viewing module can search for hot news related to food safety, and the software will initiate data requests to the Zhijian E+ cloud platform to obtain the searched news information in the cloud platform; the limit comparison module will obtain the standard values of material limits in different regions from the Zhijian E+ cloud platform.
