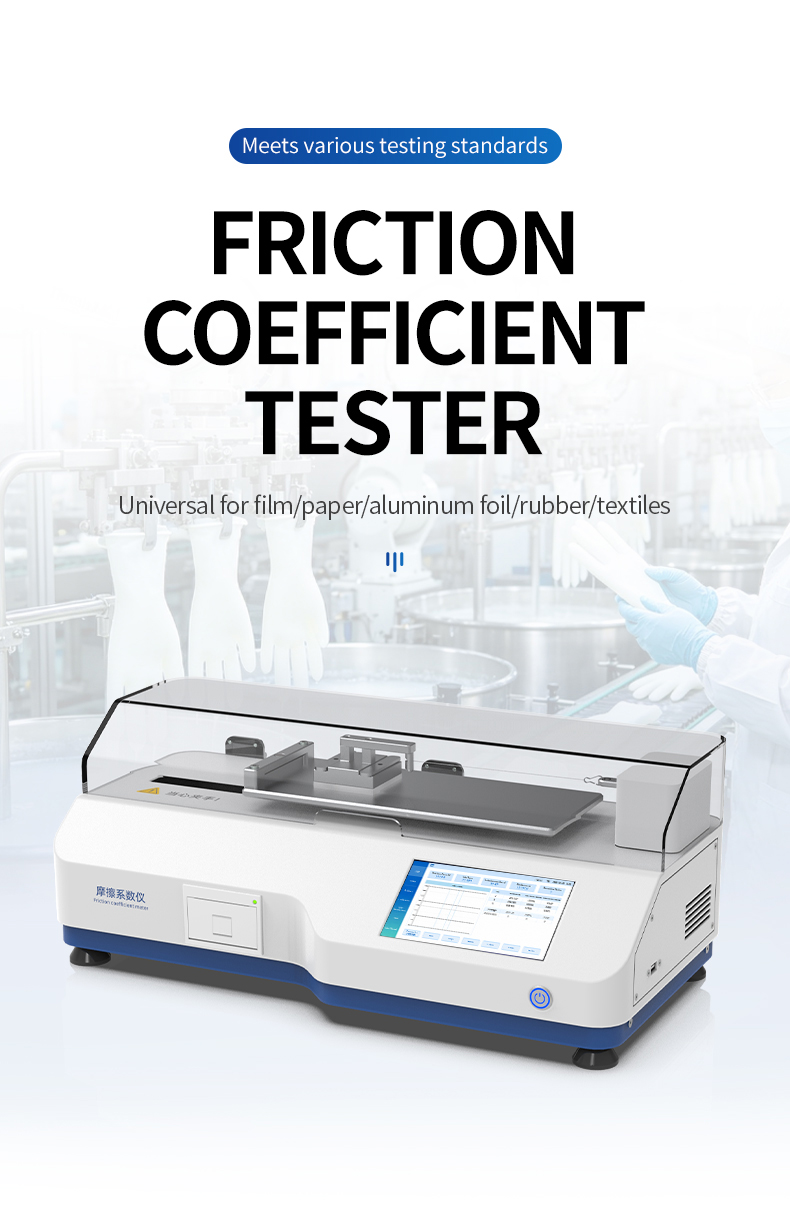

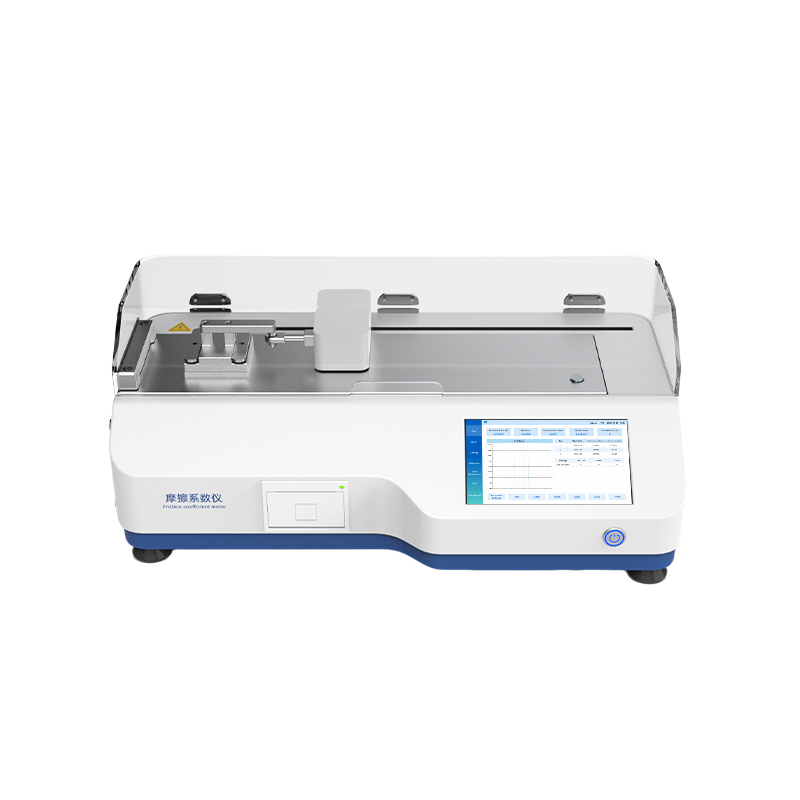

HM-MX1 Coefficient of Friction Tester — Moving Sled Design for Standard Specimens

Product Introduction

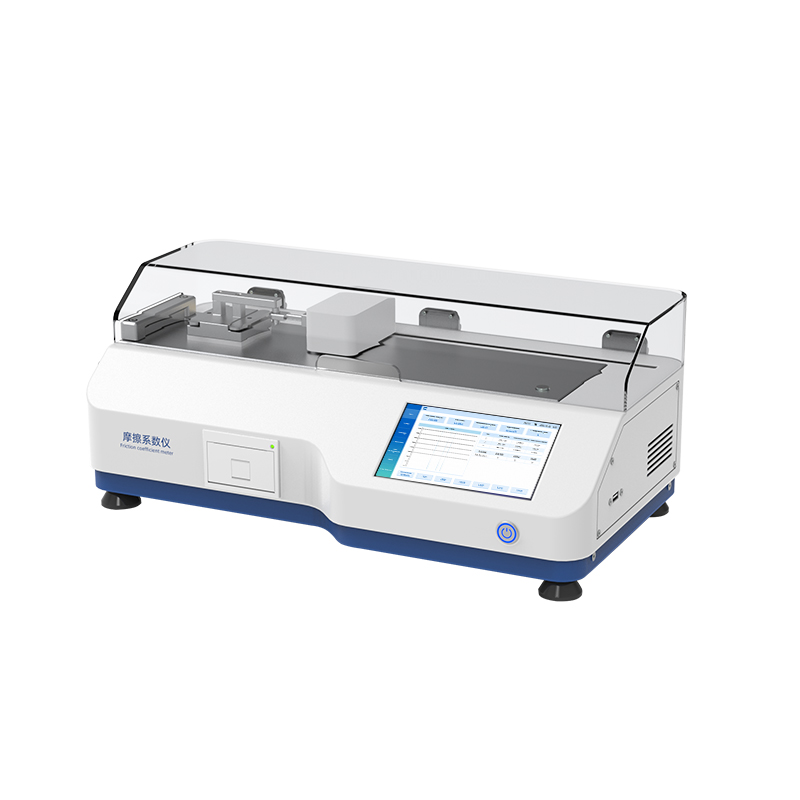

The HM-MX1 is a precision coefficient of friction tester from HM Instruments designed for laboratory and quality-control environments where accurate measurement of static and kinetic friction coefficients is essential. Built around a moving sled architecture optimized for standard specimen dimensions, the instrument delivers repeatable test results across films, papers, textiles, coated surfaces, and metallic materials. A closed-loop motor with dual linear rail guidance ensures smooth, vibration-free travel at speeds from 1 to 500 mm/min, while industrial-grade force sensors resolve down to 0.001 N with relative error within ±0.5% and repeatability within 1%. The 7-inch capacitive touchscreen displays real-time friction curves and automatically calculates both static and kinetic coefficients in a single test sequence, eliminating the need for separate measurements. At $2,200, the HM-MX1 provides a cost-effective yet professional-grade solution for packaging manufacturers, material research laboratories, and quality assurance departments requiring compliance with GB/T10006-2021, ASTM D1894-24, and ISO 8295:1995.

Applications

• Packaging films — polyethylene, polypropylene, polyester, and laminated film friction characterization

• Paper and paperboard — printing paper, kraft paper, corrugated board slip property testing

• Textiles and woven materials — fabric smoothness and surface friction evaluation

• Coated and treated surfaces — varnish, lacquer, and functional coating friction assessment

• Metallic composite strips and conveyor belts — industrial material sliding behavior analysis

• Wood, rubber, and polymer materials — friction coefficient determination for product design validation

• Automotive components — brake pad, wiper blade, and tire tread friction testing

• Footwear and leather goods — shoe sole and upper material slip resistance measurement

Key Features

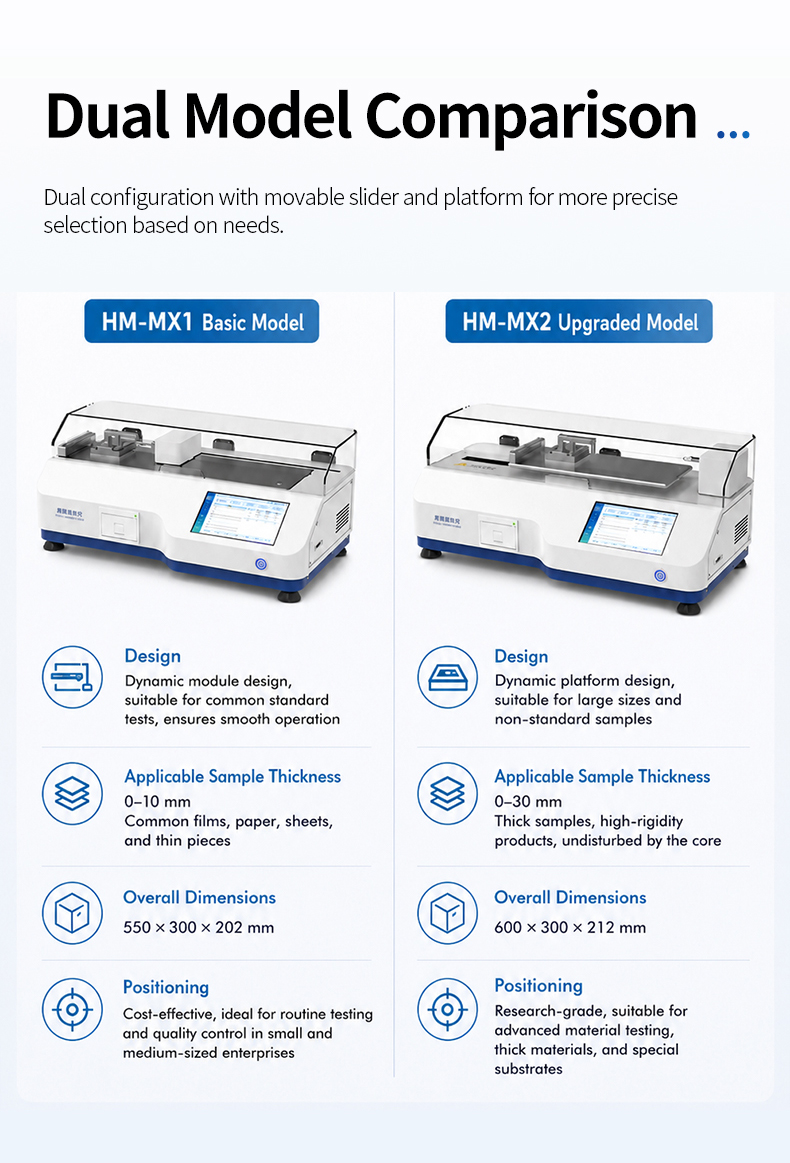

1. Moving sled design optimized for standard specimen sizes up to the instrument platform capacity.

2. Closed-loop motor drive with dual linear rail system delivers stable, wobble-free linear motion.

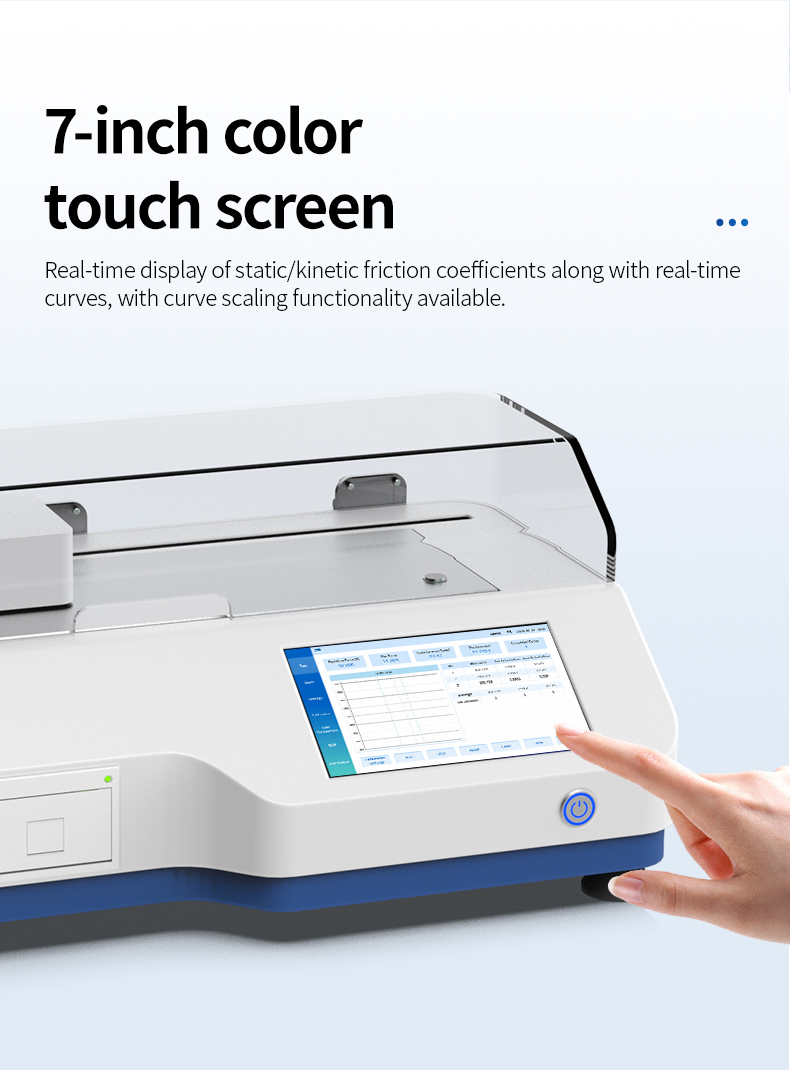

3. 7-inch capacitive touchscreen with real-time friction curve plotting and automatic coefficient calculation.

4. Single-test acquisition of both static and kinetic friction coefficients — no repeated sample repositioning.

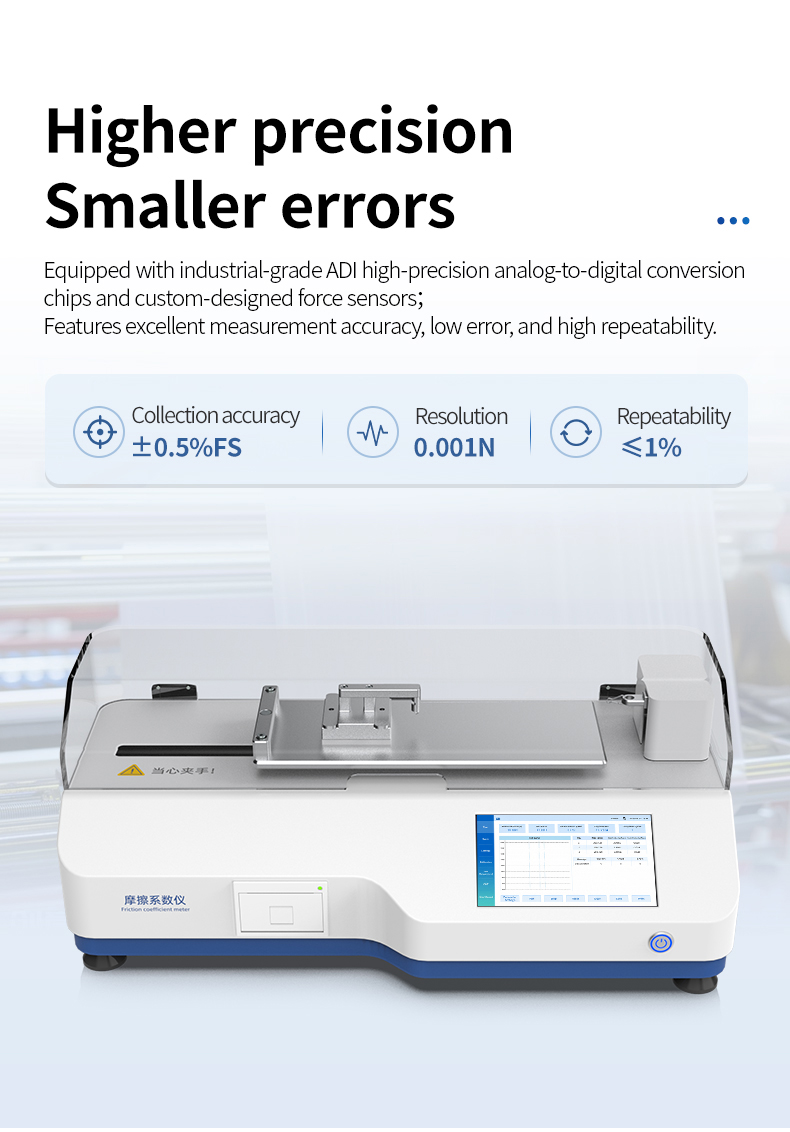

5. Industrial-grade ADI acquisition system with custom force sensors achieving 0.001 N resolution.

6. Relative error ≤ ±0.5% and repeatability ≤ 1% meeting international laboratory precision standards.

7. Response time under 60 ms for rapid force transient capture during slip initiation.

8. Demagnetized test platform and components ensuring interference-free ferrous material testing.

9. GMP-compliant data management with operator permission levels, electronic records, and audit trails.

10. Multi-layer safety protection including limit switch, overload alarm, and power-fail data preservation.

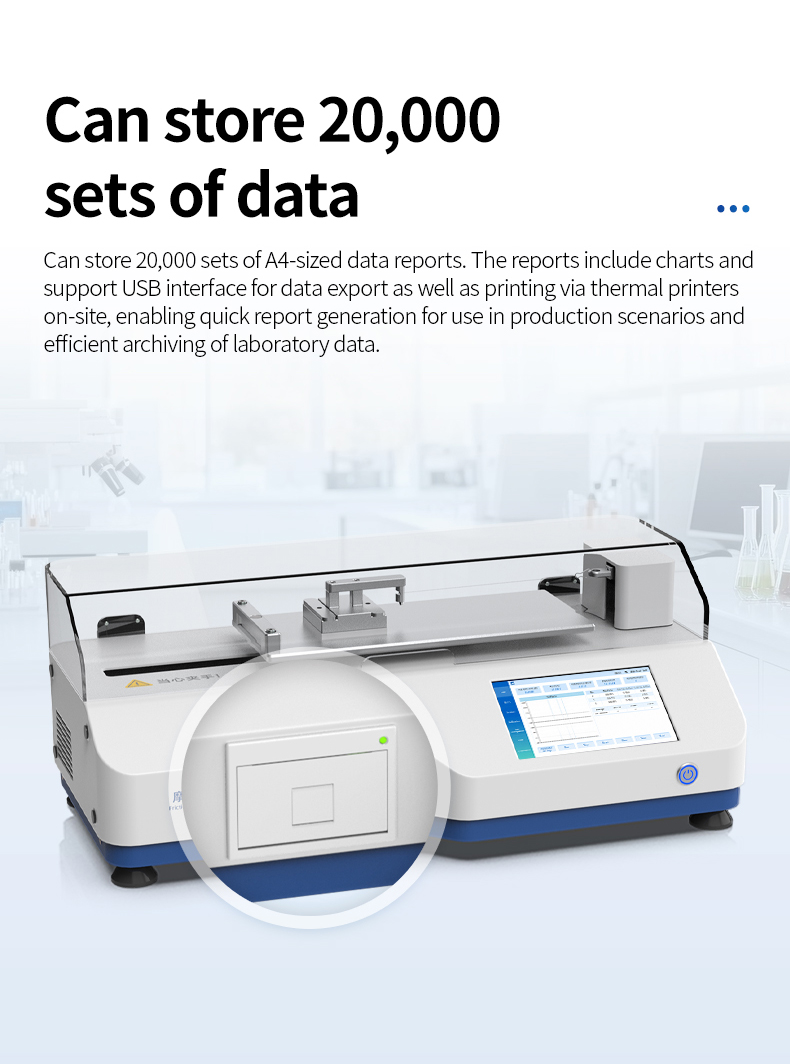

11. 20,000-test onboard data storage with USB export and built-in thermal printer for hard-copy reports.

12. WiFi over-the-air firmware upgrade capability ensuring continuous feature and standard updates.

13. Chinese-English bilingual interface switchable from the main menu for international laboratory use.

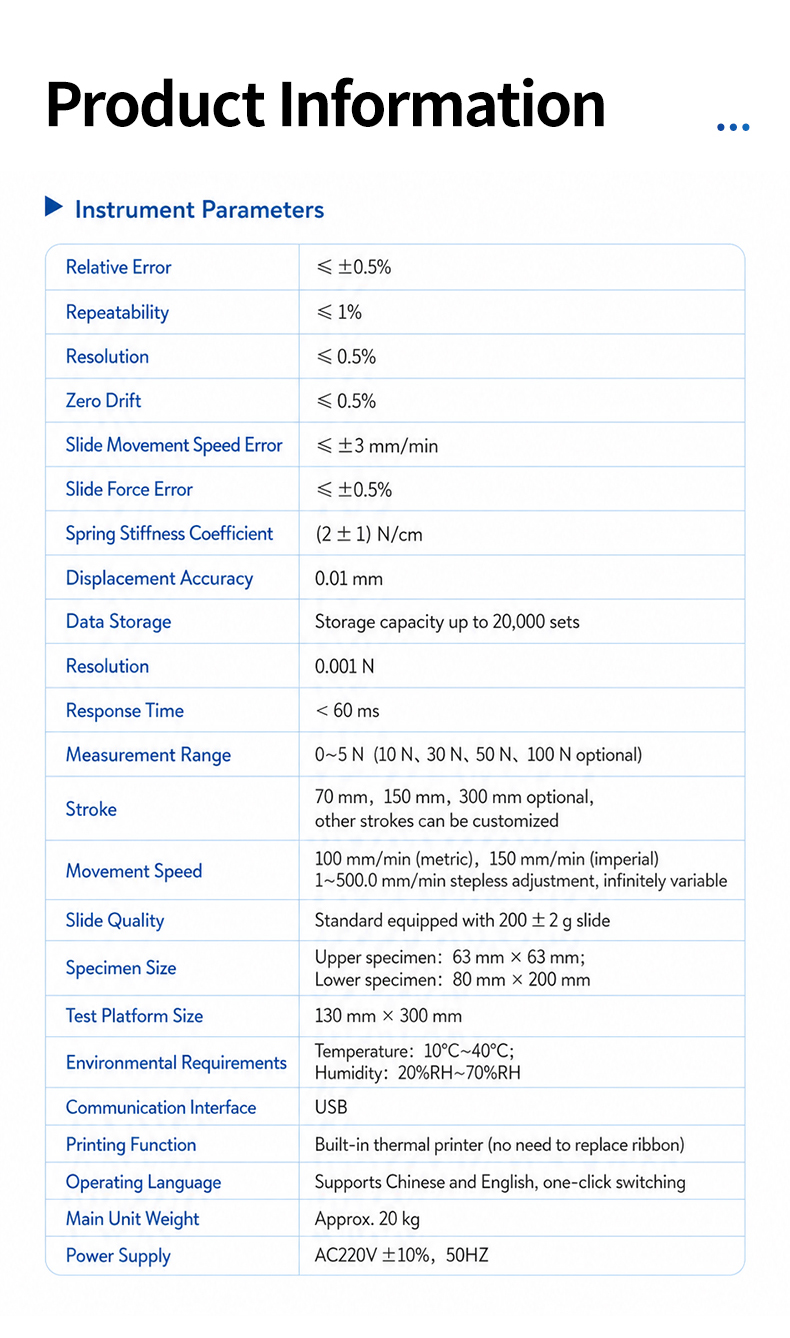

Technical Specifications
