Product Details

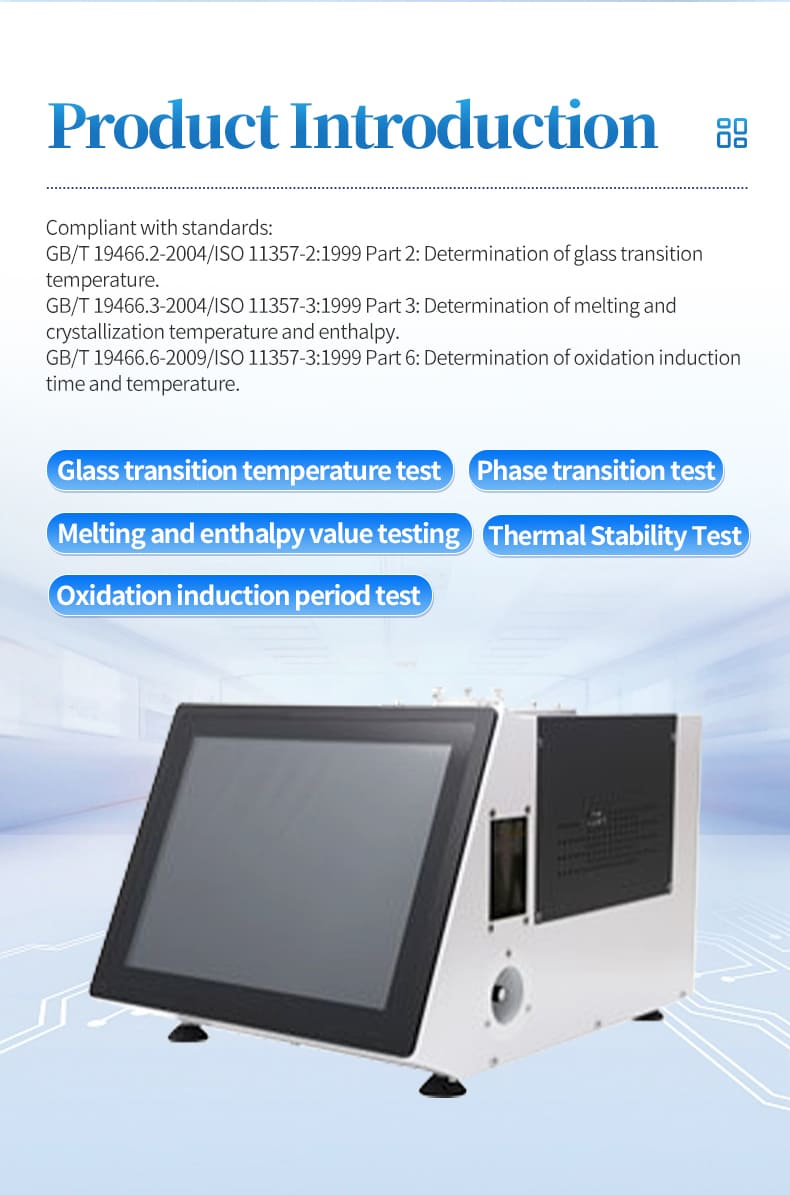

Product Introduction:

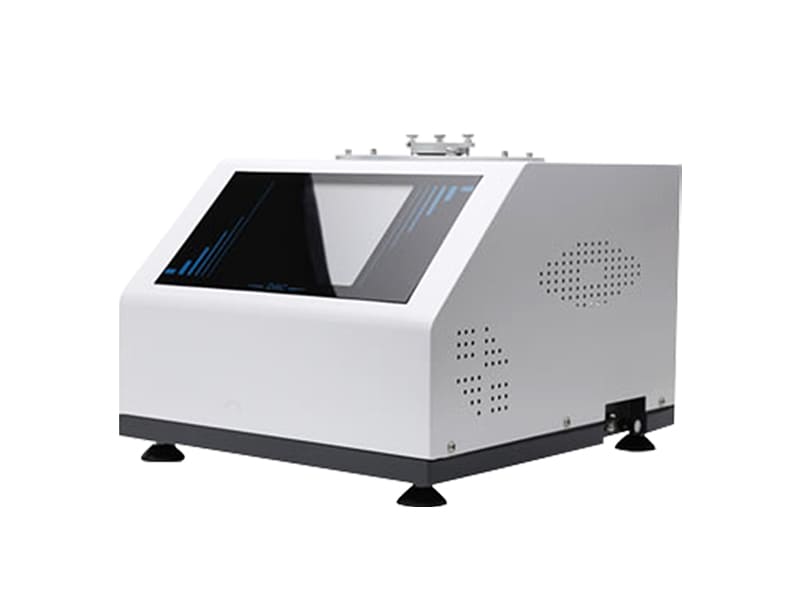

The differential scanning calorimeter is a touch screen type, which can perform glass transition temperature test, phase transition test, melting and thermal enthalpy test, thermal stability test, and oxidation induction period test.
Comply with standards:
?GB/T 19466.2–2004/ISO 11357-2:1999 Part 2: Determination of glass transition temperature
?GB/T 19466.3–2004/ISO 11357-3:1999 Part 3: Determination of melting and crystallization temperature and enthalpy
?GB/T 19466.6-2009/ISO 11357-3:1999 Part 6: Determination of oxidation induction time and oxidation induction temperature

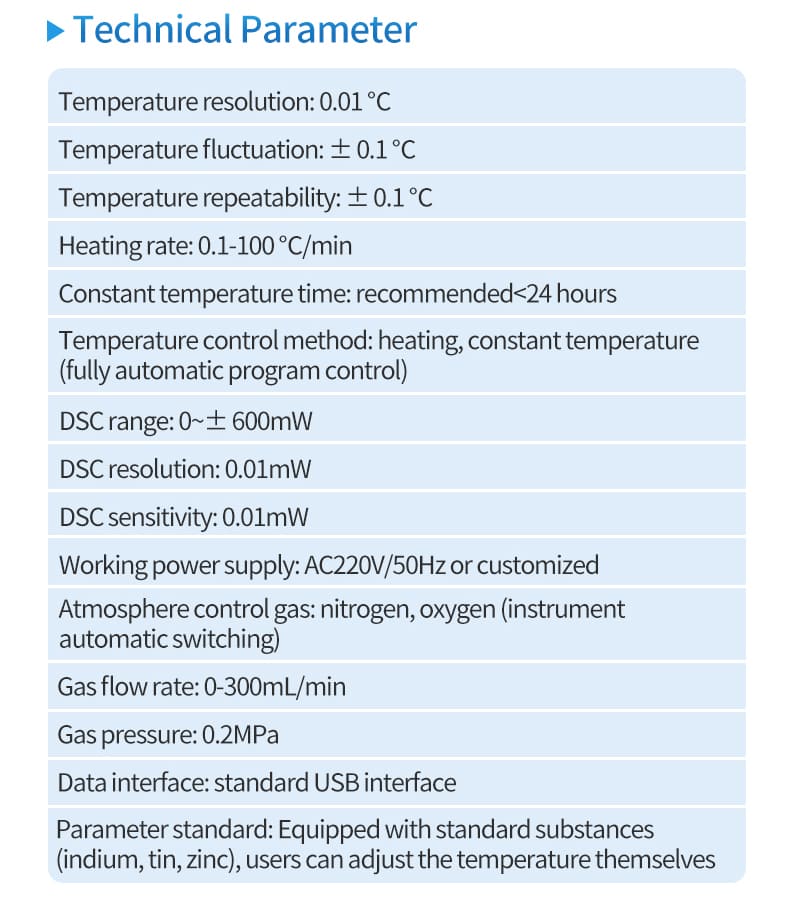

Technical parameters:
1. Temperature range: room temperature ~ 500℃
2. Temperature resolution: 0.01℃
3. Temperature fluctuation: ±0.1℃
4. Temperature repeatability: ±0.1℃
5. Heating rate: 0.1～100℃/min
6. Constant temperature time: recommended <24h
7. Temperature control method: heating, constant temperature (fully automatic program control)
8.DSC range: 0～±600mW
9.DSC resolution: 0.01mW
10.DSC sensitivity: 0.01mW
11. Working power supply: AC220V/50Hz or customized
12. Atmosphere control gas: nitrogen, oxygen (instrument automatically switches)
13. Gas flow: 0-300mL/min
14. Gas pressure: 0.2MPa
15. Display mode: 8-inch LCD touch screen display, ultra-hard instrument mask design.
Technical features:

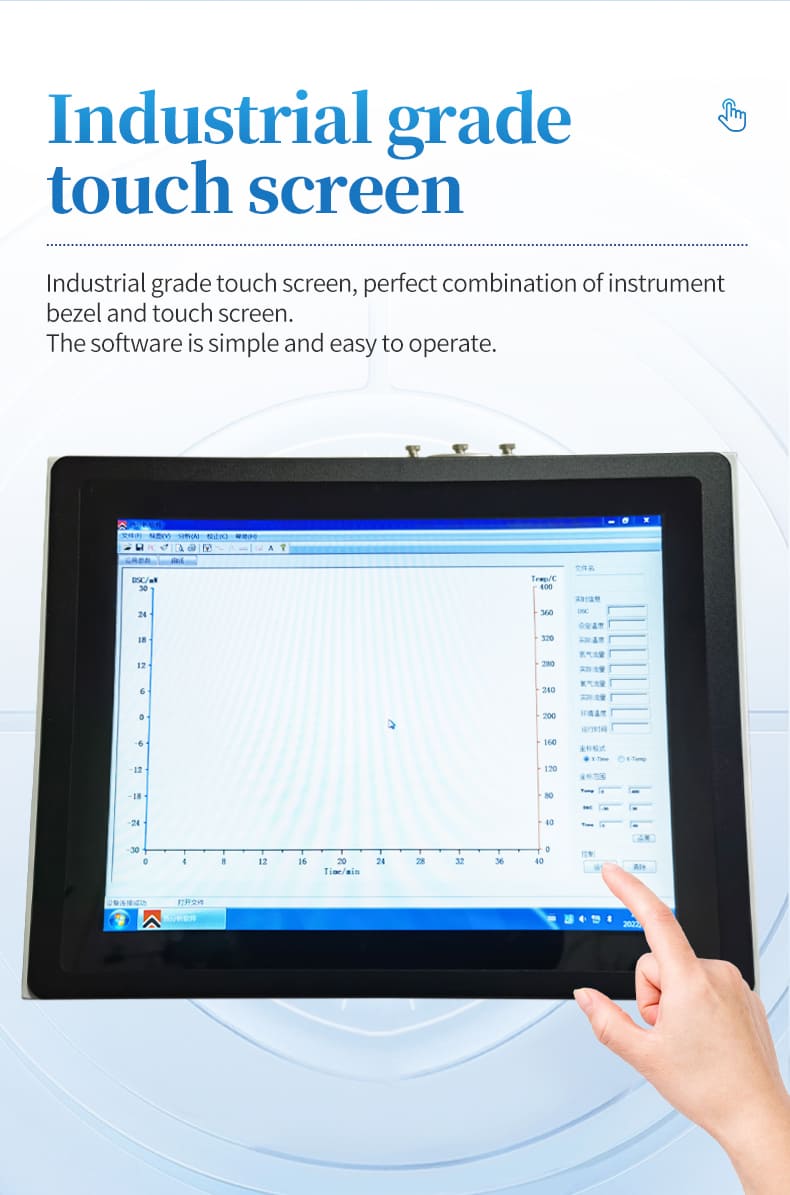

1. Industrial-grade 8-inch touch screen, perfect combination of instrument face frame and touch screen.

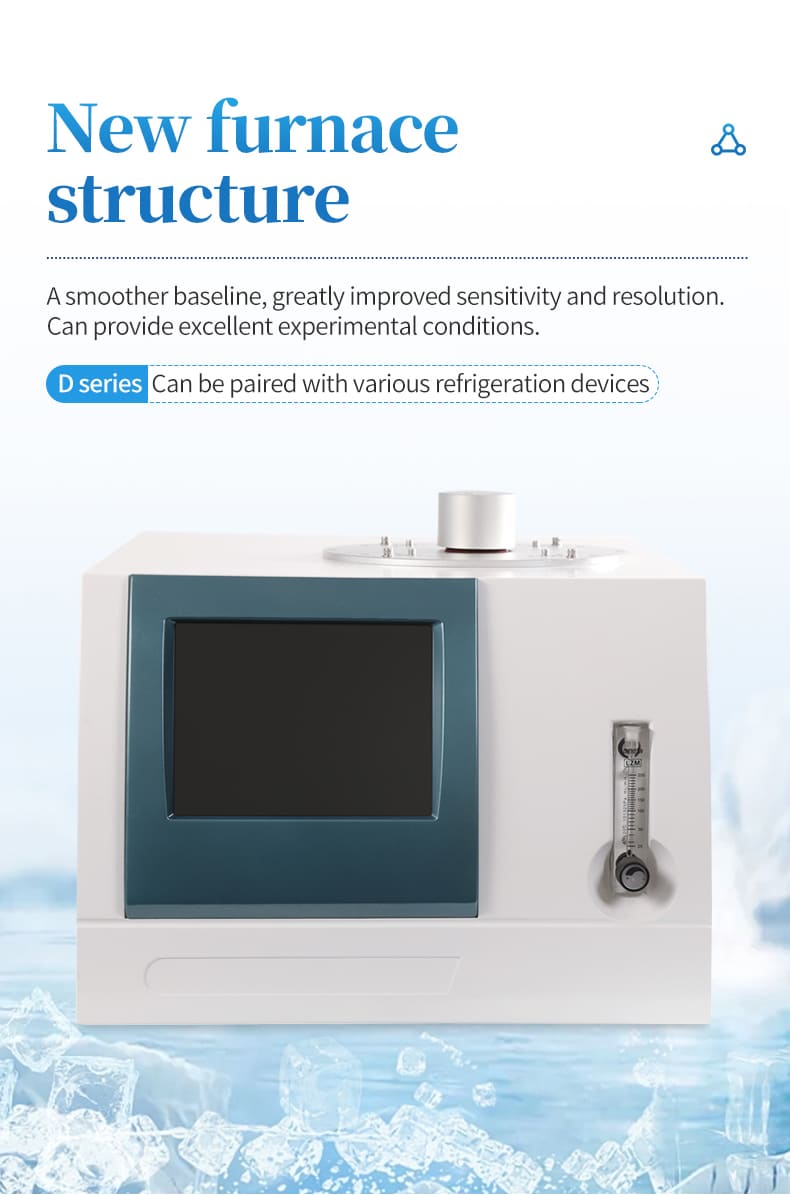

2. The sensor is closely integrated with the furnace body, making the baseline more stable, and the sensitivity and resolution are greatly improved.

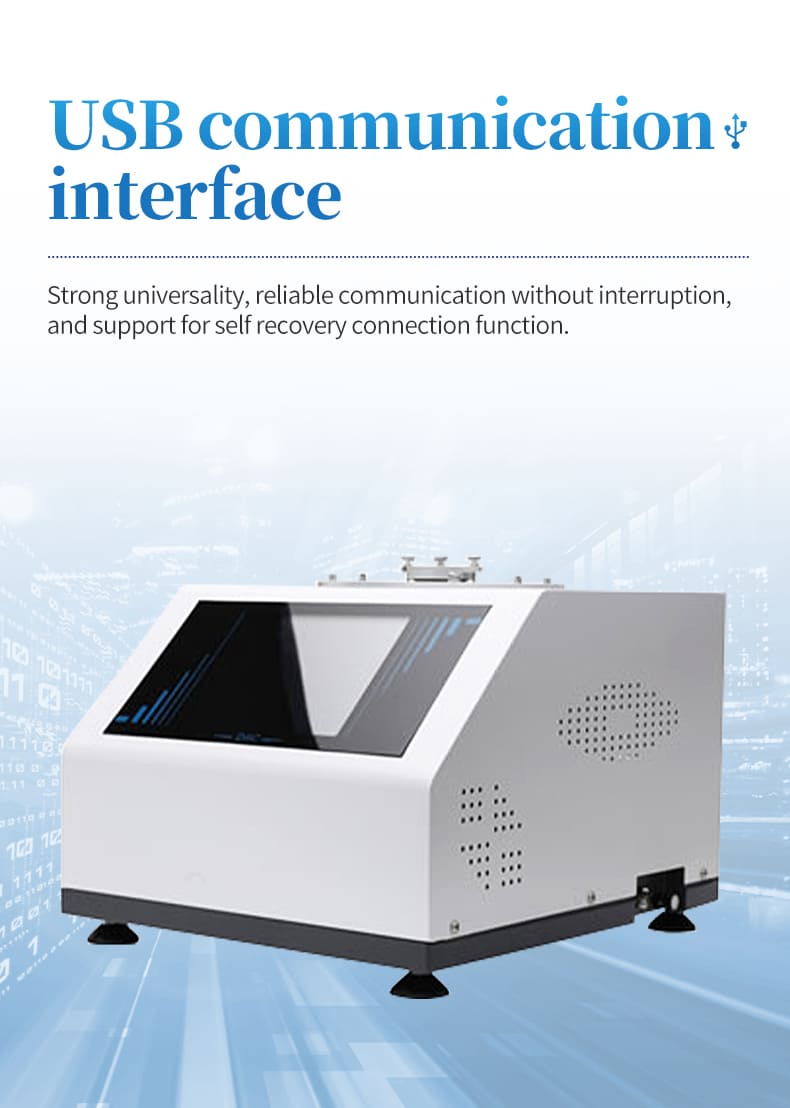

3. USB communication interface, strong versatility, reliable and uninterrupted communication, and supports self-recovery connection function.

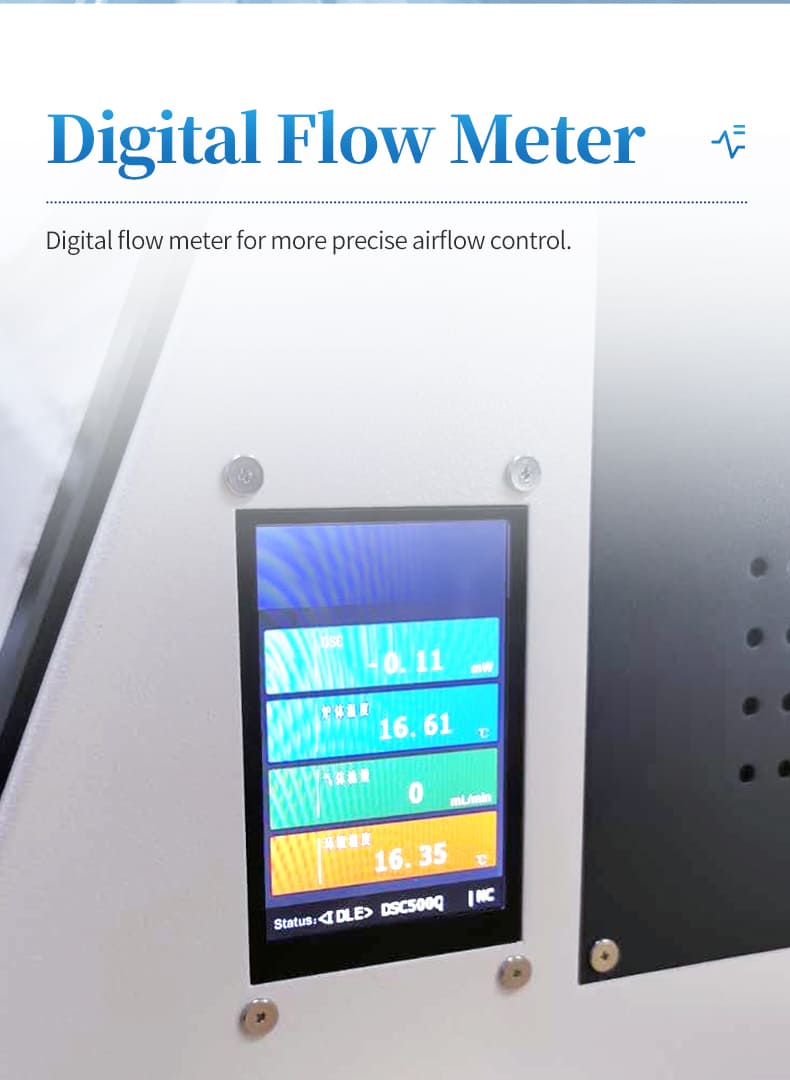

4. Digital flow meter, more precise airflow control.

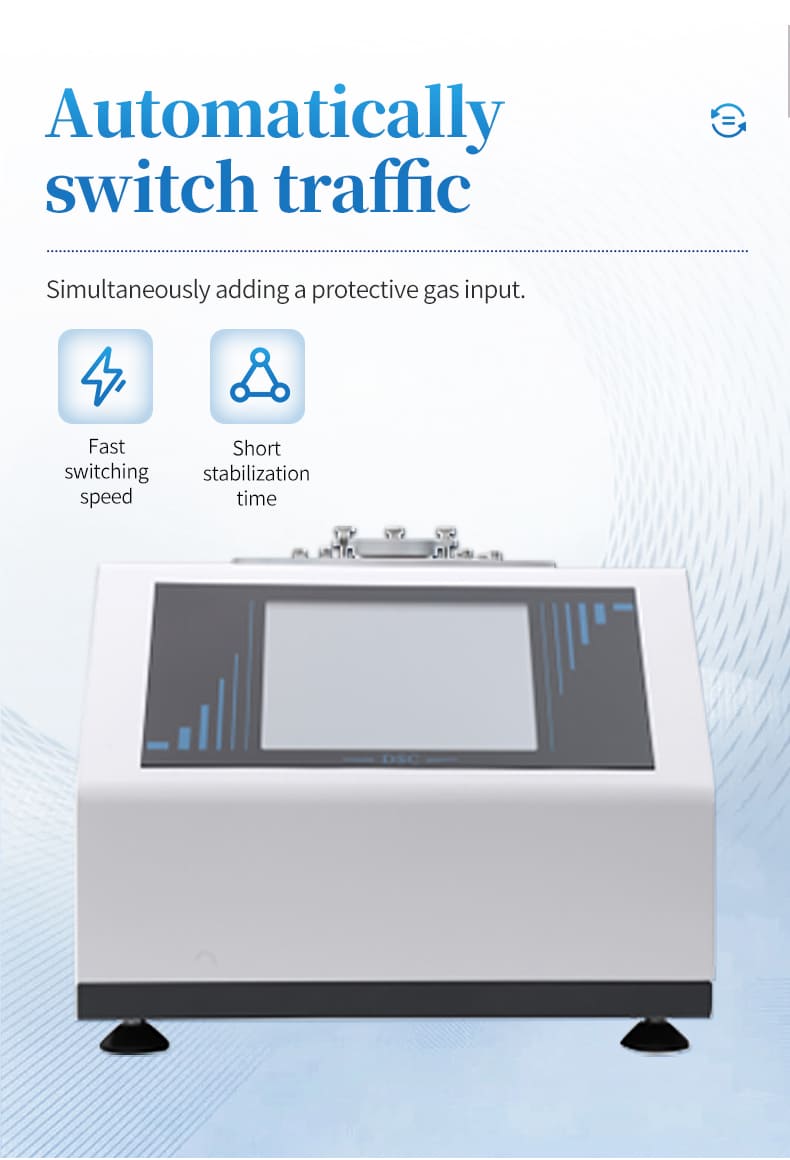

5. Automatically switch between two atmosphere flows, fast switching speed, short stabilization time. At the same time, add one protective gas input.
6. The software is simple and easy to operate.
