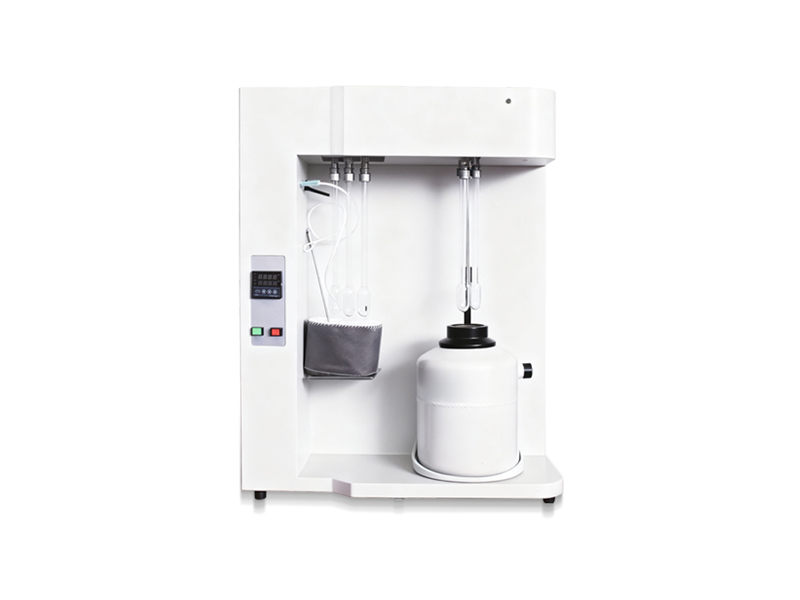

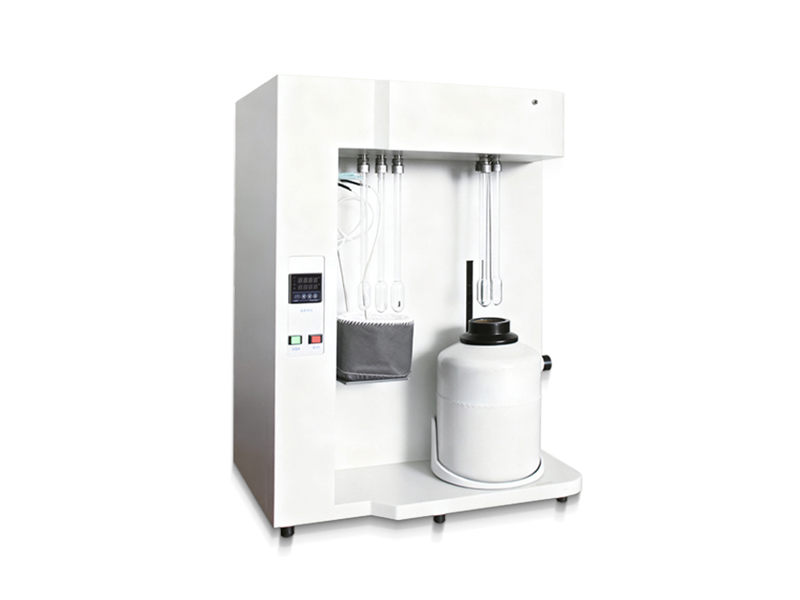

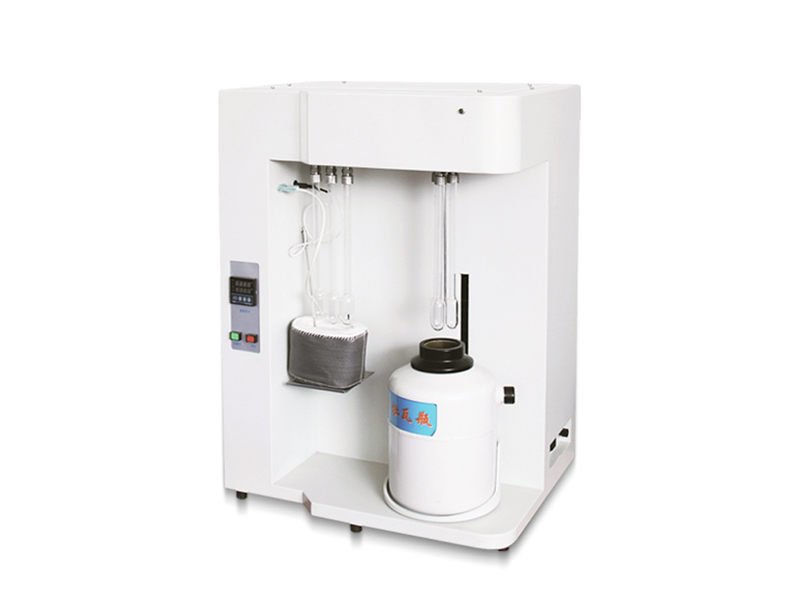

Specific Surface Area and Pore Size Analyzer

Instrument Introduction:

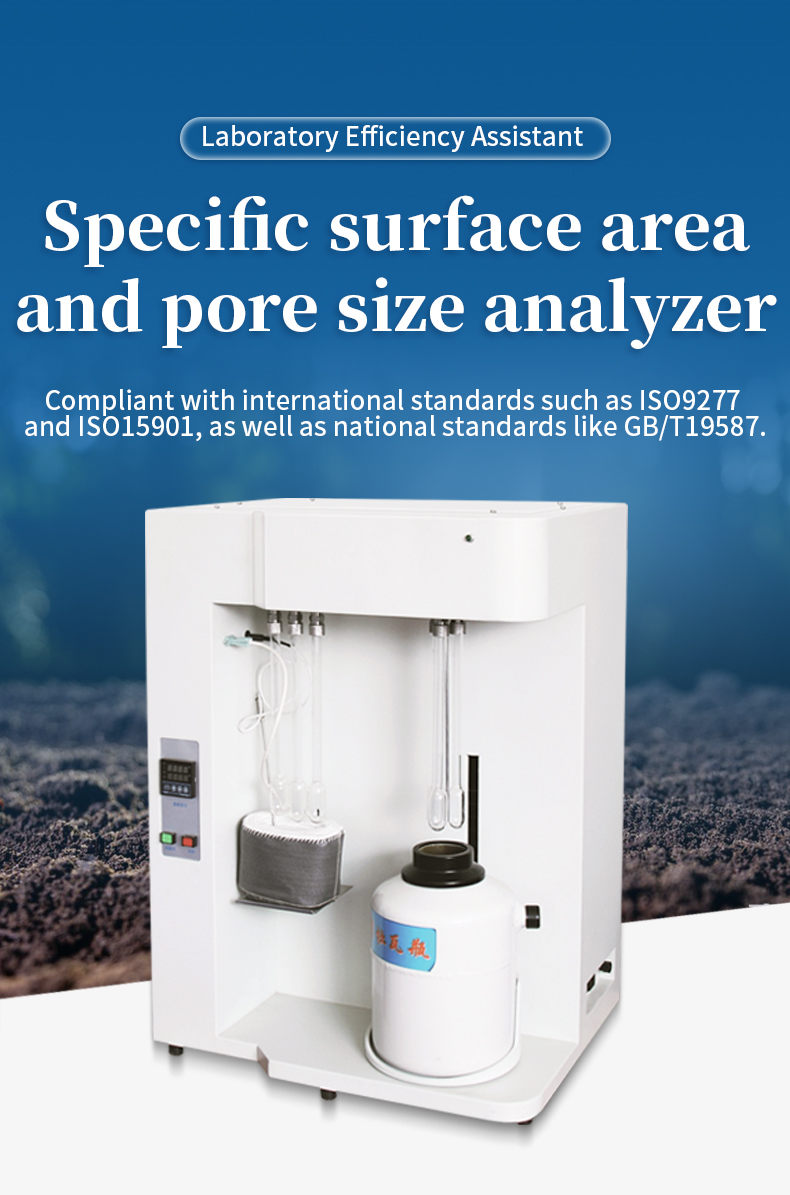

The fully automatic specific surface area and porosity analyzer complies with international standards such as ISO9277, ISO15901, and national standards such as GB/T19587. The adsorption process is tested using the static capacity method through mass balance equations, static gas equilibrium, and pressure measurements. The testing process is conducted at liquid nitrogen temperature. When a known amount of gas is injected into the sample tube through a branch, it will cause a pressure drop. Therefore, the molar mass of the adsorbed gas at adsorption equilibrium can be calculated. By measuring the equilibrium adsorption capacity, the theoretical model is used to determine the single point and multi-point BET specific surface area and Langmuir specific surface area of the tested sample; Volume and area distribution of BJH mesopores and macropores, total pore volume; T-plot micropore volume and surface area, Dubinin Astakhov micropore distribution, Horvath Kawazoe, SF micropore distribution, MP micropore distribution; Non local density function theory (NLDFT) and Monte Carlo (GCMC) aperture distribution model parameters.

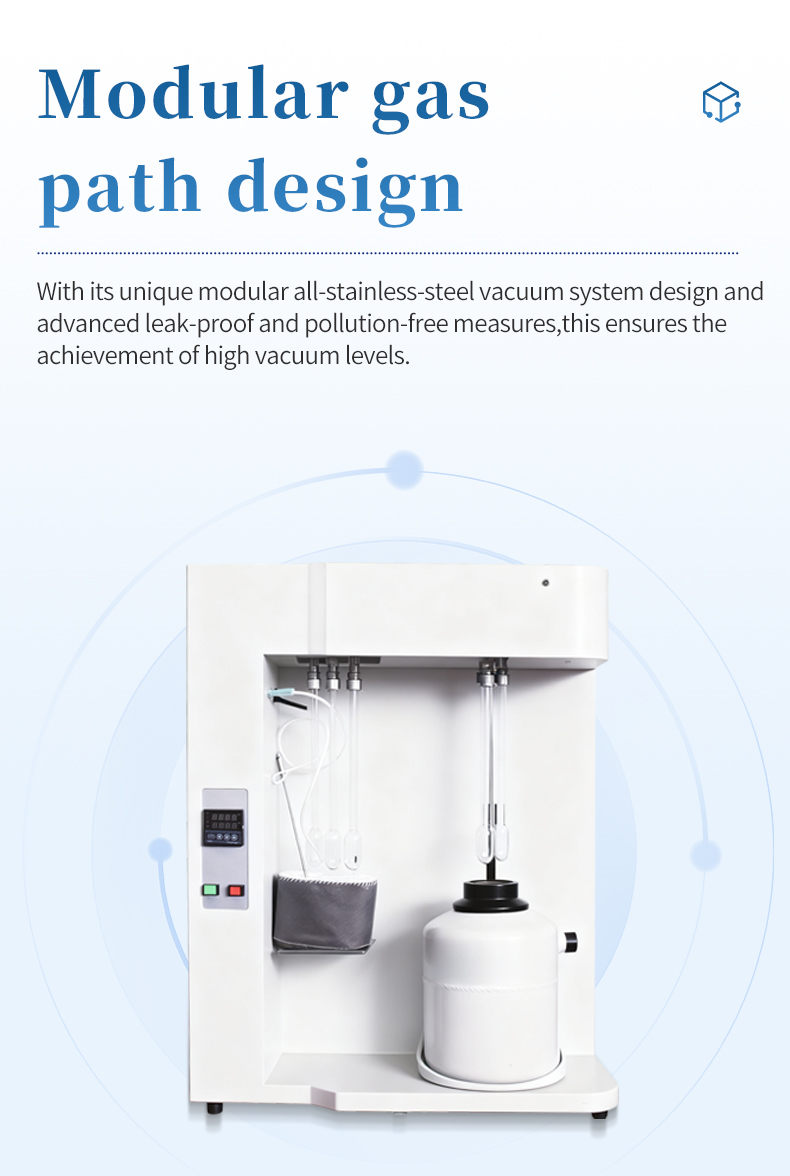

◆ Modular air circuit design

The fully automatic surface area and porosity analyzer introduces the most advanced design concept in the world today. It adopts a unique modular all stainless steel vacuum gas path design and advanced anti leakage and pollution-free measures to ensure the realization of high vacuum and avoid the disadvantages of easy leakage due to too many connecting pipeline joints.

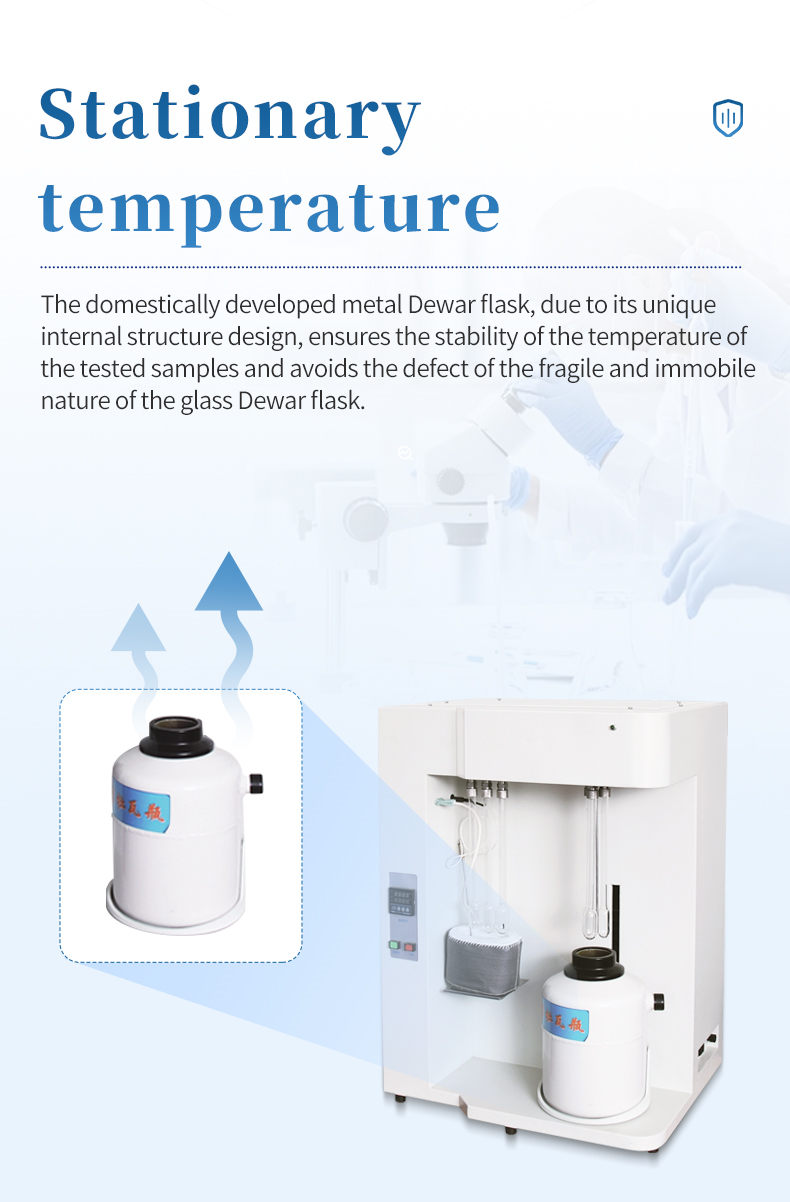

◆ Constant temperature

The independently developed metal Dewar flask, due to its unique internal structural design, ensures a constant temperature of the tested sample while avoiding the fragility and inability to move of glass Dewar flasks.

◆ High precision sensors

Multiple high-precision sensors and 22 bit AD conversion devices ensure the accuracy of specific surface area and aperture calculations.

Advanced theoretical models

Its advanced non local density function theory (NLDFT) and Monte Carlo (GCMC) pore size distribution model have established its dominant position in China's specific surface area and porosity analyzer industry, and are also at a leading level internationally.

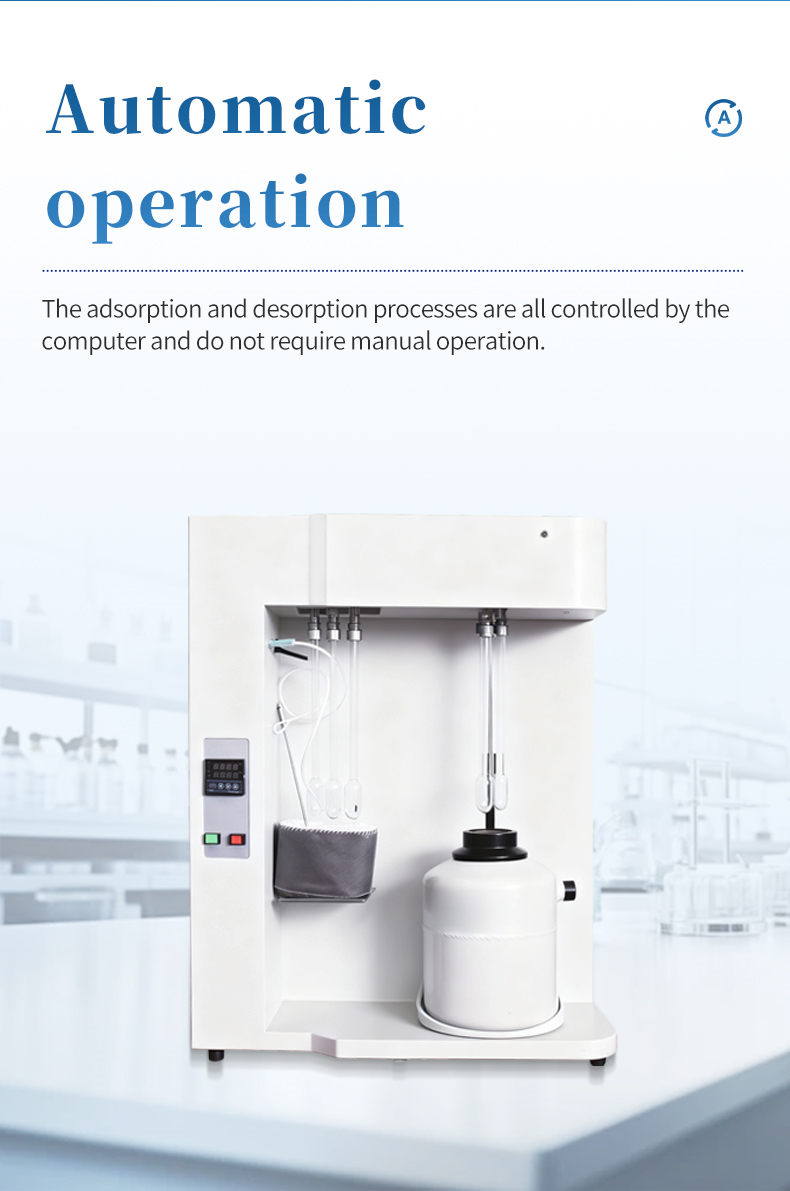

◆ Operational automation

The adsorption and desorption processes are all computer-controlled and do not require manual operation

Technical features:

Single point and multi-point BET specific surface area, Langmuir specific surface area

BJH mesopore, macropore volume, area distribution, total pore volume

T-plot micropore volume and surface area

Dubinin Astakhov micropore distribution

Horvath Kawazoe, SF micropore distribution

MP micropore distribution

Non local density function theory (NLDFT) and Monte Carlo (GCMC) aperture distribution model

True density test

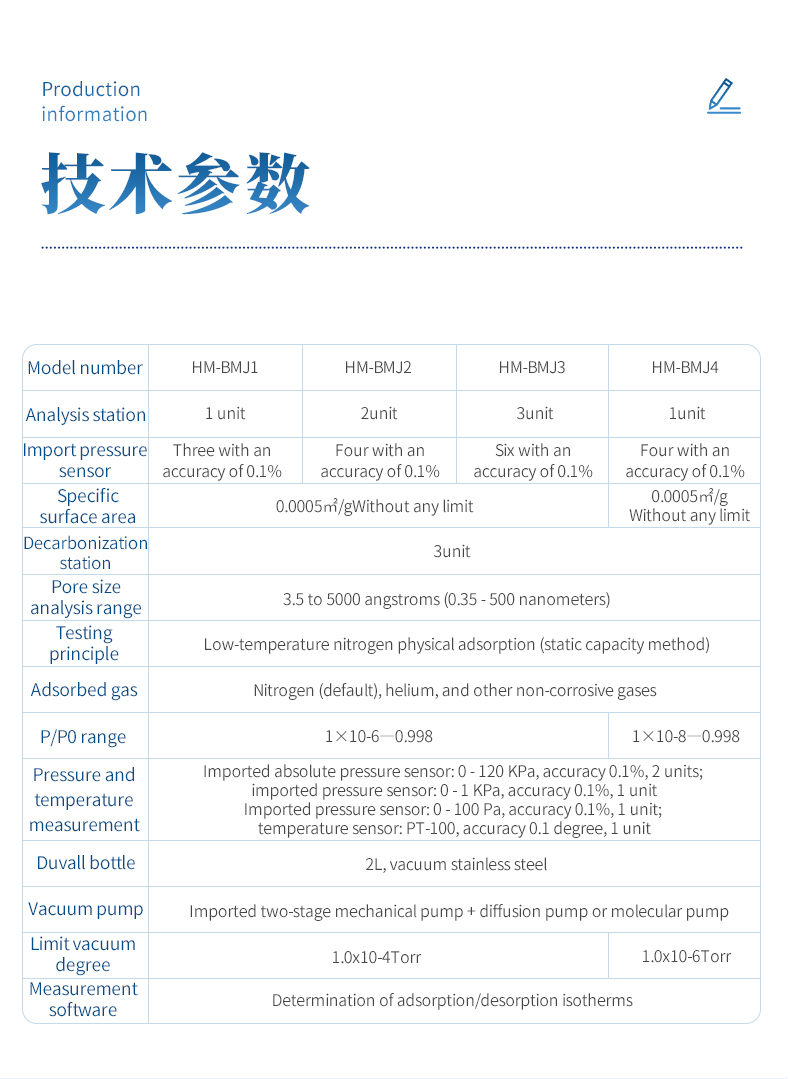

Technical parameters:

1. Specific surface area: 0.0005 ㎡/g to no upper limit

2. Aperture analysis range: 3.5 to 5000 angstroms

3. Test principle: Low temperature nitrogen physical adsorption (static capacity method)

4. Adsorbed gas: Nitrogen (default)

5. P/P0 range: 1 × 10-6 to 0.998

6. Pressure and temperature measurement:

Imported absolute pressure sensor 0-133KPa, accuracy 0.1%, 3 pieces.

Temperature sensor: PT-100, accuracy 0.1 ℃ 1 piece

7. Dewar flask: 2L, made of aviation aluminum material, high vacuum and high insulation, while avoiding the defect of fragile and difficult to move glass Dewar flasks

8. Vacuum pump: imported two-stage mechanical pump

9. Ultimate vacuum degree: 1.0x10-4 Torr

10. Measurement software: determination of adsorption/desorption isotherms

11. There is one analysis station and three degassing stations, with a degassing temperature of up to 400 ° C. The three degassing positions are located in the same soft heating package; The analysis position does not need to be used as a degassing position.

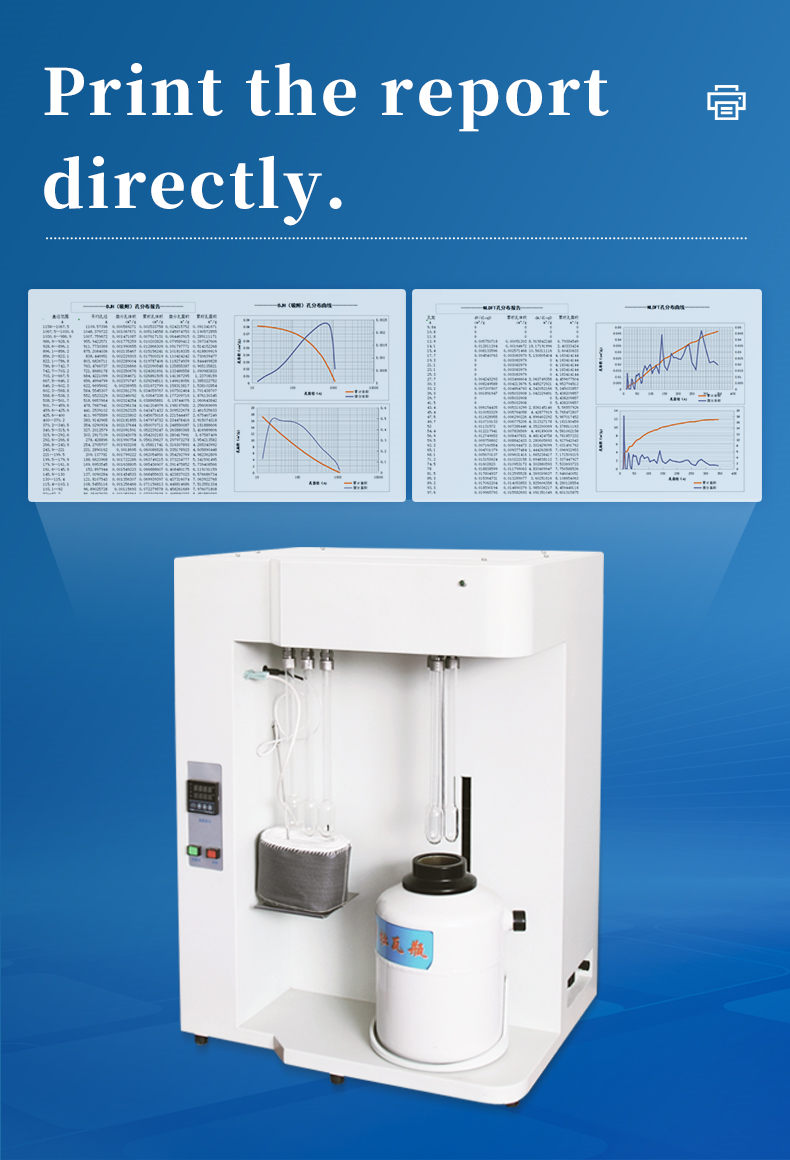

Output report:

Directly print and EXCEL output adsorption desorption isotherms, BET specific surface area Langmuir specific surface area, t-plot micropore volume, BJH pore volume, pore area, total pore volume, total pore area, Dbinin Astakhov, Horvath Kawazoe, SF, MP micropore distribution, NLDFT/GCMC pore distribution, and review report.

Application scope:

Research and product testing of various materials, including measuring zeolites, molecular sieves, silica, alumina, soil, clay, catalysts, organic metal compound skeleton structures, and other materials.
