All-in-one food testing pre-processing machine

Product Introduction

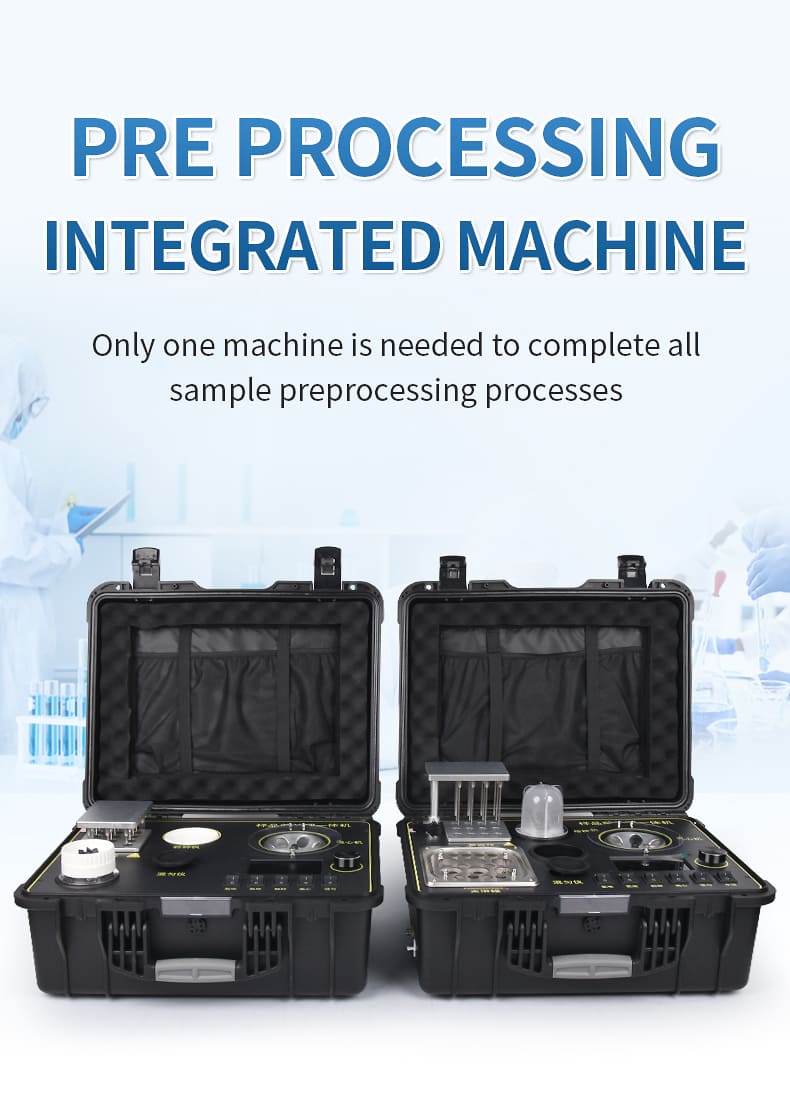

QC5 sample pretreatment integrated machine - sample pretreatment integrated box integrates the equipment required for sample concentration, water bath constant temperature, centrifugal stratification, homogenization, oscillation mixing and other steps in the sample pretreatment process. Only one sample pretreatment integrated box device is needed to complete all sample pretreatment processes, and it is easy to carry. It is not only suitable for on-site detection, but also can be used for purification and preparation of analytical samples such as chromatography and mass spectrometry.

Product Features

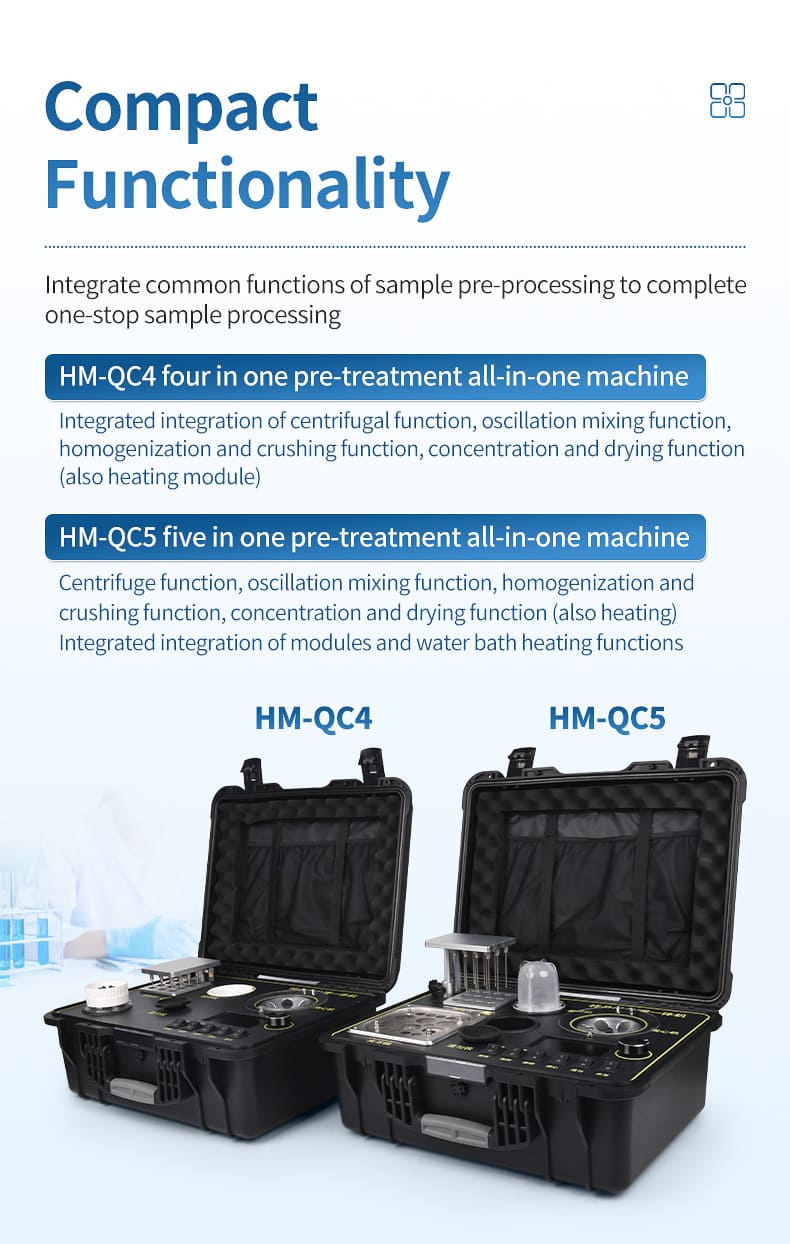

1. Compact functions, integrating five commonly used functions for sample pretreatment, completing one-stop sample processing.

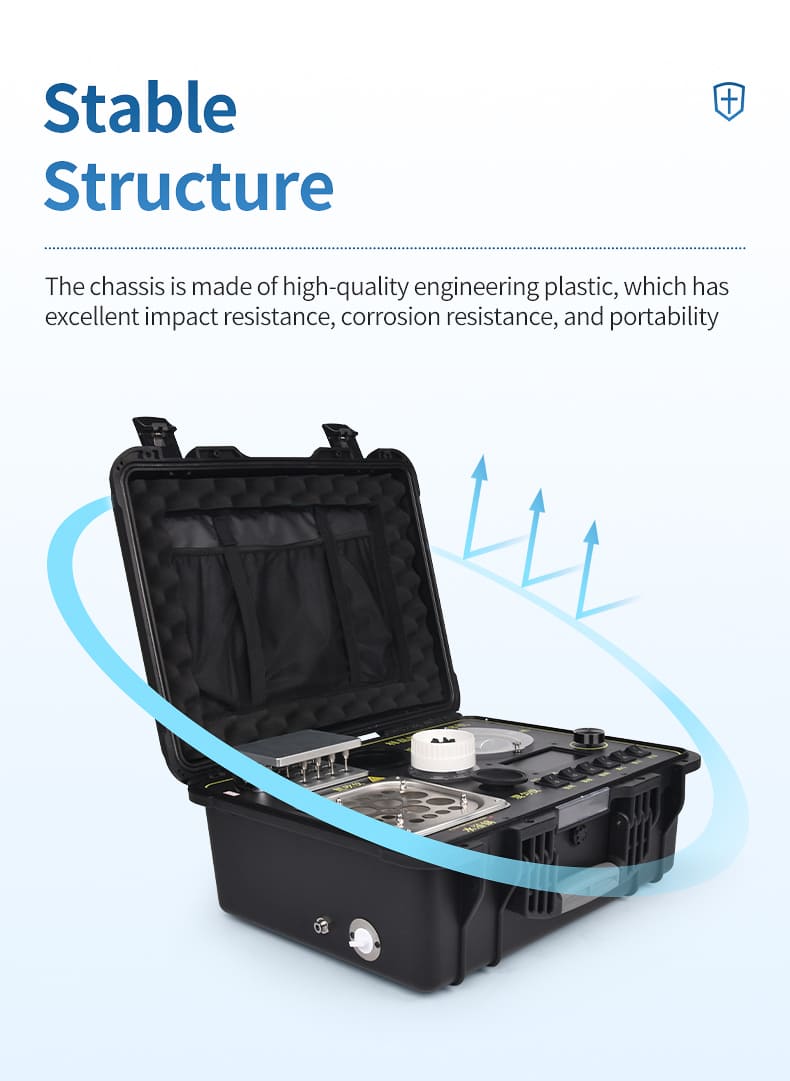

2. Stable structure, the chassis is made of high-quality engineering plastics, with excellent impact resistance, corrosion resistance and portability.

3. Stable operation, the machine uses a five-inch full-color LCD screen with strong functional indication, and the user operation is a physical switch to prevent operation failure when wearing gloves and liquid splashing.

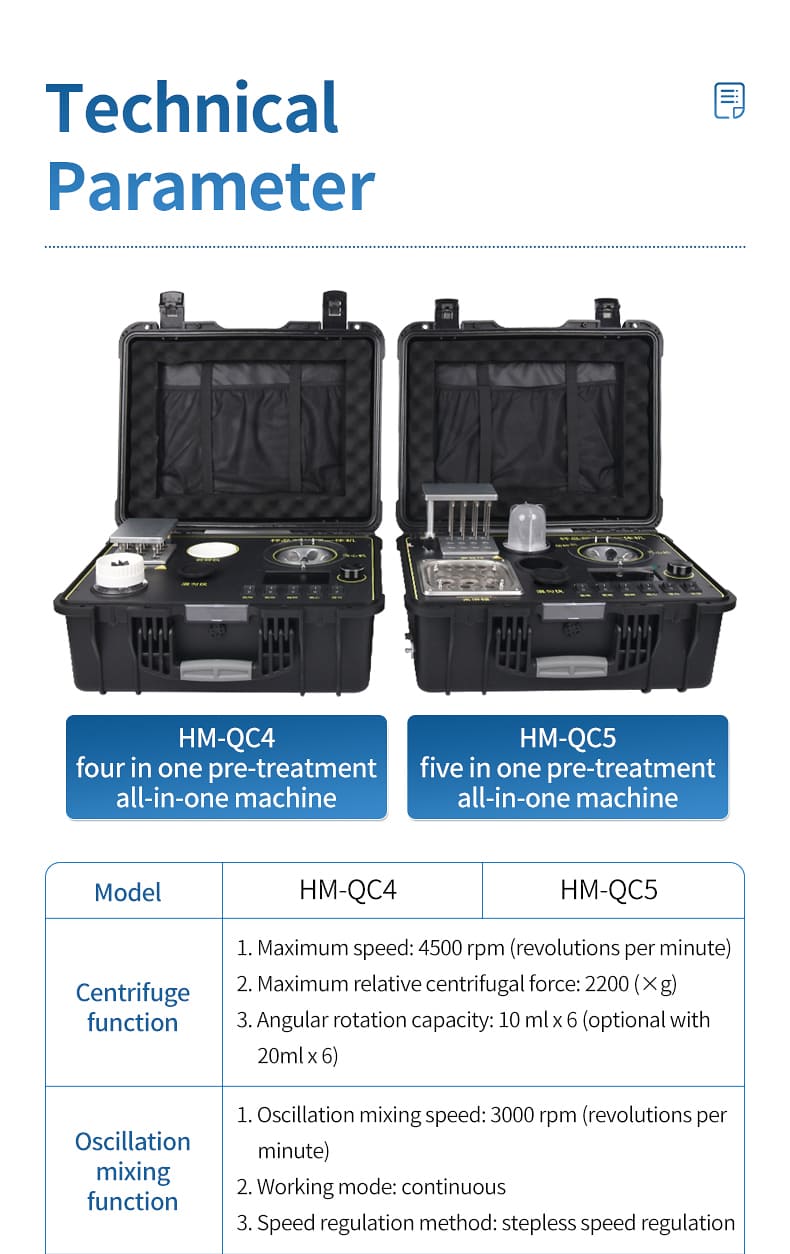

Technical parameters

Centrifugal function

1. Maximum speed: 4500 rpm (rev/min)

2. Maximum relative centrifugal force: 2200 (×g)

3. Angular rotation capacity: 10 mlx6 (optional 20mlx6)

Oscillating mixing function

1. Oscillating mixing speed: 3000 rpm (rev/min)

2. Working mode: continuous

3. Speed regulation mode: stepless speed regulation

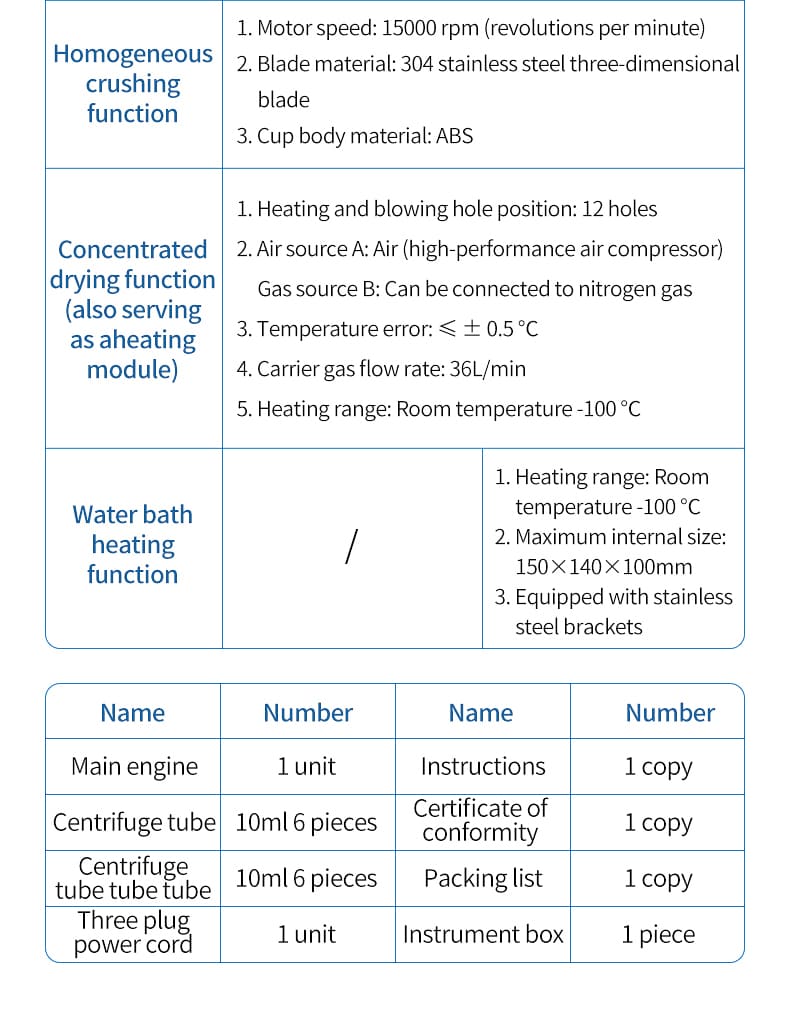

Homogenizing and crushing function

1. Motor speed: 15000 rpm (rev/min)

2. Blade material: 304 stainless steel three-dimensional blade

3. Cup body material: ABS

Concentrated drying function (also heating module)

1. Heating and blowing holes: 12 holes

2. Gas source A: air (high-performance air compressor)

Gas source B: can be connected to nitrogen

3. Temperature error: ≤±0.5℃

4. Carrier gas flow: 36L／min

5. Heating range: room temperature - 100℃

Water bath heating

1. Heating range: room temperature - 100℃

2. Maximum internal size: 150mmX140mmX100mm

3. Equipped with stainless steel bracket

Delivery accessories

1 Host 1 unit

2 10ml centrifuge tube 6 pcs

3 10ml centrifuge tube holder 6 pcs

4 Three-plug power cord 1 pc

5 Instruction manual 1 copy

6 Certificate of conformity 1 copy

7 Packing list 1 copy

8 Instrument box 1 pc
