HM-FZ3-SZ Quad-Channel Trace Water Heavy Metal Rapid Analyzer

Product Introduction

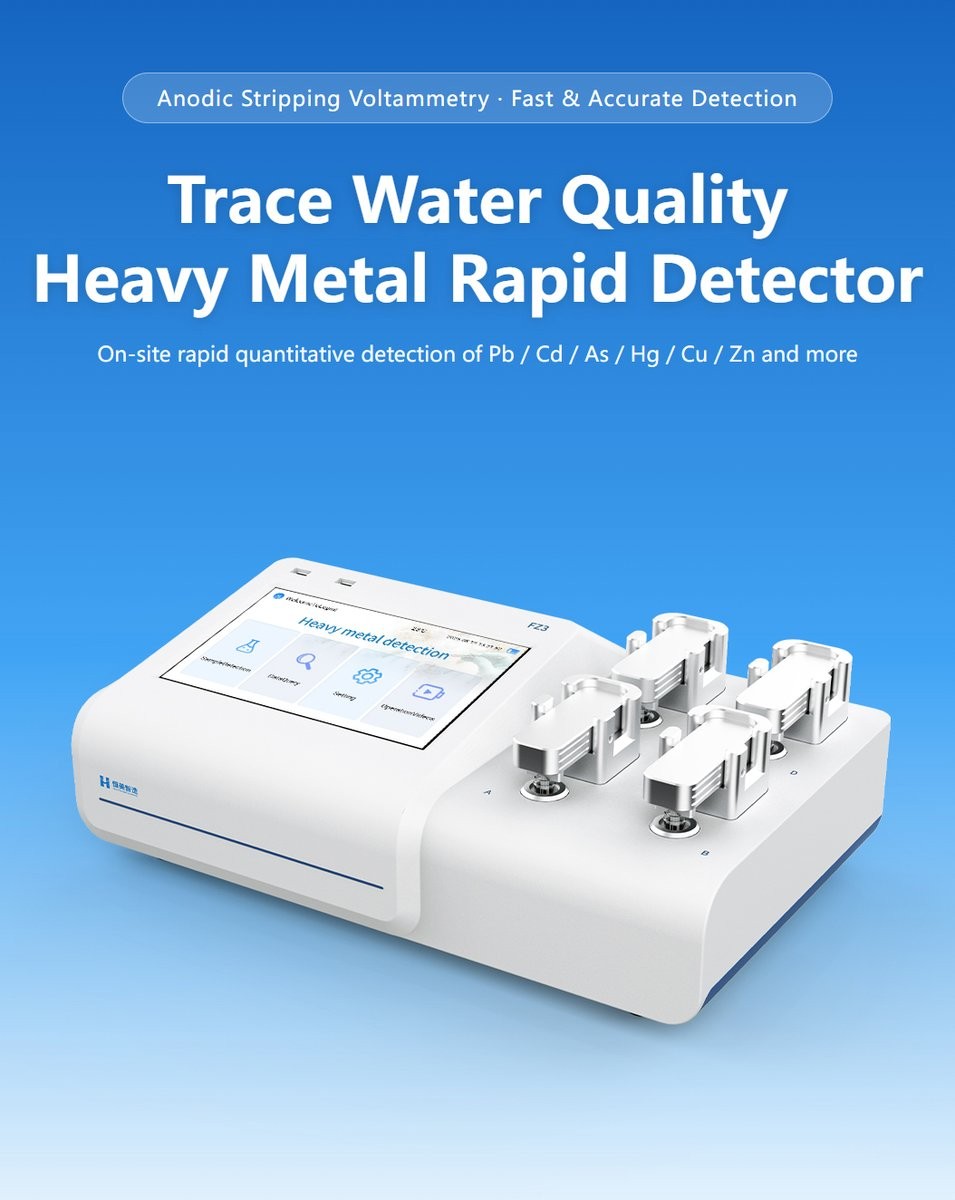

The HM-FZ3-SZ Quad-Channel Trace Water Heavy Metal Rapid Analyzer represents the pinnacle of high-throughput electrochemical water testing technology from HM Instruments. Engineered to meet the demanding requirements of central environmental monitoring centers, large commercial testing laboratories, and major industrial utilities, HM-FZ3-SZ integrates four completely independent anodic stripping voltammetry (ASV) channels into a unified testing bench strictly conforming to JJF 2037-2023.

Each of the four channels (labeled A, B, C, D) operates autonomously with its own patented magnetic elastic contact electrode seat, allowing analysts to run four different samples or four distinct heavy metal parameters simultaneously. Acidified clean water samples are introduced directly onto disposable screen-printed electrodes without tedious acid digestion, delivering quantitative results within 280 seconds. Housed in a robust benchtop chassis measuring 480 mm × 296 mm × 156 mm (7.6 kg) with a 10-inch HD touchscreen, 20,000 mAh rechargeable battery, and built-in thermal printer, HM-FZ3-SZ maximizes laboratory sample throughput while maintaining sub-ppb analytical rigor.

Applications

• Central Water Quality Laboratories: High-volume batch sample intake and multi-element regulatory screening.
• Certified Commercial Testing Centers: High-throughput commercial water testing to lower per-sample analytical overhead.
• Regional Watershed Pollution Hubs: Rapid batch analysis of river cross-section samples during pollution surge events.
• Industrial Manufacturing Complexes: Simultaneous monitoring of diverse treatment process points and wastewater discharge pipes.
• Municipal Water Group Headquarters: Comprehensive city-wide water distribution audits requiring high-frequency testing.

Functional Performance

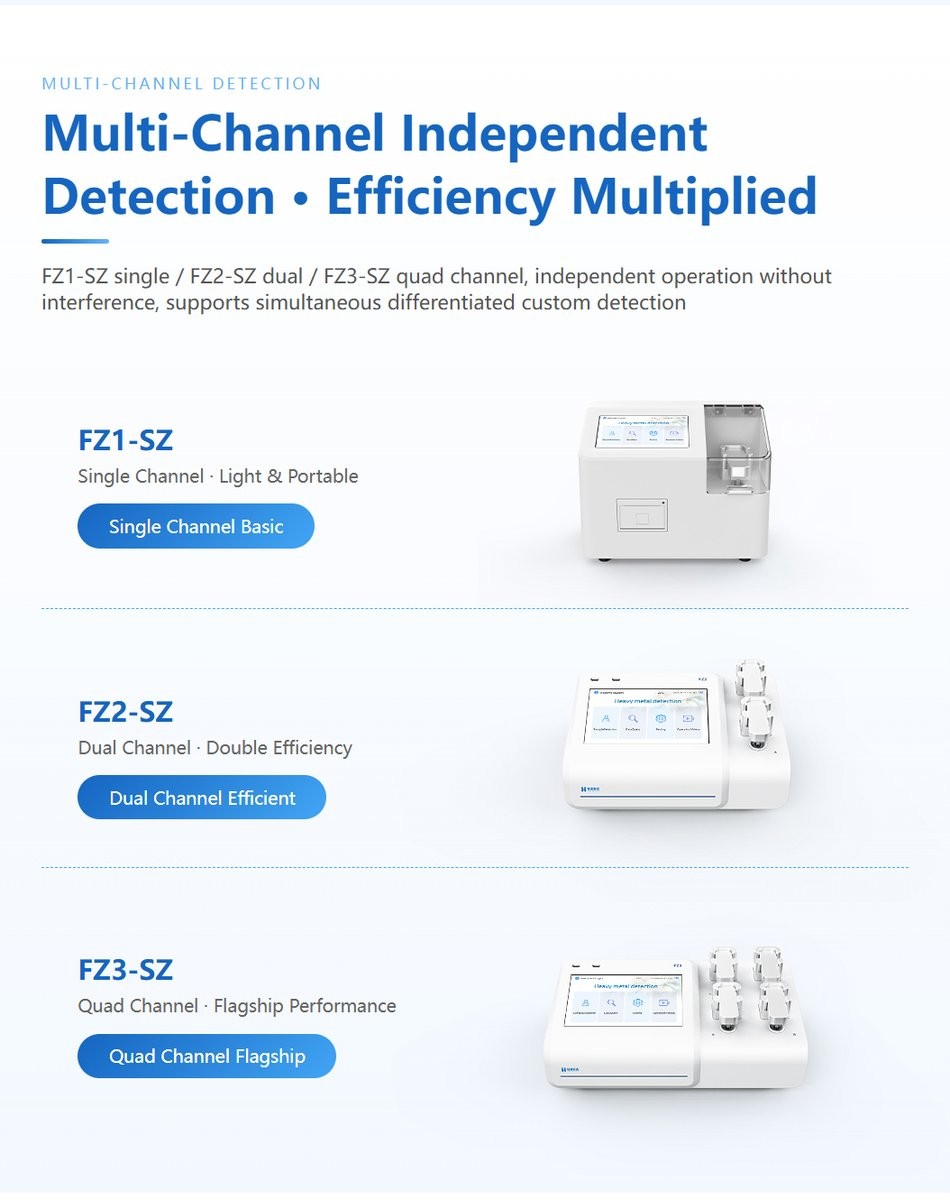

1. Quad Independent Parallel Architecture: Four discrete electrochemical cells operate concurrently with dedicated potentiostat circuits, multiplying analytical capacity by 400%.
2. Flexible Multi-Parameter Customization: Each channel can be assigned different calibration curves, target elements (Cd, Pb, As, Hg, Cu, Zn), or testing routines simultaneously.

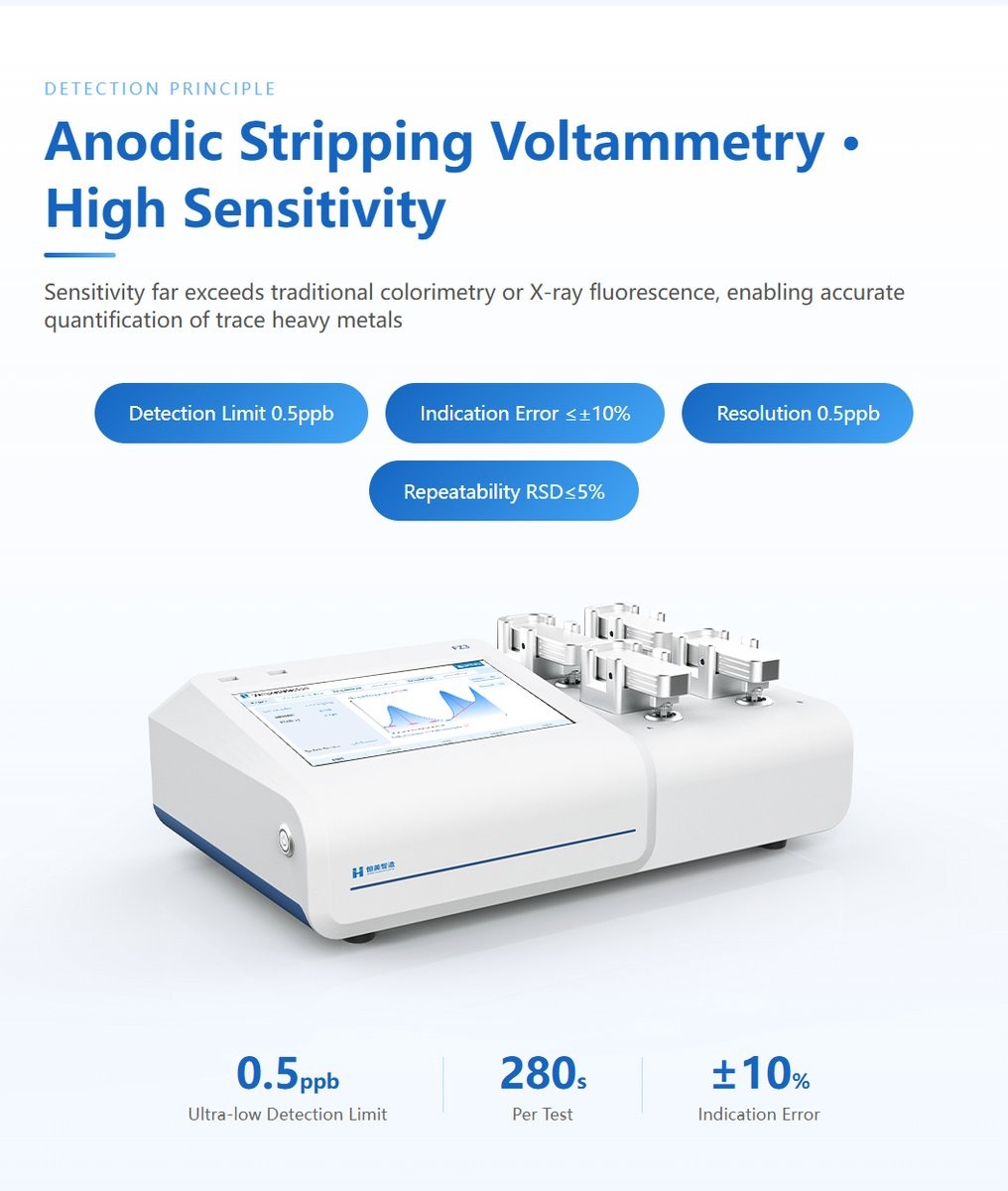

3. Trace-Level 0.5 ppb Detection Limit: High-sensitivity anodic stripping voltammetry accurately quantifies dissolved metals at sub-ppb concentrations, compliant with JJF 2037-2023.
4. Direct Sample Electrochemical Testing: Bypasses lengthy microwave digestion for clean water matrices, completing batch tests in 280 seconds per run.

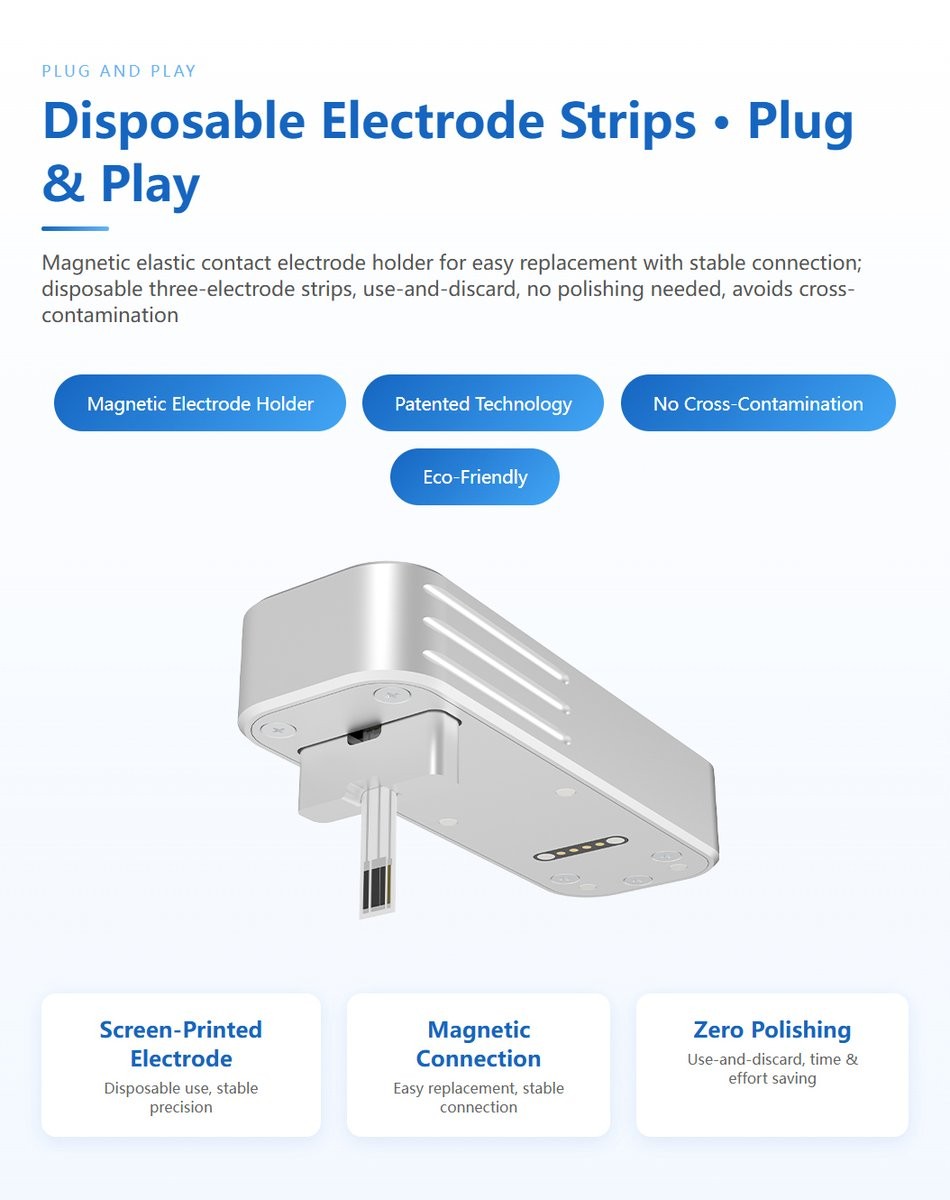

5. Four Patented Magnetic Electrode Seats: Magnetic alignment and elastic gold-plated pins ensure reproducible contact conductivity and zero mechanical wear.
6. Disposable Screen-Printed Test Chips: Ready-to-use three-electrode strips eliminate manual alumina polishing, cross-sample memory effects, and toxic mercury waste.
7. Intuitive 10-Inch Android Operating System: Real-time quad-channel voltammetric curve tracking displays dynamic stripping peaks side-by-side.
8. Heavy-Duty 20,000 mAh Battery Pack: High-energy rechargeable lithium battery enables prolonged field operation during mobile emergency deployments.

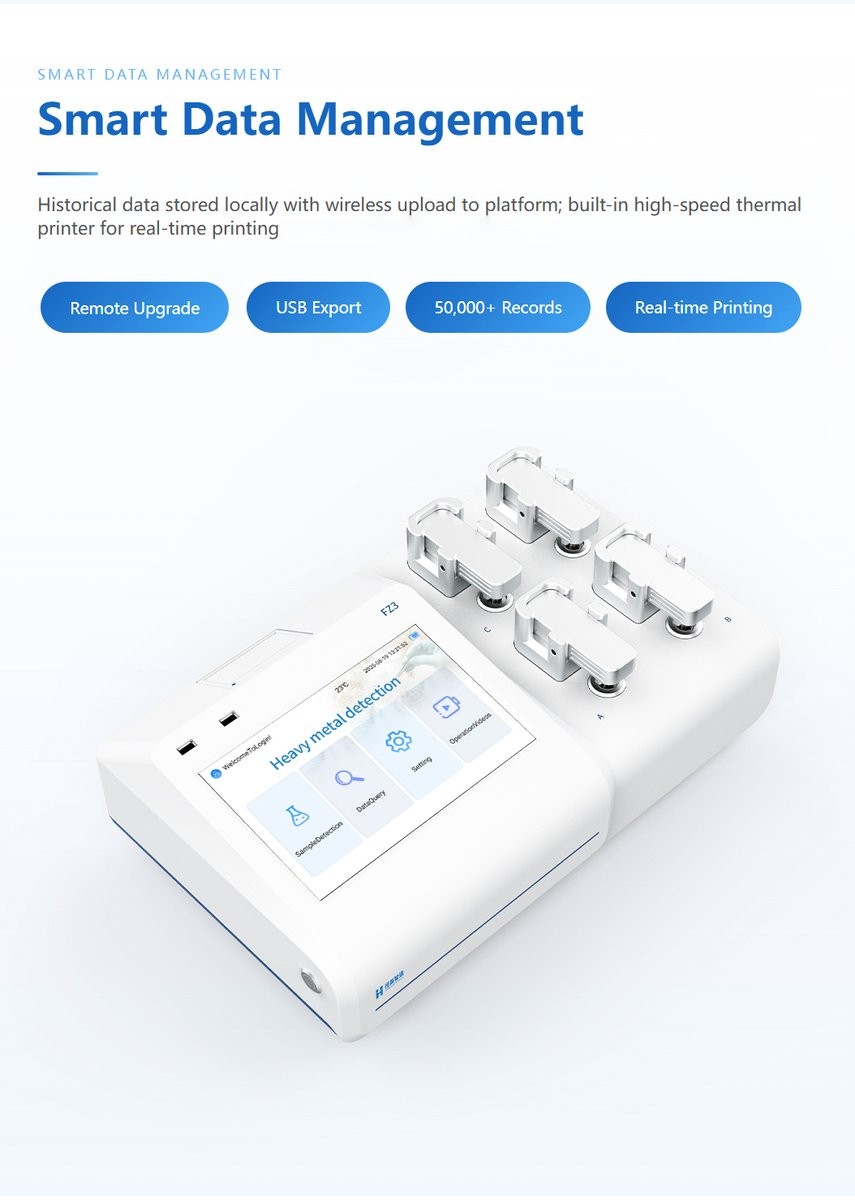

9. Integrated Thermal Documentation & Cloud Sync: Built-in printer provides immediate hard-copy slips, while Wi-Fi and USB interfaces enable seamless LIMS data transfer. For individual portable field inspections, explore our portable single-channel heavy metal analyzer.

Main Parameters

• Testing Channels: Quad channels (4 independent testing circuits running in parallel)
• Target Elements: Standard: Cd, Pb; expandable to As, Hg, Cu, Zn, Se, Cr
• Detection Limit: 0.5 ppb (Cd, Pb, Hg)
• Testing Range: 1 ~ 100 ppb (Cd, Pb, Hg)
• Testing Speed: 280 seconds / test cycle
• Display: 10-inch HD color touchscreen, Android operating system
• Battery System: Built-in 20,000 mAh rechargeable lithium battery
• Dimensions & Weight: 480 mm × 296 mm × 156 mm; 7.6 kg net weight

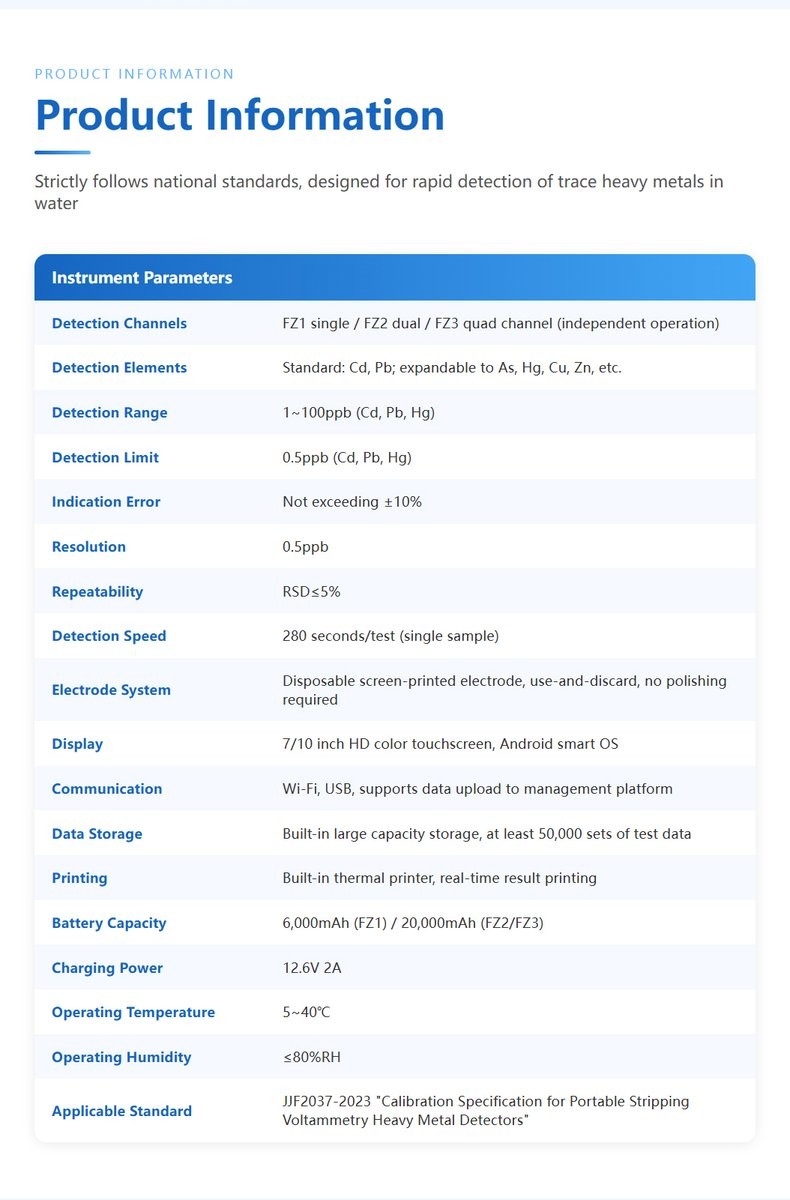

Technical Parameters
