Soil respiration measuring instrument

Product introduction:

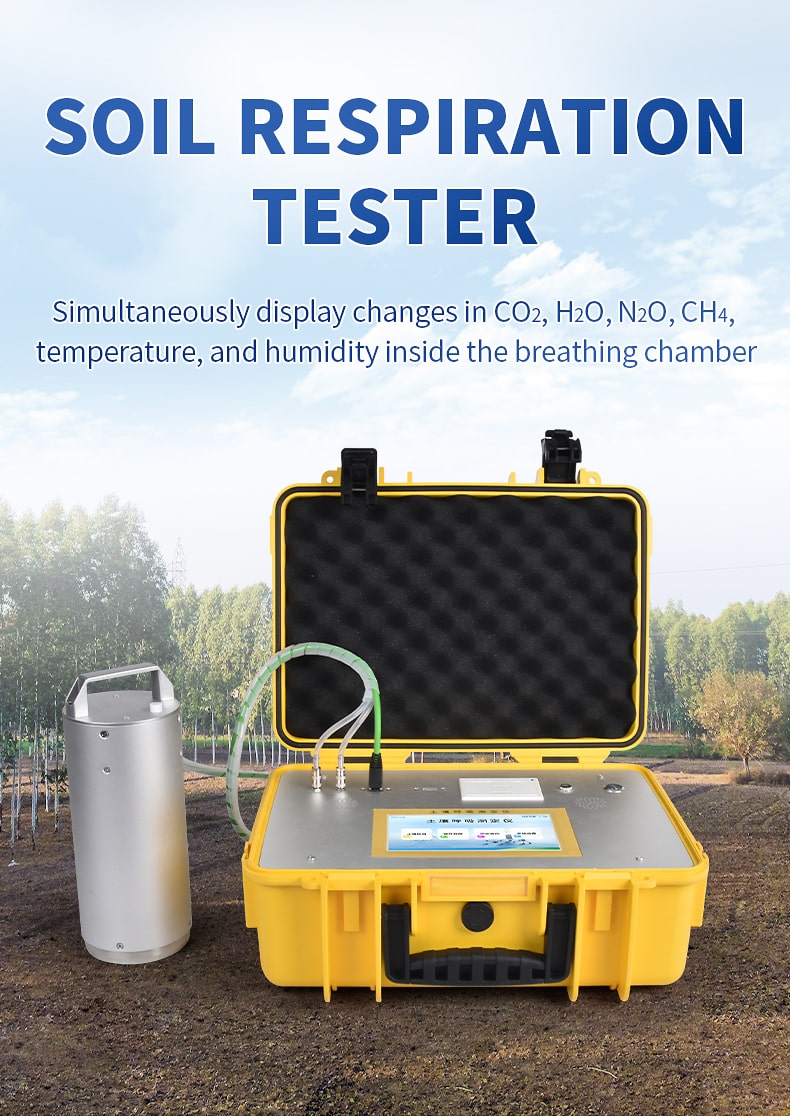

The soil respiration meter can simultaneously display the CO2 concentration, temperature and humidity changes inside the respiration chamber and the external photosynthetically active radiation intensity. It is widely used in agricultural ecological research, carbon source and carbon sink research, global climate change, land use change, ecological restoration research, soil microbial activity assessment, plant ecology research, insect respiration, root respiration and fruit storage.

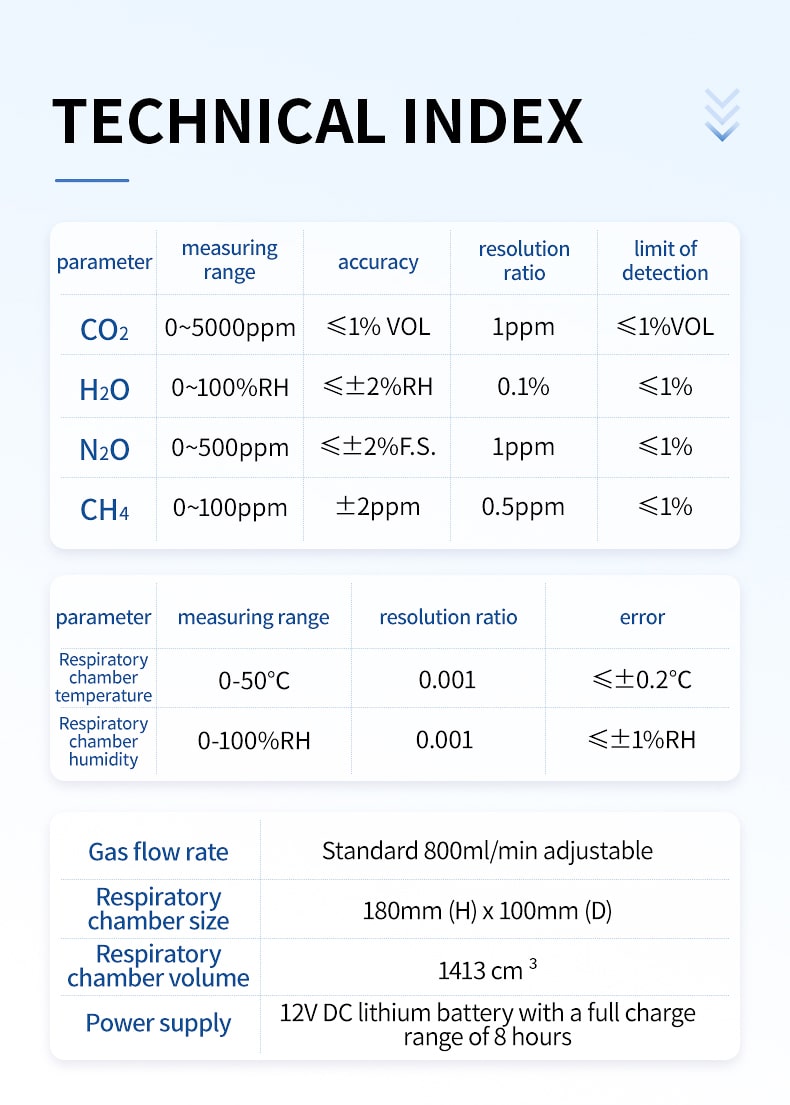

Technical indicators:

CO2 analysis:

Dual-wavelength infrared carbon dioxide analyzer with temperature regulation, measurement range: 0-5000ppm, resolution: 0.1ppm; accuracy 3ppm. Carbon dioxide measurement is not affected by temperature changes, and is stable, accurate, and sensitive. The carbon dioxide difference acquisition can be completed within 1 second.

Temperature: German Heraeus high-precision digital temperature sensor, measuring range: -20-80℃, resolution: 0.1℃, error ±0.2℃

Humidity: Swiss imported high-precision digital humidity sensor, measuring range 0-85%, resolution: 0.1%, error ≤ 1%

Photosynthetically active radiation: Silicon photocell with correction filter, measuring range: 0-3000?molm ㎡/second, accuracy <1?molm ㎡/second. Response wavelength range: 400～700nm

Flow measurement: Glass rotor flowmeter, flow rate can be set arbitrarily in the range of 0-1.5L, error: 1%, accuracy <±0.2% in the range of 0.2～1L/min. Optional micro-electronic flowmeter, micro-electronic flowmeter, flow rate can be set arbitrarily in the range of 0-1L. Resolution: 0.0001L

Breathing chamber size: diameter 110mm, height 200mm, other sizes of breathing chambers can be customized.

Operating environment: temperature -20℃—60℃, relative humidity: 0-85% (no condensation)

Power supply: DC8.4V lithium battery, can work continuously for 10 hours

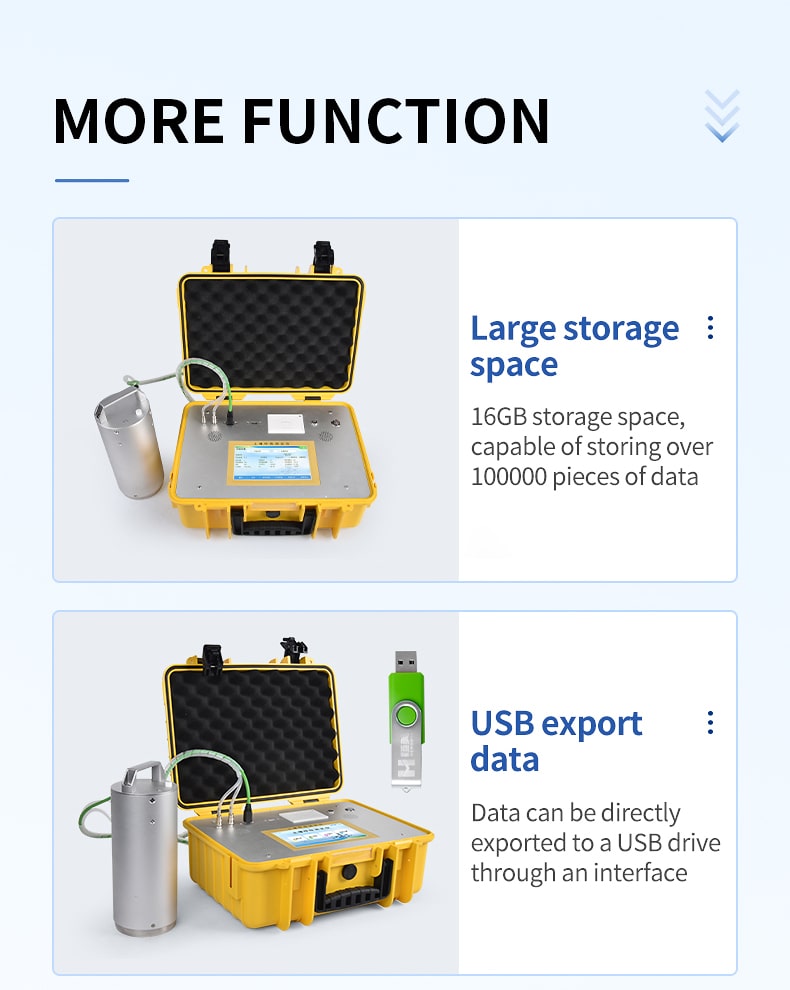

Data storage: 16G memory, expandable to 32G.

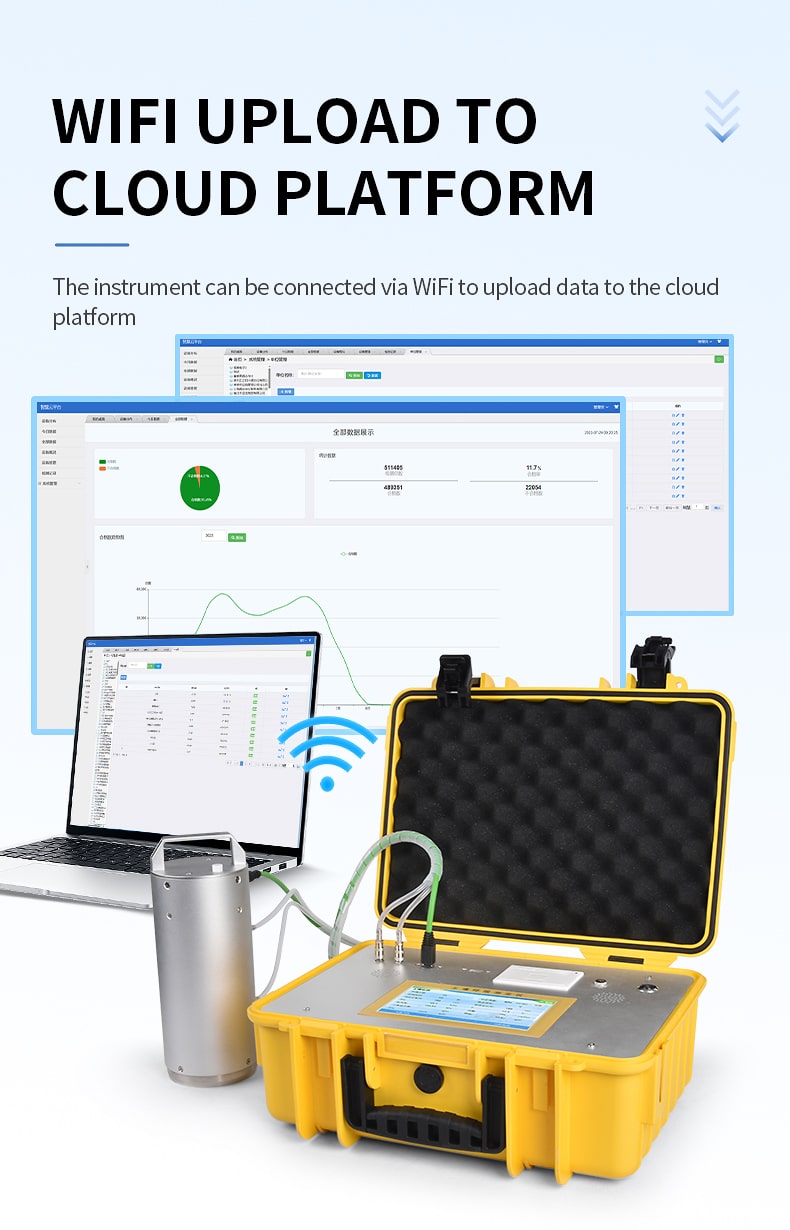

Data transmission: USB connection to the computer can directly export data.

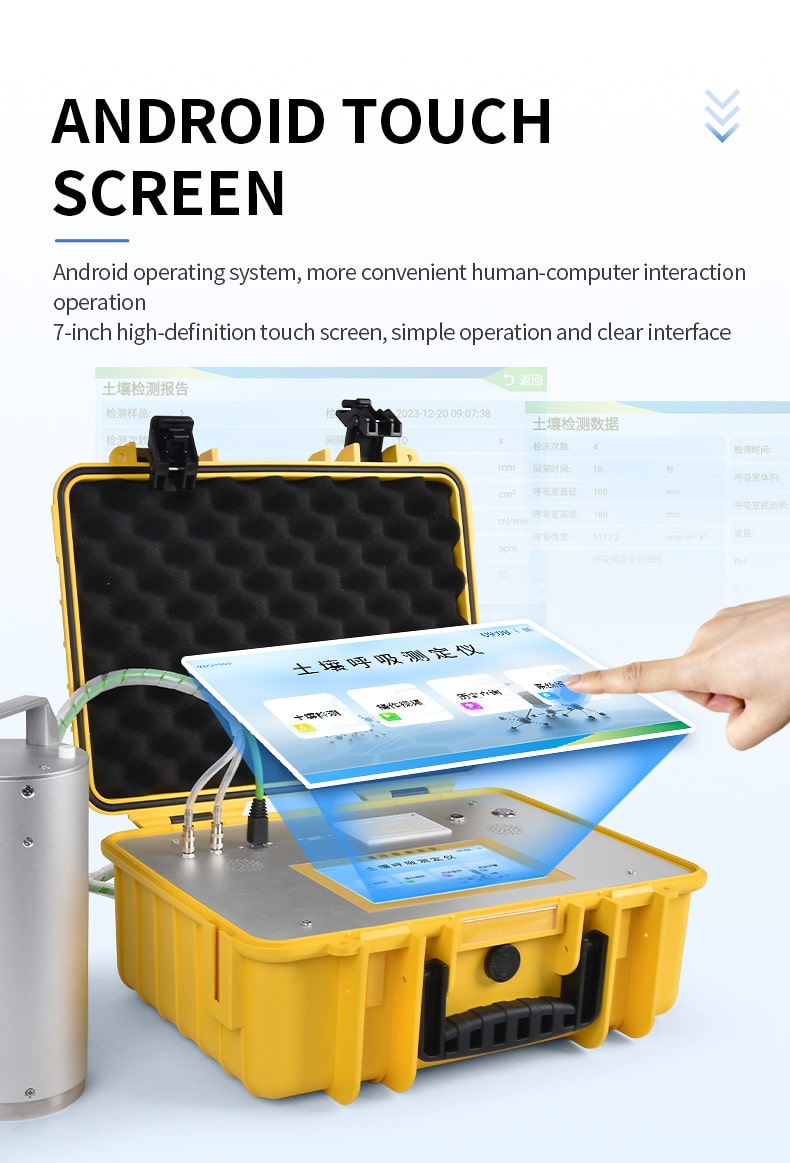

Display: 3.5" TFT true color LCD color display

Resolution 800×480, clearly visible under strong light.

Keys: six buttons, simple and convenient operation

Volume: 260×260×130mm

Weight: host 3.25kg

Optional: soil moisture temperature sensor
