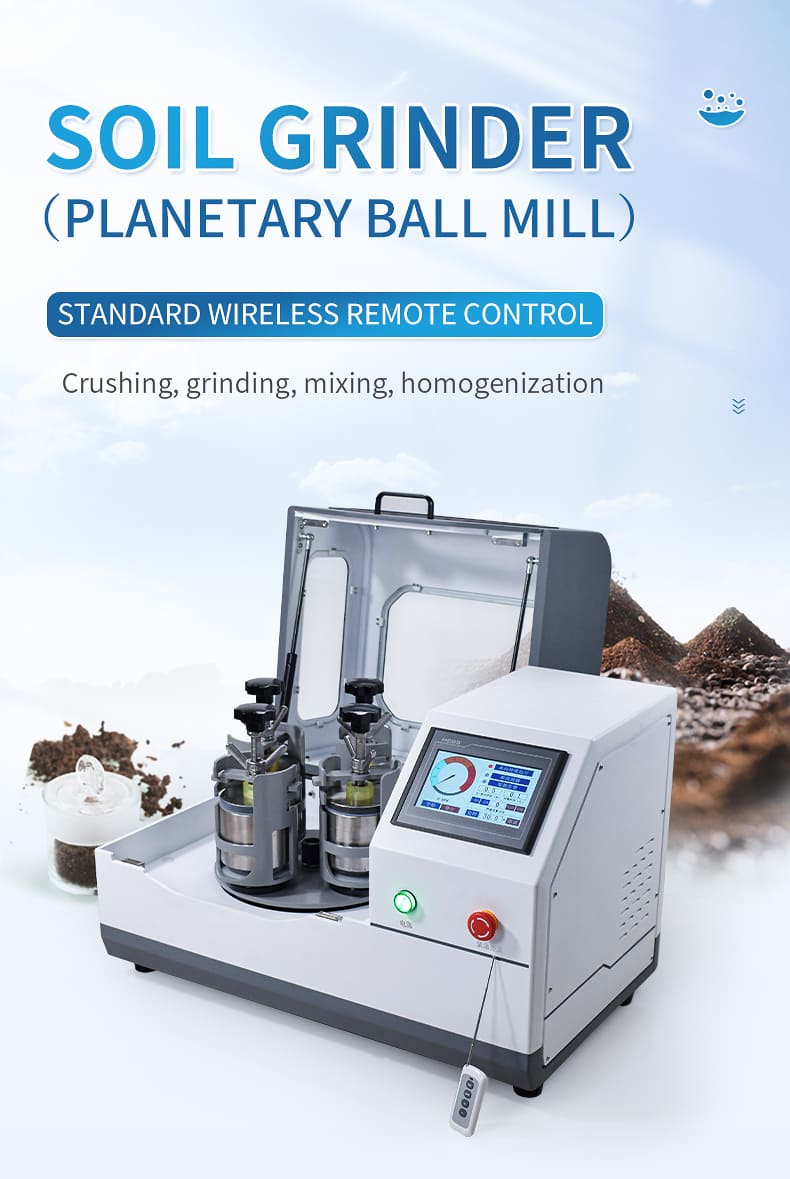

Soil grinder

Product Introduction:

Application areas: soil, geology, environmental protection, third-party testing, agriculture and animal husbandry, agricultural product quality, resources and environment, soil sampling, heavy metal analysis, etc

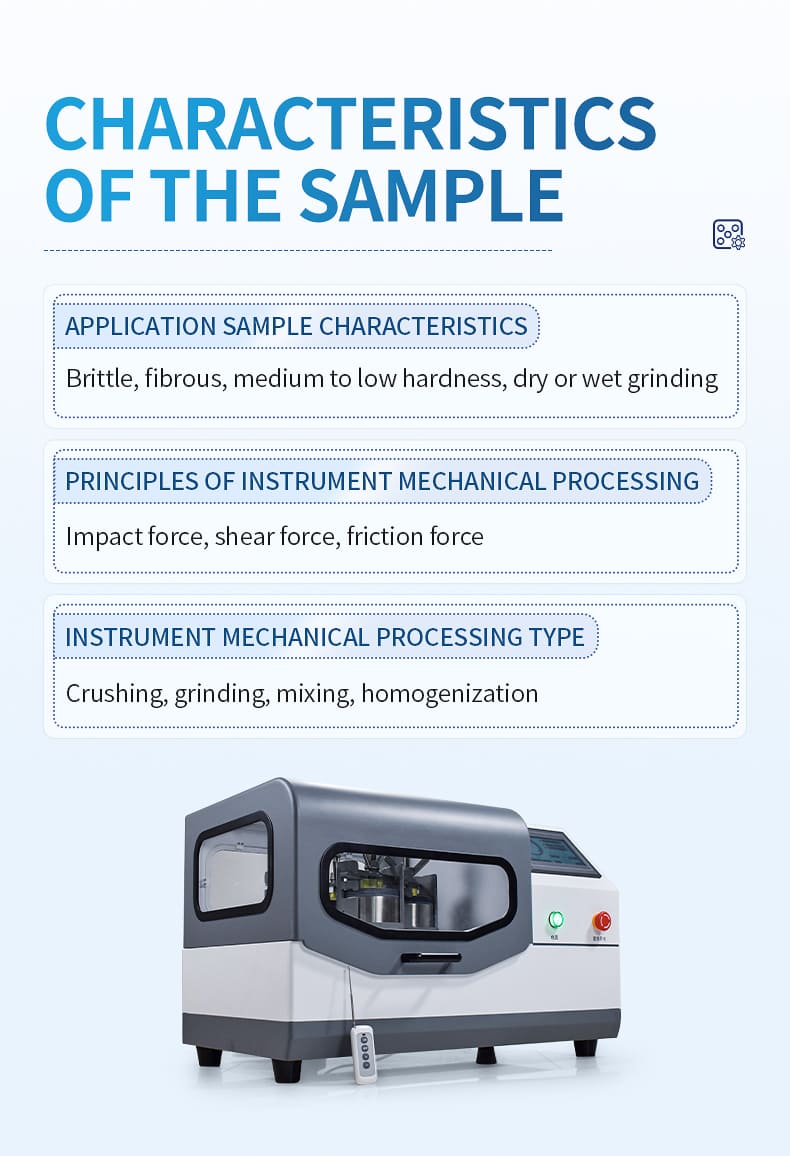

Application sample characteristics: brittle, fibrous, medium to low hardness, dry or wet grinding

Principles of Instrument Mechanical Processing: Impact Force, Shear Force, Friction Force

Instrument mechanical processing types: crushing, grinding, mixing, homogenization

Control system: touch screen, wireless remote control

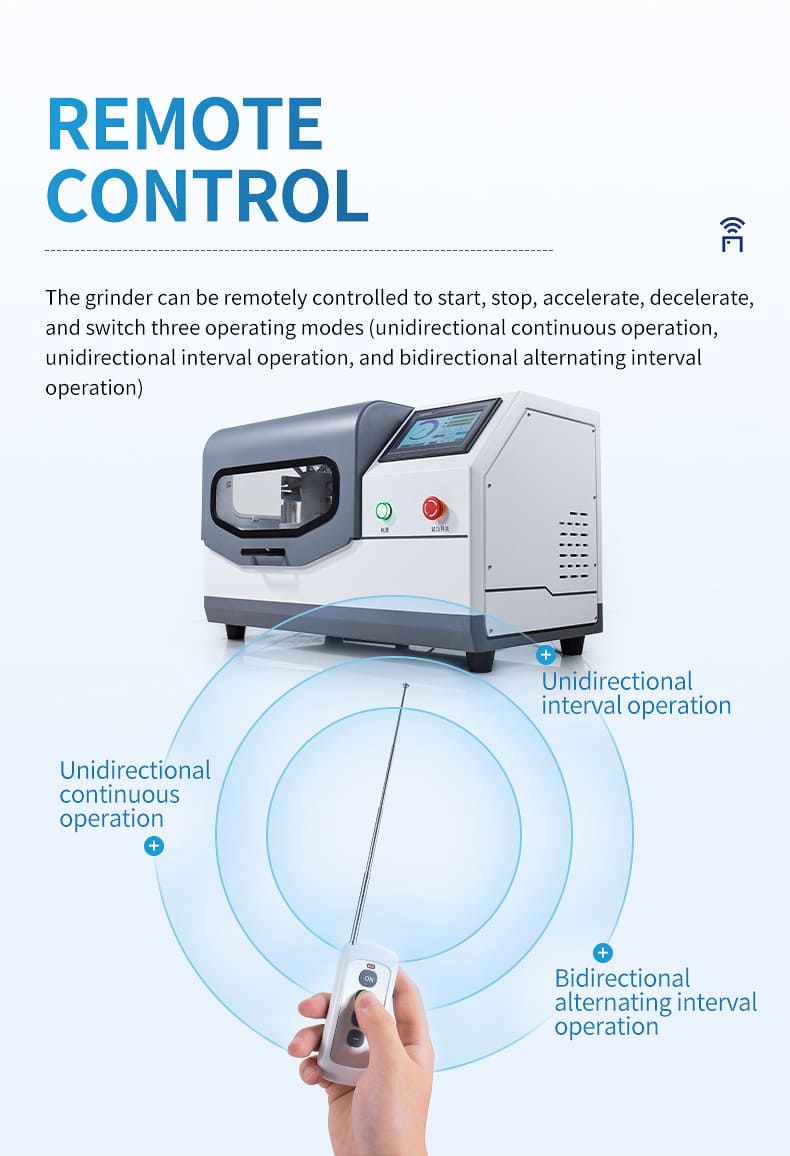

Remote control: Equipped with a standard wireless remote control, it can remotely control the start, stop, acceleration, deceleration, and switch three operating modes of the grinding machine (one-way continuous operation, one-way interval operation, two-way alternating interval operation)

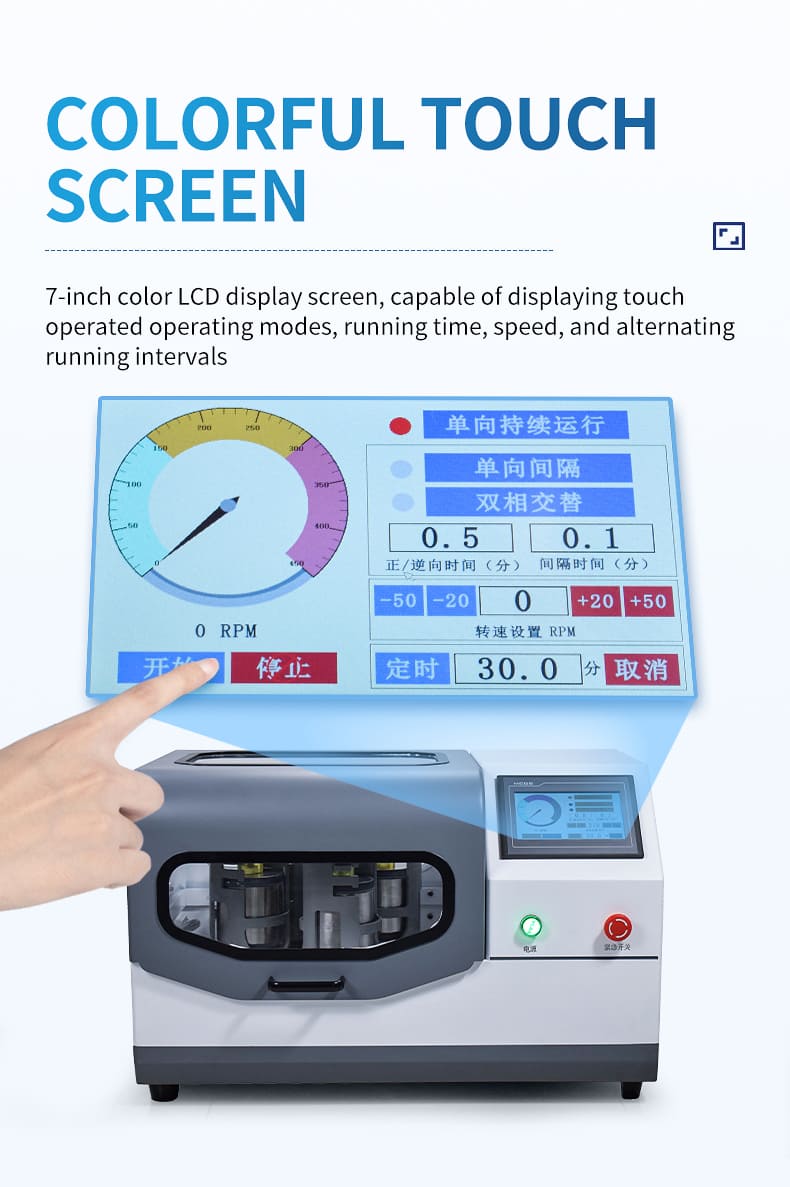

Display method: 7.0-inch color LCD display screen, capable of displaying touch operation mode, running time, speed, and alternating running interval

Operation mode: one-way continuous operation, one-way interval operation, two-way alternating interval operation, timed stop

Continuous running time setting: 0.1~9999.9 minutes

Alternating and one-way interval pause time setting: 0.1~9999.9 minutes

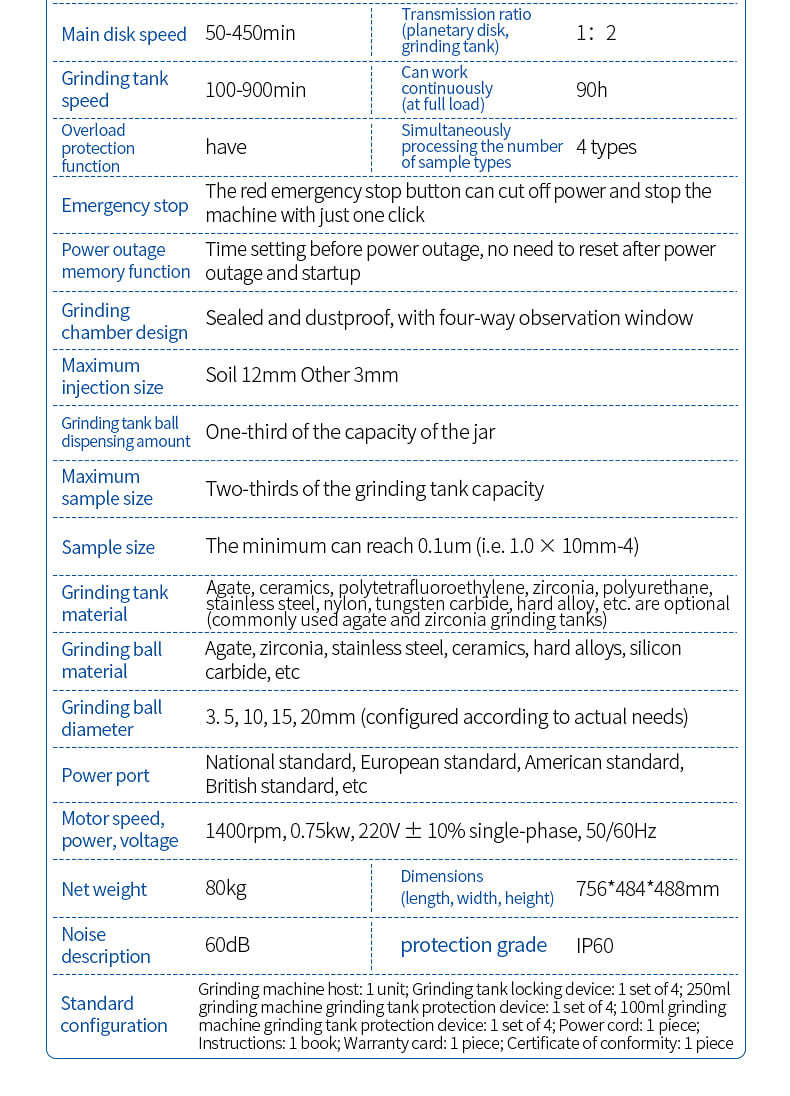

Main disk speed: 50-450min

Grinding tank speed: 100-900min

Transmission ratio (planetary disk, grinding tank): 1:2

Continuous operation (full load): 90h

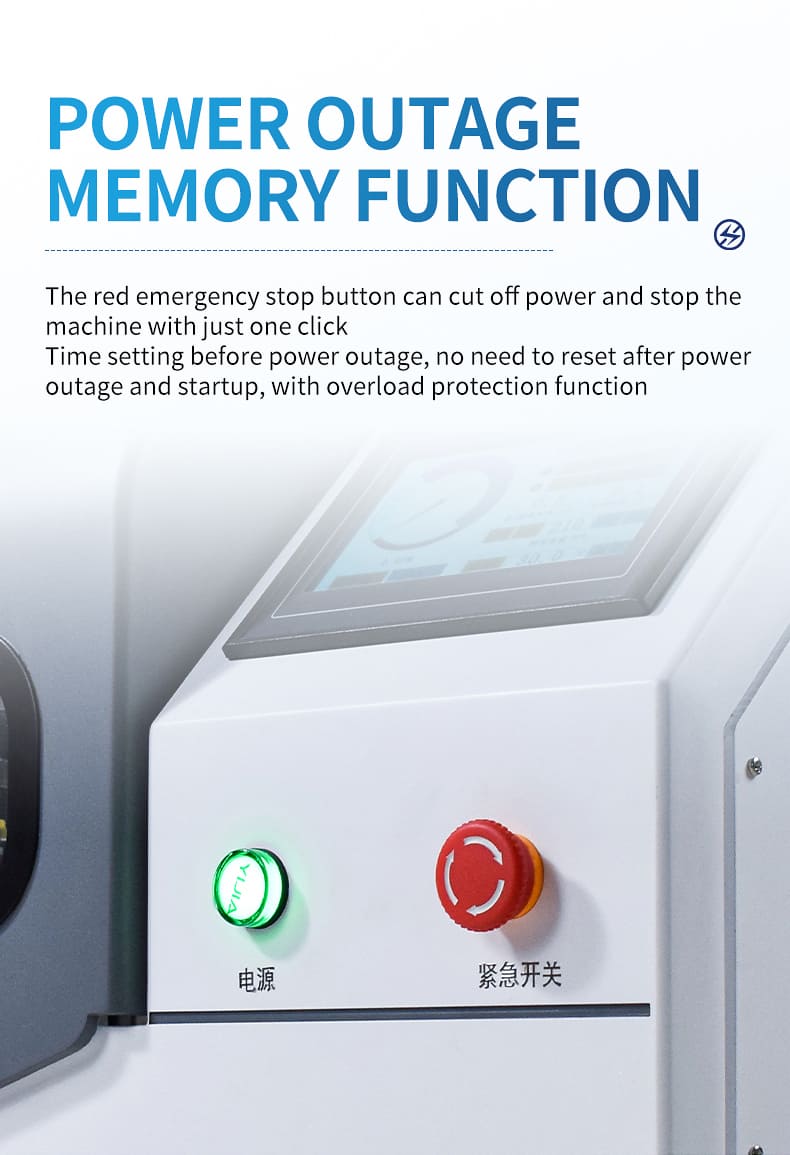

Emergency stop: The red emergency stop button can cut off power and stop the machine with just one click

Power off memory function: Time setting before power off, no need to reset after power off and startup

Overload protection function: Yes

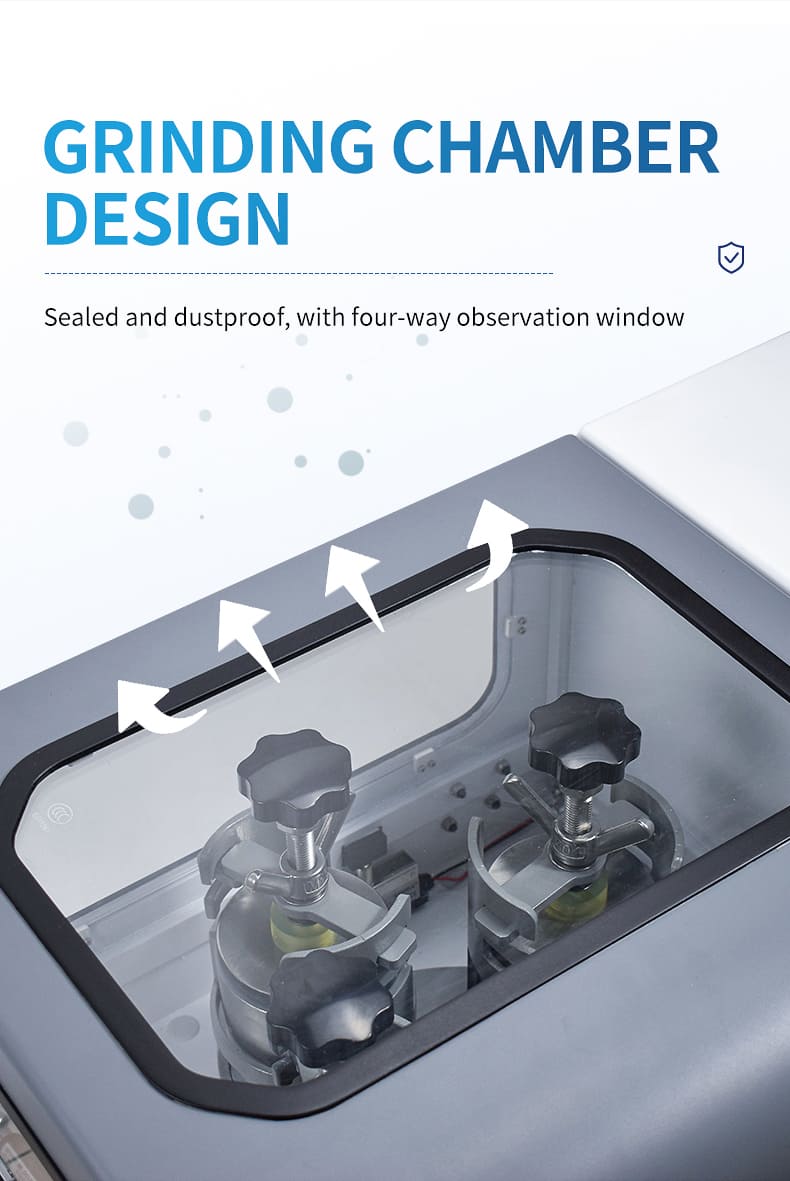

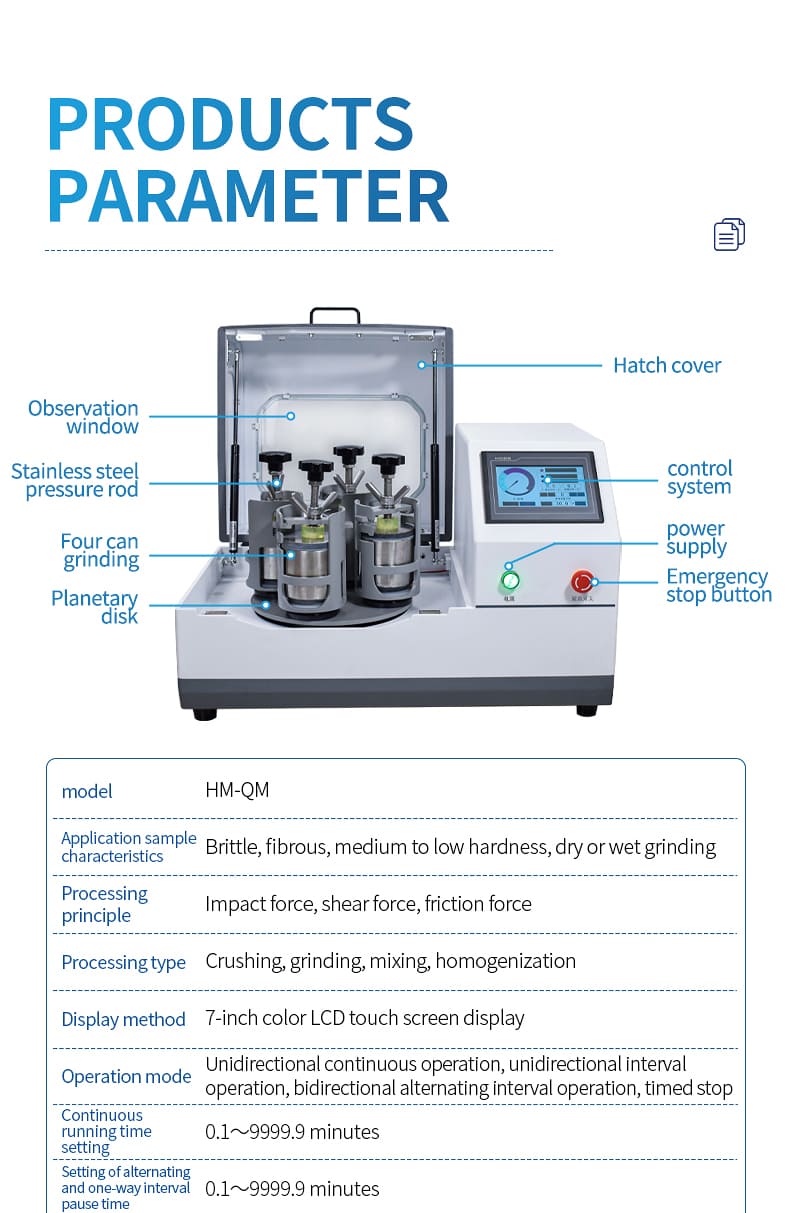

Grinding chamber design: sealed and dustproof, with four-way observation windows

Simultaneous processing of sample types: 4 types

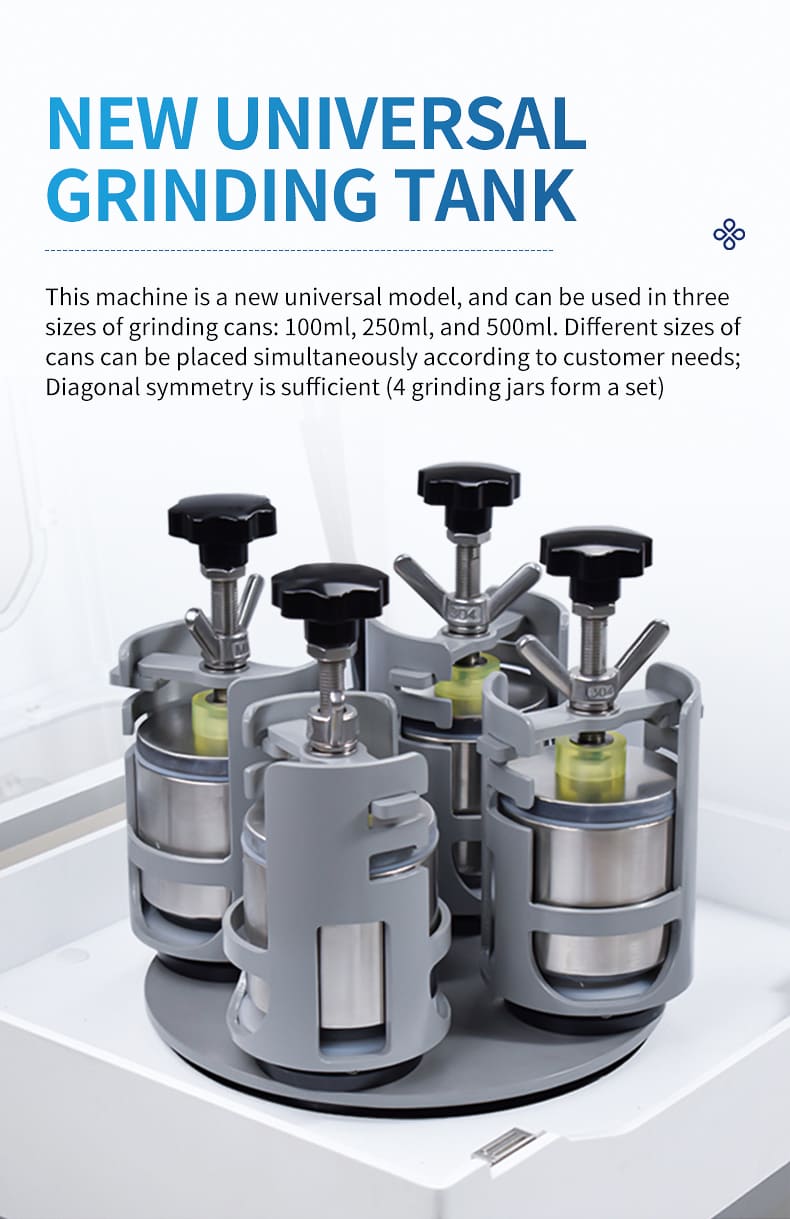

Applicable grinding cans: This machine is a new universal type, and can be used in three sizes of grinding cans: 100ml, 250ml, and 500ml. Different sizes of cans can be placed simultaneously according to customer needs; Diagonal symmetry is sufficient (4 grinding jars form a set).

*Large sample size: 12mm for soil and 3mm for others

Grinding tank ball distribution: one-third of the tank volume

*Large sample size: two-thirds of the grinding tank capacity

Sample size: * up to 0.1um (i.e. 1.0 x 10mm-4)

Grinding jar materials: agate, ceramic, polytetrafluoroethylene, zirconia, polyurethane, stainless steel, nylon, tungsten carbide, hard alloy, etc. (commonly used agate and zirconia grinding jars)

Grinding ball materials: agate, zirconia, stainless steel, ceramics, hard alloy, silicon carbide, etc

Grinding ball diameter: 3, 5, 10, 15, 20mm (configured according to actual needs)

Power ports: national standard, European standard, American standard, British standard, etc

Motor speed, power, voltage: 1400rpm, 0.75kw, 220V ± 10% single-phase, 50/60Hz

Net weight: 80kg

Size (length, width, height): 756 * 484 * 488mm

Noise description: 60dB

Protection level: IP60

Standard configuration: Grinding machine host: 1 unit; Grinding tank locking device: 1 set of 4; 250ml grinding machine grinding tank protection device: 1 set of 4; 100ml grinding machine grinding tank protection device: 1 set of 4; Power cord: 1 piece; Instructions: 1 book; Warranty card: 1 piece; Certificate of conformity: 1 piece
