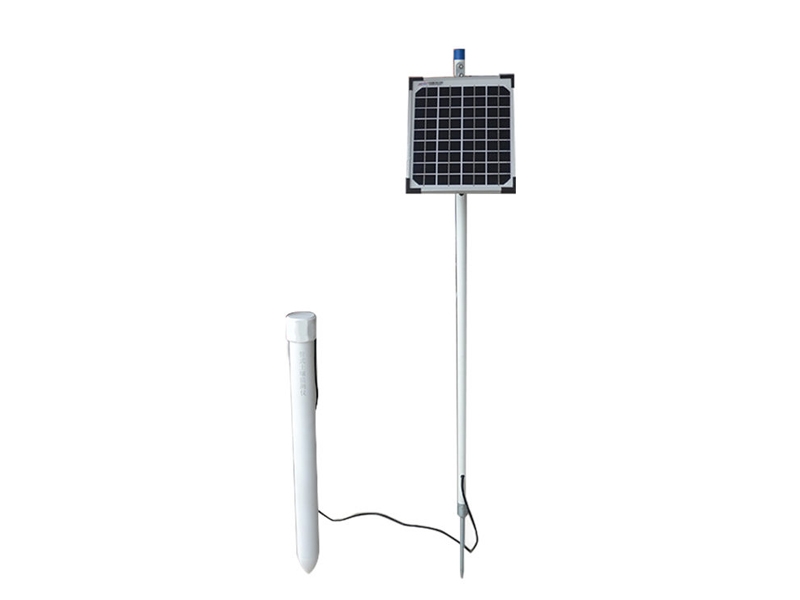

Tubular Soil Moisture Monitoring Station

Product Overview

Tubular Soil Moisture Monitoring Station, also known as non-contact soil moisture meter and soil moisture meter, is a sensor based on the dielectric constant principle. It can dynamically observe the soil moisture content of different soil layers, and it is a fast, accurate and comprehensive observation, allowing people to achieve a high degree of perception of the soil.

Monitoring system platform, the interface map can locate the device location, and can intuitively view and query the latest data, historical data, units, warning upper limit, warning lower limit, status and other contents of the device, and can set the upper and lower limit parameters, as well as view alarm records. The selected data list can be quickly exported in the form of an EXCLE spreadsheet file. The platform can bind multiple monitoring station devices at the same time.

The tubular soil moisture monitoring station adopts a layered observation structure, with a temperature observation point on the ground and a soil temperature and humidity measurement point every 10 cm in the underground soil to observe the soil temperature and humidity within the corresponding range.

Product Features

● A plastic tube is pre-buried and the main sensor is placed in the tube. The main sensor can be easily removed and replaced from the reserved tube, which is convenient for maintenance and has a high recycling rate.

● It can move up and down in the plastic tube to realize dynamic observation of the soil moisture content in each soil layer.

● It emits a high-frequency detection wave of nearly 1 GHz, which can penetrate the plastic tube and effectively sense the soil environment.

● It will not be affected by salt ions in the soil, and agricultural activities such as fertilizers, pesticides, and irrigation will not affect the measurement results, and the data is accurate.

● The electrodes of the sensor are not in direct contact with the soil, avoiding interference of electricity on the soil and plants in the soil.

Technical parameters

◆Soil moisture

Measurement range: 0~100%

Measurement accuracy: 3%

◆Soil temperature

Measurement range: -30℃~70℃

Measurement accuracy: 0.1℃

◆Recording interval: 30 minutes~24 hours (adjustable)

◆Measurement point spacing: 10cm

◆Output method: USB interface data export

◆Storage capacity: 1M

◆Data viewing: Web page system platform remote viewing

◆Power supply method: Solar panel + lithium battery combination power supply

◆Protective shell: PVC

◆Protection level: IP68

◆Working environment: -20℃~85℃

◆Structural appearance: integrated tube type (column type)

◆Size: outer diameter 6cm, height 78.2cm
