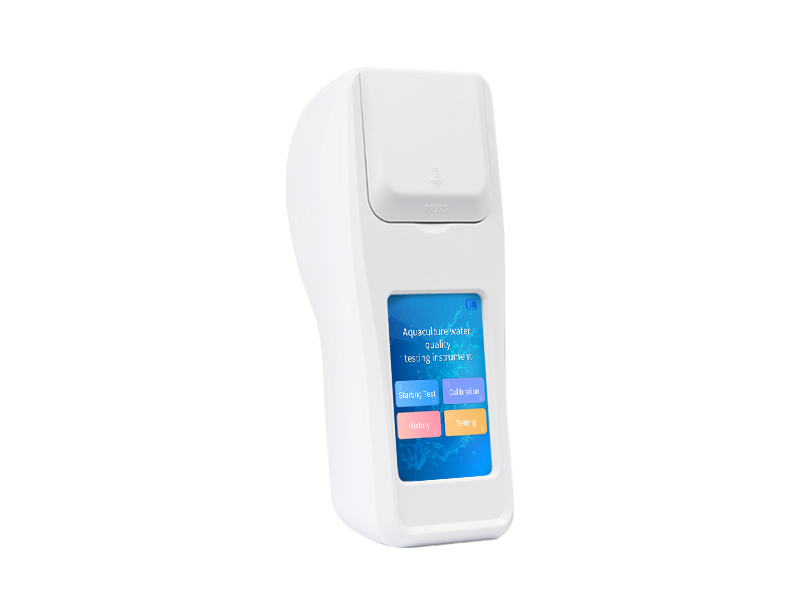

Effective chlorine detector

Product Overview:

The effective chlorine rapid detector adopts spectrophotometry, and is designed and manufactured with reference to the standard GB/T 5750.11-2023. It replaces the traditional visual colorimetry and eliminates human errors. Therefore, the detection resolution is larger, the reading is direct, it is more humane, and it is easier to use.

Application industry:

It can be widely used in food factories, hospitals, sewage treatment, breeding centers, aquaculture, disinfection of septic tanks, etc. for effective chlorine concentration detection; it is also suitable for the determination of effective chlorine content in bleaching powder, bleaching powder tablets and some similar disinfectants, so as to prepare qualified disinfectant water to meet the national disinfection standards.

Instrument features:

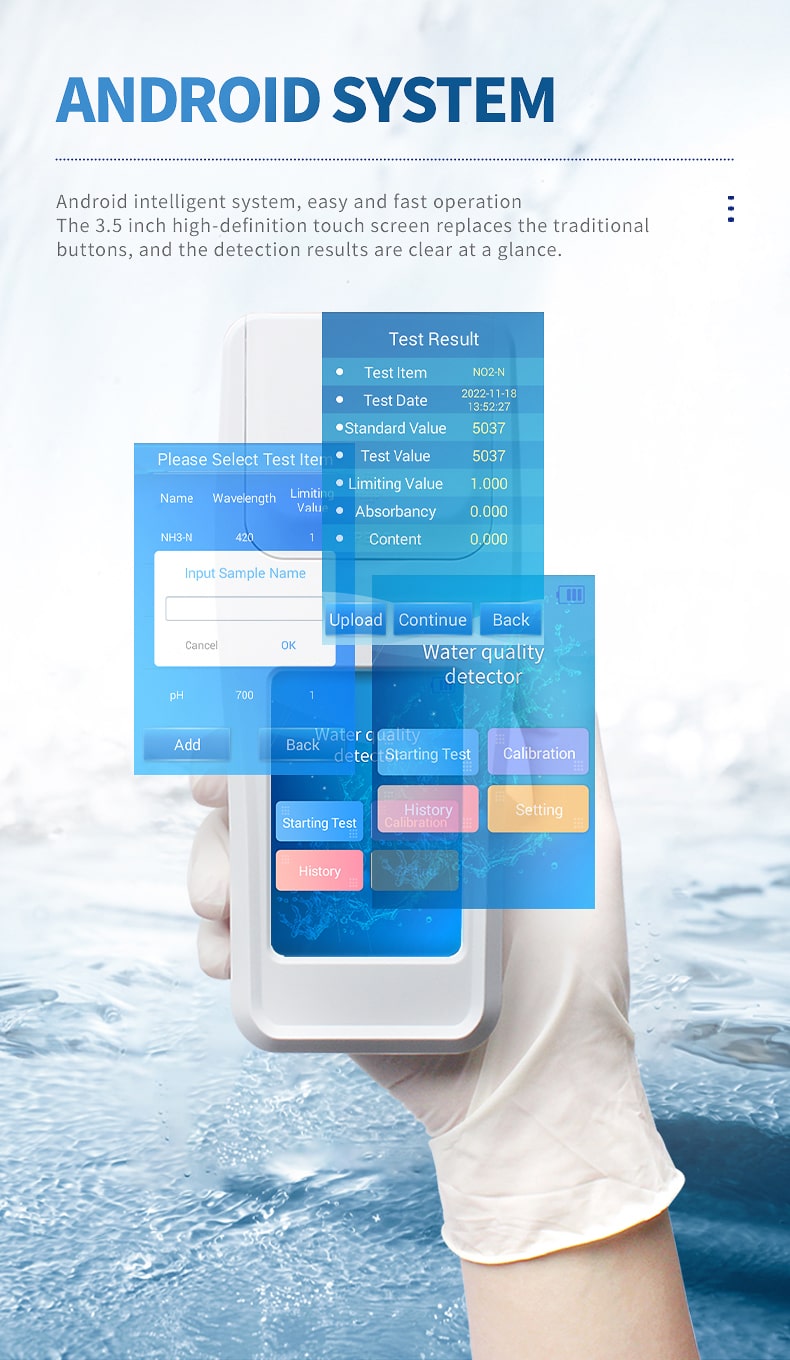

①Android intelligent system, easier and faster operation;

②Configured with cloud monitoring platform, the test results can be directly wirelessly transmitted to the platform for long-term and short-term analysis of water quality and auxiliary management.

③ Built-in operation process, simple operation, no training required, direct start;

④ Faster detection speed, on-site data reading;

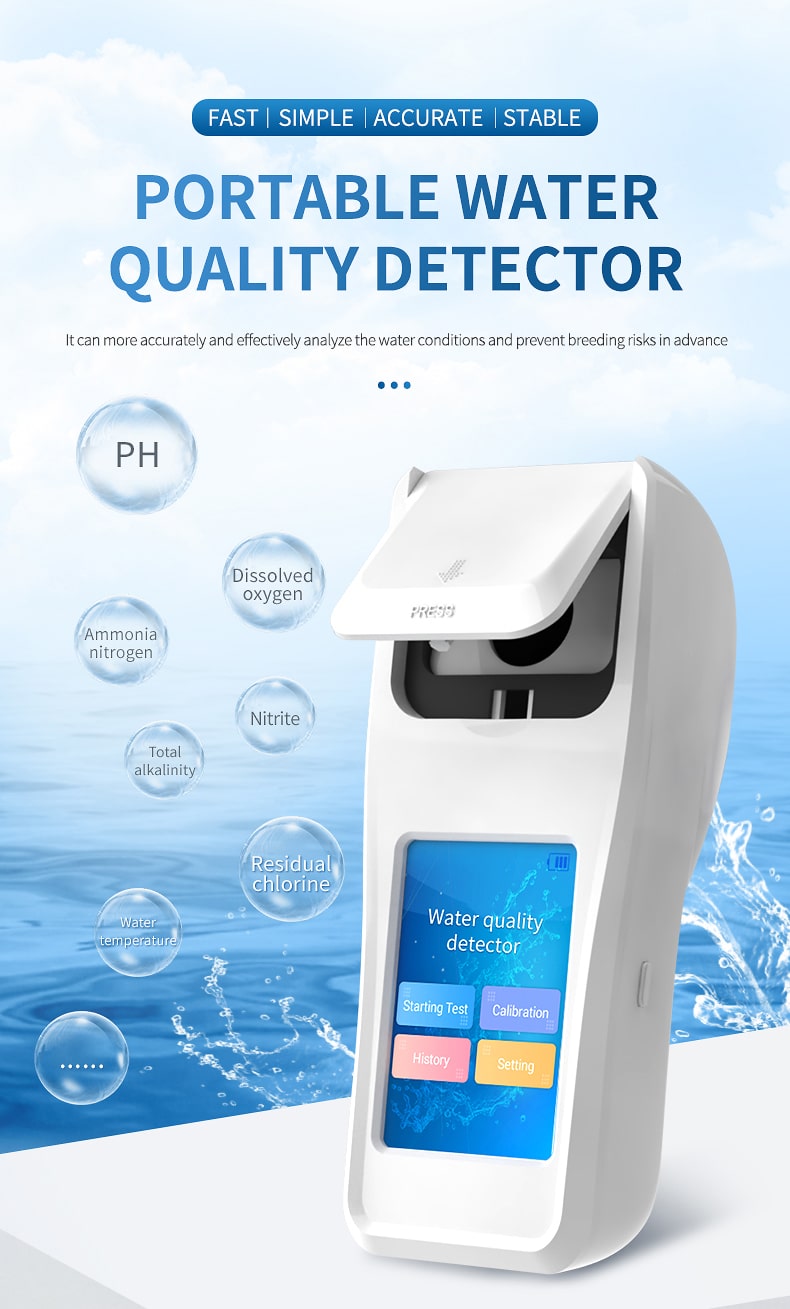

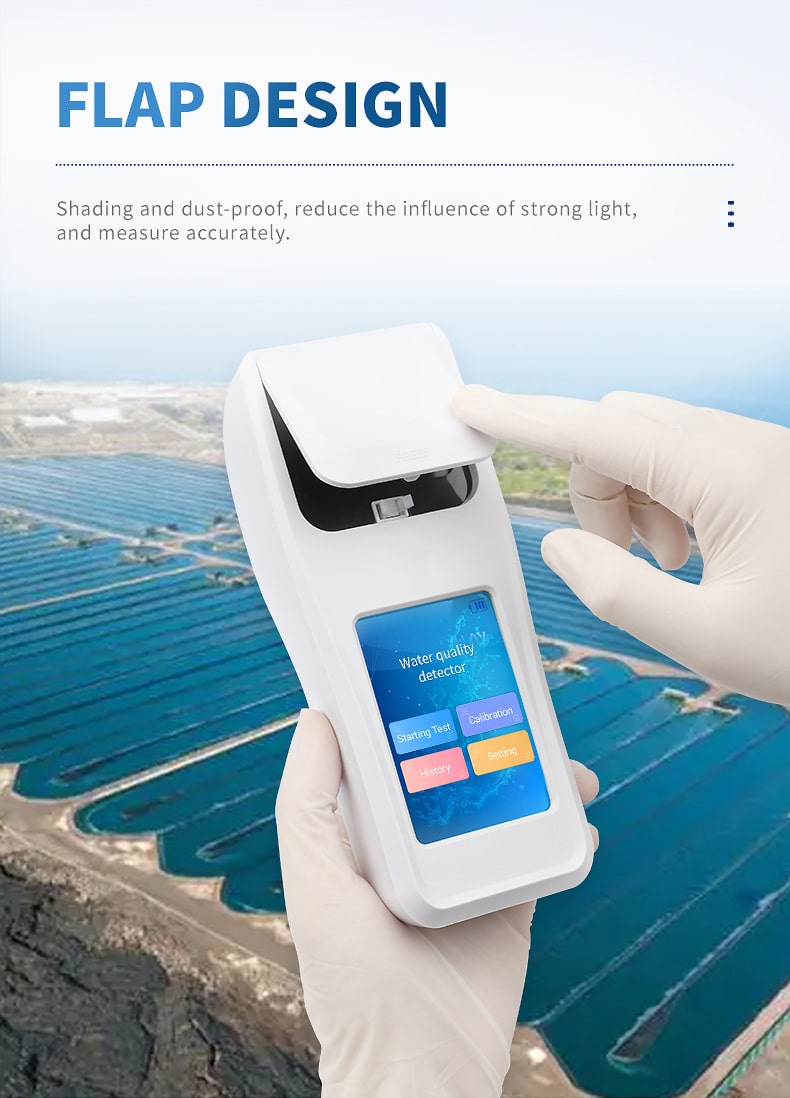

⑥ Portable, small size, light weight, convenient for outdoor detection;

⑦ Small and beautiful appearance, stable operation and maintenance-free, with good cost performance;

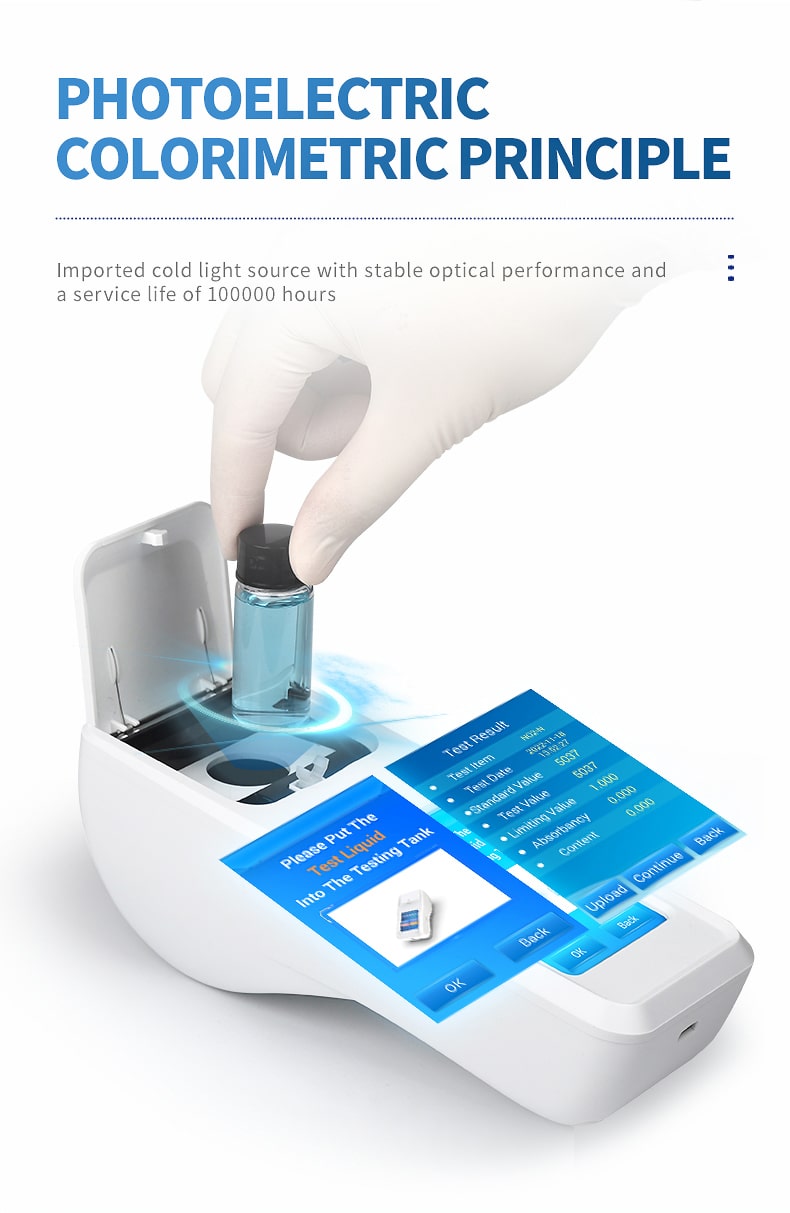

⑧ Adopting imported cold light source, stable optical performance, life of up to 100,000 hours;

⑨ AC and DC dual-use, built-in rechargeable lithium battery, environmentally friendly and durable, can support continuous indoor and outdoor work.

Parameter indicators:

Test items: effective chlorine concentration, effective chlorine content;

Reference standard: GB/T 5750.11-2023;

Measurement range: 0.5~300mg/L (segmented); 0.1~60% (segmented);

Measurement method: photoelectric colorimetry

Measurement error: ≤10%

Repeatability: <0.5%

Stability: <0.5%

Wavelength selection: automatic

System: Android smart operating system

Display screen: 3.5-inch color LCD screen

Sensitivity (absorbance): 0.001

Use environment: 0~50℃ 0~90% relative humidity

Data storage: more than 80,000 records

Communication: Type-C, WIFI, Bluetooth

Battery: 5600mAh lithium battery

Continuous working time: 8 hours

Power supply voltage: 5V/DC DC

Dimensions: 190*77*72mm

Host weight: 325g

Supported language: Simplified Chinese or English
