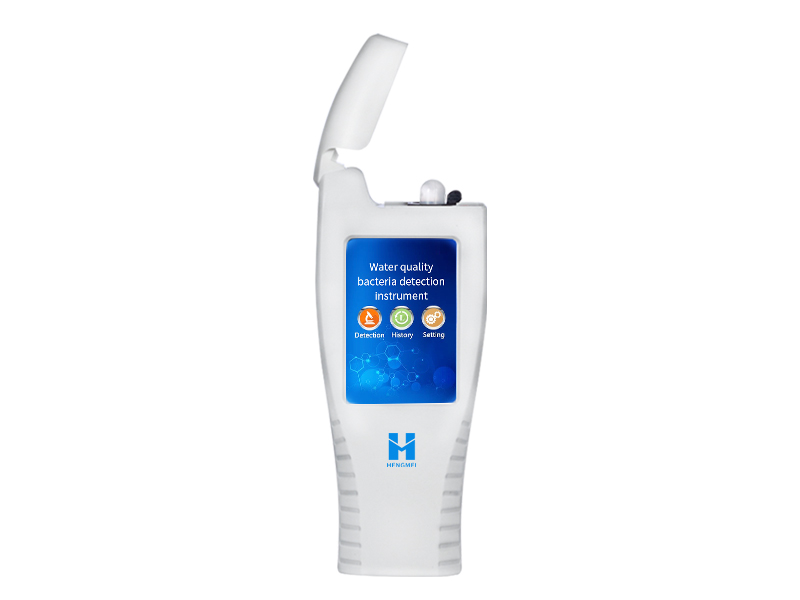

Microbial detection instrument in water

Product introduction:

The microbial detection instrument in water can quickly detect the content of microorganisms and bacteria in various water qualities. The equipment is a newly upgraded product with a large touch screen instead of traditional buttons. The operation uses a biochemical reaction method to detect the ATP content. The microbial detection instrument in water is based on the principle of firefly luminescence and uses the "luciferase-luciferin system" to quickly detect adenosine triphosphate (ATP). The ATP swab contains a reagent that can lyse the cell membrane, release the ATP in the cell, react with the specific enzyme contained in the reagent, generate light, and then use a fluorescent illuminometer to detect the luminescence value. The number of microorganisms is proportional to the luminescence value. Since all living cells contain a constant amount of ATP, the ATP content can clearly indicate the amount of microorganisms and other biological residues in the sample, which is used to judge the sanitary conditions.

Instrument characteristics:

Practicality - The upper and lower limits can be set according to the environmental detection needs, so that data can be quickly evaluated and warned, and surface cleanliness can be quickly screened.

High sensitivity - 10-15～10-18 mol

Fast speed - Conventional culture method takes more than 18-24 hours, while ATP only takes more than ten seconds.

Feasibility - There is a clear correlation between the number of microorganisms and the ATP contained in the microorganisms. By detecting the ATP content, the number of microorganisms in the reaction can be indirectly obtained

Operability - Traditional culture methods need to be operated by trained technicians in the laboratory; while ATP rapid cleanliness detection is very simple and can be operated on-site by general staff with simple training.

Better experience - The test tube adopts a plug-in flexible design, which can be cleaned regularly for long-term use to extend the life of the instrument.

Main parameters:

1. Display screen: 3.5-inch high-precision graphic touch screen

2. Processor: 32-bit high-speed data processing chip

3. Detection accuracy: 1×10-18mol

4. Coliform bacteria: 1-106cfu

5. Detection range: 0 to 999999 RLUs

6. Detection time: 15 seconds

7. Detection interference: ±5﹪ or ±5 RLUs

8. Operating temperature range: 5℃ to 40℃

9. Operating humidity range: 20-85﹪

10. ATP recovery rate: 90-110%

11. Detection mode: RLU, coliform bacteria screening

12. 50 user ID settings

13. The upper and lower limits can be set arbitrarily

14. Automatic judgment of qualified and unqualified

15. Automatic statistics of qualified rate

16. Built-in self-calibration light source

17. Self-test within 30 seconds after power on

18. Equipped with miniUSB interface, the results can be uploaded to PC

19. Equipped with dedicated software to drive USB disk instead of traditional CD

20. Instrument size (W×H×D): 188 mm×77mm×37mm

21. Use rechargeable lithium battery without battery replacement

22. Standby status (20℃): 6 months

23. Chinese operation manual

24. Stable liquid luciferase

25. Wet integrated collection swab
