HM-DS Handheld Liquid Density Meter

Name: HM-DS Handheld Liquid Density Meter
Brand: HENGMEI

Product Number：

HM-DS

Product Difference：

HM-DS is a U-tube oscillation handheld densitometer measuring 0.0000–3.0000 g/cm³ with 0.001 g/cm³ accuracy. Built-in NFC, barcode scanner, suction pump and 2.4-inch color LCD support fast single-hand sampling for chemical, food, beverage and petroleum applications.

+86 17853698681 Consultation icon

Product Details

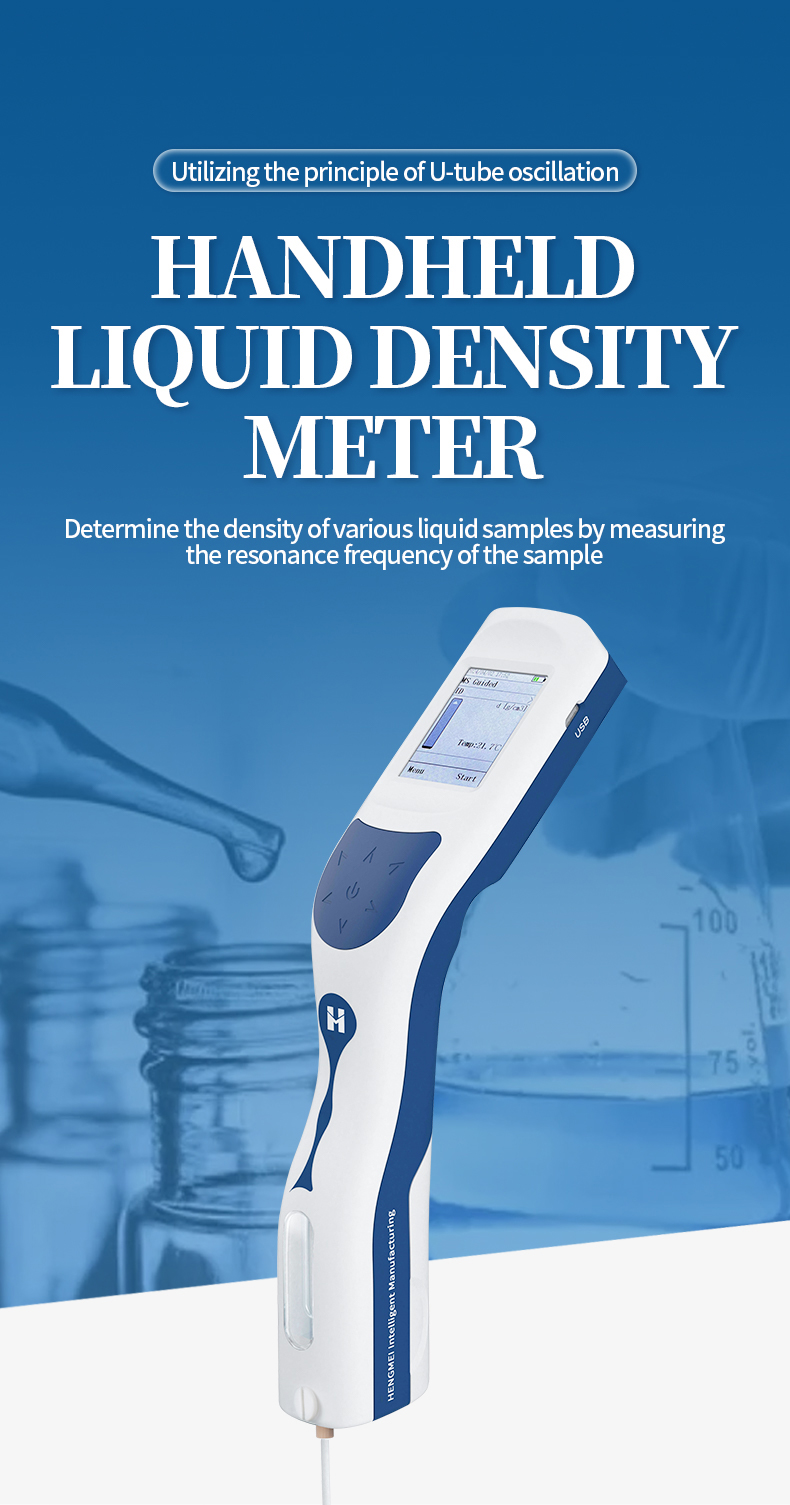

HM-DS handheld liquid density meter front view with U-tube oscillation principle

HM-DS density meter six core feature icons including LCD ergonomic grip and NFC

HM-DS densitometer application scope across chemical food beverage and oil industries

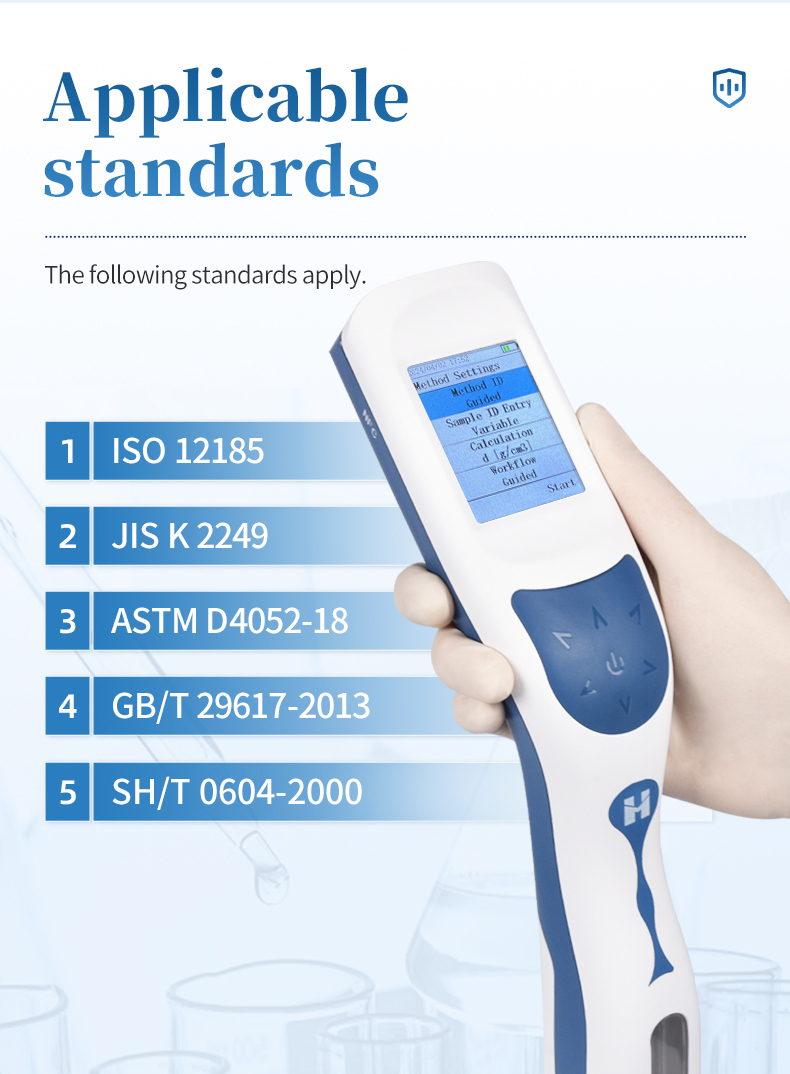

HM-DS density meter compliant with ISO 12185 ASTM D4052 JIS K 2249 standards

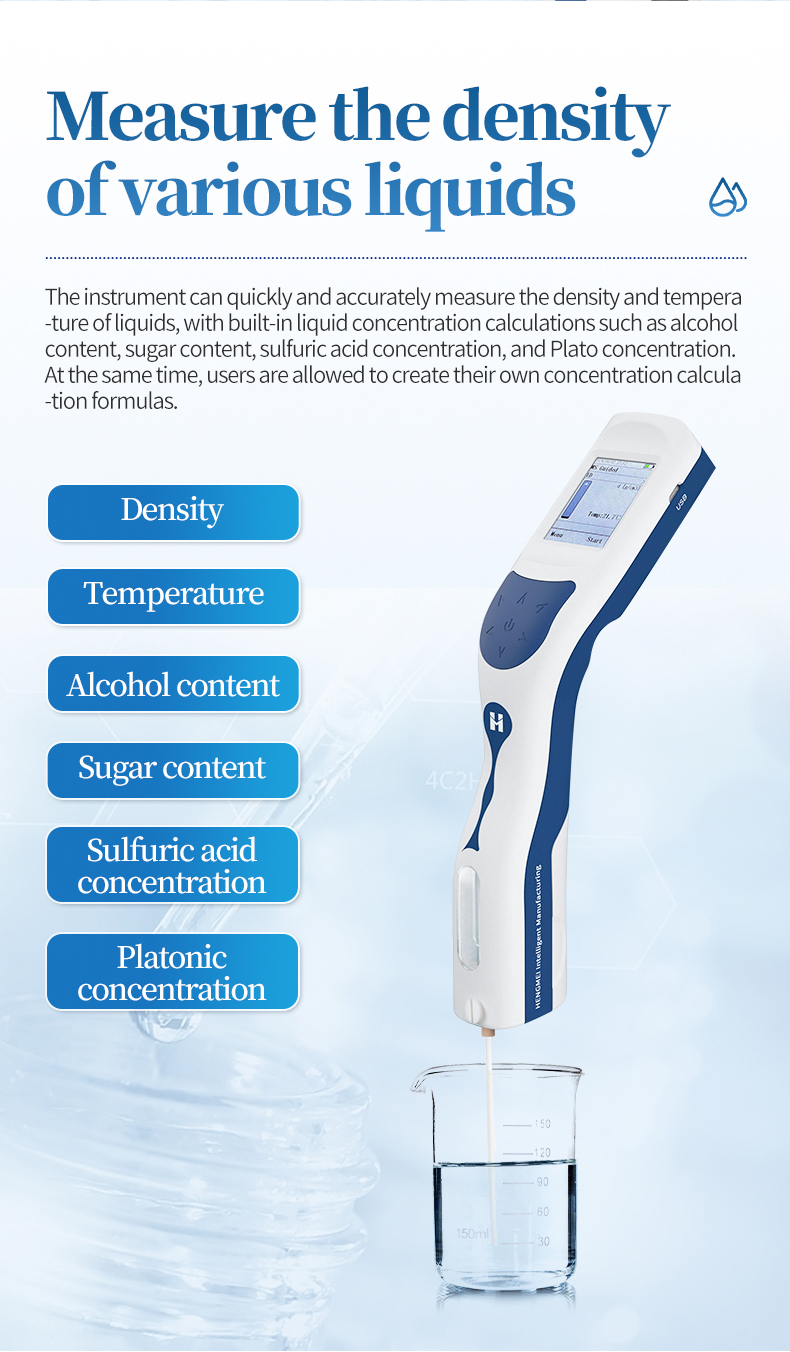

HM-DS density meter measuring density temperature alcohol sugar sulfuric and Plato concentration

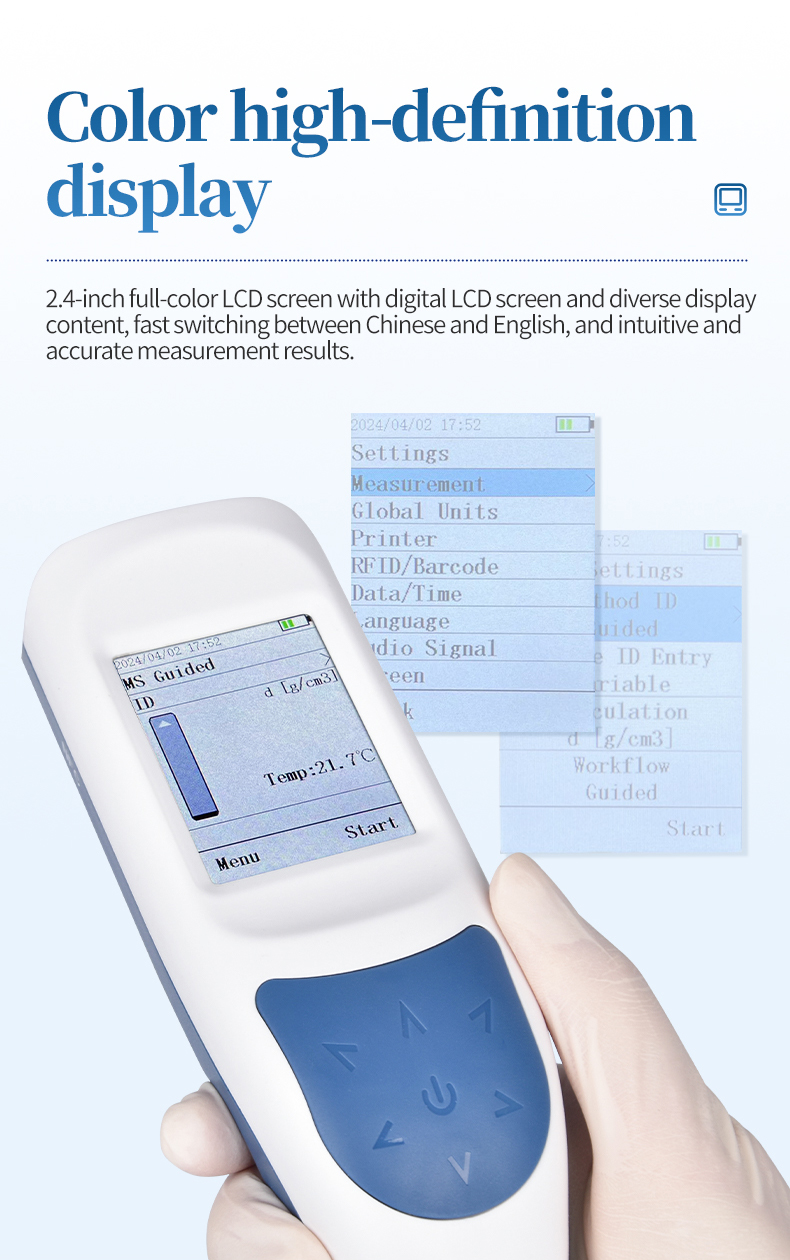

HM-DS handheld density meter 2.4 inch color LCD menu display close-up

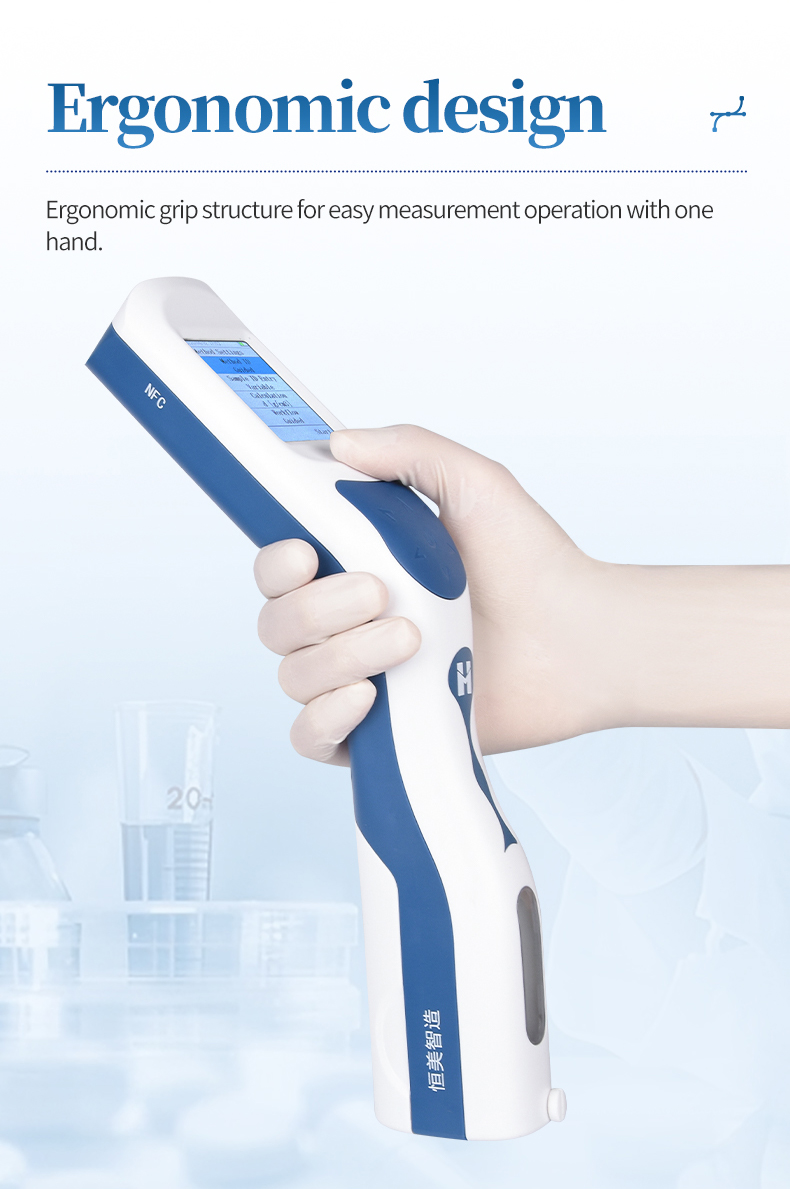

HM-DS ergonomic grip handheld densitometer held in single hand operation

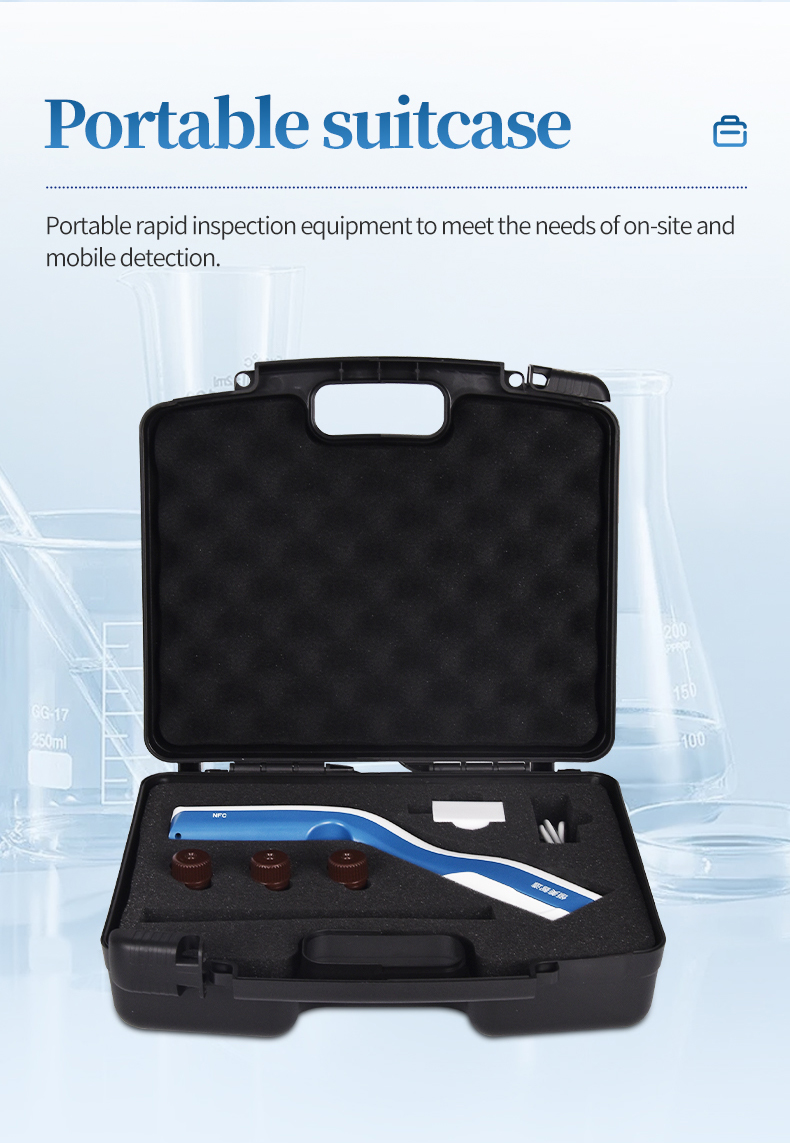

HM-DS density meter portable carrying case with foam slot and accessories

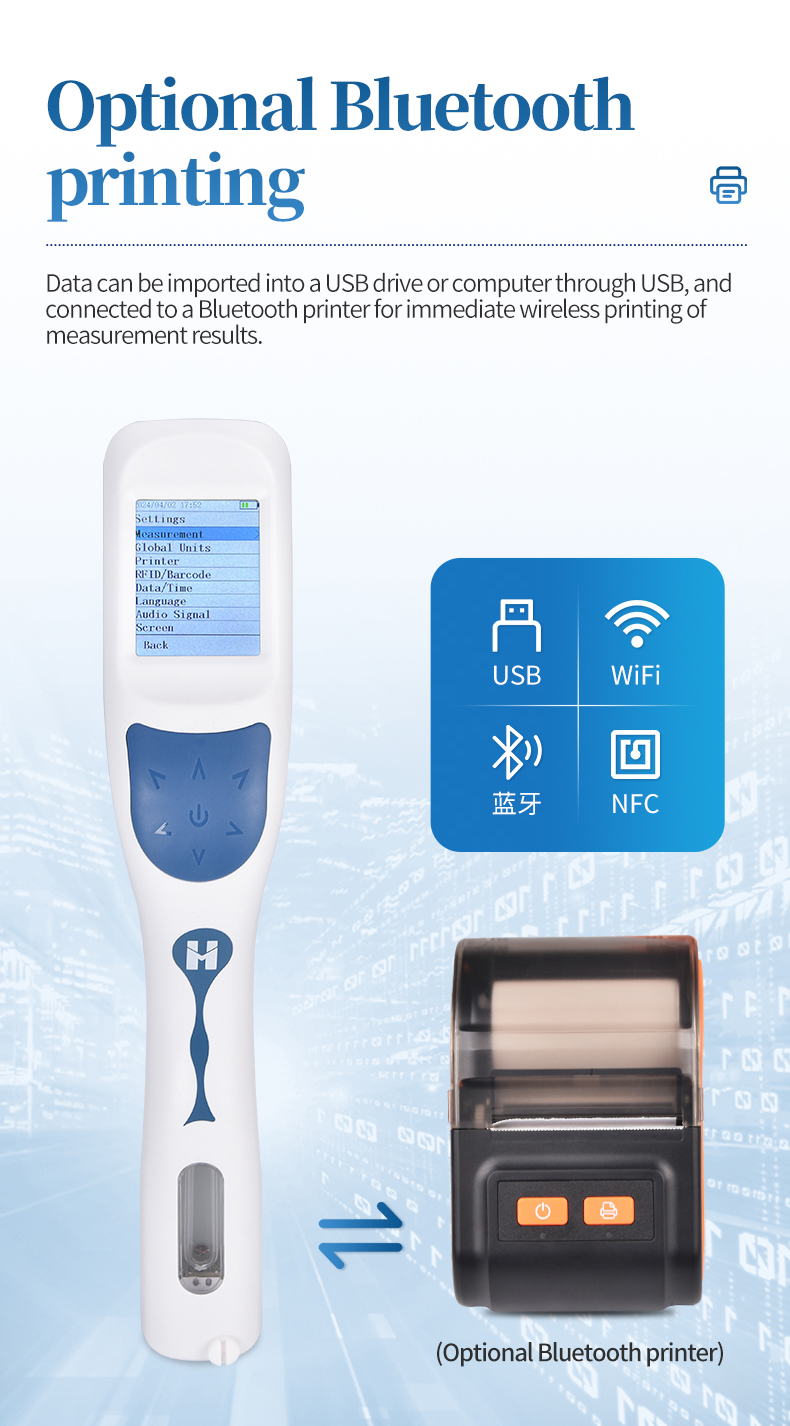

HM-DS density meter with optional Bluetooth thermal printer and USB Wi-Fi NFC

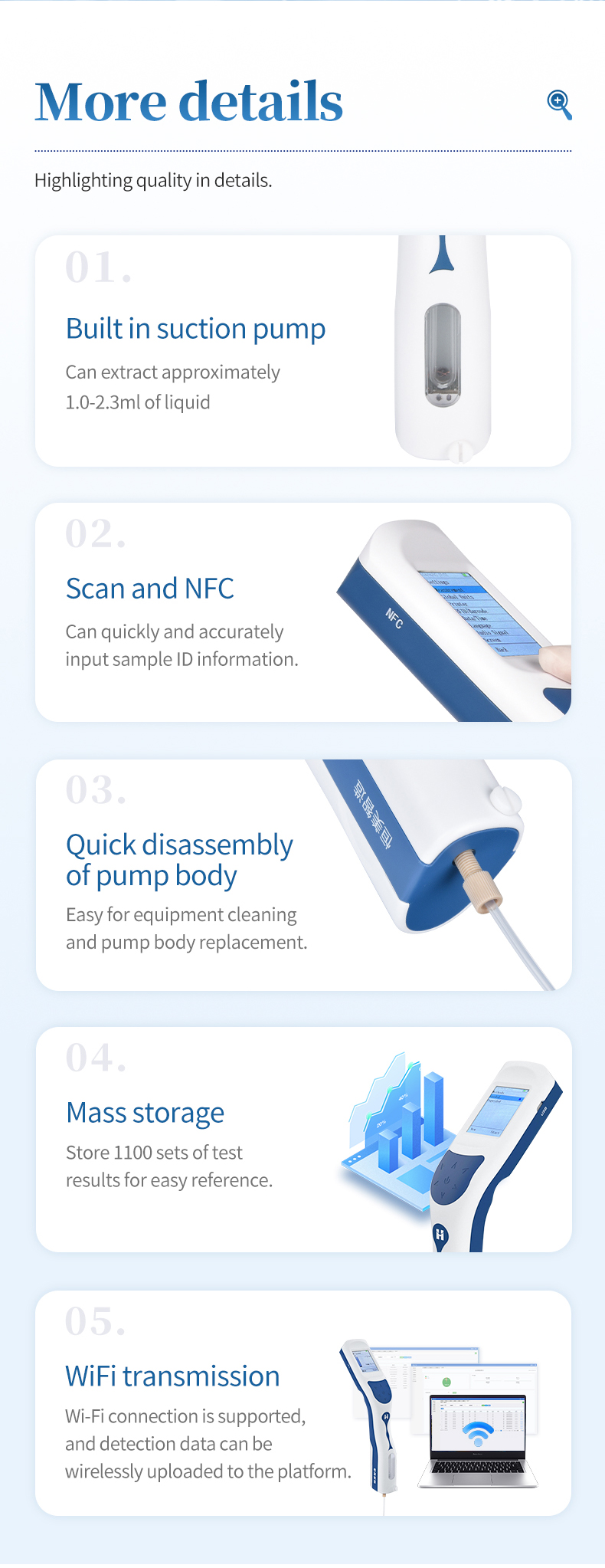

HM-DS density meter detail features suction pump scan NFC pump disassembly storage Wi-Fi

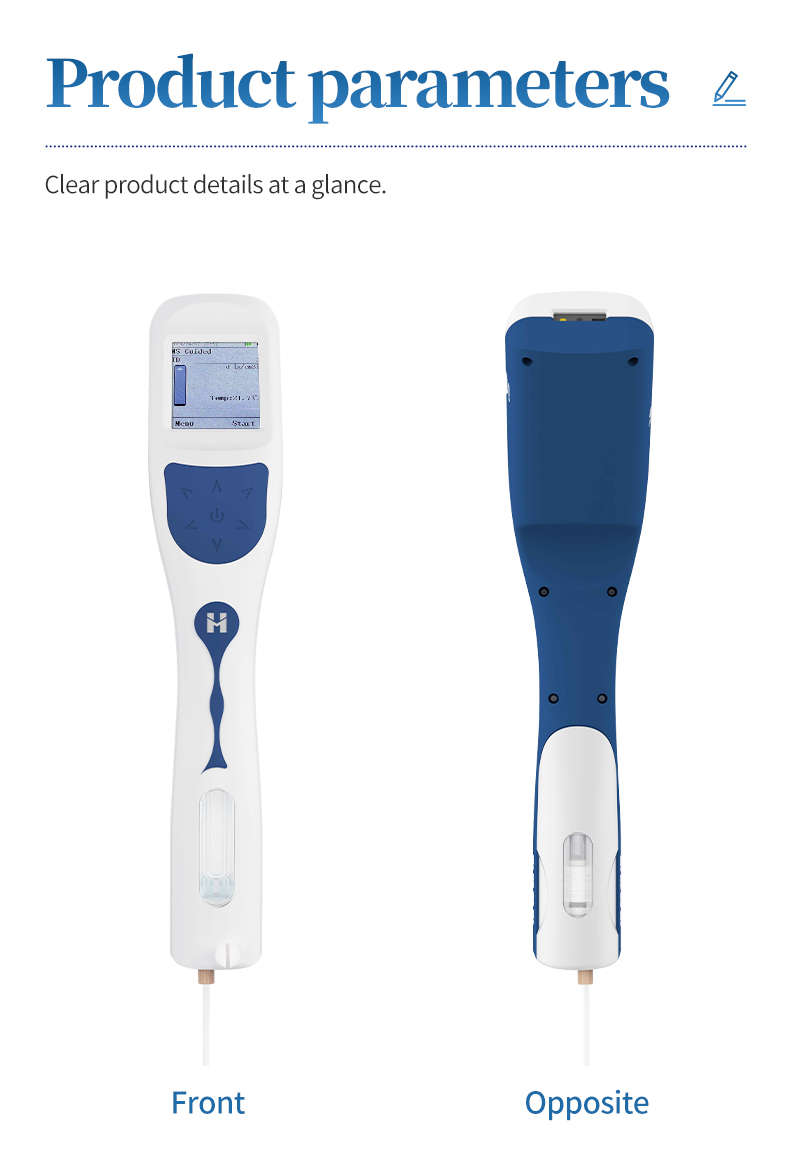

HM-DS handheld density meter front and rear product views

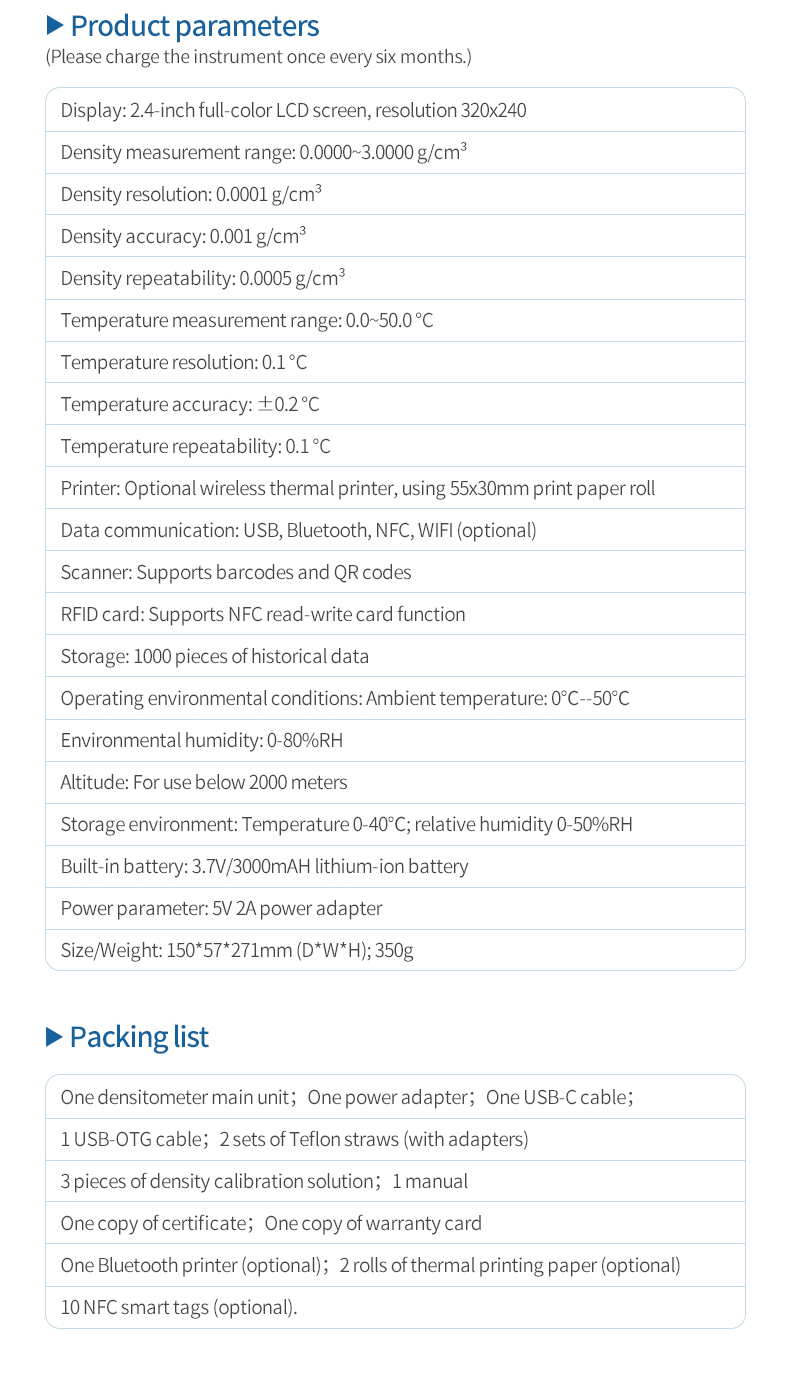

HM-DS density meter product parameter table and packing list specification

HM Instruments Shandong Hengmei Electronic Technology team and headquarters photo

HM Instruments laboratory R&D facilities and engineering staff working photos

Product Introduction

The HM-DS Handheld Liquid Density Meter from HM Instruments is a portable U-tube oscillation densitometer designed for fast and accurate density determination of liquid samples. The instrument measures sample resonance frequency through an oscillating U-shaped tube, delivering density readings between 0.0000 and 3.0000 g/cm³ with a resolution of 0.0001 g/cm³.

Built-in concentration calculations cover alcohol content, sugar content, sulfuric acid concentration and Plato concentration, while users can also create custom concentration formulas. Equipped with a 2.4-inch full-color LCD, ergonomic single-hand grip, NFC tag reader, barcode scanner and built-in suction pump, the HM-DS is suitable for chemical manufacturing, food and beverage QC, petroleum analysis and laboratory applications.

Applications

Chemical industry — density measurement of various chemical substances for product quality and process stability
Food & beverage industry — density of fruit juices, beverages and alcoholic drinks for QC and process control
Petroleum industry — density of crude oil and finished oil for product quality assurance
Pharmaceutical, environmental protection and educational density measurement

Functional Performance

U-tube oscillation principle for fast and accurate liquid density determination
Ergonomic grip structure enables one-hand sampling and measurement
Built-in barcode scanner and NFC reader for rapid sample ID input
Quartz glass and PTFE liquid-contact components for chemical resistance
Quick-release pump body designed for easy cleaning and replacement
2.4-inch full-color LCD with intuitive measurement display
Built-in pure water density table simplifies calibration with air or standard fluids
Automatic density and relative density temperature compensation
Built-in suction pump draws approximately 1.0–2.3 ml sample
Stores 1000 sets of measurement records on board
USB data export to flash drive or PC; optional Bluetooth printer; optional Wi-Fi upload
Fast Chinese / English language switching

Main Parameters

Item	Specification
Density measurement range	0.0000–3.0000 g/cm³
Density resolution	0.0001 g/cm³
Density accuracy	0.001 g/cm³
Density repeatability	0.0005 g/cm³
Temperature range	0.0–50.0 °C
Temperature accuracy	±0.2 °C
Display	2.4-inch full-color LCD, 320×240 resolution

Technical Parameters

Item	Specification
Temperature resolution	0.1 °C
Temperature repeatability	0.1 °C
Sample volume	~1.0–2.3 ml (built-in suction pump)
Data communication	USB, Bluetooth, NFC, Wi-Fi (optional)
Scanner	Barcode and QR code support
RFID	NFC read-write supported
Storage	1000 records
Printer	Optional 55×30 mm wireless thermal printer
Operating environment	0–50 °C, 0–80% RH, altitude < 2000 m
Storage environment	0–40 °C, 0–50% RH
Battery	3.7 V / 3000 mAh lithium-ion
Power adapter	5 V / 2 A
Dimensions (D×W×H)	150×57×271 mm
Main unit weight	350 g
Applicable standards	ISO 12185, ASTM D4052-18, JIS K 2249, GB/T 29617-2013, SH/T 0604-2000
