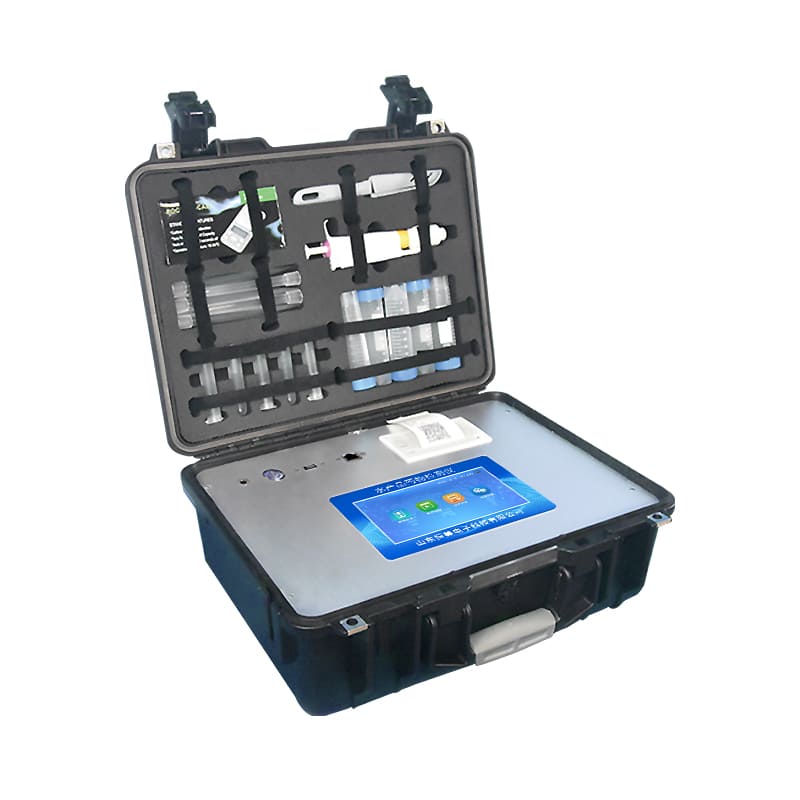

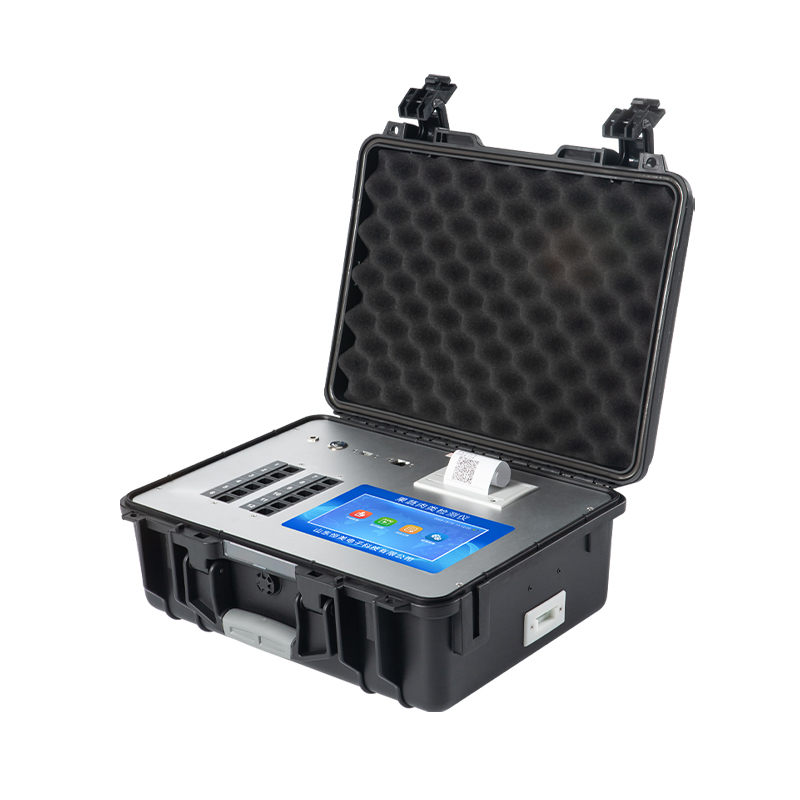

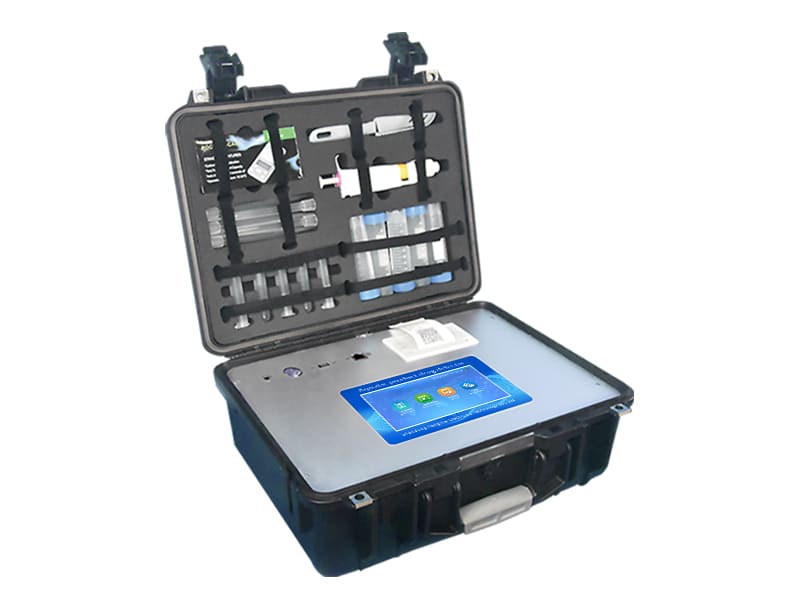

Aquatic product detector

Product introduction:

This device can quickly detect chloramphenicol, malachite green, tetracycline, nitrofuran, sulfonamide, quinolone floxacin, florfenicol, oxytetracycline, chlortetracycline, thiamphenicol, diazepam and other rapid tests in aquatic products such as fish and shrimp. For example, the entire detection process of the chloramphenicol rapid test card only takes about 30 minutes, with a sensitivity of 0.3 μg/kg (ppb). This rapid detection system equipment is an integrated food safety rapid detection and analysis equipment, which is widely used in farmers' markets, seafood markets, food and meat product deep processing enterprises, food and drug administration, health departments, aquaculture farms, inspection and quarantine departments, agricultural departments, third-party institutions and other units.

Detection principle:

The rapid detection system equipment uses the principle of inhibiting immunochromatography. For example, chloramphenicol in the sample binds to the specific monoclonal antibody labeled with colloidal gold during the lateral movement, inhibiting the binding of the antibody and the chloramphenicol-BSA conjugate on the NC membrane detection line, and quickly judging the chloramphenicol residue.

Functional features:

1. Android smart system, using a more efficient UI interactive interface, better interactive operation experience, and more convenient to use.

2. The instrument has wifi, Bluetooth, 4G network transmission, data can be uploaded wirelessly, and it also has a network cable connection function.

3. The instrument has a high degree of intelligence and has a self-test function: it has power-on self-test and zero adjustment functions, and has an automatic detection repeatability function.

4.★The instrument is equipped with a supervision platform, and the data can be uploaded to the local area network and the Internet, and the test results are directly transmitted to the food safety supervision platform. Carry out regional food safety supervision and big data analysis and processing and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and early warning

5. Integrated portable rapid testing equipment, meet the needs of on-site and mobile testing, can realize the detection of all test items under the same software, and can intuitively display the test results through the same window.

6. Colloidal gold module detection method: orbital automatic transmission scanning, and the test card is automatically ejected after the test is completed.

7. The instrument has a built-in camera to take pictures, which can display the real-time image of the gold label card. The system automatically analyzes and presents the CT coordinate curve graph, and the CT line is automatically identified without manual adjustment.

8. Built-in powerful database, with multi-category and multi-type sample menu function, flexible selection of test samples, different test channels can detect different sample items at the same time. You can also directly edit and enter sample name, test index, inspection unit and other information on the instrument and save it in the sample database.

9. The instrument has built-in operation video. Click the video module to learn quickly. It is a laboratory guidance expert around you.

10. Sample processing is simple and labor-saving, and the overall operation is fast, safe and convenient.

11. A new generation of high-speed thermal printers can automatically print or batch print test reports and QR codes after the test is completed.

12. The instrument can be configured with identity recognition function, and the machine can be turned on by password or ID card to prevent non-staff operation, etc.

13. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

14. The result judgment line can be modified, the control value calibration value can be saved, and the data will not be lost during power failure.

15. Compatible with all colloidal gold cards on the market, the use of consumables is not restricted, and the user experience is greatly enhanced.

16. The instrument has the functions of recalibration, locking, and restoring factory settings.

Main parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, the main frequency is 1.88Ghz, the operation speed is faster, and the stability is stronger.

2. Display mode: 7-inch LCD touch screen display, humanized Chinese operation interface, intuitive and simple reading.

3. AC and DC dual-use, DC 12V power supply, can be connected to the vehicle power supply, can be equipped with 6ah large-capacity rechargeable lithium battery, convenient for outdoor flow testing.

4. Intelligent constant current voltage regulation, automatic adjustment and calibration of light intensity, long-term continuous working light source without temperature drift phenomenon.

5. ★ Built-in new national limit standards, on-site comparison with the measured results, and continuous updating of standards.

6. Uninterrupted sampling, continuous testing

7. Automatic accumulation of sample numbers.

8. Wireless data upload platform, and can be exported from the platform as Excel tables.

9. Storage capacity of 200,000 test results.

10. ★ Supports USB copy, standard USB interface, free driver plug-in.

11. Test items can be expanded and firmware can be upgraded

12. Instrument size: 43×35×19cm, main unit net weight: 5.2kg

★ Manufacturers must have food safety testing intellectual property management system certification

★ Manufacturers have high-tech enterprise certification

★ Instruments have food safety transfer copyrights

★ Instruments have metrology reports issued by national metrology institutes

★ Reagents have reagent test reports issued by national metrology institutes

★ Have ISO9001 quality management system certification

★ Manufacturers must have independent trademark intellectual property rights
