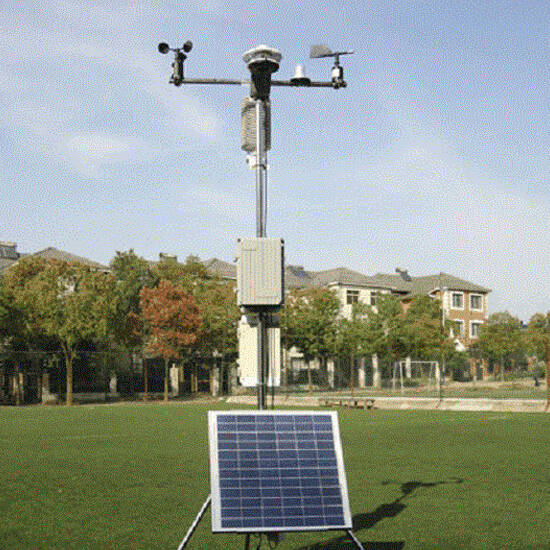

Meteorological Environment Monitoring System

Meteorological environment monitoring system-intelligent meteorological online automatic monitoring equipment adopts embedded technology and can be used to measure various meteorological data such as wind speed, wind direction, temperature, air humidity, air pressure, total radiation, rainfall, evaporation, soil temperature, soil moisture, etc. The system adopts modular design, and can flexibly add or reduce corresponding modules and sensors according to user needs (measured meteorological elements), and can be combined arbitrarily to meet the needs of various users conveniently and quickly. The system has built-in display, automatic saving, real-time clock, data communication and other functions. The automatic weather station has the advantages of advanced technology, high measurement accuracy, large data capacity, long telemetry distance, friendly human-computer interface, and high reliability. It is widely used in meteorology, ocean, environment, airports, ports, industry, agriculture and transportation, and is also suitable for use in schools and scientific research institutions.

Built-in electronic compass (optional), can be used on mobile platforms such as cars and ships.

Composition of Soil and Water Conservation Meteorological Station

Common Meteorological Elements

Name                                Measuring Range                          Resolution                               Accuracy

Atmospheric Temperature Sensor -50～80℃                              0.1℃                                     ±0.2℃

Atmospheric Humidity Sensor   0～100%RH                               1%RH                                     ±3%RH

Atmospheric Pressure Sensor 100～1100hP                                 0.1hP                                     0.1%FS

Wind Speed Sensor                    0～60m/s                                  0.1m/s                                   ±（0.3+0.03V）m/s

Wind Direction Sensor                0～359°                                             1°                                        ±3°

Rainfall Sensor                            0～999.9mm                              0.2mm                                    ±4%

Evaporation Sensor                     0～100mm                                 0.1mm                                    ±1％

Water Temperature Sensor          -40℃～ 60℃                                0.1℃                                    ±0.2℃
