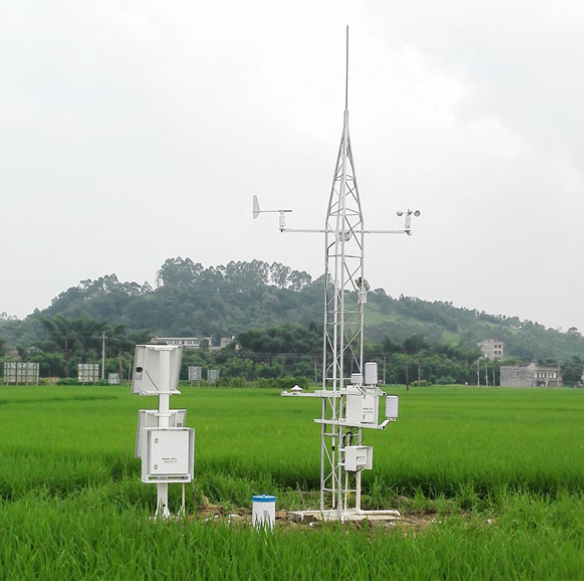

Agricultural Meteorological Station

Product Introduction：

HM-QXC6 Six-element Meteorological Station-Automatic Meteorological Observation System is an intelligent, high-performance automatic station designed by Shandong Hengmei Electronic Technology Co., Ltd. for fixed-point monitoring of conventional elements of the ground meteorological environment based on many years of meteorological industry experience and ground meteorological observation specifications. It adopts an open, friendly, modular design concept. Users can change the element components and module coordination by themselves, and can quickly realize the change and expansion of data collection and processing methods and observation elements; it can economically and conveniently build various regional ground meteorological observation station networks for users.

System indicators

Collector: HM-QXC6500 data acquisition system

Working environment: -50～+80℃, 0～100%RH

Time accuracy: real-time clock, accuracy better than 10 seconds/month

Reliability: MTBF>10,000 hours

Power supply: AC/DC/solar power supply

Power control: charge and discharge control/temperature compensation/over-discharge protection (AC/DC dual-use) Protection level: IP65 standard

Output data: data acquisition storage with settable intervals, minimum acquisition interval is 60 seconds

Communication method: RS232/ GPRS

Sensor element measurement indicators

Measurement indicators (measurement parameters)

Air temperature: -80℃～+60℃; accuracy: ≤±0.2℃

Air humidity: 0.8~100%RH; accuracy: ±1.2%RH

Wind direction: 0～360°; accuracy: ±3°

Wind speed: 0～75m/s; accuracy: ±(0.3+0.03v)m/s

Precipitation: Water receiving diameter: Φ200mm; measurement range: 0～4mm/min; accuracy: ±4%; output signal: pulse (one pulse = 1mm precipitation)

Atmospheric pressure : 300～1200hPa; accuracy: ±1.5hPa

Collector and expansion interface

Collector: Six-element data collector

Power supply and communication interface

Communication interface: RS232/onboard GPRS

Communication method: RS232 wired direct connection/GPRS

Power supply: AC 220V/solar energy + battery

Power consumption: 3-5W

Operating environment

Working environment temperature: -50～+80℃

Working relative humidity: 0～100%RH

Reliability and maintenance cycle

Protection level: IP65

Reliability: maintenance-free, anti-salt spray, dust-proof

Mechanical indicators

Main material: aluminum-titanium alloy

Surface treatment: hot-dip galvanizing, electrophoretic paint process treatment, white as the main color.

Installation height: standard 10-meter wind pole, wind resistance not less than 75m/s.

Installation method: six-element meteorological observation field standard.

Typical applications

Grid regional meteorological monitoring.

Mesoscale encrypted observation.

Refined weather forecast data source.

Flash flood warning key monitoring..

Localized meteorological forecast service customization.

Regional meteorological environment observation.

Climate environment monitoring.
