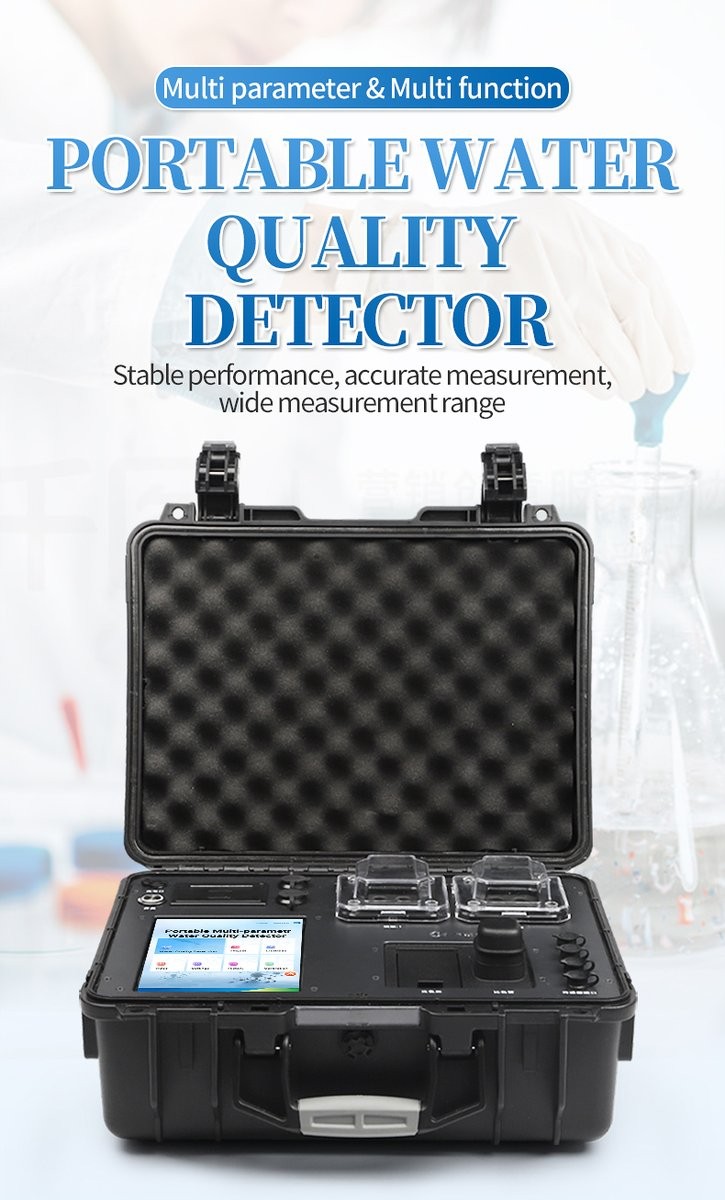

HM-B200M Portable Multi-Parameter Water Quality Analyzer with Sensor Module

Product Introduction

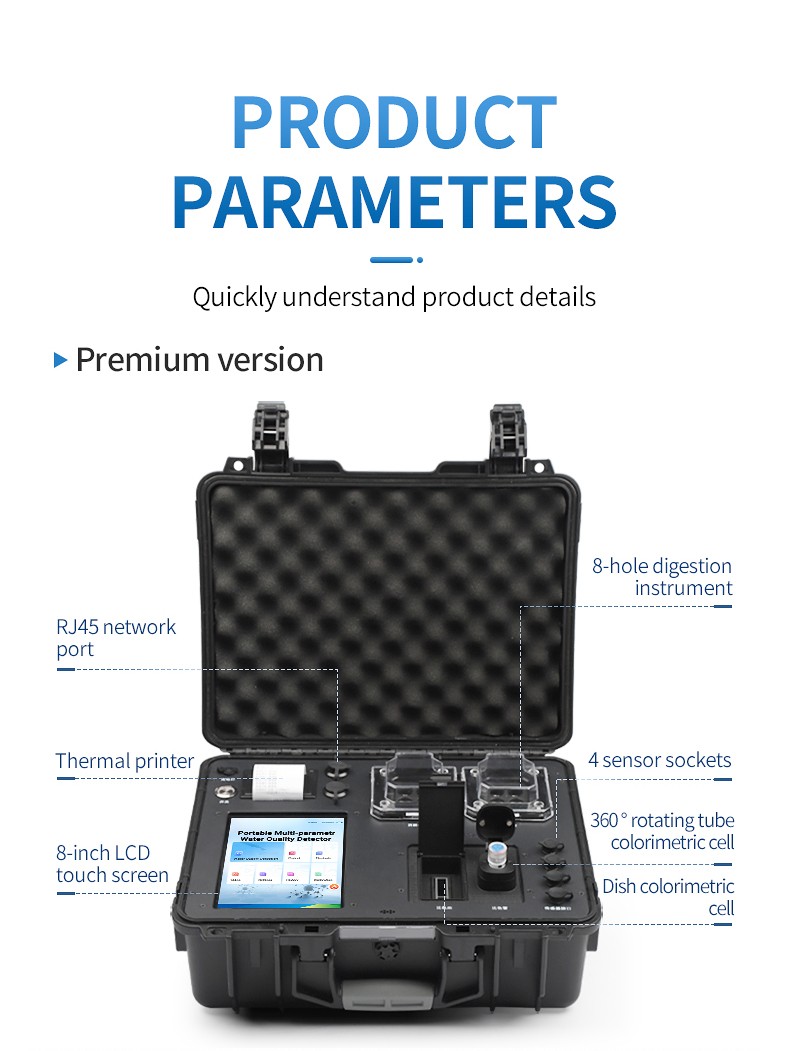

The HM-B200M is the highest-configuration portable multi-parameter water quality analyzer in the HM series, designed for professionals who require both spectrophotometric and electrode-based detection capabilities in a single field-deployable instrument. Built within a high-strength PVC carrying case, it integrates four major functional modules: spectrophotometric detection, sensor measurement, dual-zone digestion, and evidence documentation.

The spectrophotometric module covers 49 parameters including conventional water quality indicators, disinfectants, heavy metals, and specialty analytes using standardized methods. The distinguishing feature of the B200M is its built-in sensor detection module with 4 independent ports, allowing simultaneous insertion and measurement of up to 4 different sensors — including pH, ORP, dissolved oxygen (fluorescence method), residual chlorine (constant voltage method), conductivity, salinity, ozone, turbidity, hardness, suspended solids, sludge concentration, COD, ammonia nitrogen, chlorophyll, blue-green algae, oil in water, and CDOM sensors.

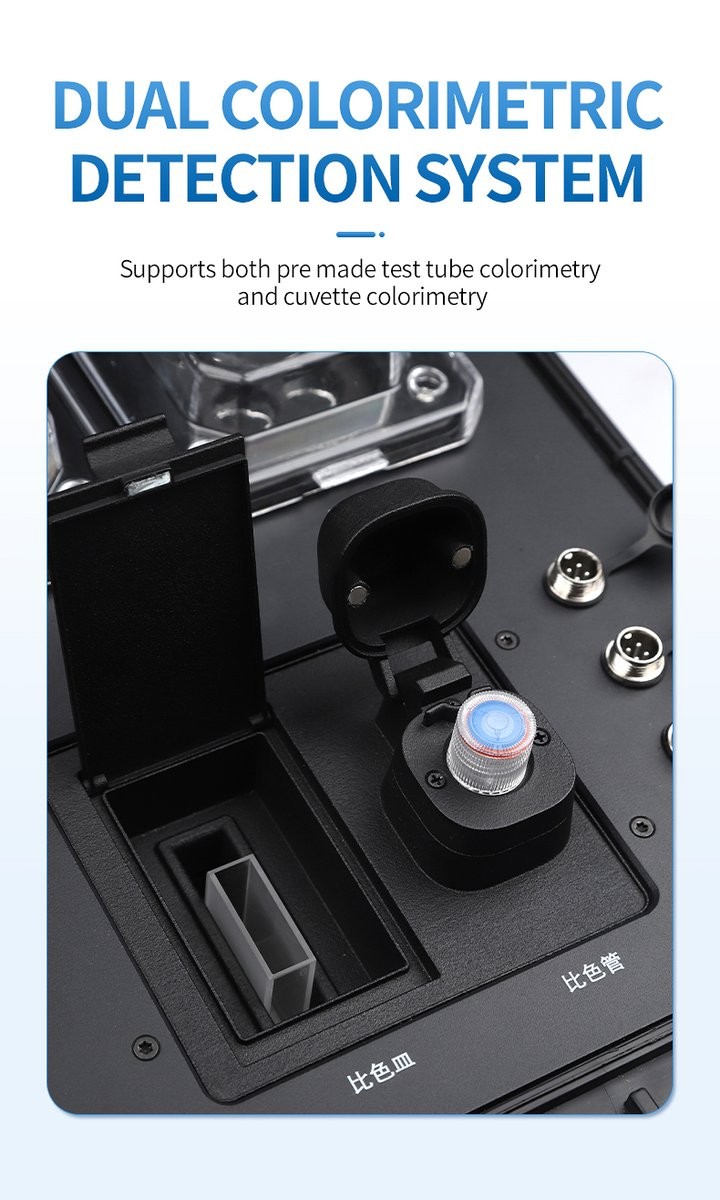

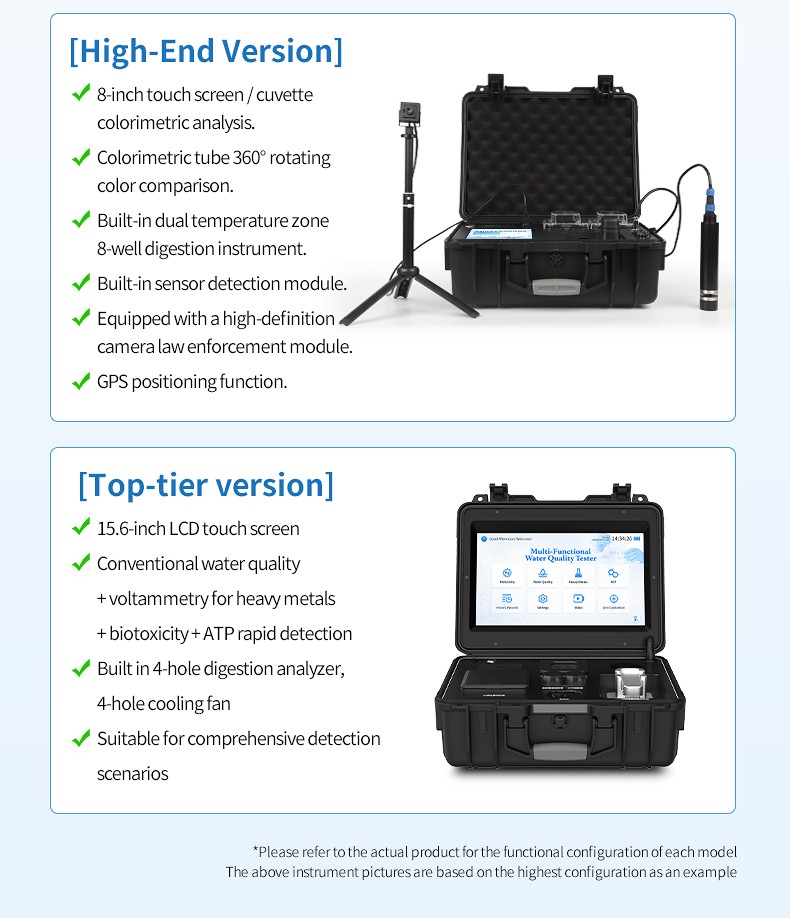

The 360° precision rotating colorimetric tube system, dual-temperature-zone 8-hole PID digester (RT–200°C, ±0.5°C), and 720P evidence camera (1080×720) are shared with the HM-B100M model. However, the B200M uniquely enables detection, digestion, and sensor measurement to operate concurrently, maximizing field testing throughput. A 48V8AH lithium battery sustains over 6 hours of continuous operation.

Testing Items

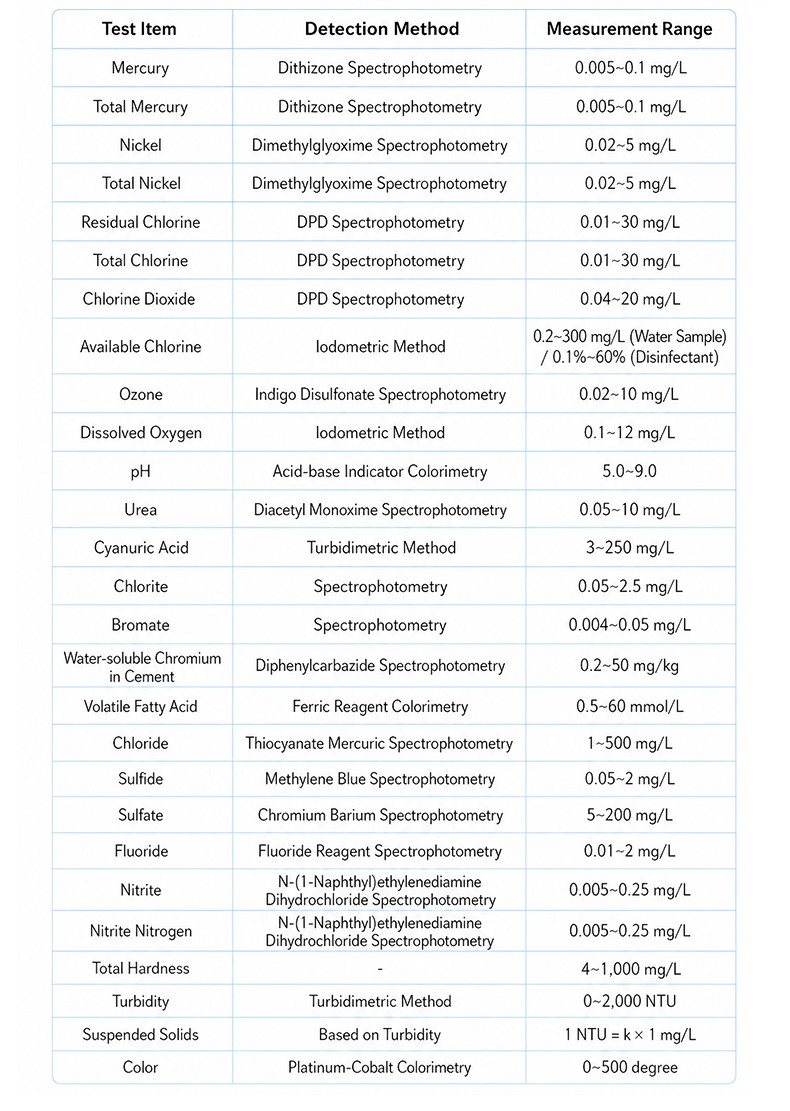

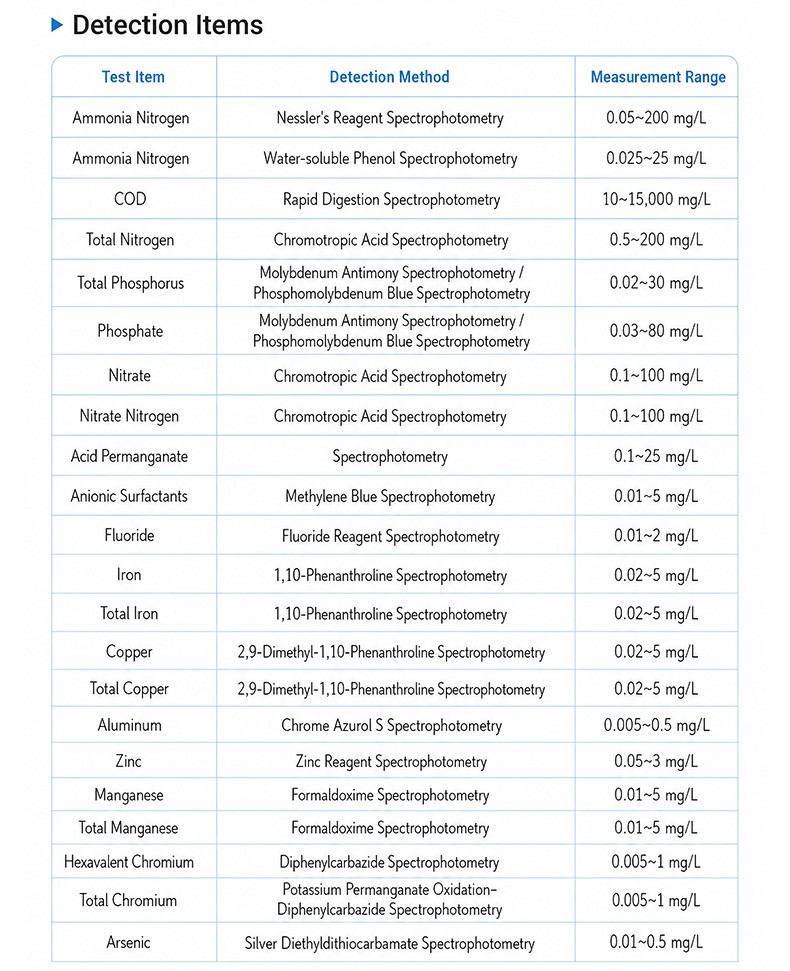

• Spectrophotometric Parameters (49 items): COD, Ammonia Nitrogen, Total Nitrogen, Total Phosphorus, Phosphate, Nitrate, Nitrite, Permanganate Index, Turbidity, Color, Suspended Solids, Dissolved Oxygen, pH, Residual Chlorine, Total Chlorine, Chlorine Dioxide, Available Chlorine, Chlorite, Bromate, Ozone, plus 20 heavy metals and specialty analytes
• Sensor Module Parameters (17+ types): pH, ORP, Dissolved Oxygen (fluorescence), Residual Chlorine (constant voltage), Conductivity, Salinity, Ozone, Turbidity, Hardness, Suspended Solids, Sludge Concentration, COD, Ammonia Nitrogen, Chlorophyll, Blue-Green Algae, Oil in Water, CDOM

Features

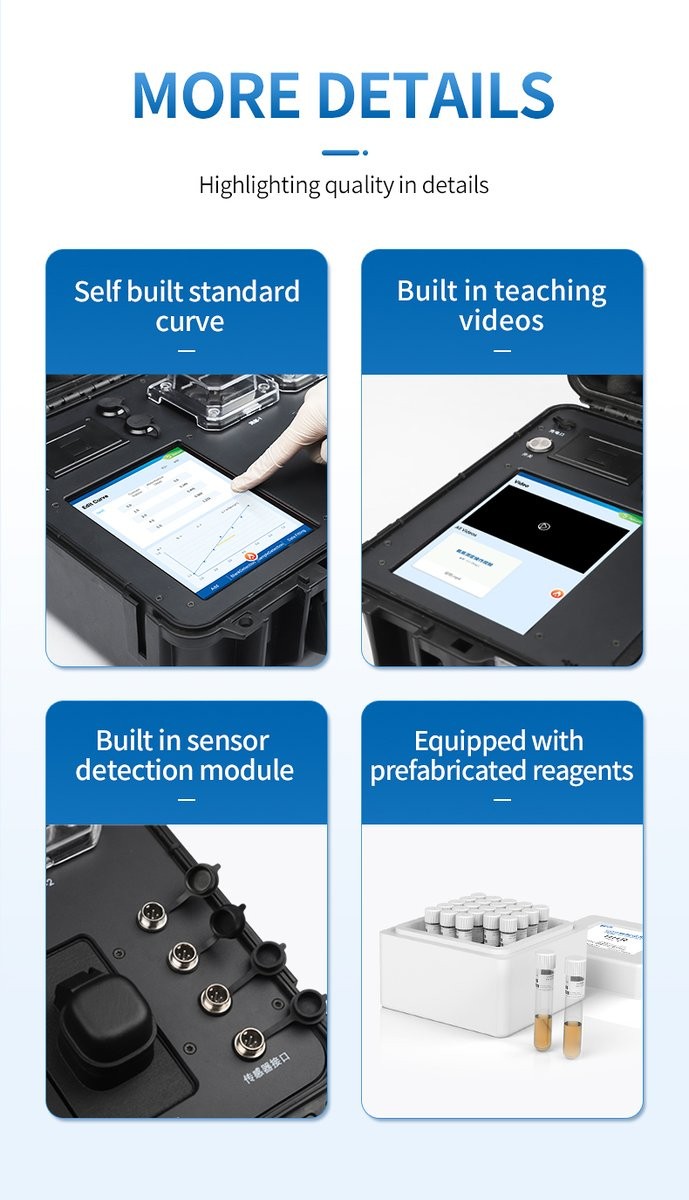

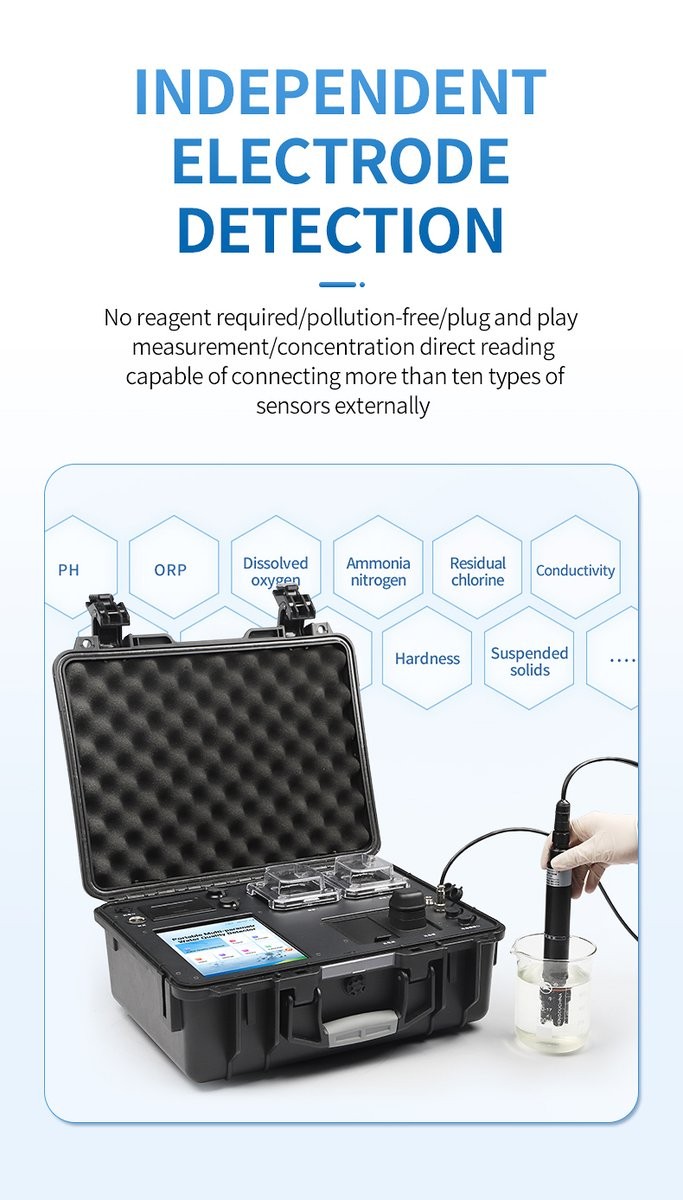

1. Built-in 4-port sensor module accepts up to 4 different electrode sensors simultaneously for concurrent multi-parameter measurement with direct concentration readout
2. Sensor measurements support timed automatic storage or manual storage with printable data output for each reading session
3. Detection, digestion, and sensor measurement operate concurrently, dramatically improving field testing efficiency compared to sequential workflows
4. 49-parameter spectrophotometric detection using standardized methods covering conventional water quality, disinfectants, heavy metals, and specialty analytes

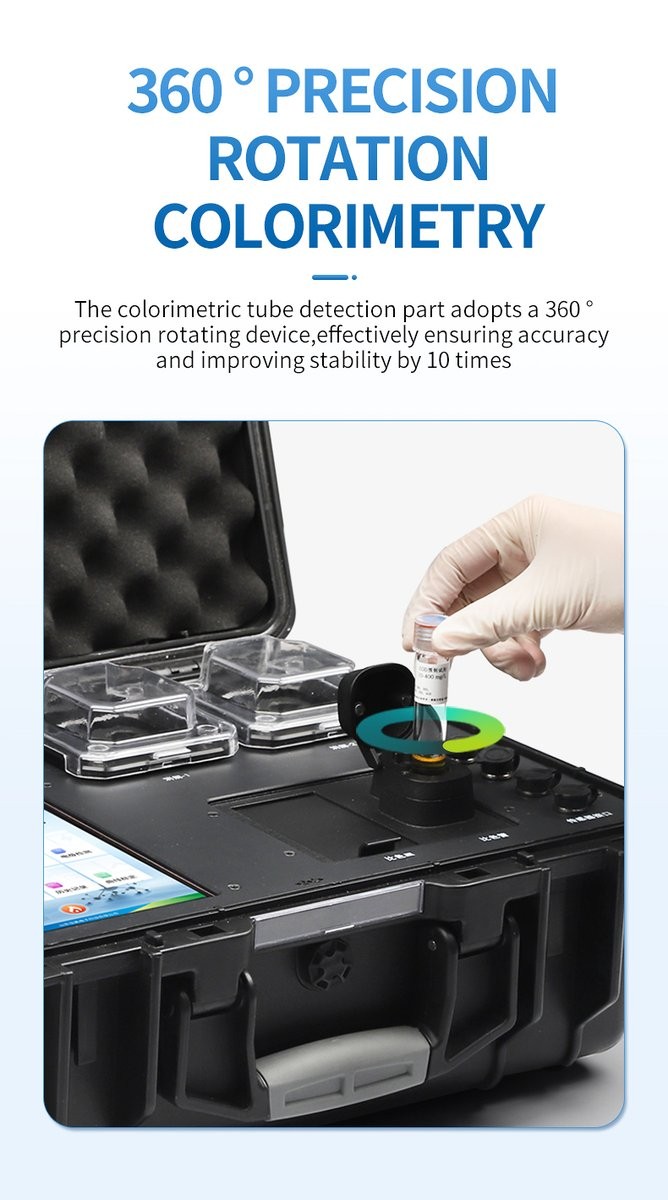

5. 360° precision rotating colorimetric tube mechanism delivers 10× improved measurement stability over fixed-position optical systems

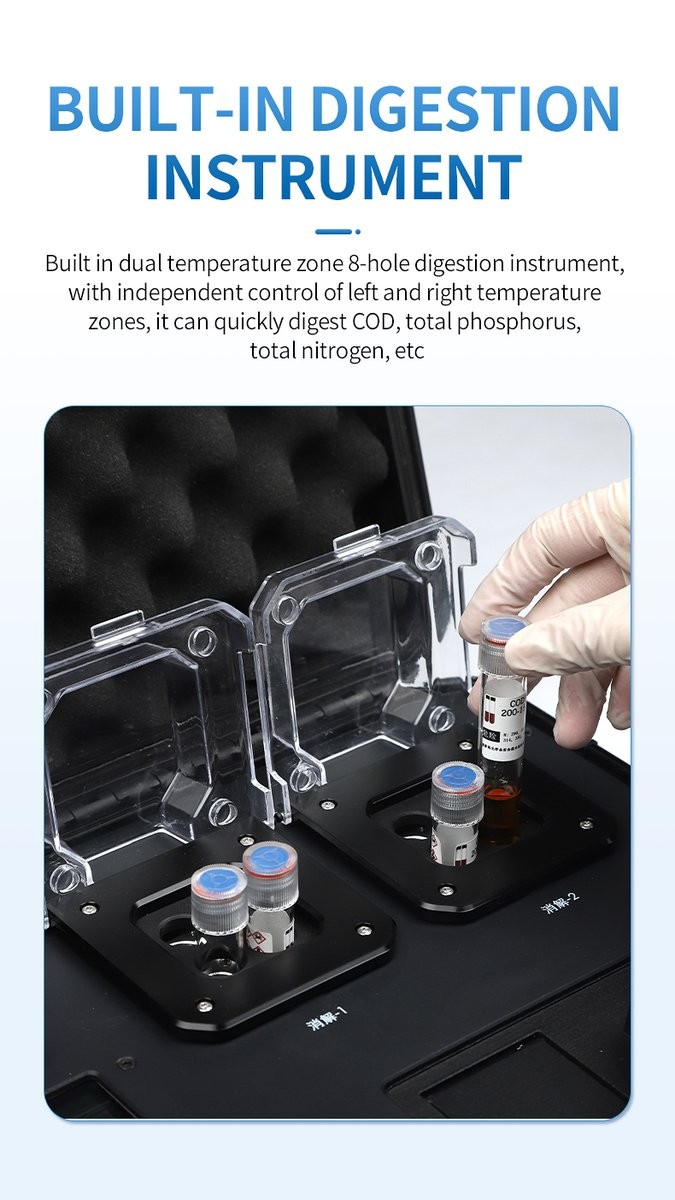

6. Dual-temperature-zone 8-hole digester with independent PID control reaches 165°C within 10 minutes for rapid COD digestion
7. 720P HD evidence camera module (1080×720) captures geo-tagged field photographs embedded directly into test reports

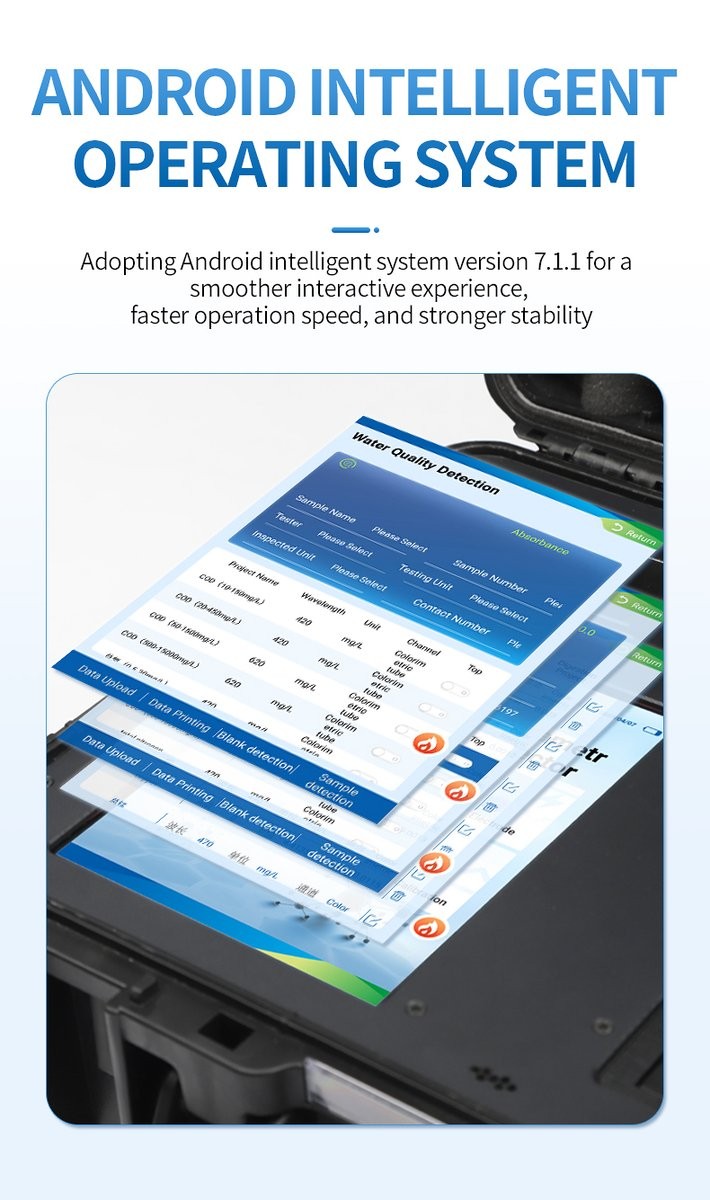

8. Android 7.1.1 operating system with 8-inch HD touchscreen (1024×768) provides intuitive tablet-like operation
9. WiFi, 4G, and RJ45 connectivity uploads data to cloud platform with GPS latitude, longitude, and location tagging

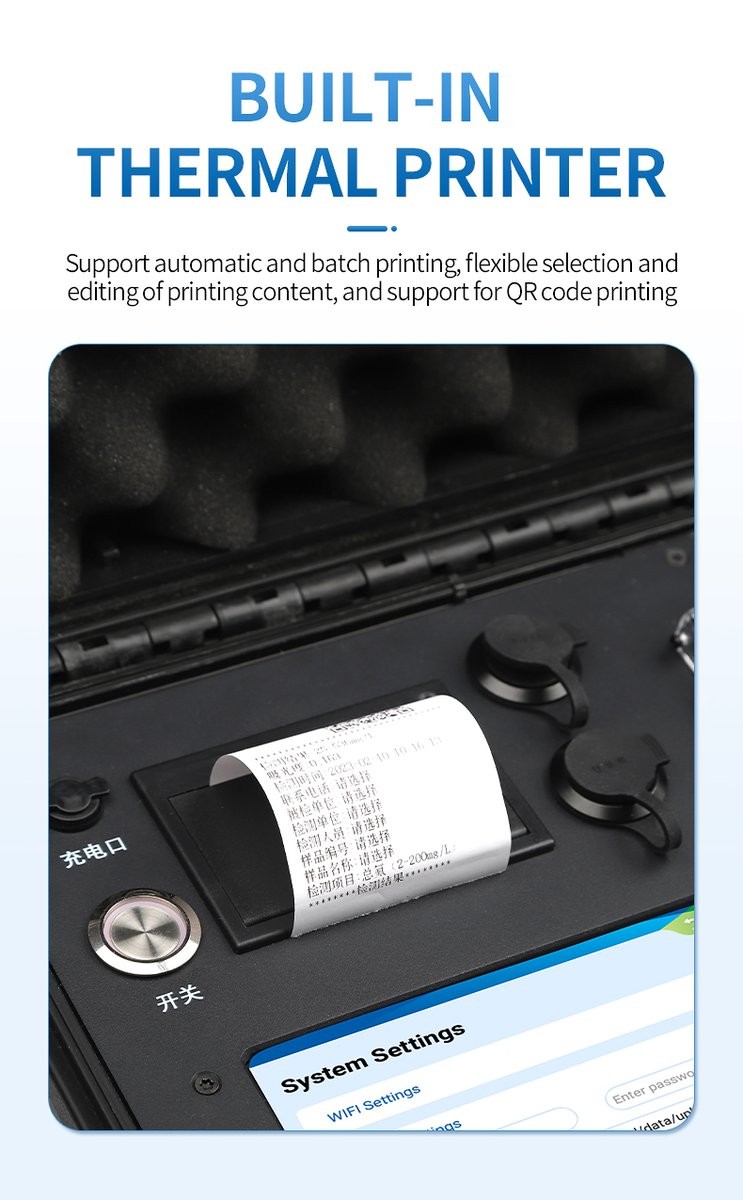

10. 10 million record storage capacity with built-in thermal printer supporting automatic, batch, and QR code printing
11. 48V8AH lithium battery provides over 6 hours of continuous field operation with all modules active
12. Factory pre-made reagent kits and built-in instructional videos enable rapid deployment by operators of varying experience levels

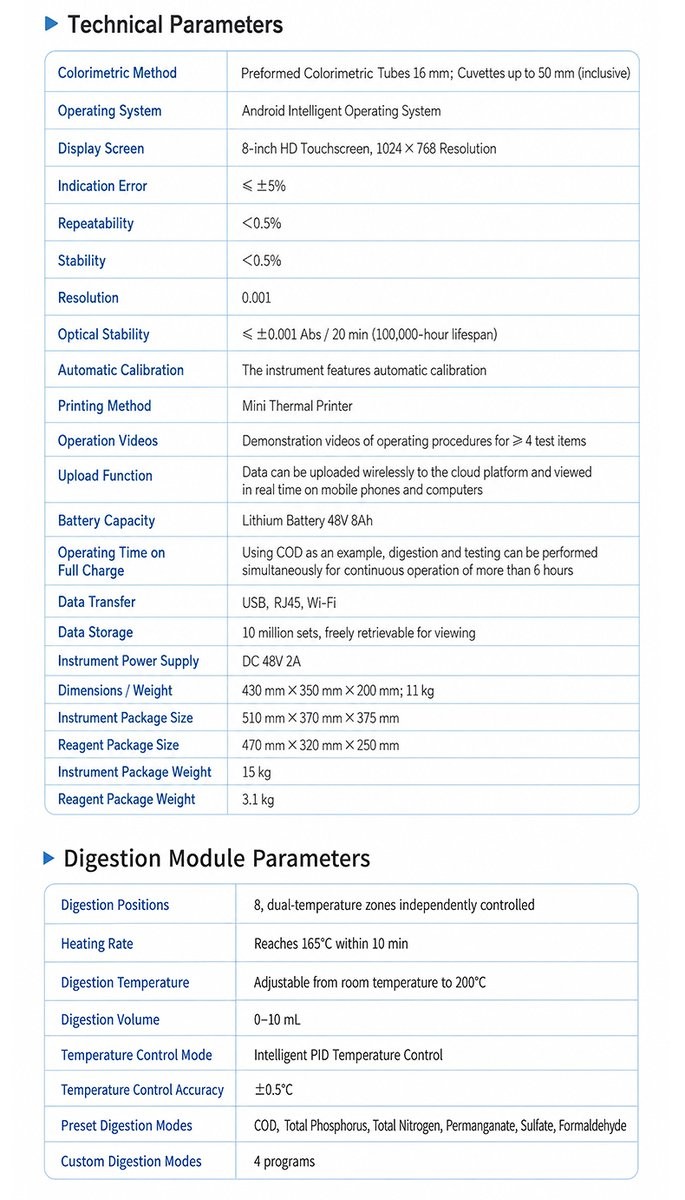

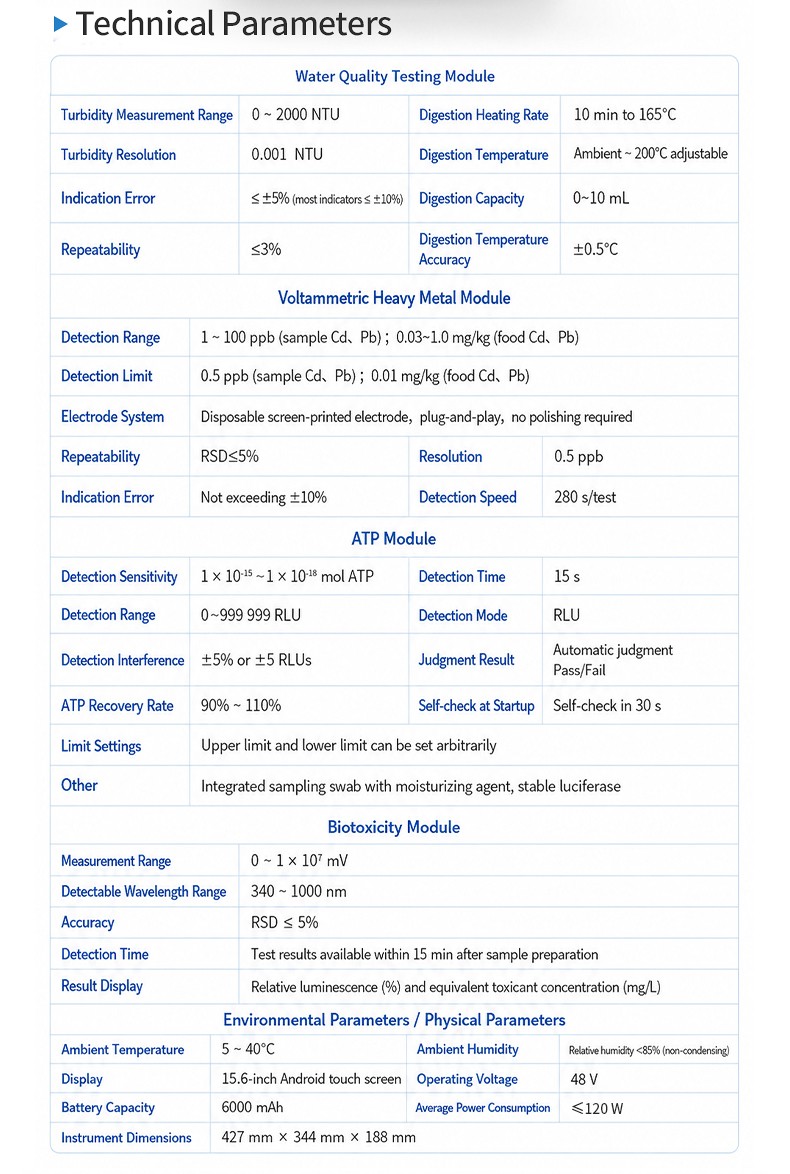

Main Parameters
