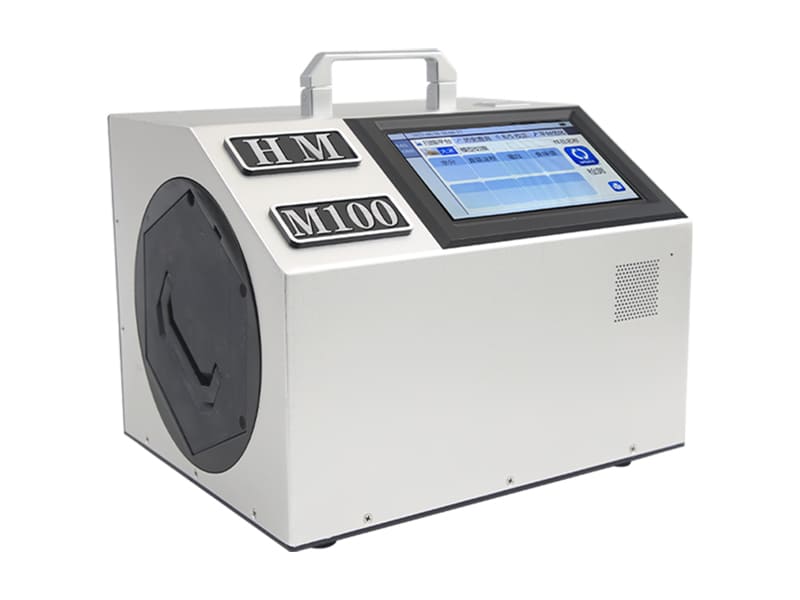

Nuclear magnetic resonance oil content tester

Instrument Introduction:

The nuclear magnetic resonance oil content tester is a high-tech product specialized in oil containing crops and their processed products for oil content detection. The instrument adopts nuclear magnetic resonance technology, based on embedded development platforms and digital signal processing technology, to quickly determine the oil content of seeds of oil containing crops such as soybeans, rapeseed, sesame, corn, cottonseed, sunflower seeds, peanuts, wheat, tung seeds, rice bran, tea seeds, and their cakes and dregs. It is a new type of product in the field of non-destructive testing. The instrument has the characteristics of simple and convenient operation, high testing accuracy, and fast testing speed. Compared with similar domestic instruments, it adopts the self created technology of "frequency self-locking technology", which does not require manual adjustment, reduces human errors, and greatly improves measurement accuracy and stability. Improve.

Instrument features:

1. The nuclear magnetic resonance oil content tester comes with a 7-inch true color LCD screen, with a simple operating interface and a mouse+keyboard, consistent with the computer operation mode

2. The equipment can perform non-destructive and pollution-free testing, and the oilseed species can be further pressed and utilized after testing, without causing waste

3. The stability is ± 0.1%, with high measurement accuracy and good stability. Using intelligent classification detection methods for different species, each measurement only takes 0.5 minutes

4. The software automatically adjusts the frequency, gradually prompts and guides the operation process. It adopts frequency self-locking technology, which does not require manual adjustment, is easy to operate, reduces human error, and improves measurement accuracy

5. Can work in environments with strong electromagnetic interference and strong anti-interference ability

6. Users can configure their own mode for more flexible and rich printing content. Not only can it be saved directly on the machine, but it can also be saved through a USB drive and opened for processing on the computer

7. Upgrade the software by downloading it from the internet to a USB drive, inserting it into the device's USB port, and the upgrade is automatically completed

Basic parameters of the instrument:

1. Sample volume: 40ml;

2. Sample oil content range: 0.05% to 100%;

3. Measurement accuracy: ± 0.2%;

4. Measurement stability+0.2% per hour

5. A single measurement takes about 30 seconds to produce the measurement result

6. Power supply voltage: 220V, 50Hz;

7. Power: ≤ 40W;

8. Working temperature: -10 ℃ -40 ℃;

9. Equipment gross weight electronic chassis ≤ 8Kg

10. Test types: Oily crop seeds such as soybeans, rapeseed, sesame, corn, cottonseed, sunflower seeds, peanuts, wheat, tung seeds, rice bran, tea seeds, and their cakes and dregs;

11. Complies with the requirements of GB/T 15690-2008, "Determination of oil content in plants - Continuous wave low resolution nuclear magnetic resonance method (rapid method)";

12. Operating system: 7-inch Linux touch screen, easy to operate;

13. Result printing: An embedded micro printer that can print measurement results in a timely manner.
