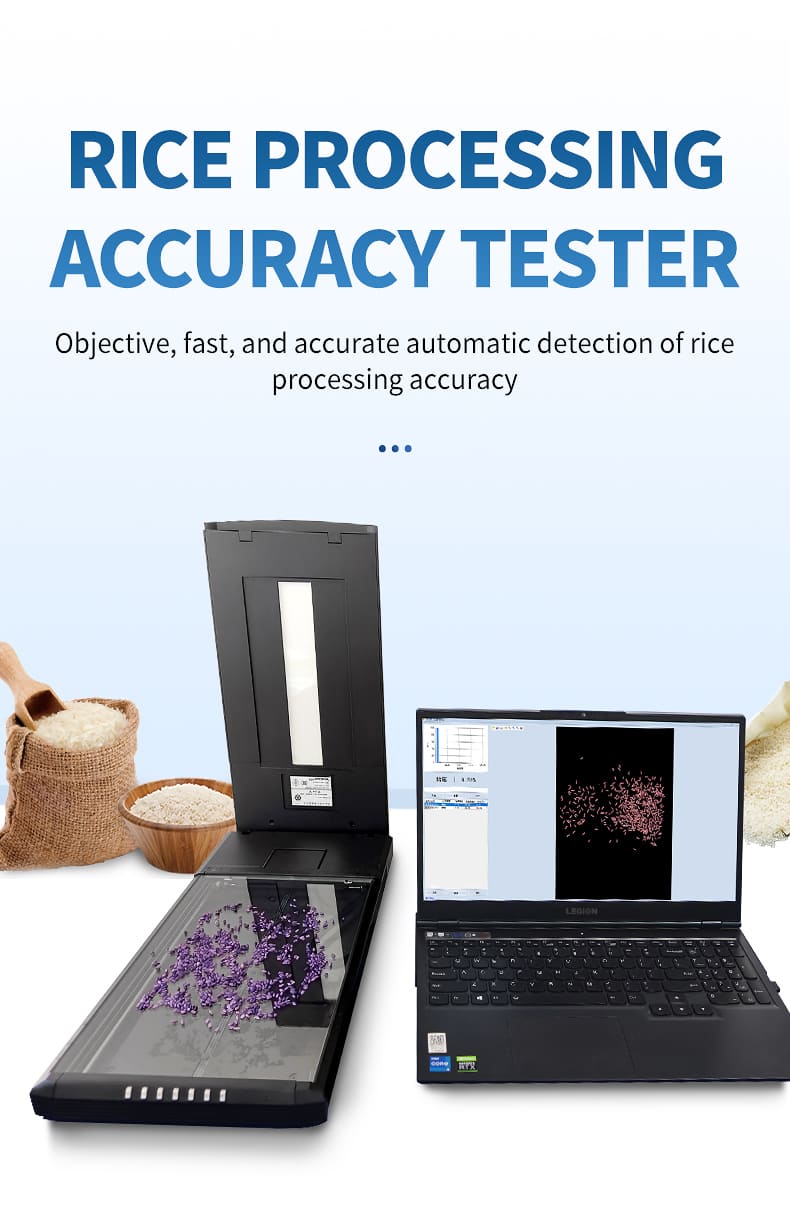

Rice processing precision tester

Purpose

Used to replace manual visual inspection to objectively, quickly, and accurately automatically detect the processing accuracy of rice. After the rice sample to be tested is dyed with a special dye (Eosin Y-methylene blue), the skin and embryo on the rice are blue-green, and the endosperm is purplish red. The instrument specific intelligent recognition software automatically analyzes the processing accuracy of the rice sample based on the degree of skin retention on each grain of whole rice and its total proportion. This instrument is mainly suitable for research institutes, testing units, rice mills, and distribution enterprises.

Main technical indicators

1. Reflected draft scanned and dyed rice, with the tested object being rice (japonica rice, indica rice, glutinous rice).

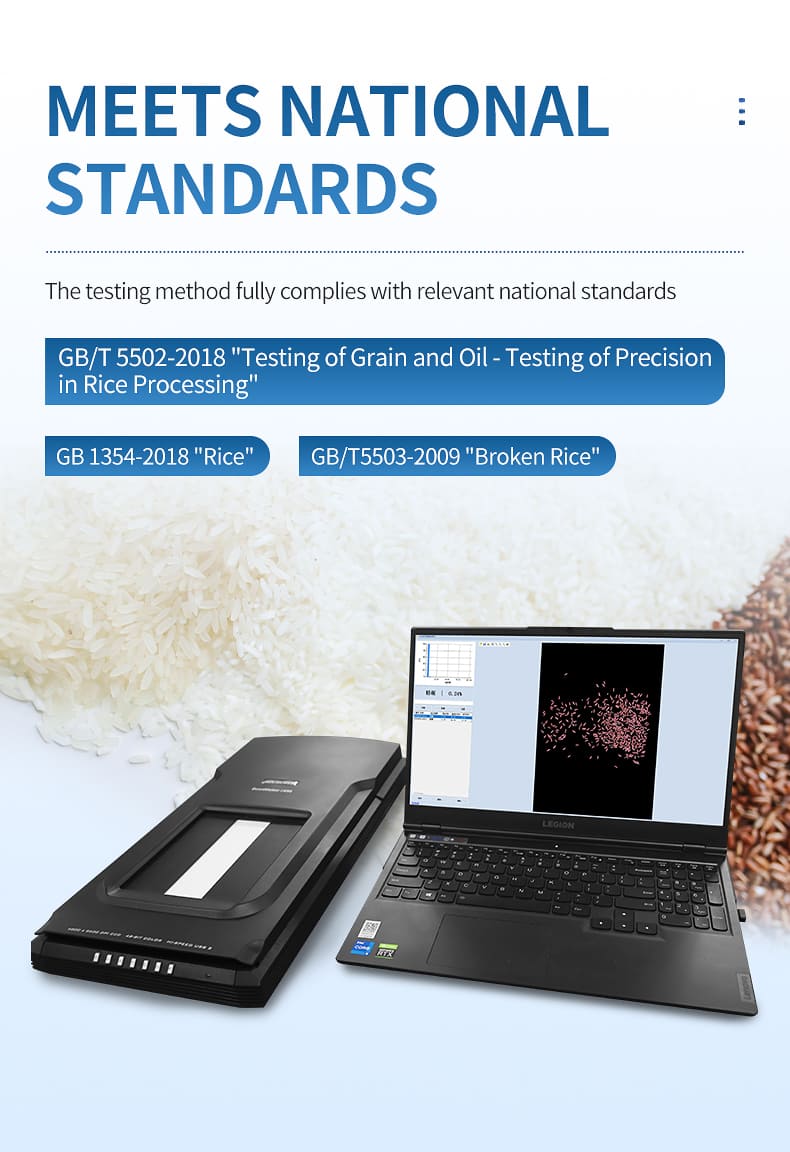

2. The detection method fully complies with relevant national standards such as GB/T 5502-2018 "Testing of Grain and Oil - Testing of Rice Processing Precision", GB 1354-2018 "Rice", GB/T 5503-2009 "Crushed Rice", etc.

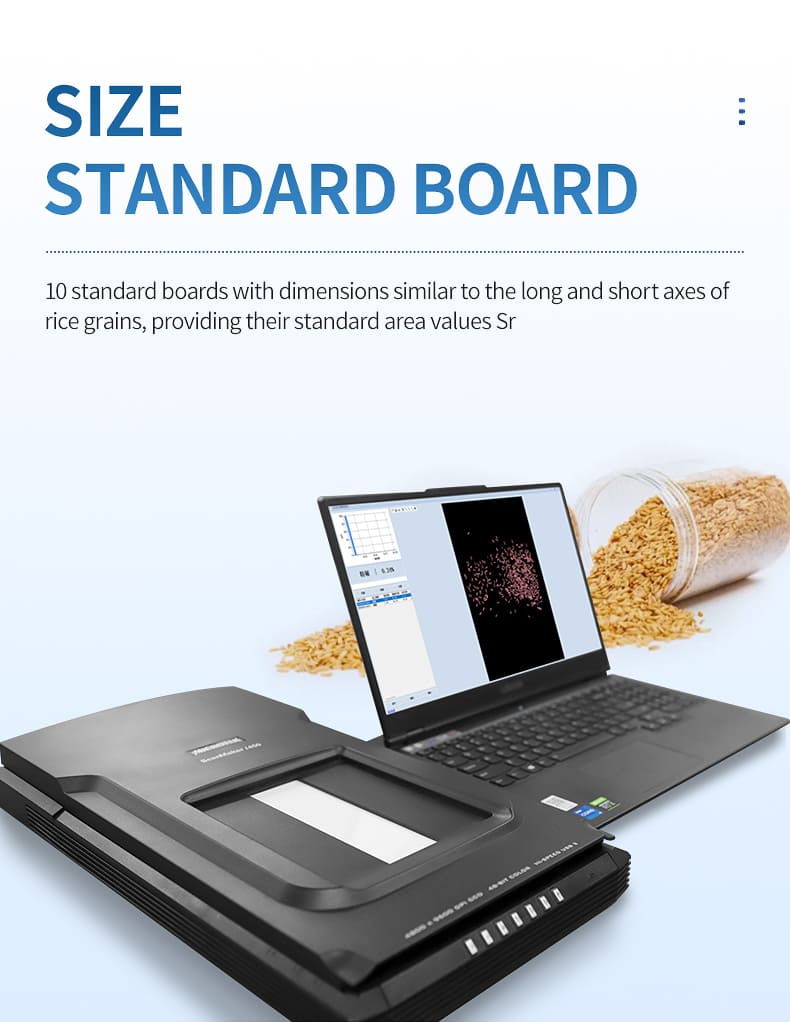

3. ★ There are 10 standard boards with dimensions that are basically consistent with the long and short axes of rice grains, and their area standard values Sr are provided.

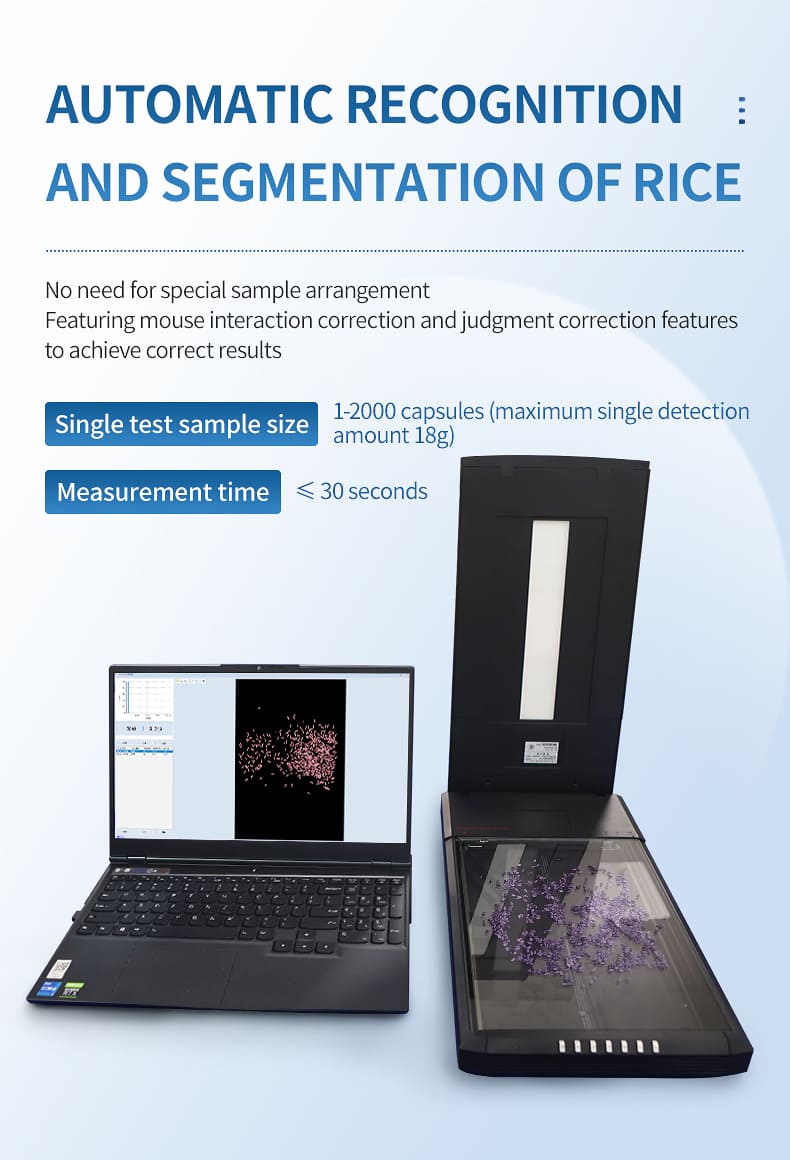

4. ★ Automatic recognition and segmentation of rice, without the need for special sample arrangement. Single detection sample size: 1-2000 grains (single * large measurement 18g), measurement time ≤ 30 seconds. Featuring mouse interaction correction and judgment correction features to achieve * * * * correct results.

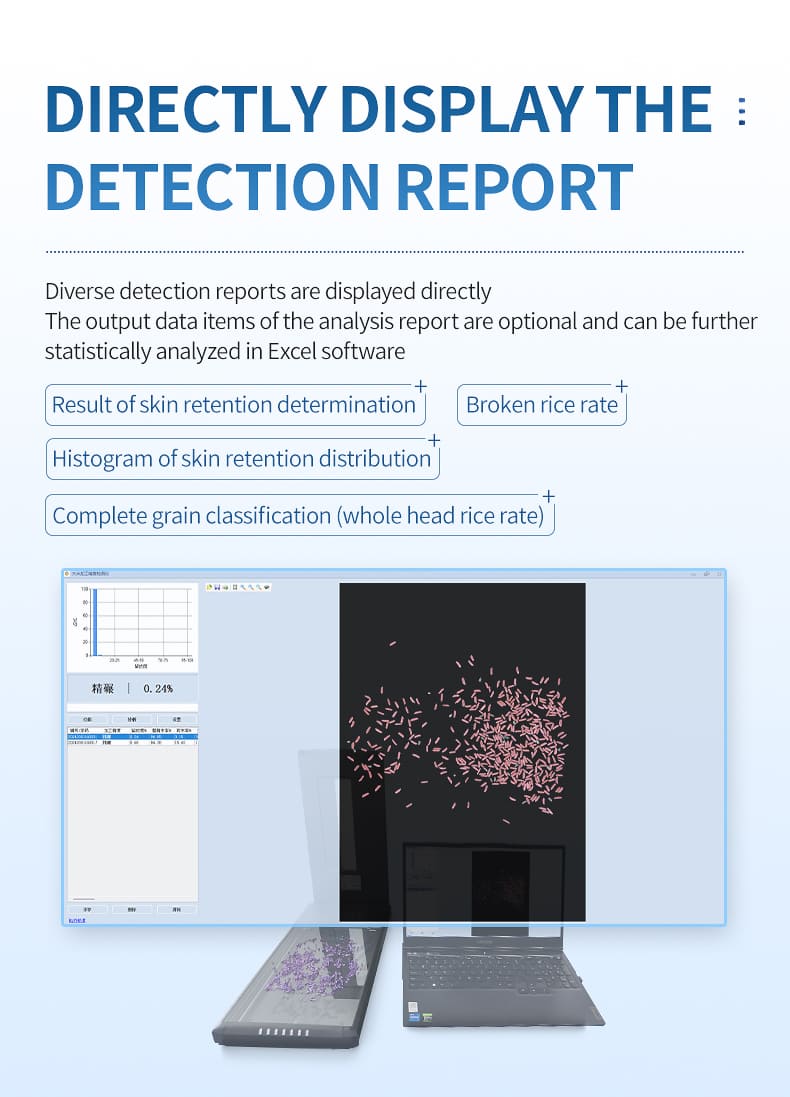

5. Various detection reports directly display the results of skin retention determination, histogram of skin retention distribution, complete grain classification (whole head rice rate), and broken rice rate. The output data items of the analysis report are optional and can be further statistically analyzed in Excel software.

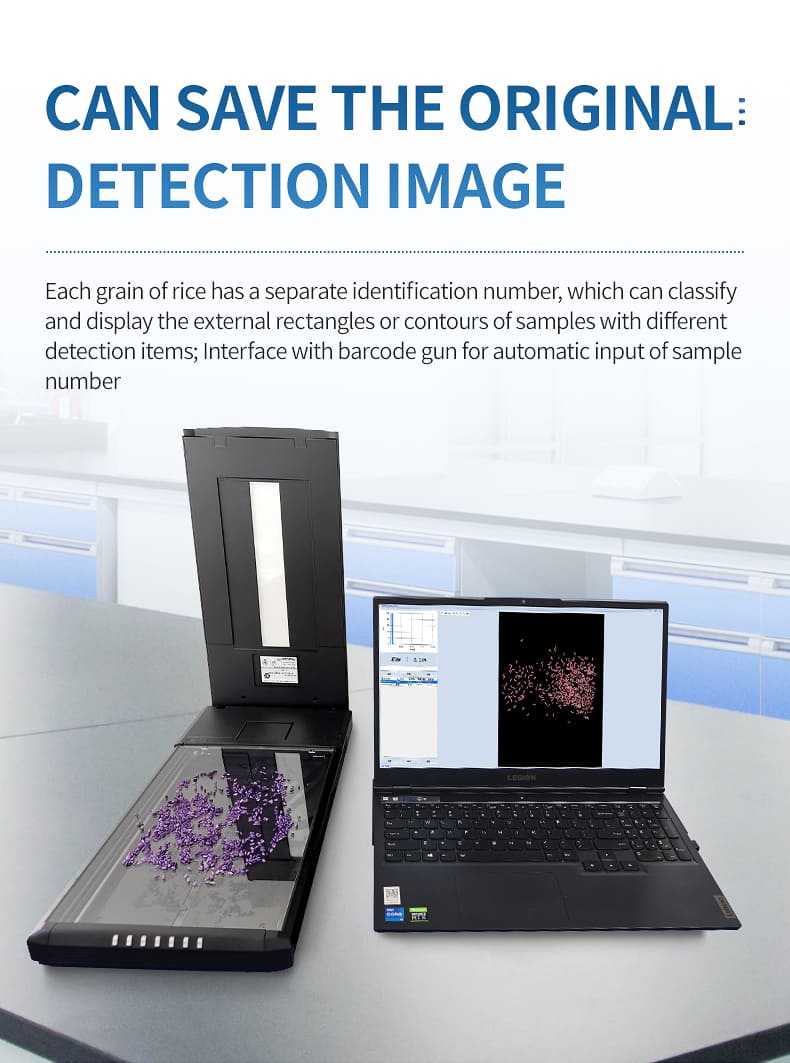

6. Can save the original image of the detection, with each grain of rice having a separate judgment number, and can classify and display the external rectangles or contours of samples with different detection items; Equipped with barcode gun automatic input sample number interface.

7. Automatic classification and sorting can be performed based on the options of parameters such as "serial number", "skin retention", "length", etc. The segmented image can also be output by category.

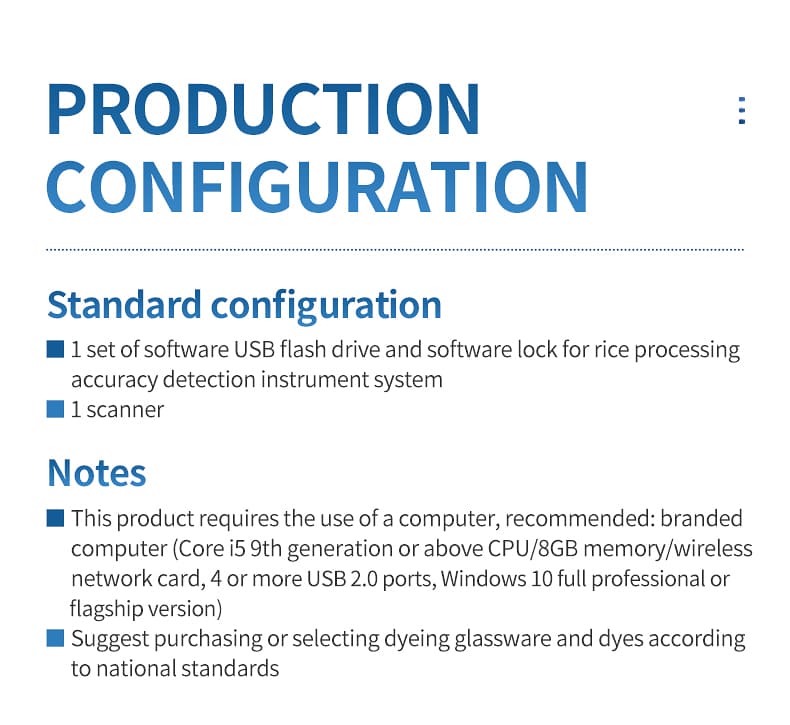

Standard configuration

1. 1 set of software USB flash drive and software lock for rice processing accuracy detection instrument system

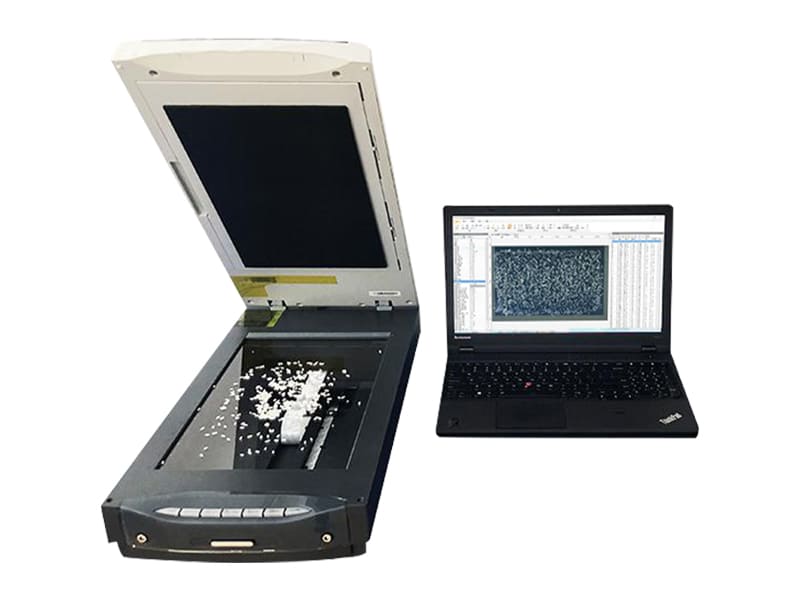

2. 1 scanner

Remarks:

1. This product requires the use of a computer, recommended: branded computer (Core i5 9th generation or above CPU/8GB memory/wireless network card, 4 or more USB 2.0 ports, Windows 10 full professional version or flagship version).

2. It is recommended to purchase or select dyeing glassware and dyes according to national standards.
