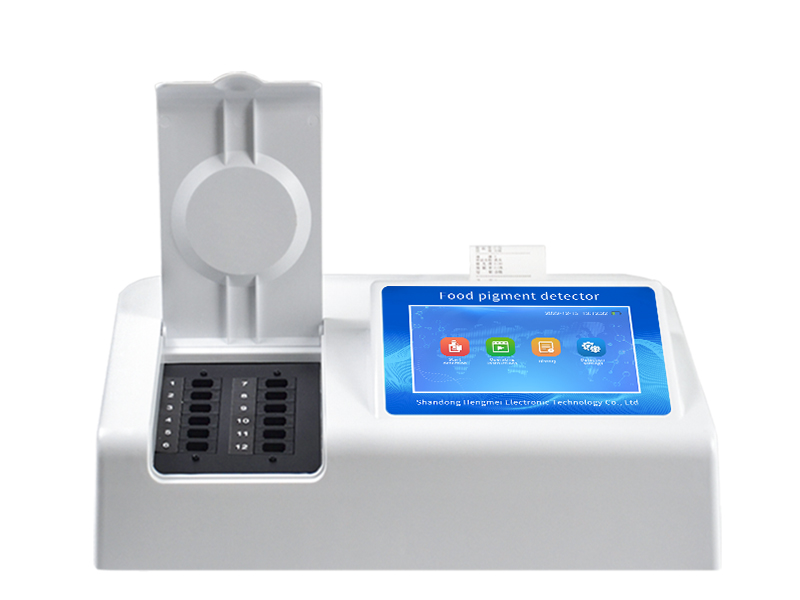

Pigment detector

Product introduction:

The pigment detector can quickly and quantitatively detect the content of artificial synthetic pigments such as lemon yellow, sunset yellow, carmine, amaranth, allura red and brilliant blue in food.

At present, the synthetic pigments allowed for use in my country are amaranth, carmine, lemon yellow, sunset yellow and indigo. They are used for fruit water, fruit powder, fruit juice, soda, mixed wine, red and green silk, canned food, and pastry surface coloring. These synthetic pigments do make the surface of food look particularly attractive, but they are prohibited from being used in the following foods: meat and its processed products (including processed offal products), fish and its processed products, fruits and their products (including juice, preserved fruit, jam, jelly and brewed fruit wine), condiments, infant food, biscuits, etc.

Technical parameters:

☆Precision error: ±3%

☆Linear error: ±5‰

☆Stability: ±0.001A/hr

☆Wavelength accuracy: <2.0nm

☆Transmittance repeatability: ±1%

☆Synthetic determination lower limit: 1.0mg/kg (lemon yellow, sunset yellow, carmine, amaranth, allura red) 0.2 mg/kg (brilliant blue)

☆Determination range 1.0～80.0mg/kg (lemon yellow, sunset yellow, carmine, amaranth, allura red) 0.20～20.0 mg/kg (bright blue)

☆Data storage 80,00

☆Cuvette: 10×10mm standard sample pool

☆Appearance size: 415X310X150 (mm)

☆Weight: 3.6kg

Function introduction:

1. Android smart operating system, adopts more efficient and user-friendly operation, the instrument has network cable connection, wifi network upload, 4G wireless remote transmission function, and fast data upload.

2. High degree of intelligence, the instrument has self-test function: it has power-on self-test and zero adjustment function, and has automatic detection repeatability function.

3. Equipped with a new generation of embedded thermal printer, you can choose manual printing or automatic printing, and the test report and QR code can be automatically printed after the test is completed.

4. The light source adopts imported ultra-bright light-emitting diodes, which are high-precision, stable, controllable, and can turn off unused light sources, with lower power consumption.

5. The USB2.0 interface design is adopted to facilitate the storage and movement of data, and can be directly connected to the computer at any time, and the instrument can be controlled by the computer. Realize data query, browsing, analysis, statistics, printing, etc.

6. The instrument has a supervision platform. Data can be uploaded to the local area network and the Internet, and the test results are directly transmitted to the food safety supervision platform. Carry out regional food safety supervision and big data analysis and processing, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and early warning

7. Integrated portable rapid testing equipment to meet the needs of on-site and mobile testing, can realize the detection of all test items under the same software, and can intuitively display the test results through the same window.

8. The instrument has a multi-category and multi-category sample menu library, which can flexibly select test samples, and different test channels can detect different sample items at the same time. You can also directly edit and enter sample names, test indicators, inspection units and other information on the instrument and save them in the sample database.

9. Sample processing is simple and labor-saving, and the overall operation is fast, safe and convenient.

10. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

11. The instrument has the functions of recalibration, locking, and restoring factory settings.

12. Support U disk storage. The result judgment line can be modified, the control value calibration value can be saved, and the data will not be lost when the power is off.

Main parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, the main frequency is 1.88Ghz, the operation speed is faster, and the stability is stronger.

2. Display mode: 7-inch color touch screen display, humanized Chinese operation interface, intuitive and simple reading.

3. DC 12V power supply, can be connected to the vehicle power supply, can be equipped with 6ah large-capacity rechargeable lithium battery, convenient for outdoor flow testing.

4. Four-wavelength cold light source, ≥12 detection channels, each channel is equipped with 410, 520, 590, 630nm wavelength light source, standard advanced optical path switching device, patented optical path switching function can achieve up to 64 wavelengths, and all detection items can achieve all channels at the same time.

5. Automatic adjustment and calibration of light source brightness

6. Intelligent constant current voltage regulation, automatic calibration of light intensity, long-term continuous working light source without temperature drift phenomenon.

7. Built-in new national limit standards, on-site comparison with the measured results, and continuous updating of standards.

8. Uninterrupted sampling, continuous testing

9. Automatic accumulation of sample numbers.

10. The test items can be expanded.

11. The test results are Excel tables, which can be copied by connecting to a computer.

12. The test result storage capacity is 200,000 records

13. Standard USB interface, driver-free installation.

14. Configurable large-capacity lithium battery, firmware upgradeable
