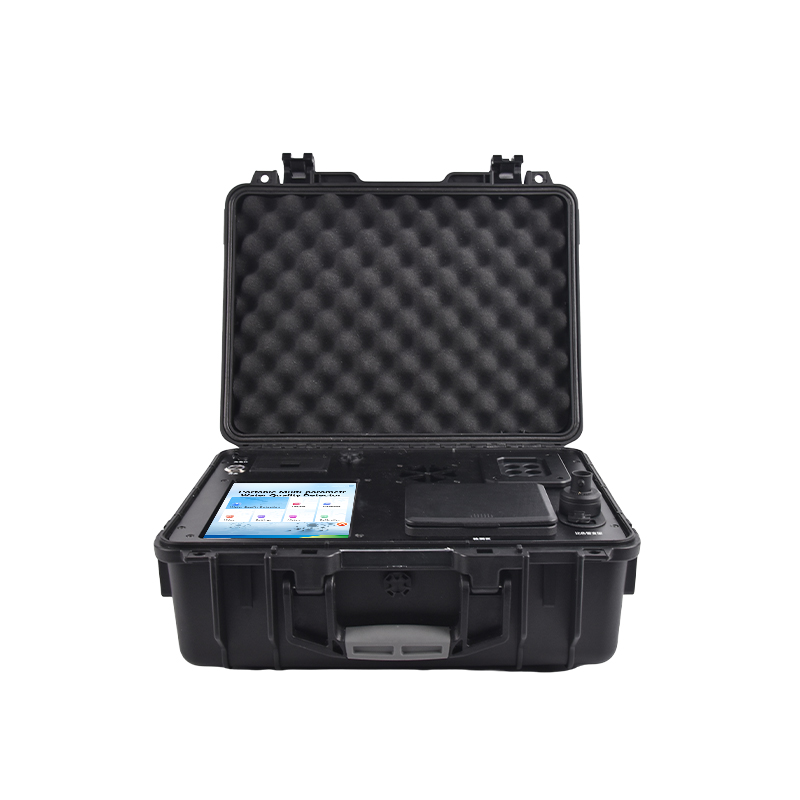

HM-BL100 Portable Multi-parameter Water Quality Analyzer

Product Introduction

The HM-BL100 is the flagship portable multi-parameter water quality analyzer from HM Instruments, designed for laboratories and field teams requiring comprehensive water quality assessment in one instrument. Utilizing the spectrophotometric method, it is equipped with a seven-wavelength LED system (420, 470, 520, 560, 620, 700, and 860 nm) and achieves 0.001 Abs absorbance resolution for precise low-concentration detection. The HM-BL100 covers the entire HM-BL product range — from single-parameter COD or ammonia nitrogen measurement to full-spectrum analysis including permanganate index and eight heavy metals (Cr(VI), Mn, Hg, As, Ni, Zn, Fe, Cu). The integrated digestion module enables complete on-site sample preparation, while 4G and Wi-Fi connectivity with GPS positioning and cloud platform integration deliver real-time data reporting. At 8.3 kg with AC 220V and lithium battery dual power supply, the HM-BL100 bridges laboratory-grade precision and field portability. The built-in thermal printer provides immediate hard-copy results, making it the definitive all-in-one solution for environmental monitoring agencies, industrial compliance laboratories, and third-party testing organizations.

Applications

• Environmental monitoring stations — comprehensive surface water and groundwater quality assessment

• Industrial discharge permit compliance — simultaneous COD, nutrient, and heavy metal reporting

• Municipal wastewater treatment — process control across organic, nutrient, and toxic parameter groups

• Emergency water pollution incident response — rapid on-site multi-parameter screening

• Third-party testing laboratories — portable backup for fixed laboratory instruments

• Drinking water source protection — heavy metal and conventional parameter surveillance

• Mining and metallurgical industry effluent — priority pollutant metal monitoring

• Agricultural non-point source pollution investigation — nutrient and organic load tracking

Functional Performance

1. Seven-wavelength LED spectrophotometric system (420/470/520/560/620/700/860 nm) covering all HM-BL series measurement parameters.

2. Full parameter coverage: COD, NH3-N, TP, TN, permanganate index, and eight heavy metals (Cr(VI), Mn, Hg, As, Ni, Zn, Fe, Cu).

3. Integrated digestion module for complete on-site sample preparation without external equipment.

4. 4G and Wi-Fi wireless connectivity for real-time cloud platform data upload.

5. Built-in GPS positioning for geotagging every measurement record.

6. Thermal printer for immediate on-site result documentation.

7. 0.001 Abs absorbance resolution for precise low-concentration detection across all parameters.

8. AC 220V and lithium battery dual power supply for both laboratory and field deployment.

9. Cloud platform integration enabling remote data access, compliance report generation, and alert management.

10. Compact 430 × 350 × 190 mm enclosure at 8.3 kg — portable for field campaigns.

Main Parameters

Technical Parameters
