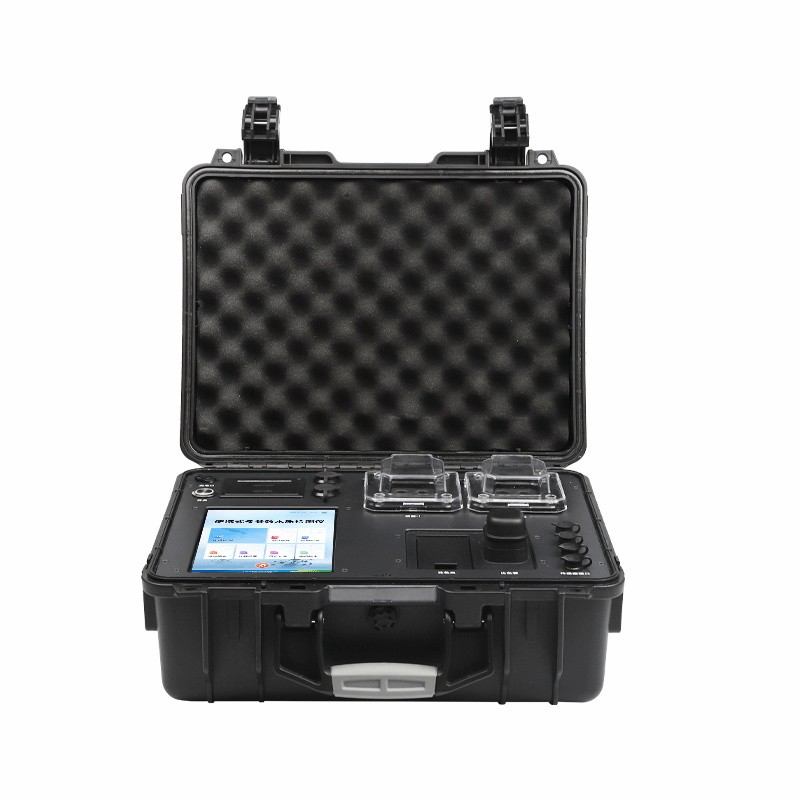

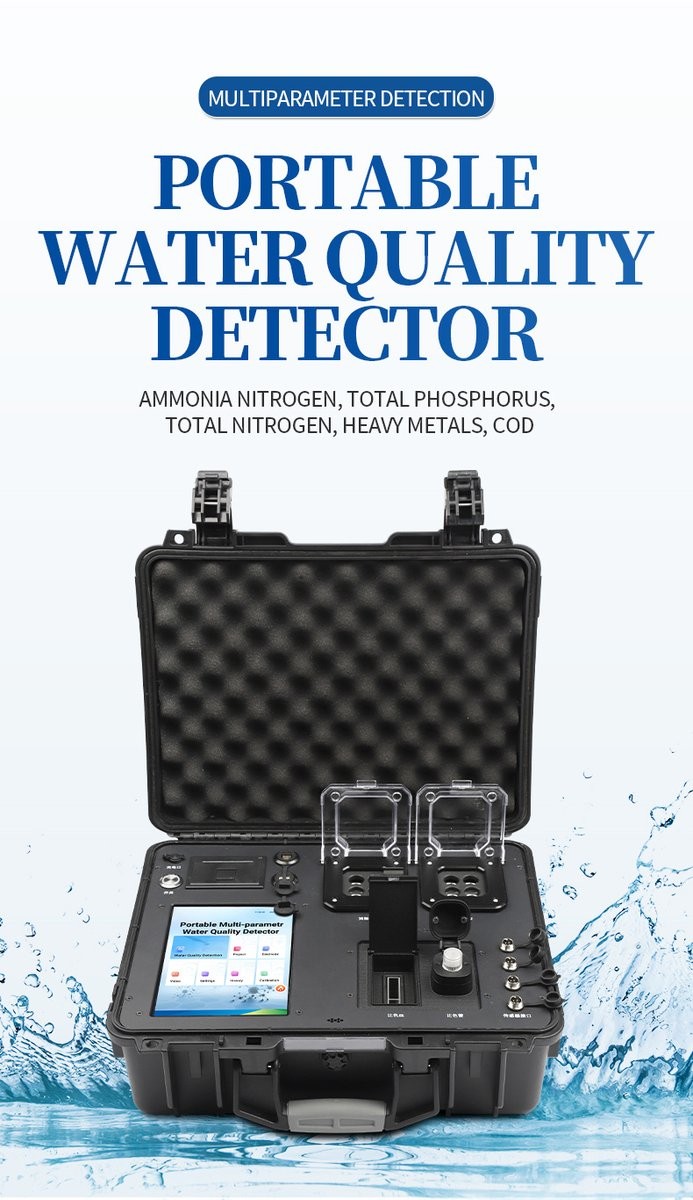

HM-BC Pro Portable COD Water Quality Analyzer with Sensor Module

Product Introduction

The HM-BC Pro is a portable COD water quality analyzer that pairs single-parameter spectrophotometric detection for Chemical Oxygen Demand with a four-port sensor module for electrode-based measurements. Designed as an entry-level platform in the HM-B series, it focuses on organic load testing while offering sensor expansion for teams that also need to record pH, dissolved oxygen, conductivity, turbidity, and other field parameters during the same site visit.

The spectrophotometric system uses 16mm pre-made test tubes and cuvettes up to 50mm, with a 360° precision rotating holder that improves reading stability. A built-in dual-zone 8-vial digester reaches 165°C within 10 minutes under PID control at ±0.5°C, and digestion runs alongside colorimetric detection and sensor measurement on the same Android 7.1.1 platform. Teams that later require COD plus ammonia nitrogen on one unit can step up to the dual-parameter model in the same series.

Four sensor interfaces support simultaneous insertion and detection of pH, ORP, dissolved oxygen (fluorescence method), residual chlorine (constant-voltage method), conductivity, salinity, turbidity, and dozens of other probes. A 48V 8Ah lithium battery delivers over six hours of operation, enough for a full field day of sampling, digestion, and reporting.

Testing Items

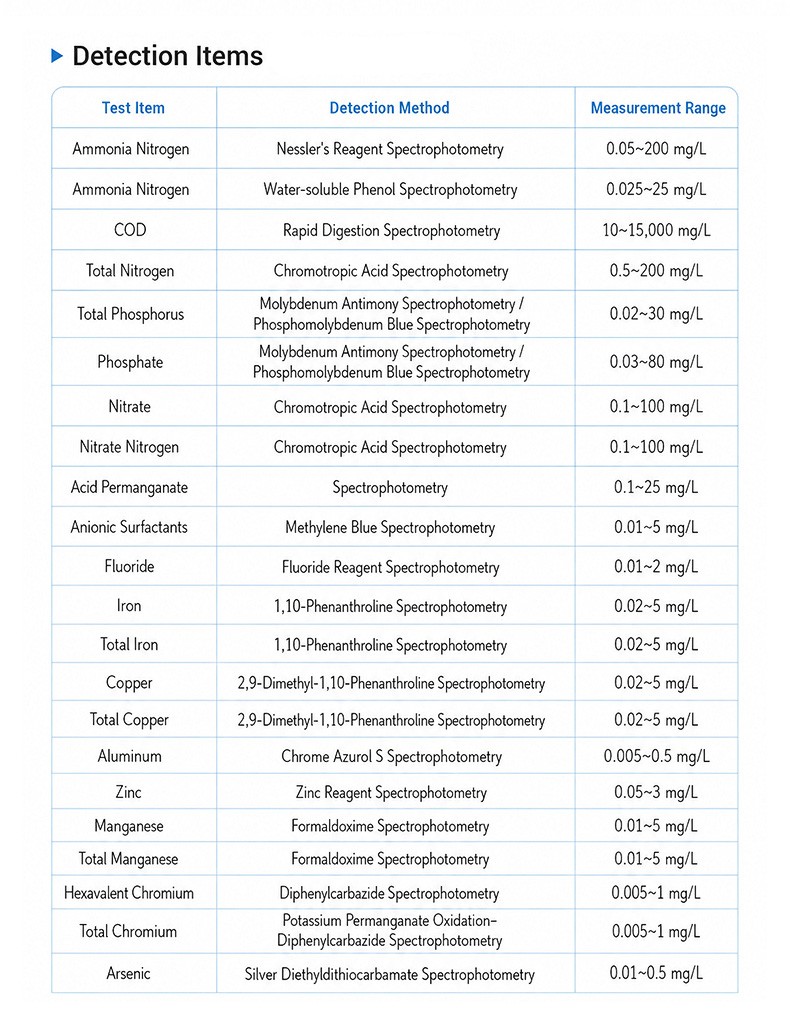

Spectrophotometric detection:

• COD (Chemical Oxygen Demand)

Sensor module options (4 ports, simultaneous measurement):

pH, ORP, dissolved oxygen (fluorescence method), residual chlorine (constant-voltage method), conductivity, salinity, ozone, turbidity, hardness, suspended solids, sludge concentration, COD, ammonia nitrogen, chlorophyll, blue-green algae, oil in water, CDOM, and dozens of additional parameters.

Features

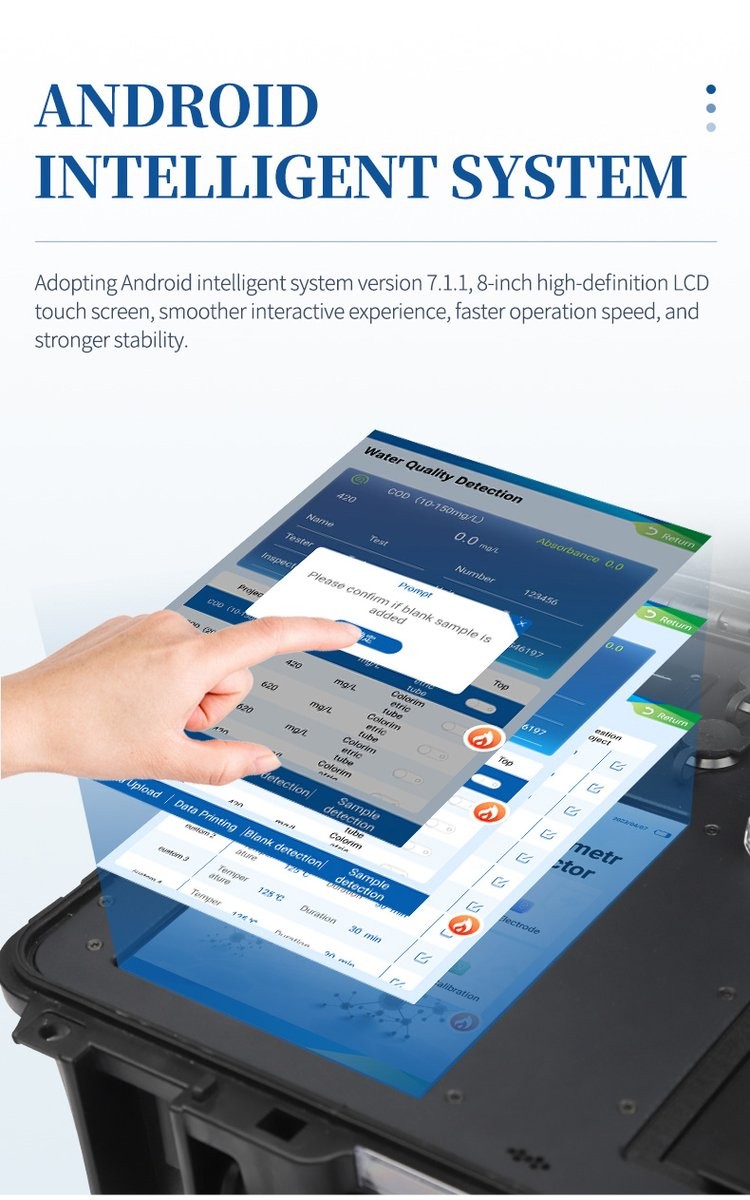

1. Android 7.1.1 smart operating system delivers faster interaction speed and stronger system stability compared to earlier versions

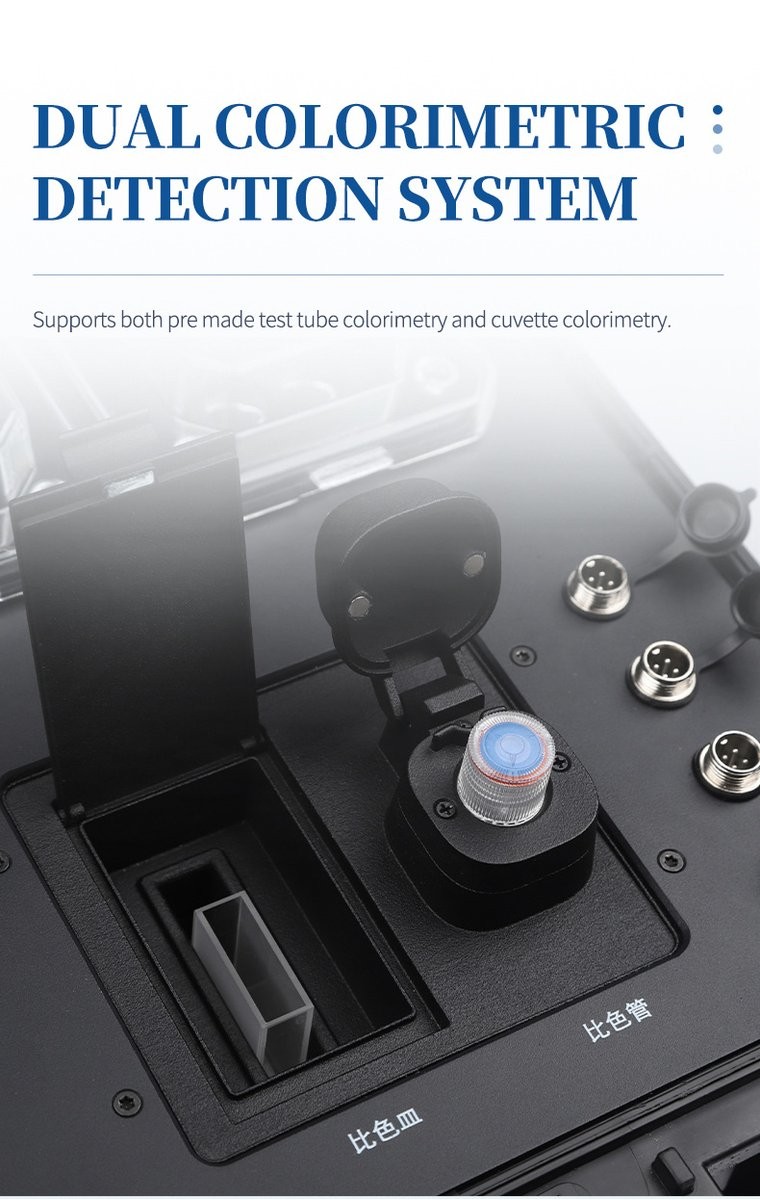

2. Dual colorimetric detection system supports both 16mm pre-made test tubes and cuvettes 50mm and below

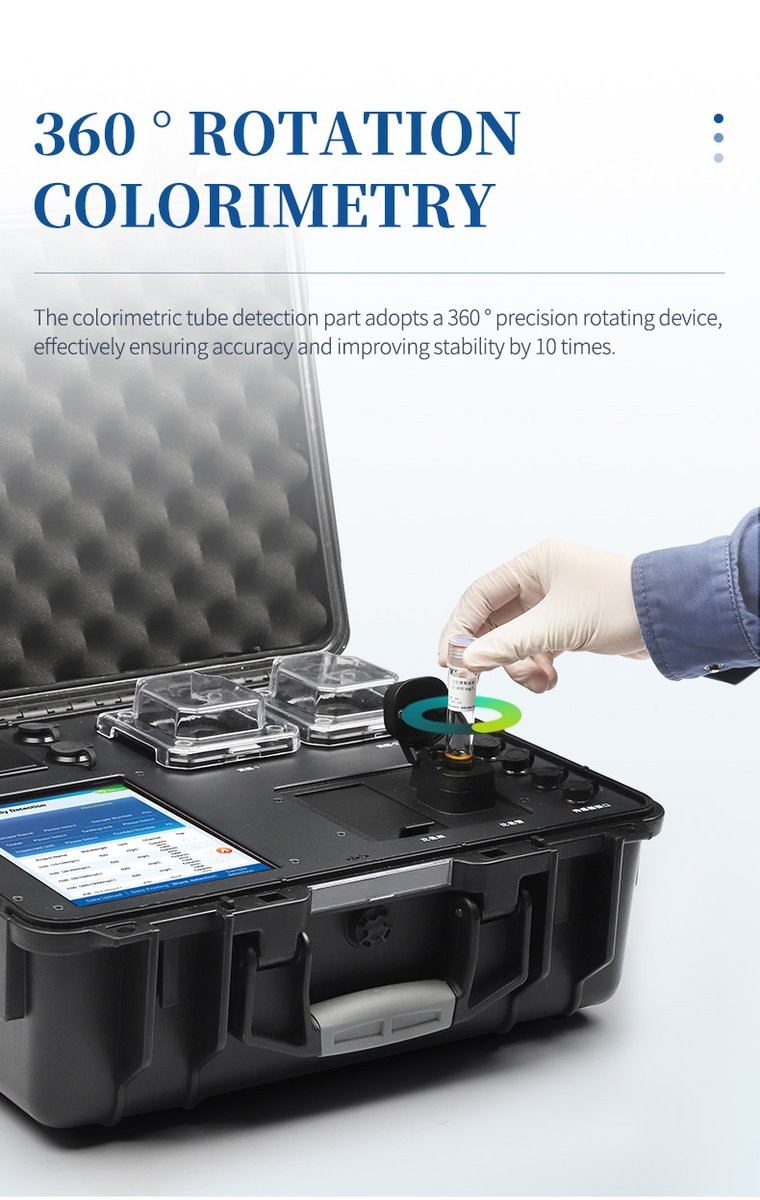

3. 360° precision rotating tube holder ensures optical alignment accuracy and boosts measurement stability tenfold

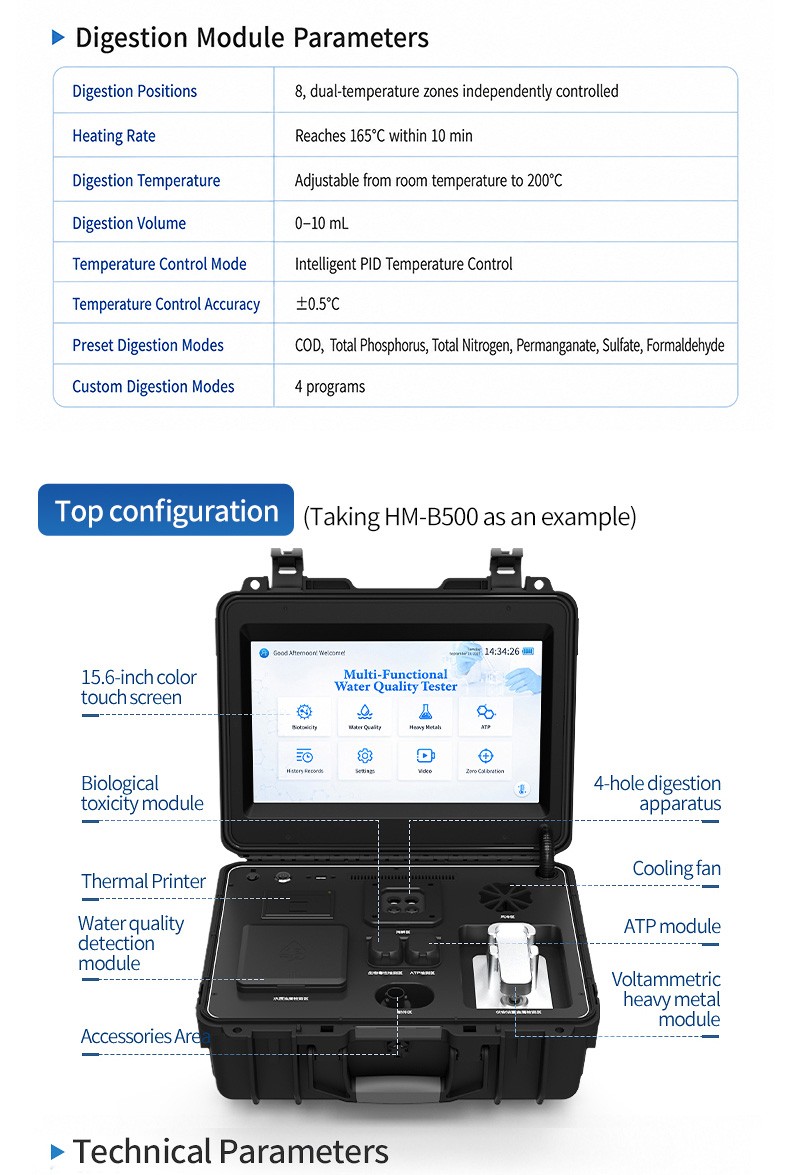

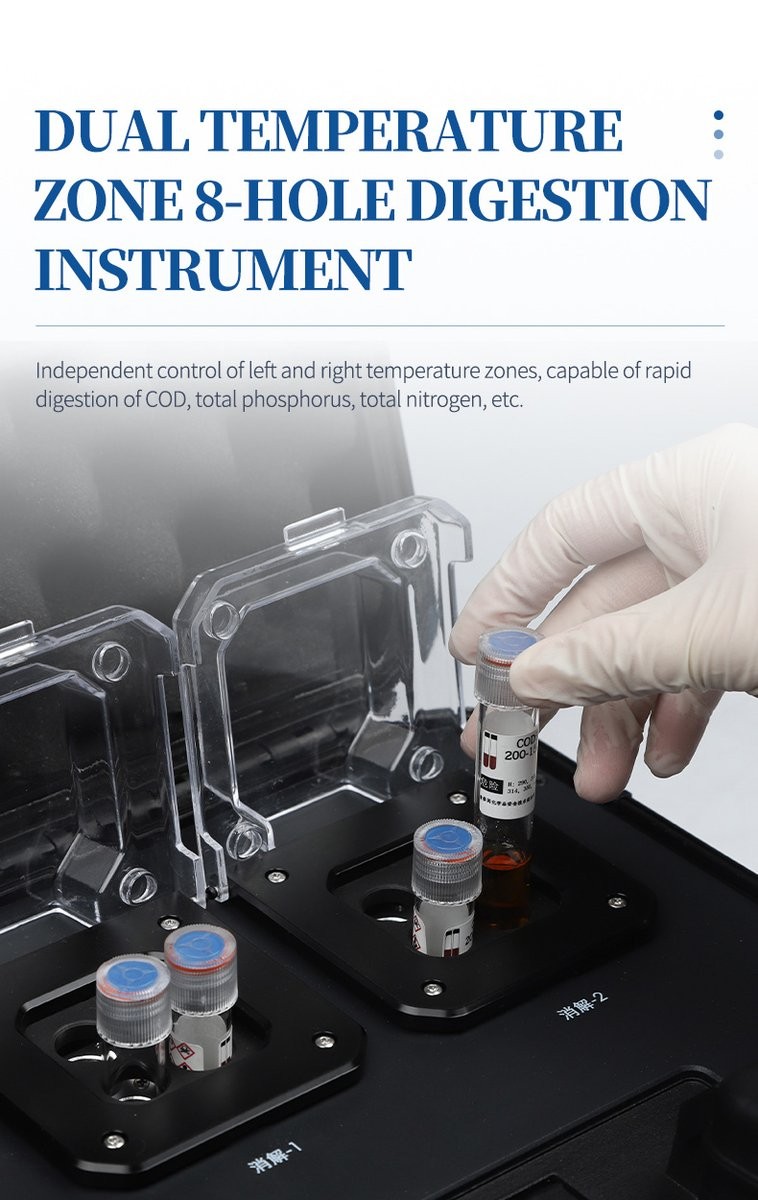

4. Built-in dual-zone 8-vial digester with independent left-right temperature control for rapid COD digestion

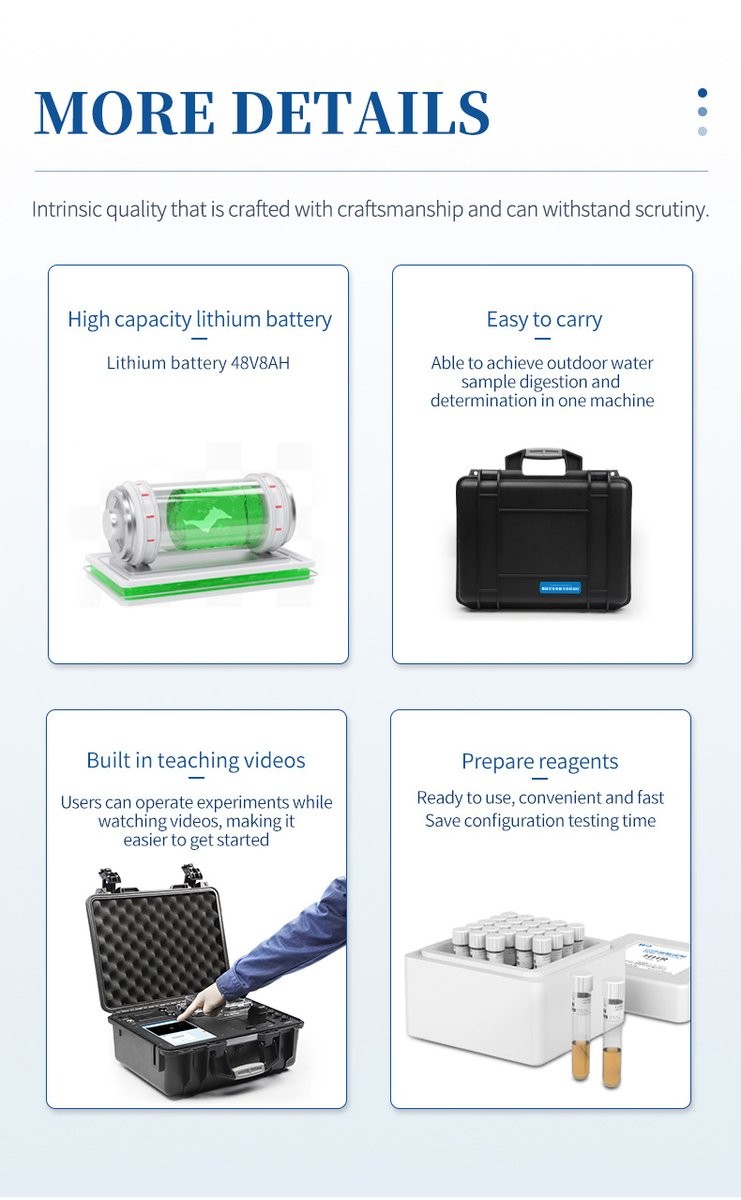

5. Portable all-in-one design with large-capacity lithium battery enables outdoor sample digestion and testing in a single unit

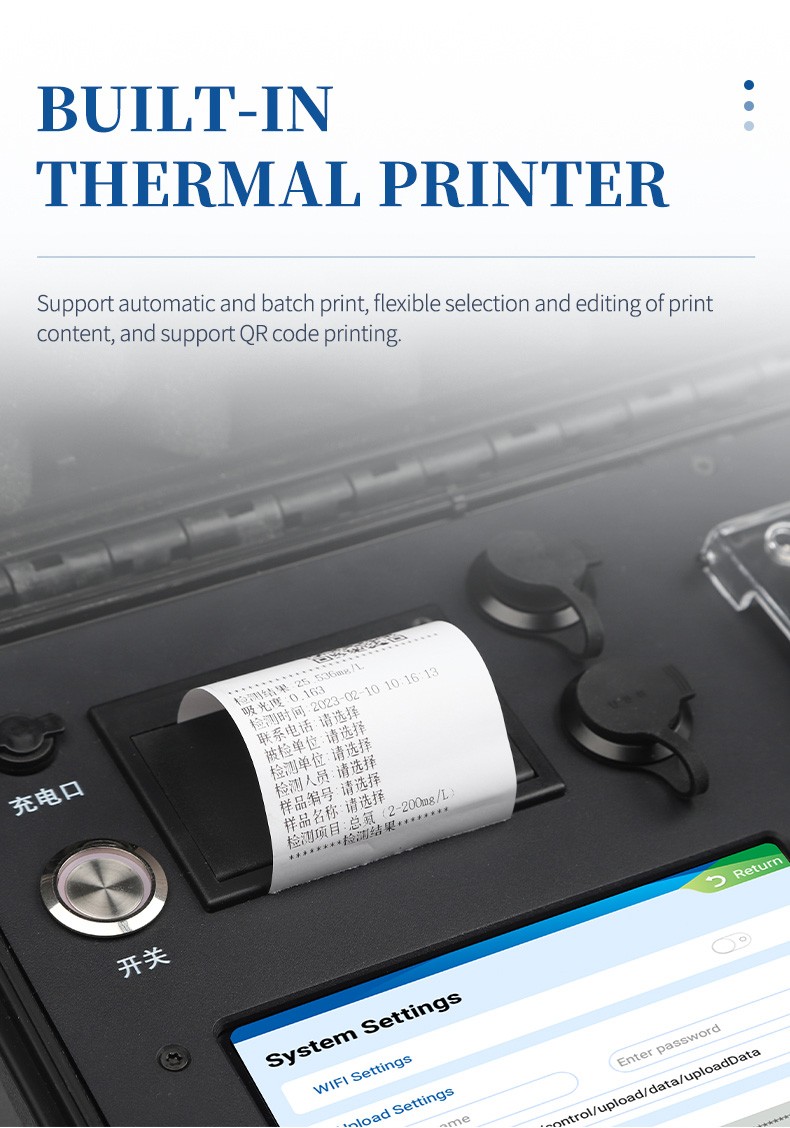

6. Micro thermal printer supports automatic and batch printing with editable content and QR code output
7. WiFi wireless, 4G remote, and RJ45 wired networking for data upload to the cloud platform
8. Data cloud platform receives test results for online storage and long-term dynamic analysis on mobile and PC

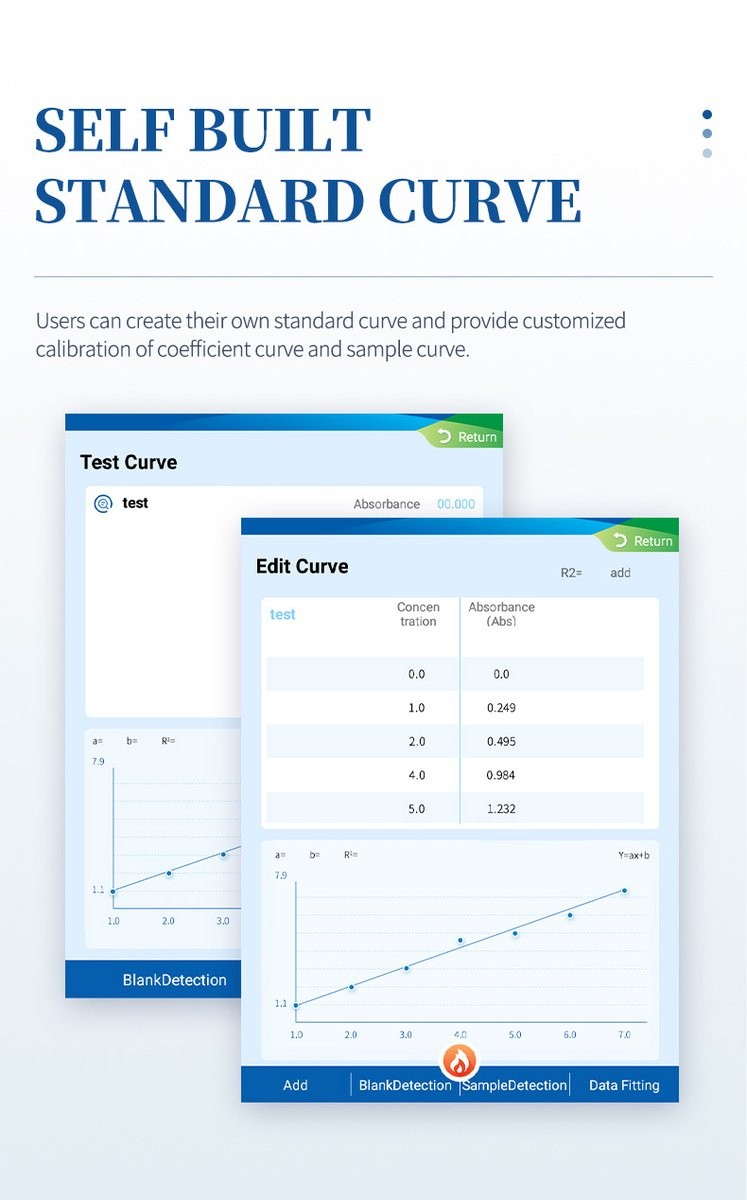

9. User-built calibration curves with custom coefficient and sample curve configuration for site-specific accuracy

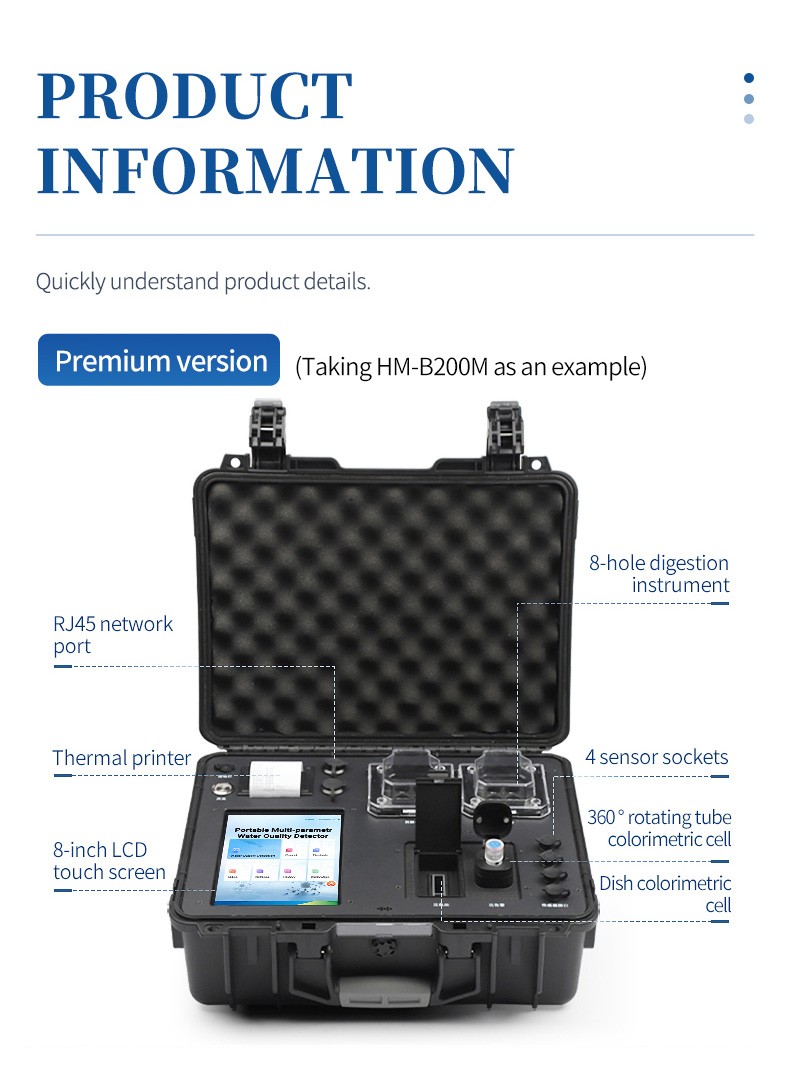

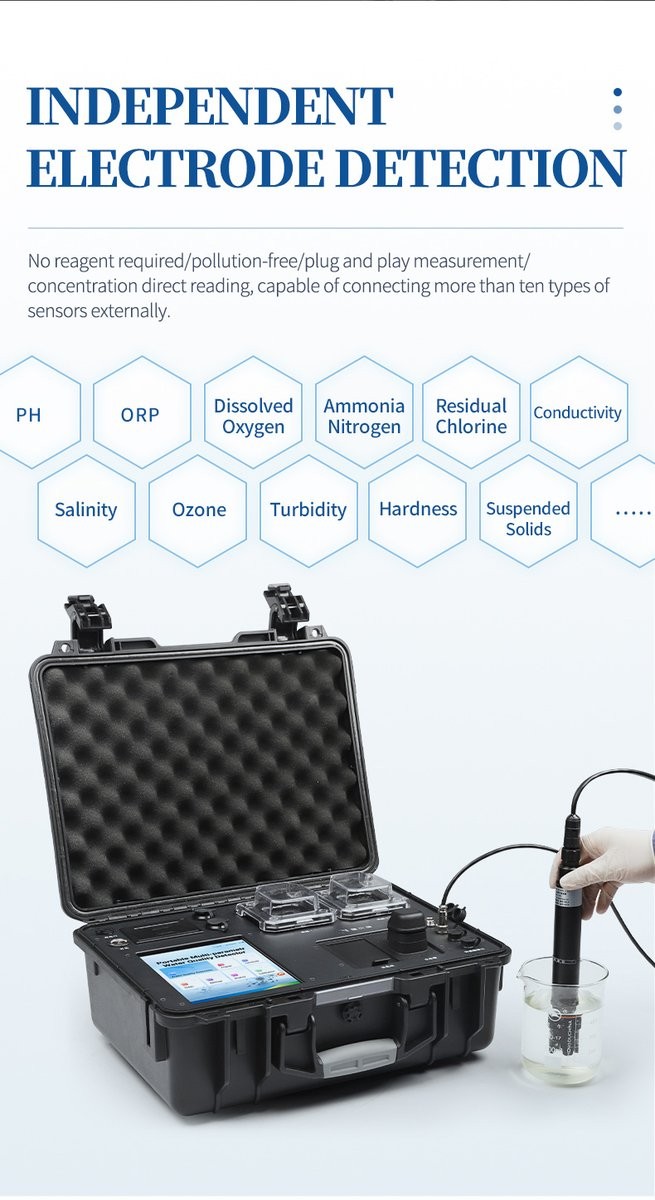

10. Built-in sensor detection module accepts 4 probes simultaneously — insert and measure with direct concentration readout
11. Sensor measurement supports scheduled or manual storage with data printing
12. Built-in tutorial demonstration videos allow users to follow along during experiments for easier adoption
13. Detection, digestion, and sensor measurement proceed simultaneously to maximize field testing efficiency
14. Customizable test items available upon user request
15. Factory pre-made reagent kits eliminate repetitive pipetting and concentrated sulfuric acid handling — just add the water sample
16. Pin-to-top function places frequently tested parameters at the top of the project list for quick access
17. GPS positioning records real-time latitude, longitude, and landmark information with each data set, uploadable to the cloud

Main Parameters

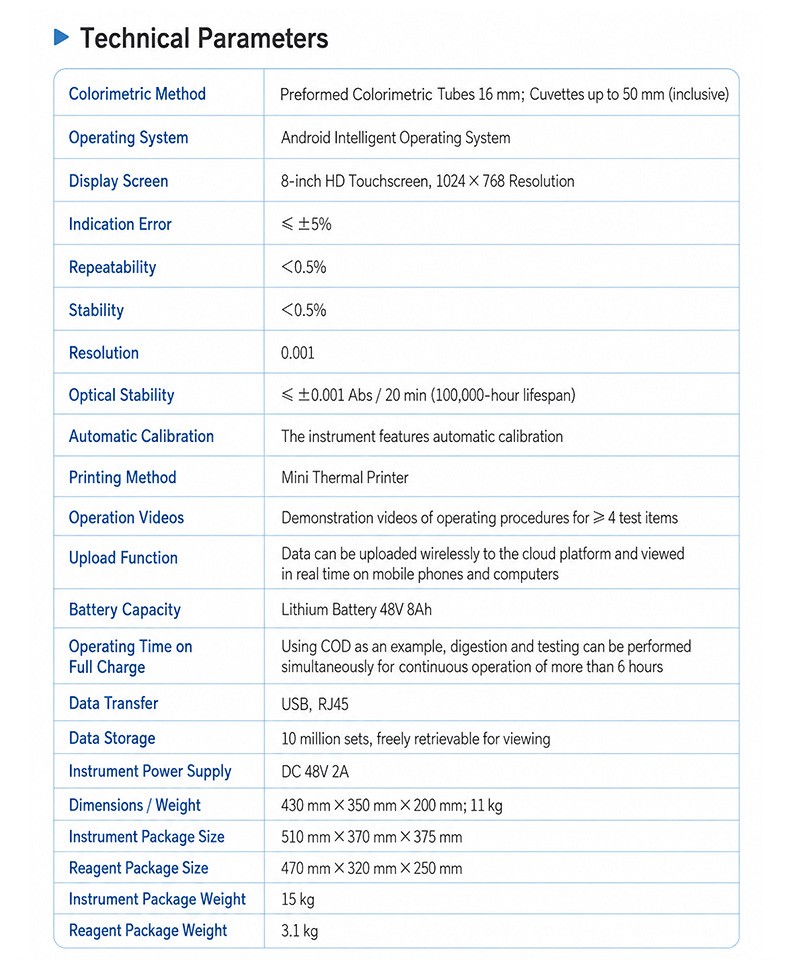

Technical Parameters
