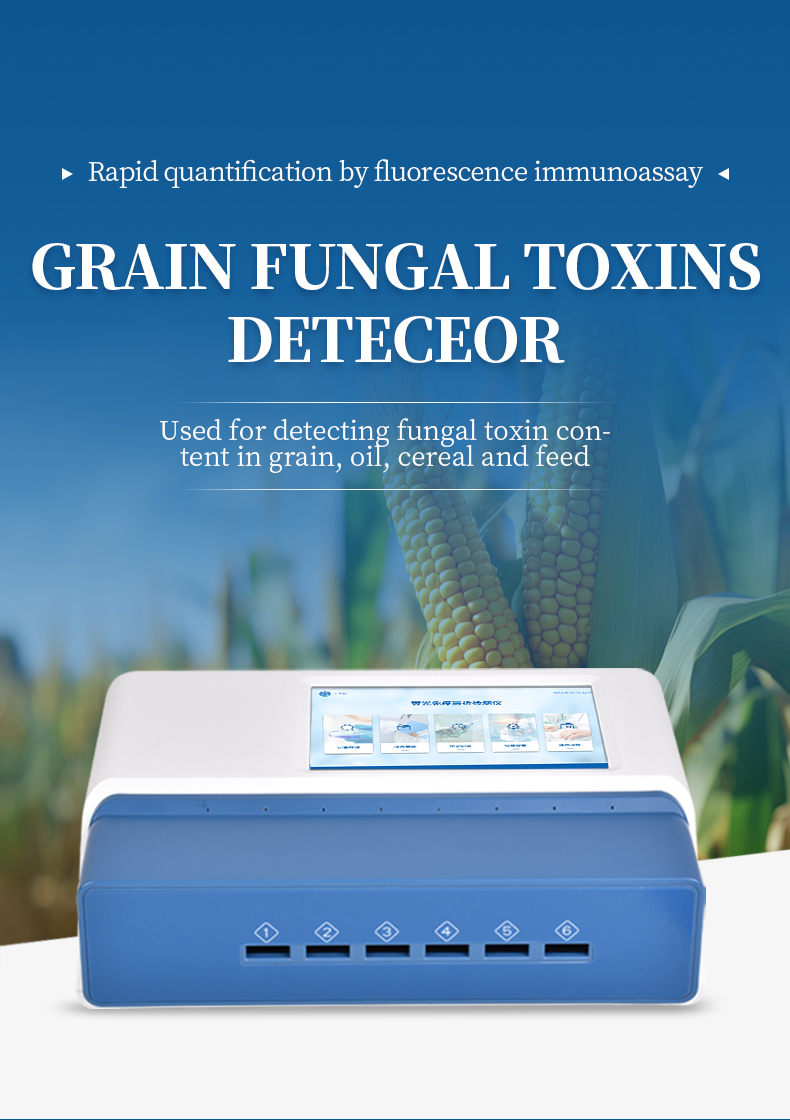

Mycotoxin Detector

Product Introduction:

The mycotoxin detector adopts the principle of fluorescence quantitative rapid detection, mainly detecting the content of fungal toxins in grain, oil, grain and feed, including aflatoxin B1, aflatoxin M1, zearalenone, vomitoxin, fumonisin, etc. The detection samples cover grains (rice, corn, wheat, barley, sorghum, etc.) and their products, feed and its raw materials, edible oils and fats, milk and its products, etc; The sample pre-treatment is simple, and the entire testing process takes 12 minutes. The product is suitable for local grain depots, grain production enterprises, feed mills, various animal husbandry enterprises, flour mills, food processing plants, third-party testing institutions, and government regulatory departments at all levels;

Product Features

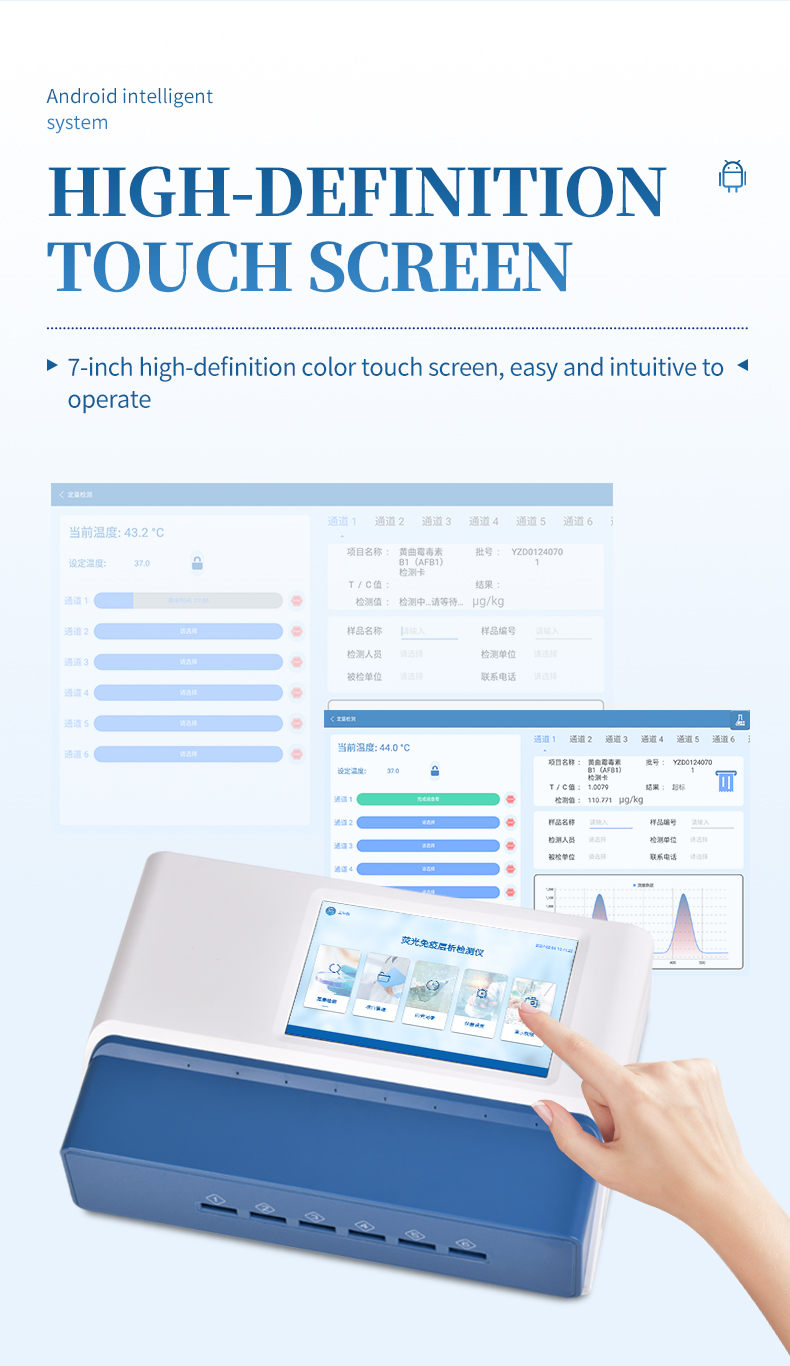

1. Intelligent operation: Android intelligent operating system, 10.1-inch high-definition color touch screen, more intuitive and smooth operation and display;

2. Extremely high stability: using imported fluorescent microspheres with uniform particles, ensuring good product stability from the source and good reproducibility within and between batches; Equipped with 8-well constant temperature incubator, one by one, automatic timing, buzzer reminder, not affected by external temperature and humidity, suitable for a wider range of venues;

3. Fast and accurate quantification: It combines the characteristics of colloidal gold rapid, enzyme-linked immunosorbent assay quantitative, and chromatographic accurate detection to achieve fast and accurate quantitative detection;

4. Built in quantitative standard curve: The instrument has a built-in standard curve, which does not require the use of standard samples and does not require the use of standard curves during testing. This not only saves costs but also avoids contact between operators and vomitoxin, protecting the safety of operators;

5. Low supporting requirements: Low requirements for supporting pre-treatment equipment and personnel, operators only need simple training or can learn through instrument operation videos;

6. Mobile and portable: The instrument is lightweight, small in size, equipped with a complete set of pre-processing equipment and a suitcase, suitable for on-site and laboratory testing.

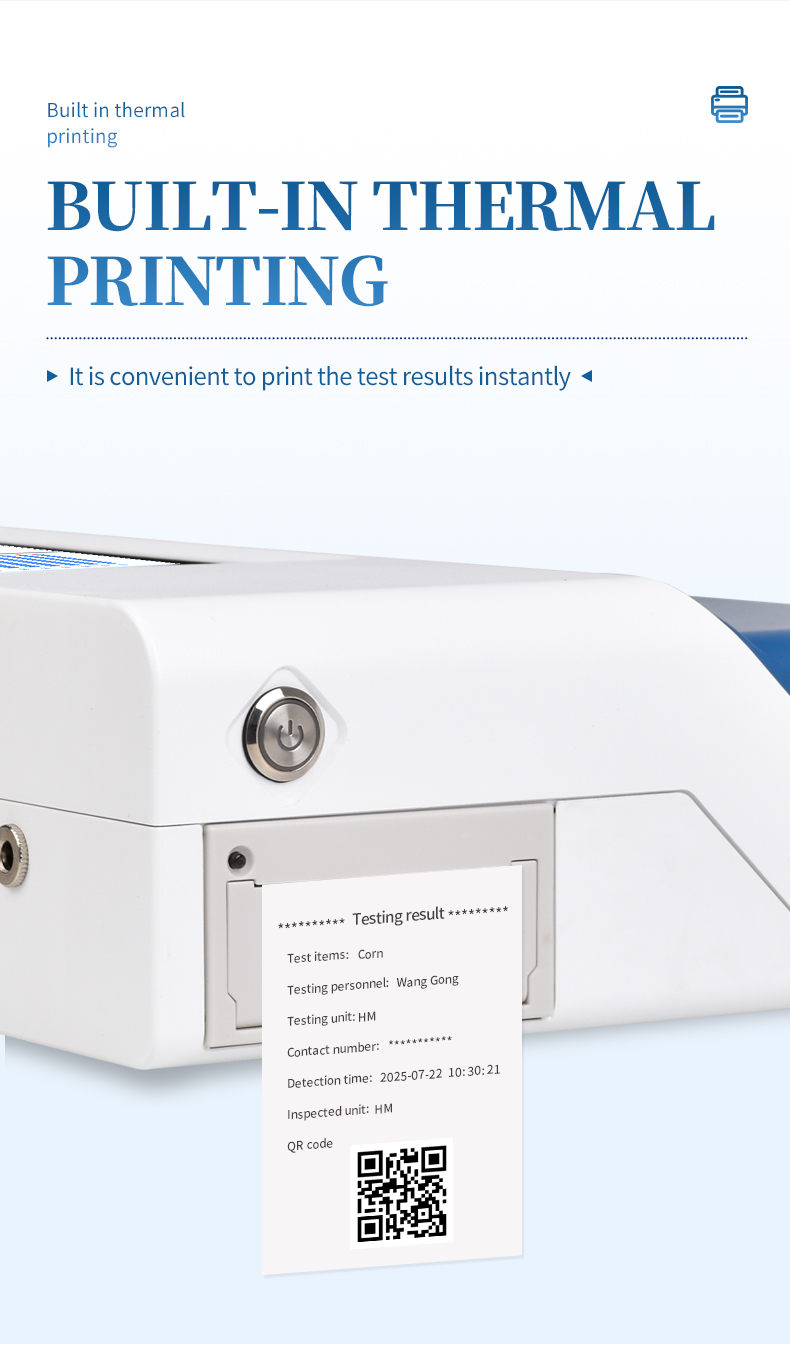

7. Built in thermal printer, which can print detection information in a timely manner, and the detection data can be uploaded to the supervision platform function.

8. Ultra large storage: 8GB of ultra large storage memory, capable of storing over 1000000 pieces of detection data, expandable to support MicroSD (TF) cards for easy data retrieval and tracing.

9. Judgment: The upper limit value of each item can be set. After the detection is completed, the instrument automatically judges whether it exceeds the standard and saves it.

10. Cost saving: Compared to chromatographic detection, the cost of consumables is extremely low, and it saves manpower and material resources, significantly reducing detection costs;

11. Card insertion judgment: The detection card is not inserted into the detection channel and cannot be inserted

12. Built in quality control function, capable of device inspection, device self check, and reagent card self check

13. Detection curve: It can verify the detection of reagent cards and prevent misjudgment

14. Project management: Support testing project expansion functions

15. Interface settings: The title and footer information can be modified to flexibly display instrument information

16. Printer: Thermal printer (thermal printing paper: 57 * 30mm)

17. Data transmission: WiFi, Bluetooth USB、 RF card reading and scanning module

18. Data processing: Data can be summarized and uploaded to the supervision platform through the communication port

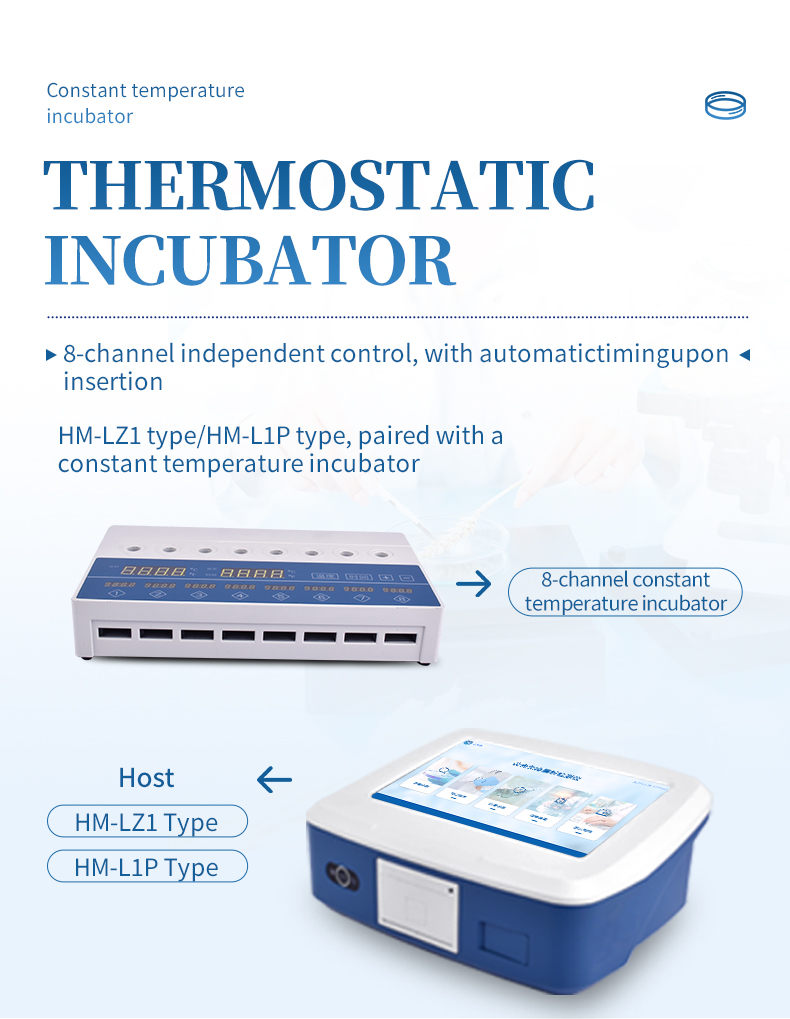

19. Thermostatic incubator: 8-channel independent control, automatic timing inserted, and capable of incubating 1.5ml sample tubes;

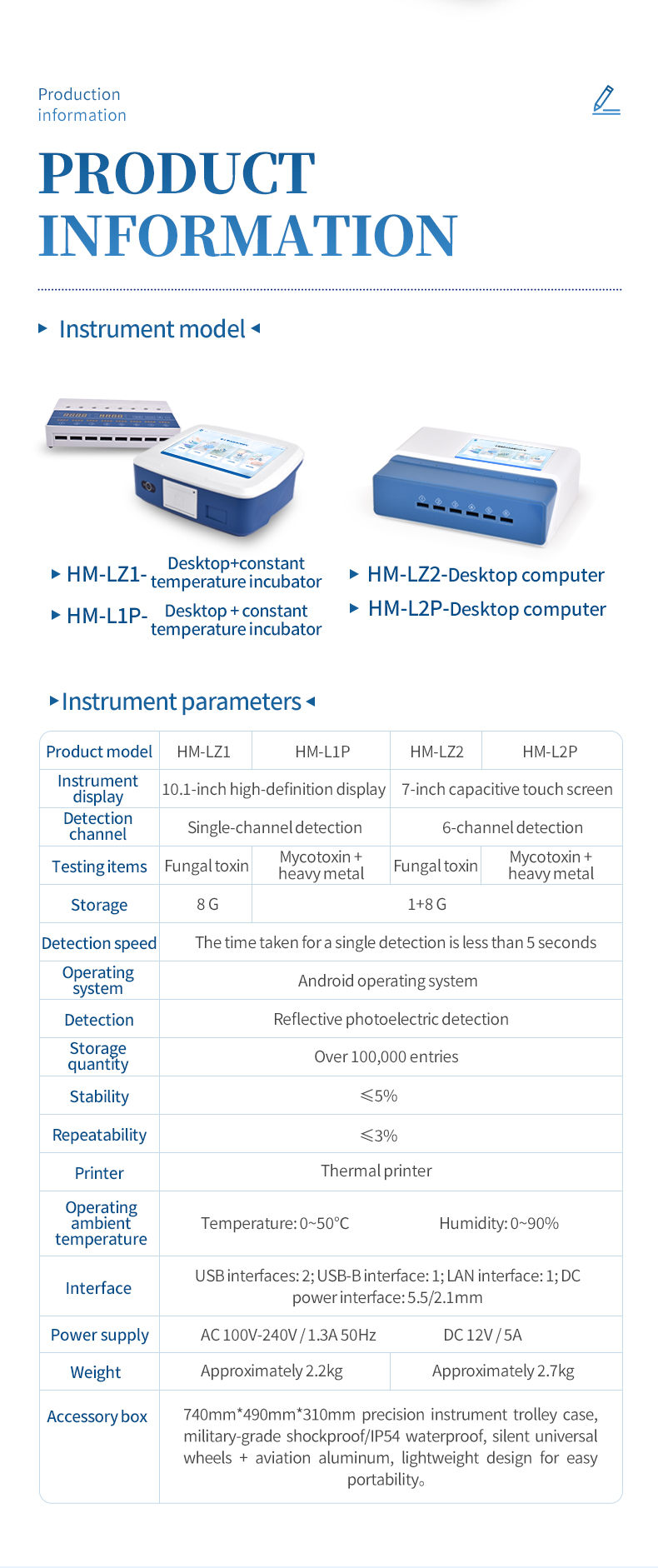

Technical parameters

1. Screen size: 10.1-inch high-definition display screen; Resolution: 1280 * 800; Memory: 1+8GB

2. Operating System: Android 7.1.1;

3. Detection method: Reflective photoelectric 4. Detection principle: Fluorescence immunoassay;

4. Compatible card case: 70mm * 20mm

5. Unlocking method: Password

6. Language: Chinese/English

7. Storage quantity: 100000+

8. Detection channel: single channel;

9. Detector/light source: photovoltaic cell, 365nm light source;

10. Detection speed: Single detection takes less than 5 seconds; Fluorescence quantification can be performed on the sample 11. Detection method: automatic scanning;

11. Accuracy: Error value ≤ 5%

12. Stability: SW (fluctuation coefficient) ≤ 5%

13. Repeatability: CV (coefficient of variation) ≤ 3%

14. Resolution: 0.001

15. Interface: USB interface: 2; USB-B interface: 1; LAN interface: 1; DC power interface: 5.5/2.1mm

16. Power supply: Input: AC100V-240V/1.3A 50Hz; Output: DC12V/5A

17. Usage environment: Temperature: 0~50 ℃; Humidity: 0~90%

18. Instrument size: 300 * 235 * 125mm;

19. Net weight of the host: 2.2kg;

20. Accessory box: 740mm * 490mm * 310mm precision instrument suitcase, military grade shock resistant/IP54 waterproof, silent universal wheel+aviation aluminum material, lightweight design for portability

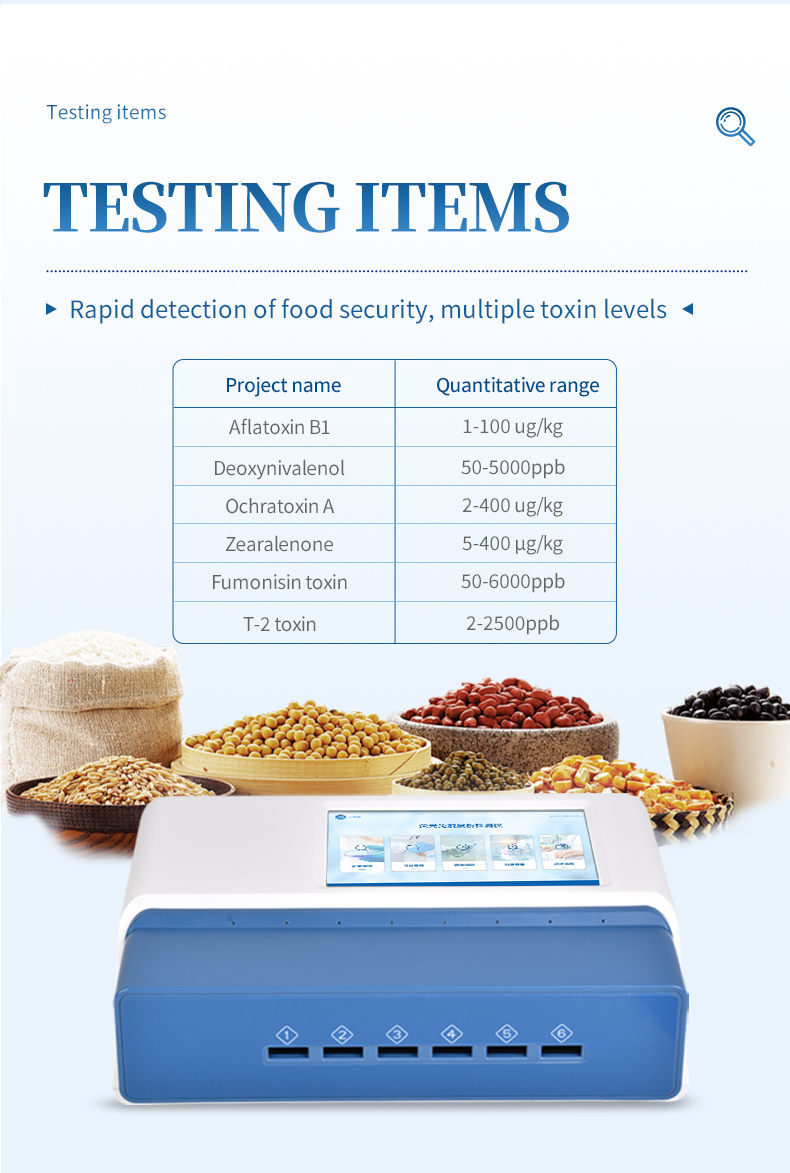

Testing items

Aflatoxin: B1 1-100 ug/kg

Vomiting toxin: 50-5000ppb

Ochratoxin: A 2-400 ug/kg

Zearalenone: 5-400 μ g/kg

Fumonisin: 50-6000ppb

T-2 toxin: 2-2500 ppb
