Product Introduction:

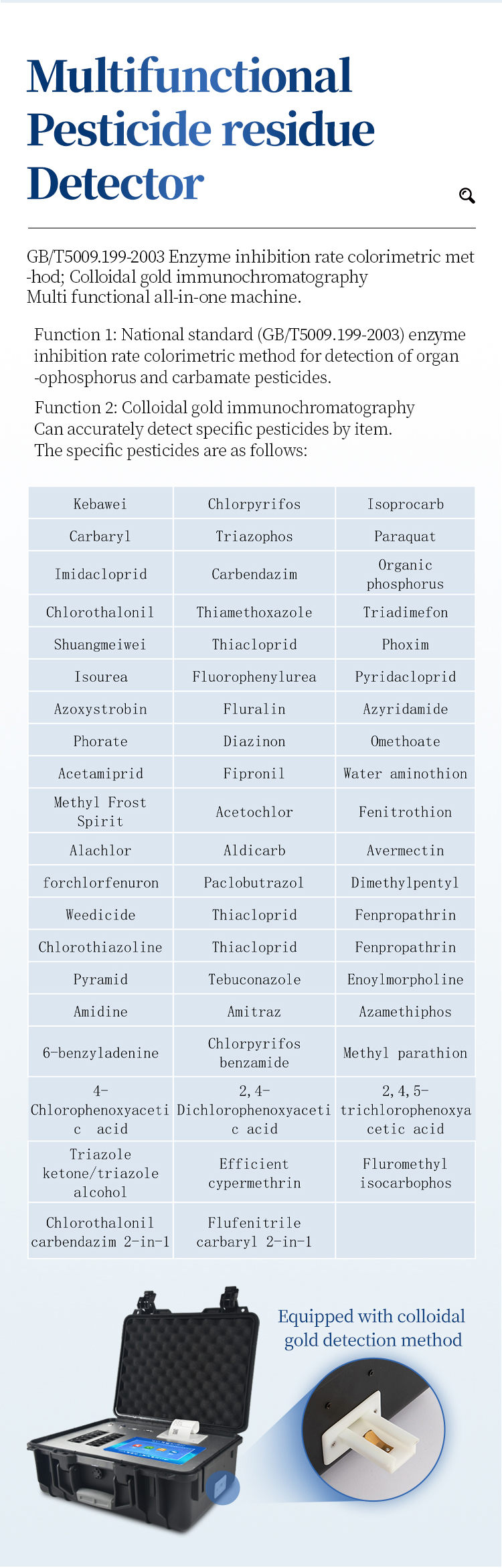

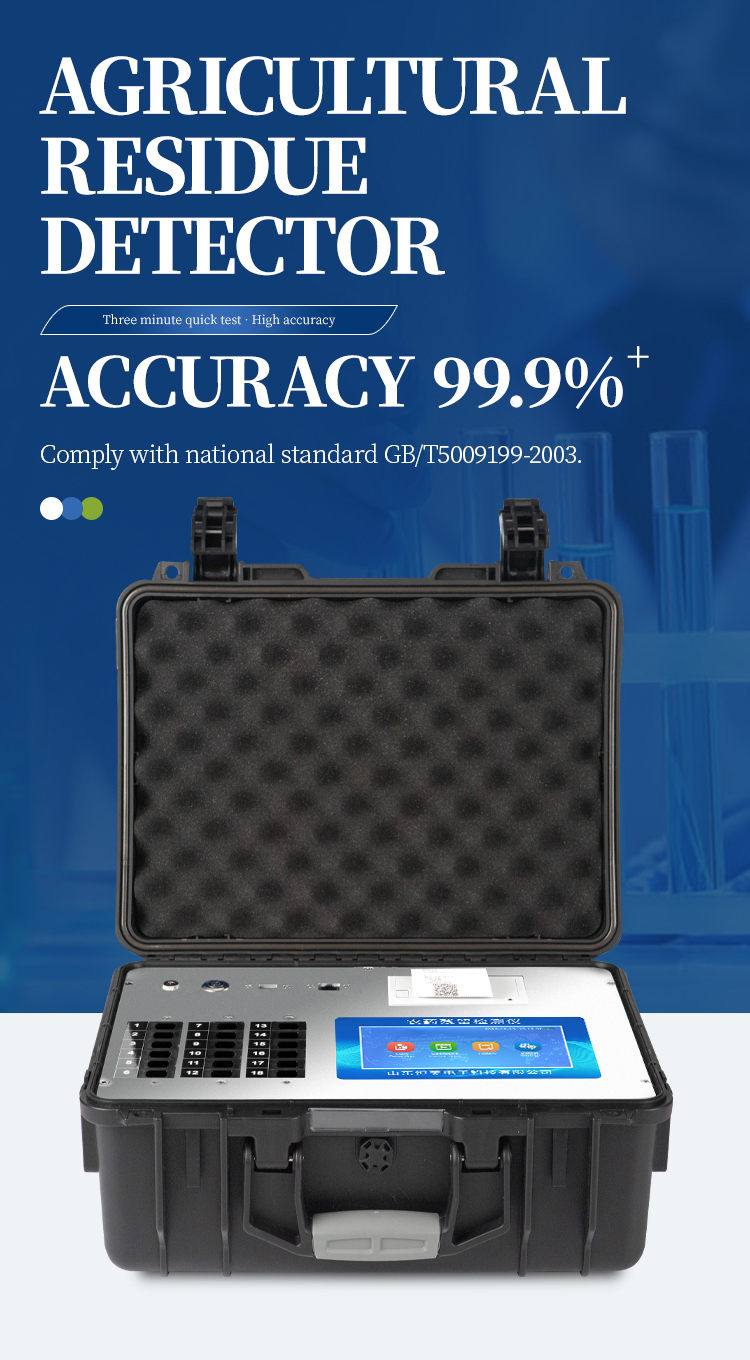

The comprehensive pesticide residue detector, in addition to following the national standard to detect organophosphorus and carbamate pesticides, can also accurately detect specific pesticides by item, including avermectin, acetamiprid, clothianidin, thiamethoxam, chlorpyrifos, flubendiamide, oxydemeton, carbofuran, phorate and many other insecticide compounds.

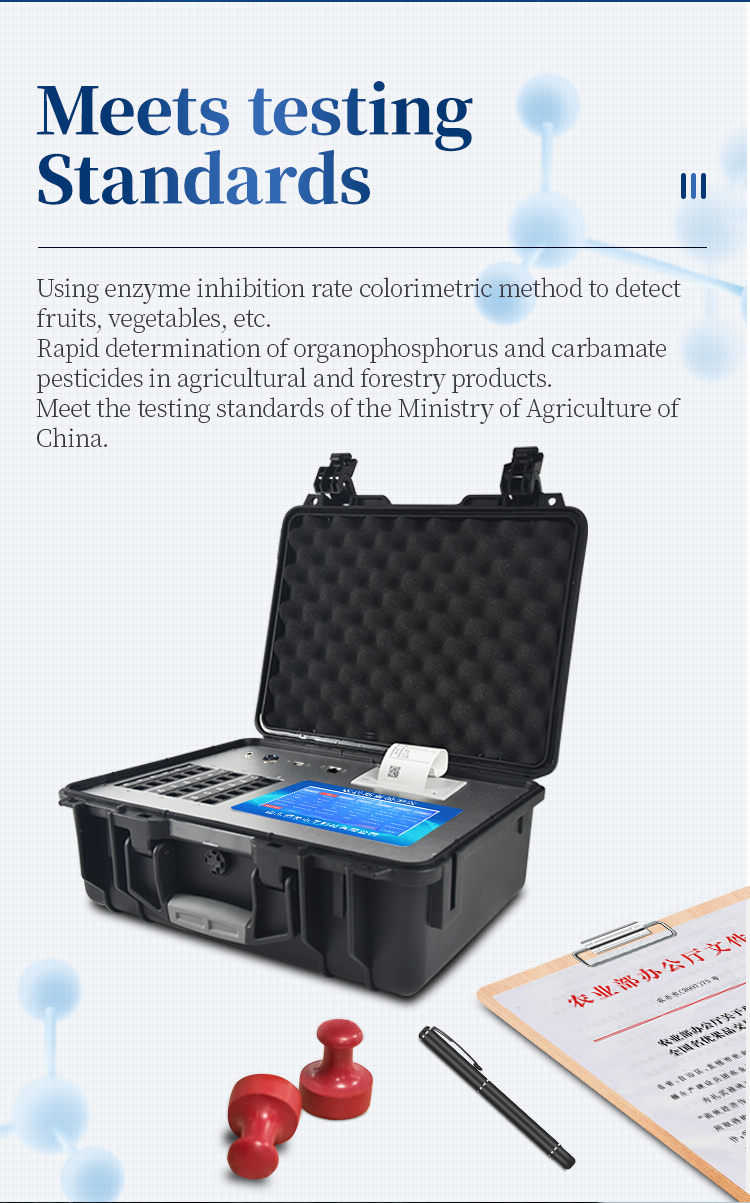

Detection method: The detection of organophosphorus and carbamate pesticides adopts the enzyme inhibition rate colorimetric method according to the national standard method (GB/T5009.199-2003). Both acetylcholinesterase and butyrylcholinesterase reagents can be used, which meets the requirements of national standards and Ministry of Agriculture standards; the sub-item detection is based on colloidal gold immunochromatography to quickly and accurately detect a large number of each pesticide.
It is widely used for rapid detection of organophosphorus and carbamate pesticide residues in vegetables, fruits, tea, grain, agricultural and sideline products and other foods; in addition, it can also be used for on-site detection of fruit and vegetable tea production bases and agricultural trade wholesale markets, restaurants, schools, canteens, and safety rapid testing before processing of fruits and vegetables at home.
Functional features:
1. The chassis adopts industrial-grade ABS engineering plastic box, which is easy to carry, stable and durable, and convenient for mobile testing.
2. Android smart operating system, using a more efficient UI interactive interface, with wifi network upload, 4G network transmission, GPRS wireless remote transmission, network cable connection functions, fast batch upload of data.
3. Integrated host, including multi-channel photoelectric detection module, colloidal gold immunochromatography detection module.

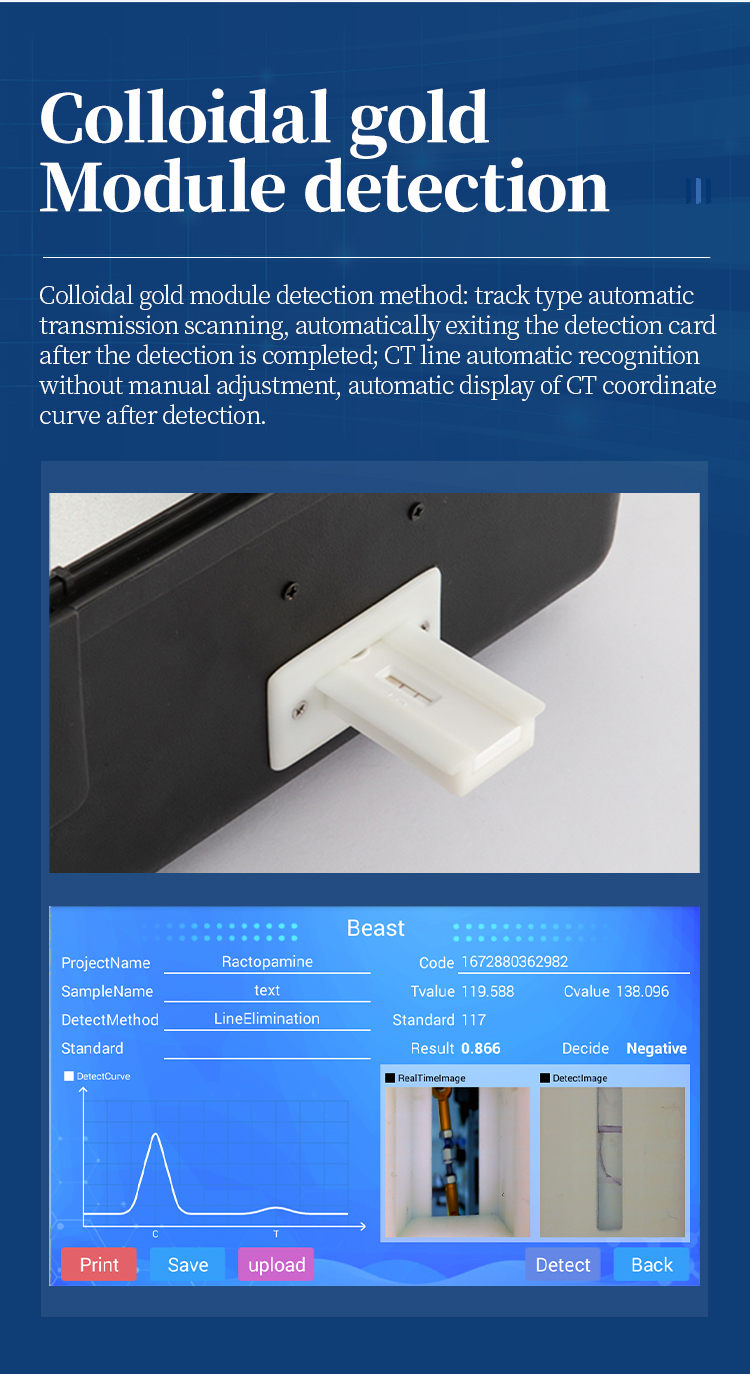

4. Colloidal gold module detection method: orbital automatic transmission scanning, automatically exit the detection card after the detection is completed.
5. CT line automatic identification, no manual adjustment, automatic display of CT coordinate curve after detection.
6. The instrument has self-test function: it has power-on self-test and zero adjustment functions, and has automatic detection repeatability function.

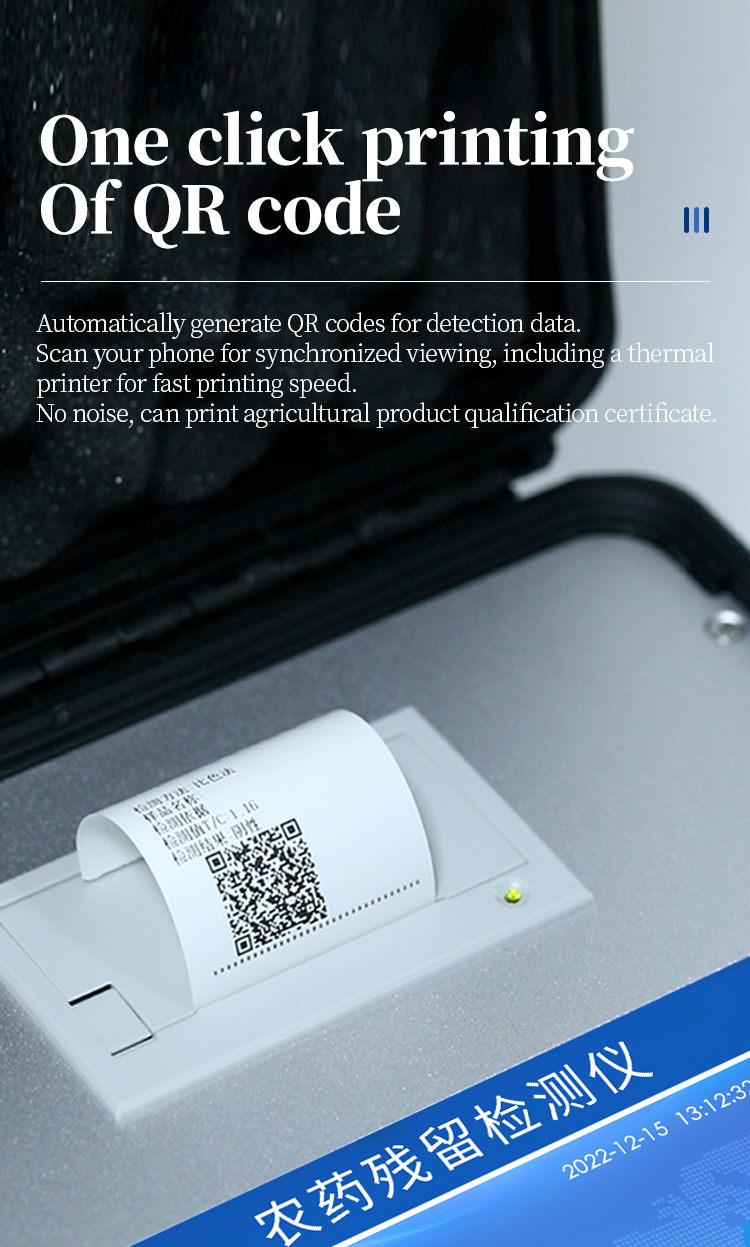

7. A new generation of high-speed thermal printer, which can automatically print or batch print test reports and QR codes after the test is completed.

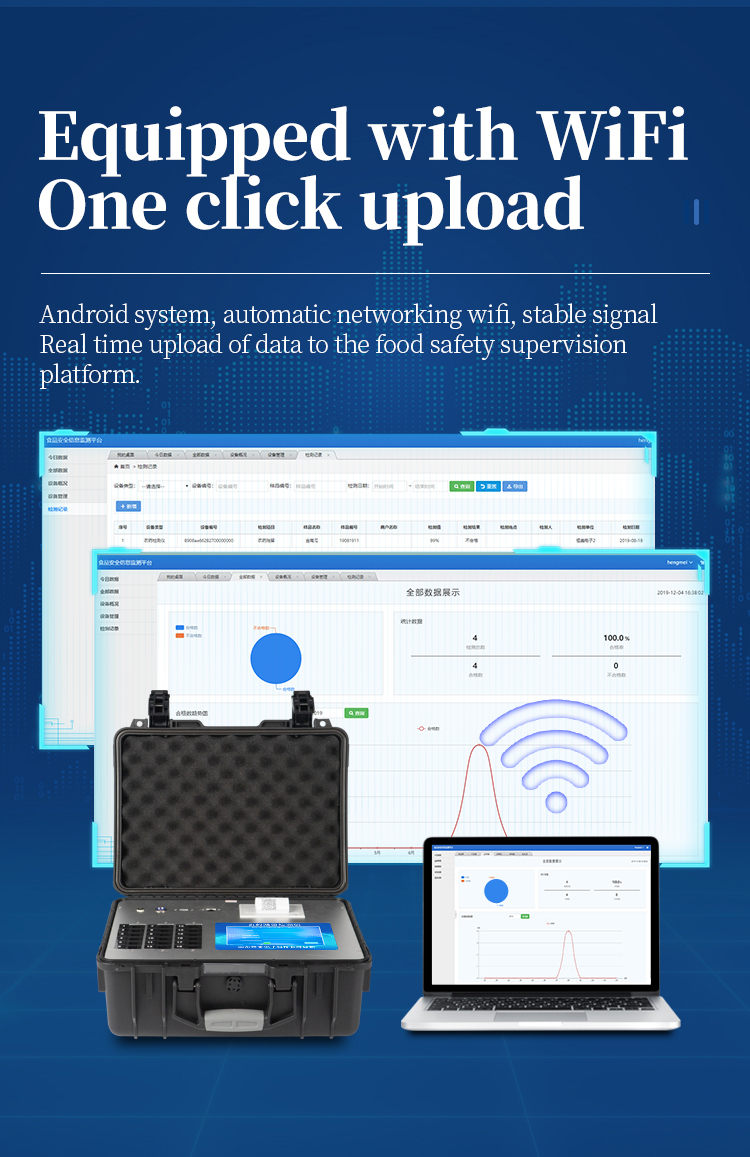

8. The instrument is equipped with a supervision platform, and data can be uploaded to the local area network and the Internet, and the test results are directly transmitted to the food safety supervision platform. Carry out regional food safety supervision and big data analysis and processing and data statistics, detect the long-term and short-term dynamics of regional agricultural product safety, and achieve food safety problem estimation and early warning
9. Built-in powerful database, with multi-category and multi-category sample menu function, flexible selection of test samples, different test channels can detect different sample items at the same time. You can also directly edit and enter sample name, test index, inspection unit and other information on the instrument and save it in the sample database.
10. The product has built-in operation demonstration video, which is a laboratory guidance expert around you.
11. Sample processing is simple and labor-saving, and the overall operation is fast, safe and convenient.
13. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.
14. The result judgment line can be modified, the reference value calibration value can be saved, and the power is off without losing data.
15. Compatible with all colloidal gold cards on the market, and the use of consumables is not restricted.
16. The instrument has the functions of recalibration, locking, and restoring factory settings.

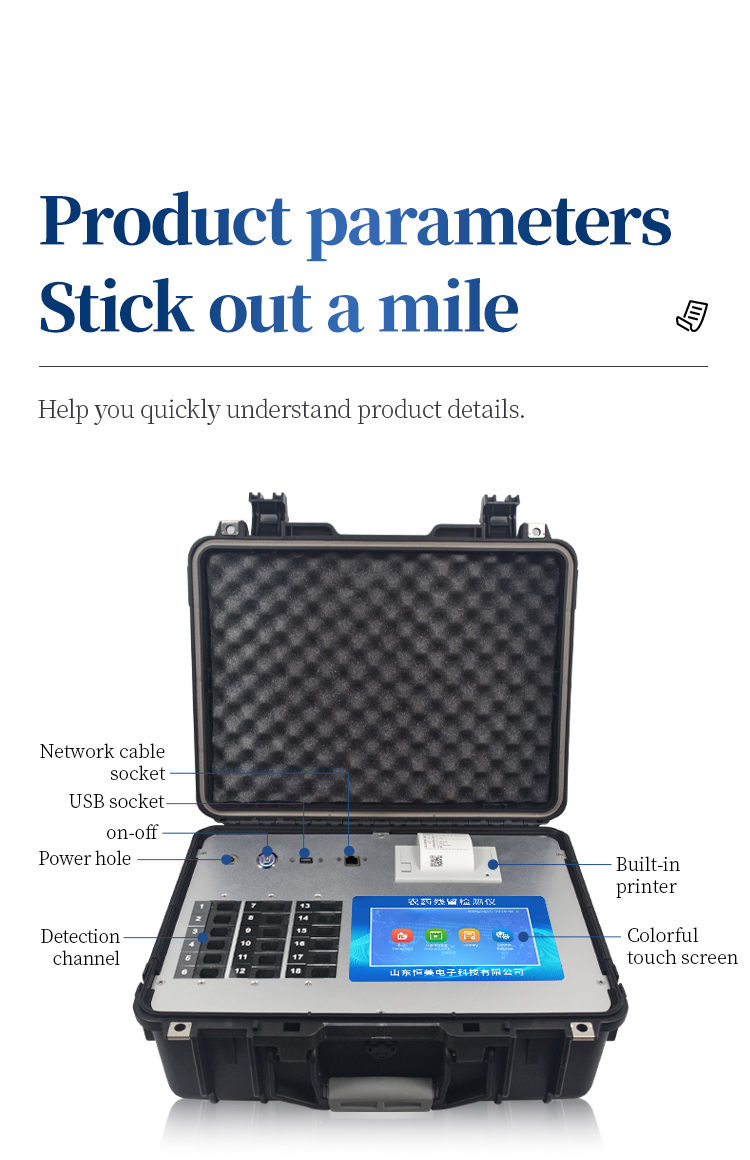

Main parameters:
1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, main frequency 1.88Ghz, faster operation speed and stronger stability.

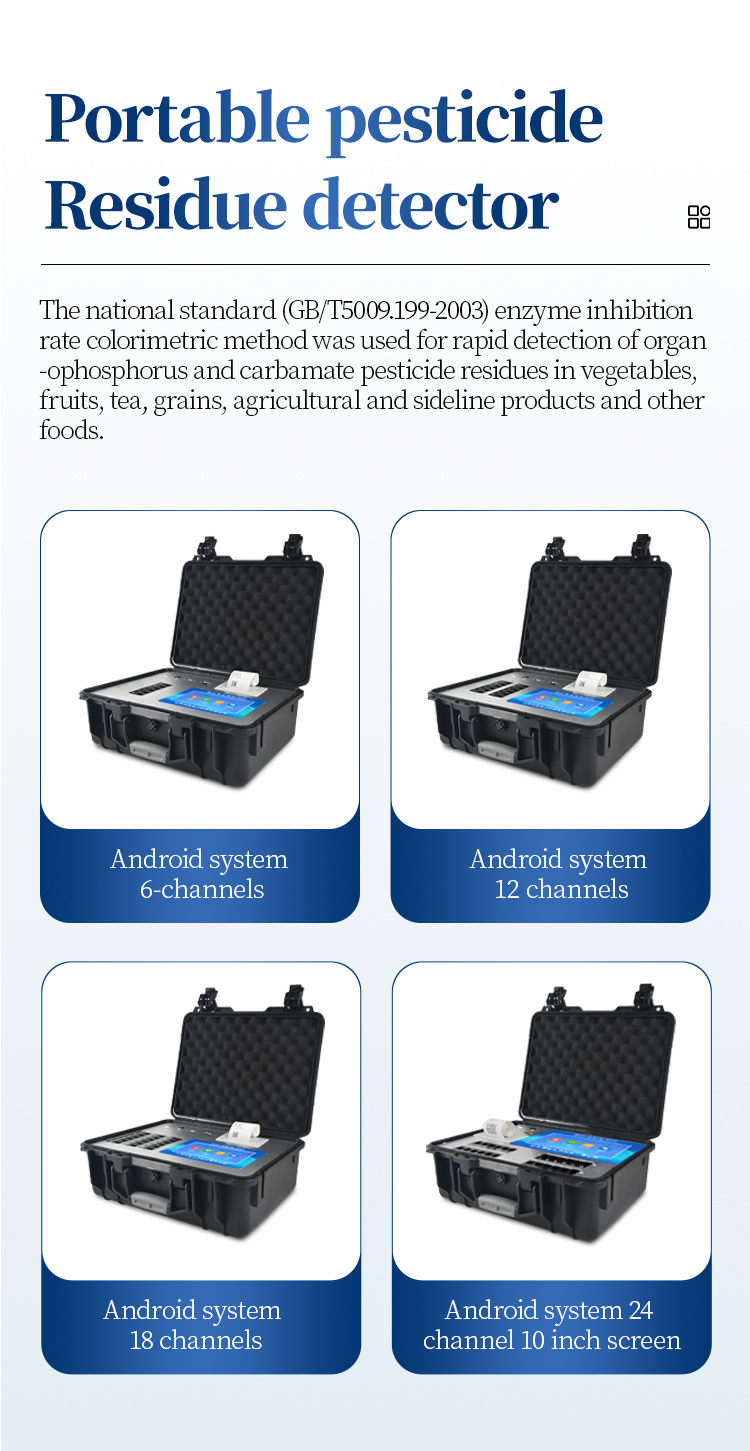

2. 12 detection channels, batch fast multi-sample detection,

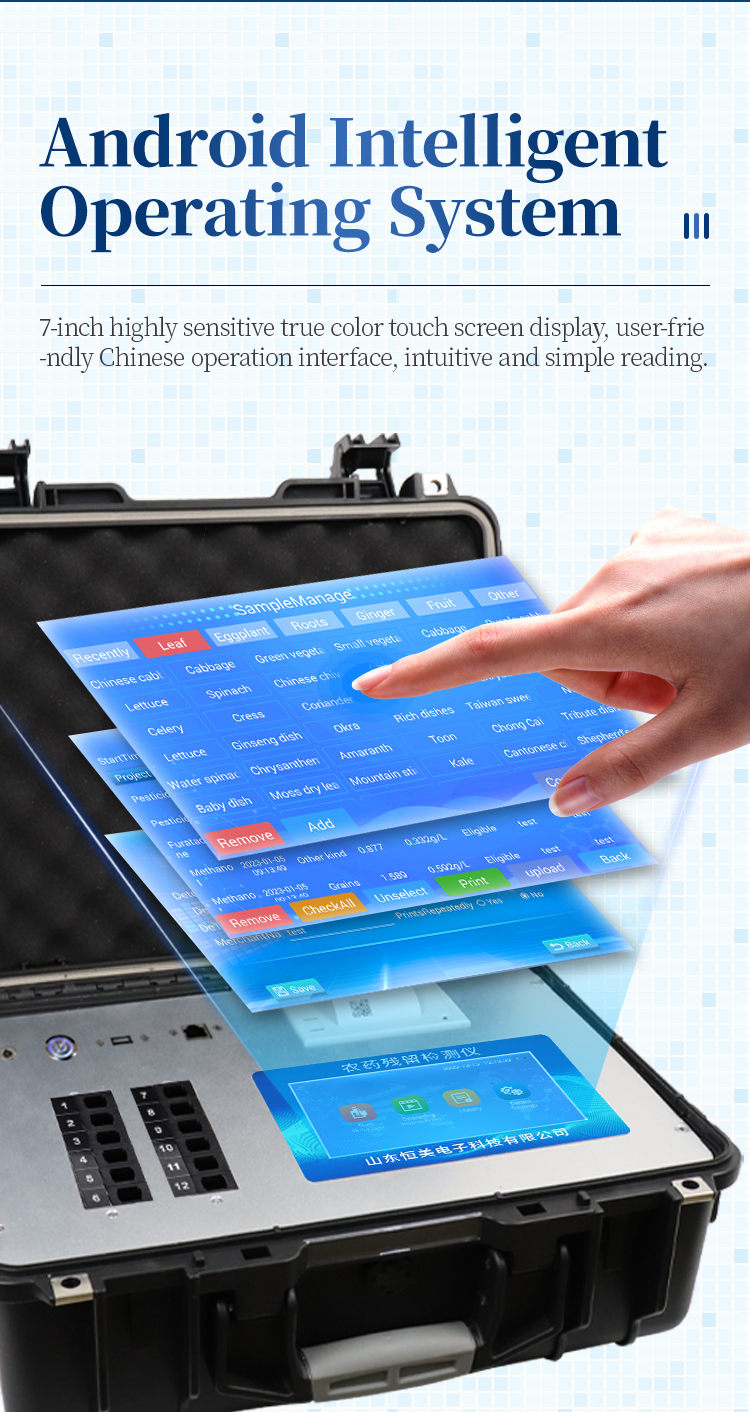

3. Display mode: 7-inch LCD touch screen display, humanized Chinese operation interface, intuitive and simple reading.
4. AC and DC dual-use, equipped with 6ah large-capacity rechargeable lithium battery, convenient outdoor flow test, DC 12V power supply, can be connected to the vehicle power supply.
5. Intelligent constant current voltage regulation, automatic adjustment and calibration of light intensity, long-term continuous working light source without temperature drift phenomenon.
6. Sample number is automatically accumulated.
7. Data wireless upload platform, and can be exported from the platform as Excel table.
8. Storage capacity of 200,000 test results
9. Supports USB flash drive copying, standard USB interface, no need for driver plugging and unplugging.
10. Test items can be expanded and firmware can be upgraded
11. Instrument size: 43×35×19cm, main unit net weight: 5.2kg

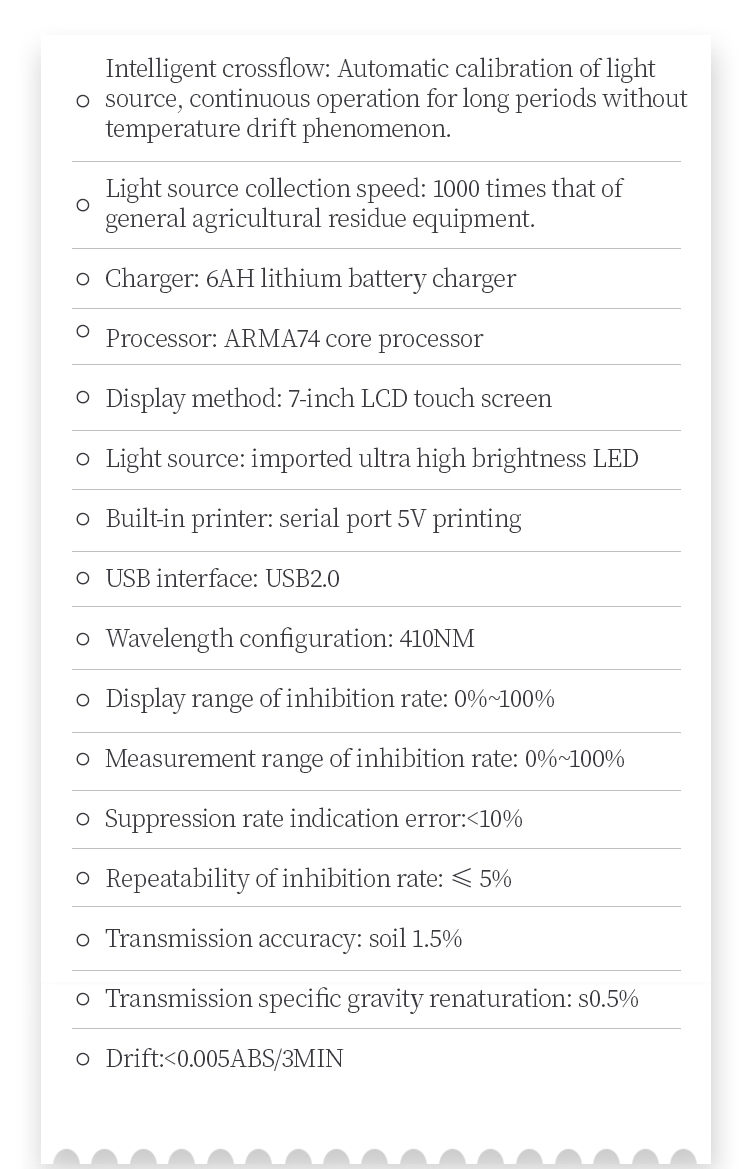

Technical parameters;
* Wavelength configuration: 410nm;
* Inhibition rate display range: 0%～100%;
* Inhibition rate measurement range: 0%～100%;
* Transmittance accuracy: ±1.5%;
* Transmittance repeatability: ≤0.5%;
* Drift: ≤0.005Abs/3min;
* Inhibition rate indication error: ≤10%
* Inhibition rate repeatability: ≤5%
Optional functions
1) Voice reading function can be added to provide humanized guidance operation.
3) The instrument can realize self-heating function.
4) Large-capacity lithium battery can be configured.
